1. Brush: copper
2. Resistor: bakelite
3. Rotation angle: 200 degrees
4. Rotational torque: 60-150 g/cm
5. Stop strength: 500 g/cm
6. Mechanical strength: resistor can withstand 1 kg of pressure without breaking
7. Resistance range (Ohms): 100R-1M
8. Resistance variation characteristics: B
9. Operating voltage: 50V (MAX)
10. Rated: 0.1W
11. Residual resistance: no more than 5 percent of the nominal resistance, no more than 30 ohms
12. Rotational Life: 15 percent resistance change after 100 rotations without load
13. Load Life: 5 percent resistance change after 3 hours of rated power
14. Adjustable resistors have a wide range of applications, including home appliances and the electronic security industry. Specific products include televisions, induction cookers, rice cookers, and more.

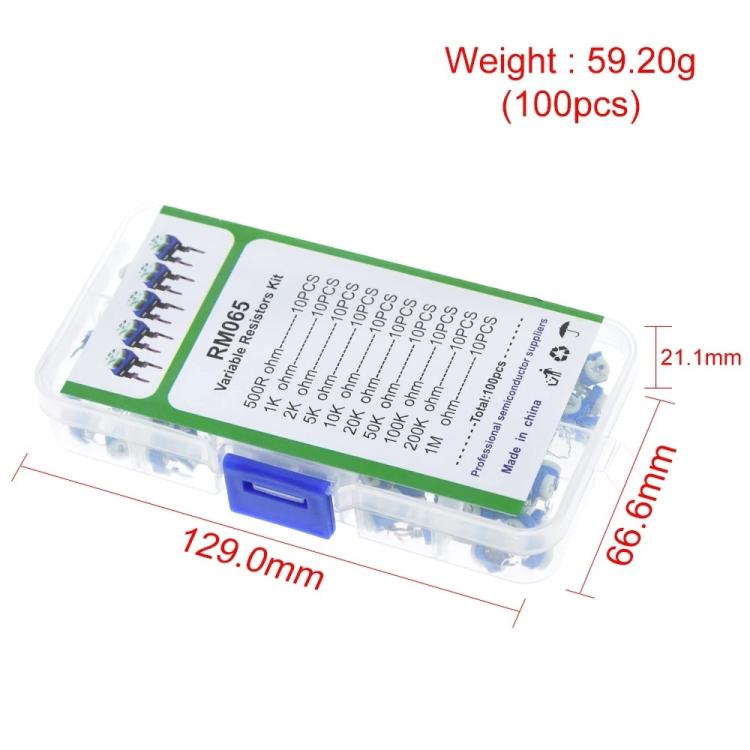

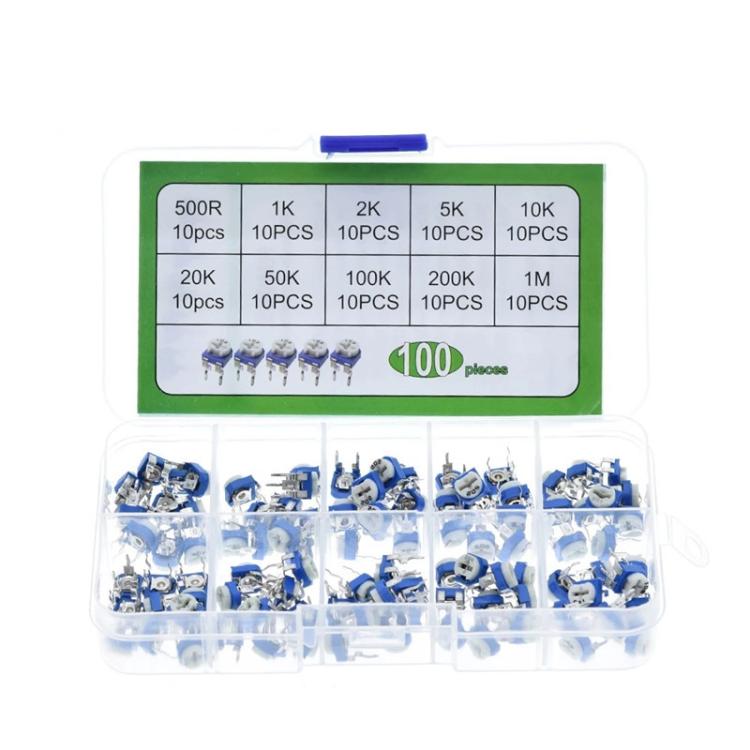

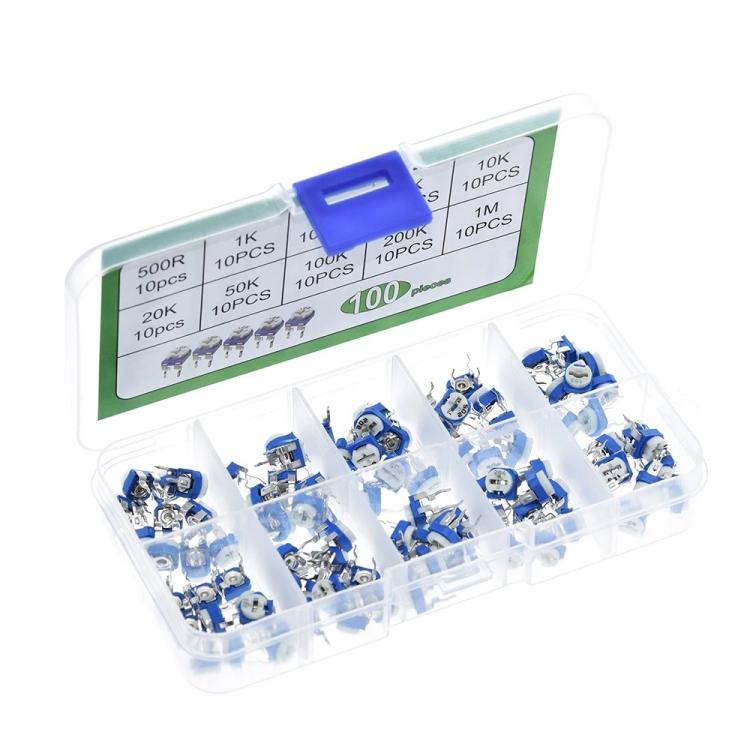

Packing List:
- 10 x 500R ohm
- 10 x 1K ohms
- 10 x 2K ohm
- 10 x 5K ohms
- 10 x 10K ohm
- 10 x 20K ohm
- 10 x 50K ohm
- 10 x 100K ohms
- 10 x 200K ohms
- 10 x 1M ohm
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
15cm * 8cm * 5cm / 5.91inch * 3.15inch * 1.97inch
|
| Carton Weight |
5.50kgs / 12.13lb
|
| Carton Size |
47cm * 34cm * 32cm / 18.5inch * 13.39inch * 12.6inch
|
| Loading Container |
20GP: 521 cartons * 72 pcs = 37512 pcs
40HQ: 1210 cartons * 72 pcs = 87120 pcs
|
|
