Features:
1. 16-Channel High Capacity: Supports up to 16 independent channels for simultaneous multi-tag reading and writing, greatly improving efficiency.

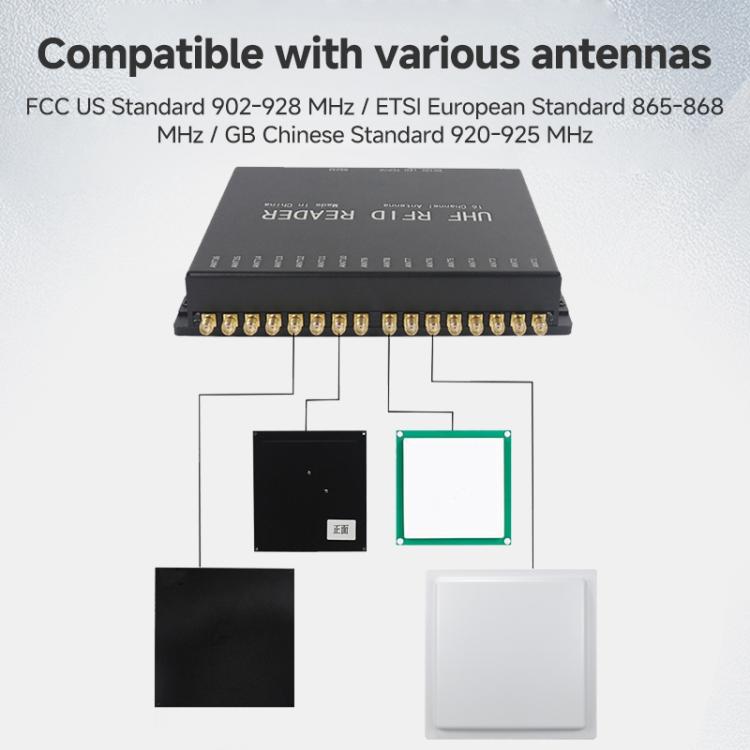

2. Split-Type Design: Modular reader and antenna configuration allows flexible installation and easier maintenance.
3. Long-Range & High Sensitivity: Advanced UHF technology ensures stable long-distance tag recognition with fast response.
4. Industrial-Grade Performance: Built for 24/7 operation with strong anti-interference capability for harsh environments.
5. Wide Applications: Perfect for warehouse logistics, production line tracking, smart asset management, and access control systems.
Specifications:
1. Product model: FE-716
2. Chipset: Impinj E710
3. Frequency Range: UHF 860-960 MHz

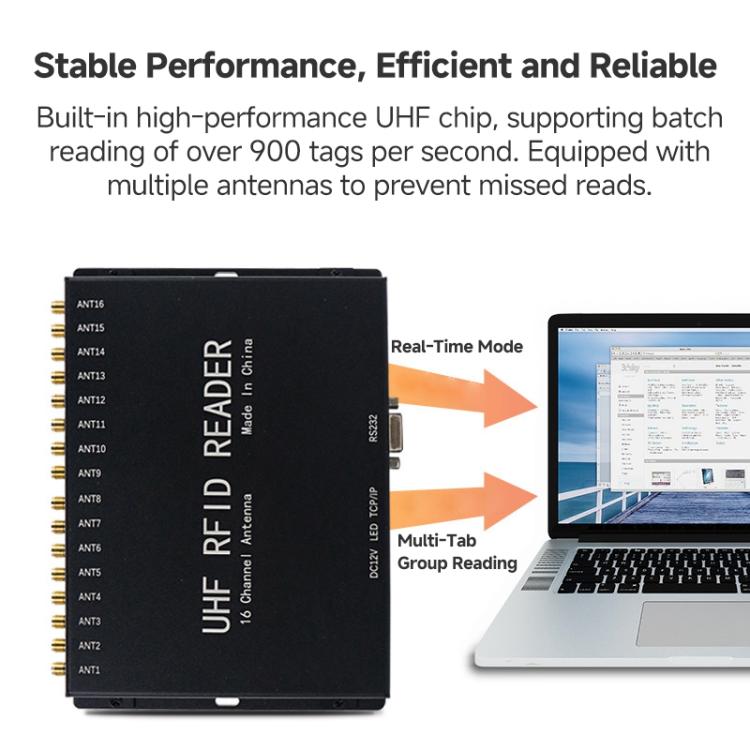

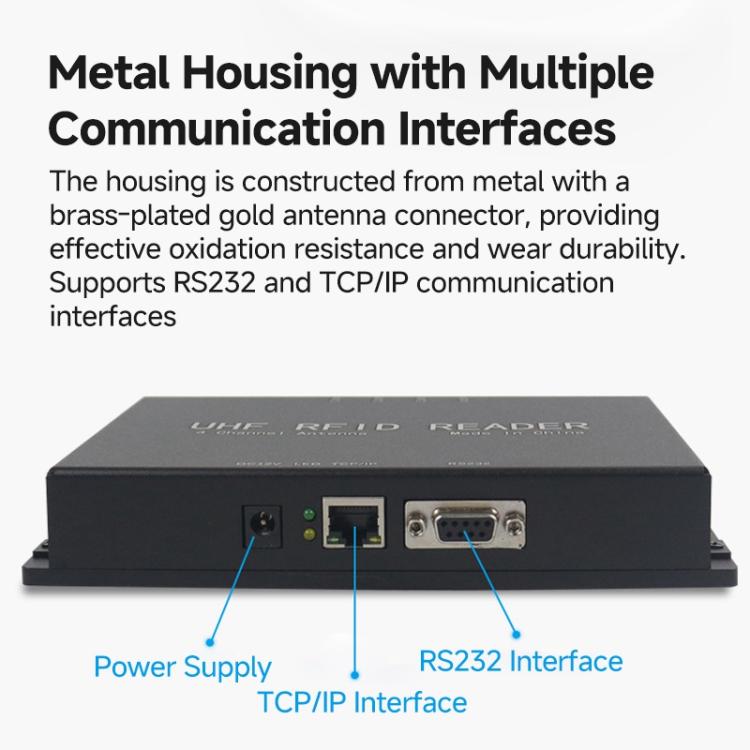

4. Communication Interface: RS232 / TCP/IP
5. Working agreement: IOS18000-6C
6. Card reading power: 1~33dBm adjustable
7. Reading Distance: 0-20 meters depending on antenna/tag
8. Tag group reading: Greater than 900 images/second (Top point)
9. Power Supply: DC 12V/3A

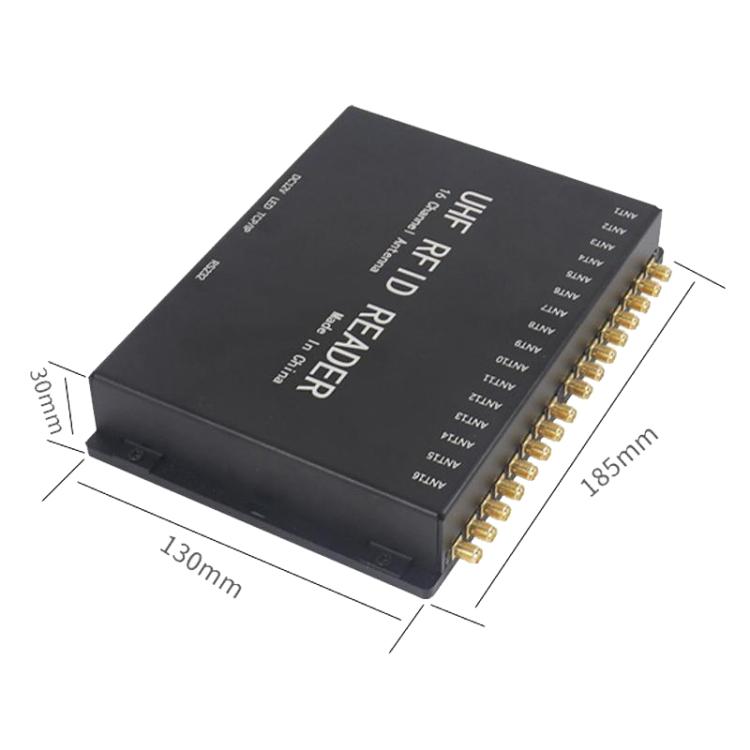

10. Size: 185x130x30mm
Specification:
|
Package Weight
|
| One Package Weight |
2.03kgs / 4.48lb
|
| One Package Size |
35cm * 20cm * 7cm / 13.78inch * 7.87inch * 2.76inch
|
| Carton Weight |
21.00kgs / 46.30lb
|
| Carton Size |
42cm * 35cm * 35cm / 16.54inch * 13.78inch * 13.78inch
|
| Loading Container |
20GP: 518 cartons * 10 pcs = 5180 pcs
40HQ: 1203 cartons * 10 pcs = 12030 pcs
|
|
