Product Details:

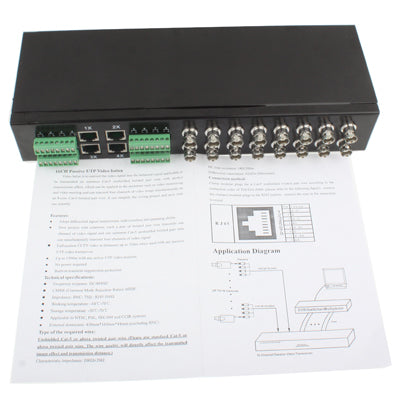

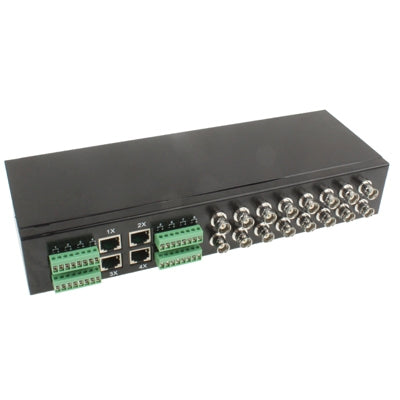

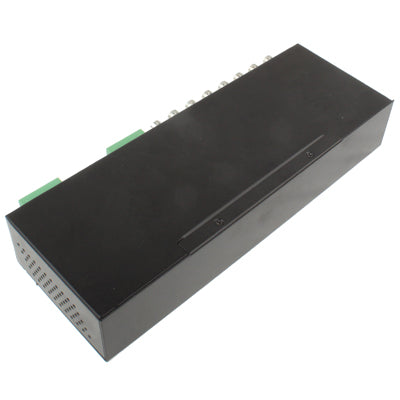

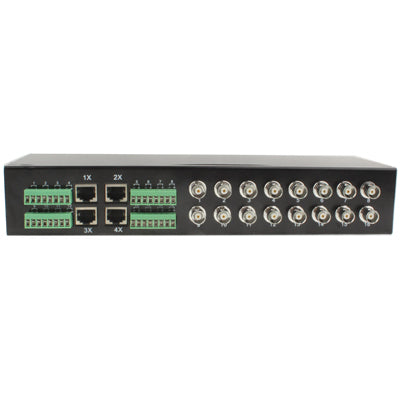

1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
Specification:
|
Package Weight
|
| One Package Weight |
1.36kgs / 2.99lb
|
| Carton Weight |
11.20kgs / 24.69lb
|
| Carton Size |
40cm * 33cm * 32cm / 15.75inch * 12.99inch * 12.6inch
|
| Loading Container |
20GP: 631 cartons * 8 pcs = 5048 pcs
40HQ: 1465 cartons * 8 pcs = 11720 pcs
|
|
