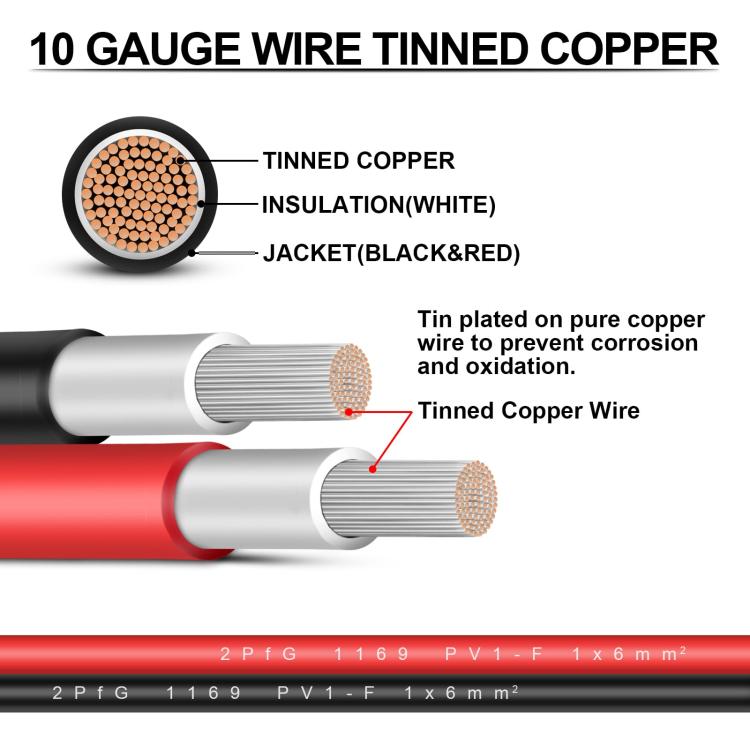

1. Material: copper + PVC
2. Product specifications: 10AWG (6 square millimeters)
3. Cable length: 2 meters
4. Voltage rating: 1.8KV
5. Surface finish: irradiation process, UV-resistant outer sheath for enhanced safety and durability

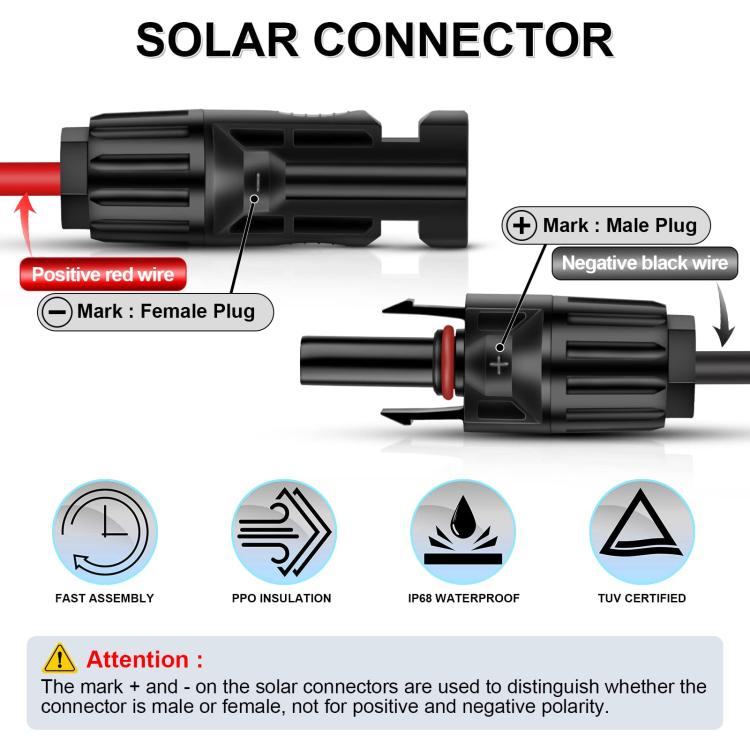

6. Installation type: direct plug-in
7. Rated current: 70A
8. Waterproof rating: IP67

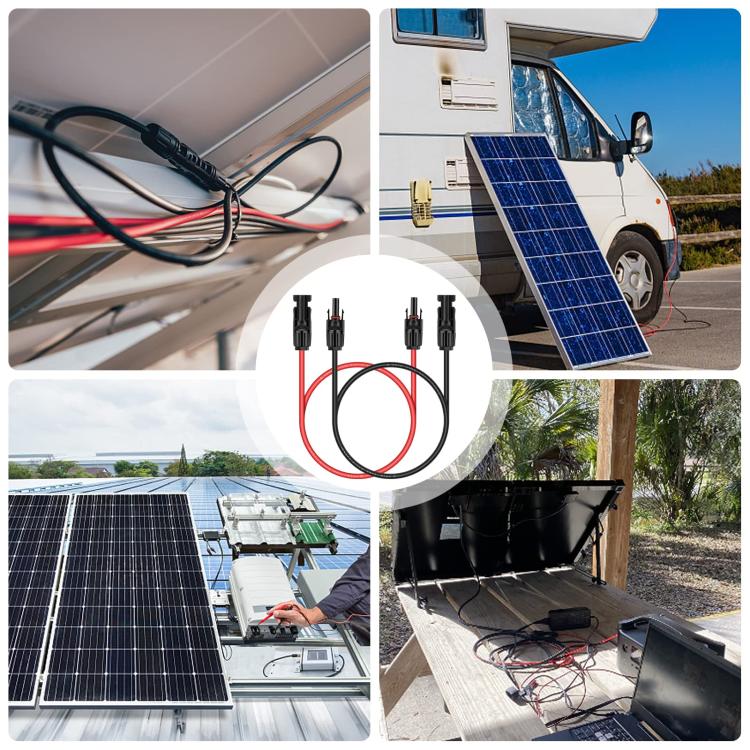

9. Application: primarily used to extend the connection distance from solar panels to charge controllers, inverters, or other photovoltaic system components, allowing for more flexible system design and layout.

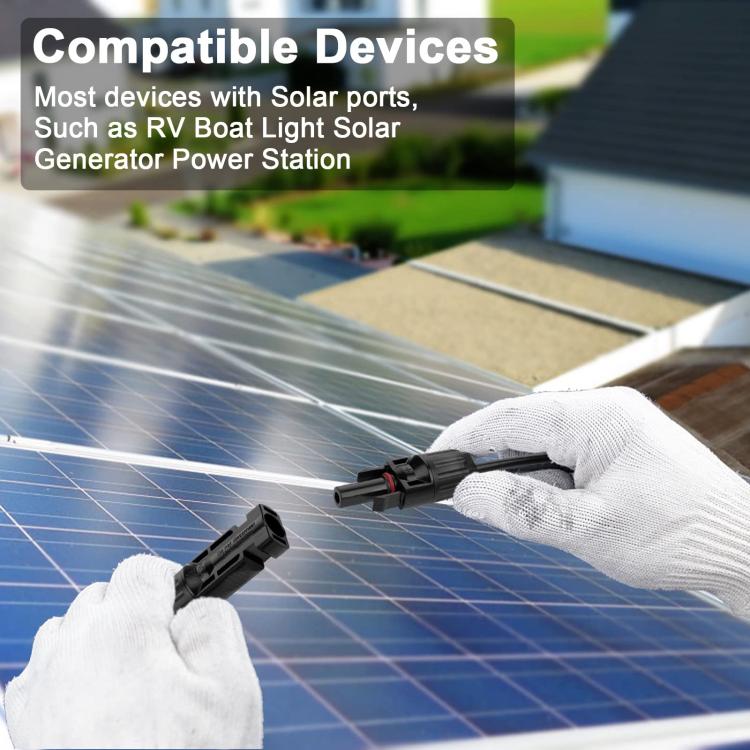

10. Application scope: photovoltaic projects in RVs, yachts, industrial, and residential applications.

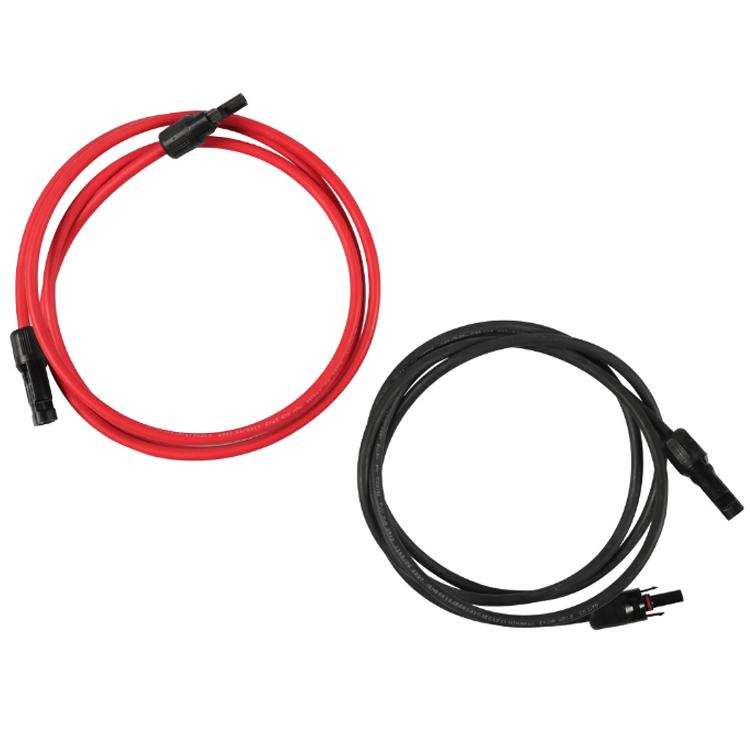

11. Product composition: red MC4 photovoltaic extension cable x 1; black MC4 photovoltaic extension cable x 1
12. Net weight: 389g

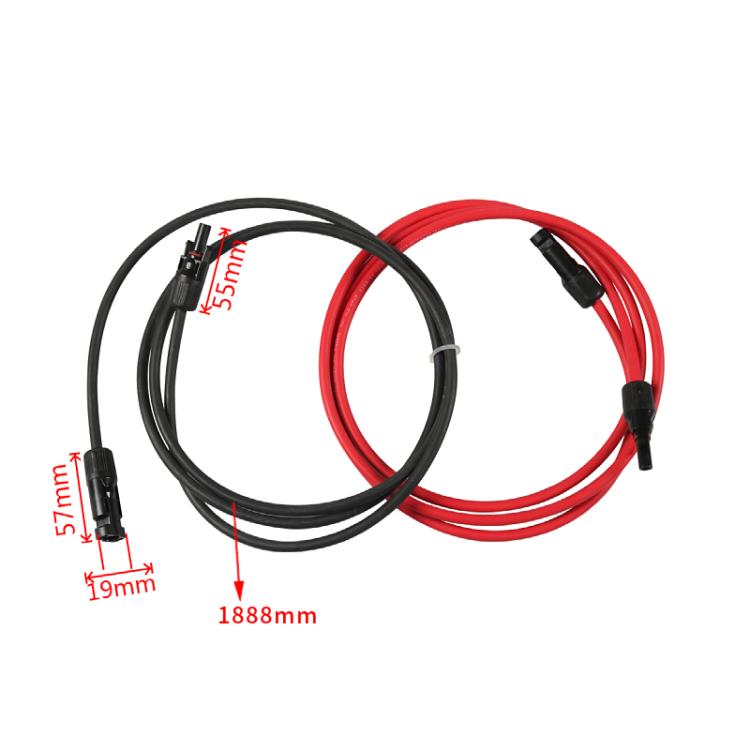

13. Dimensions: 200 x 1.9 x 1.9cm
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.88lb
|
| One Package Size |
28cm * 21cm * 5cm / 11.02inch * 8.27inch * 1.97inch
|
| Carton Weight |
3.50kgs / 7.72lb
|
| Carton Size |
30cm * 23cm * 32cm / 11.81inch * 9.06inch * 12.6inch
|
| Loading Container |
20GP: 1207 cartons * 6 pcs = 7242 pcs
40HQ: 2803 cartons * 6 pcs = 16818 pcs
|
|
