Features:
1. Wide Angle Imaging: Provides a wide field of view for smart home monitoring, helping capture a broader surveillance area.
2. Multiple Sensor Compatibility: Designed for 1/2.7 inch OV2710 and C2399 sensors, and compatible with 1/2.8 inch IMX307 sensors.
3. High Definition Optical Design: The optical structure provides clear imaging performance for smart home cameras and security monitoring devices.

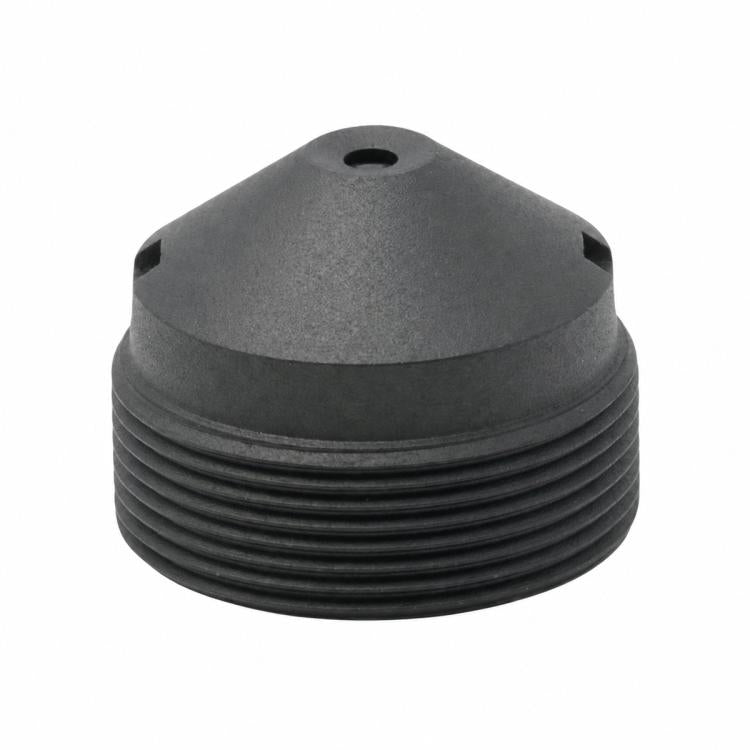

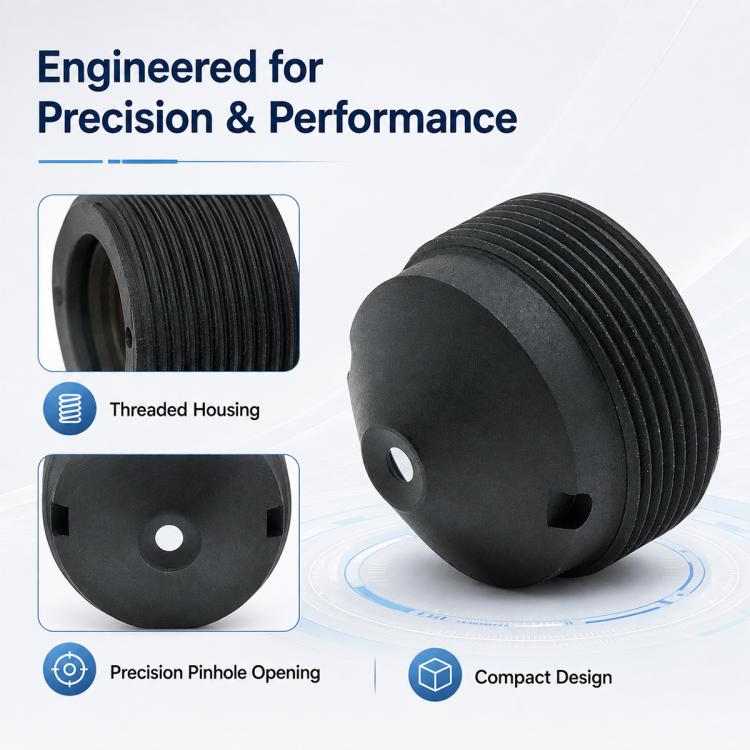

4. Compact Pointed Design: The pointed lens structure is suitable for compact camera modules and space-constrained monitoring equipment.
5. M12 Interface: Features an M12 x 0.5 thread for convenient installation with compatible camera modules.
Specification:
1. Compatible Sensor: 1/2.7 inch OV2710 sensor
2. Maximum Image Circle: 7mm
3. Effective Focal Length: 4.2mm
4. Back Focal Length: 3.2mm
5. Mechanical Back Focal Length: 2.0mm
6. Aperture: F3.5
7. Field of View: Diagonal 124 degrees / Horizontal 94 degrees / Vertical 45.6 degrees
8. Field of View for 1/2.7 inch C2399 Sensor: Diagonal 119.6 degrees / Horizontal 91.4 degrees / Vertical 45.2 degrees
9. Field of View for 1/2.8 inch IMX307 Sensor: Diagonal 112.4 degrees / Horizontal 88.1 degrees / Vertical 44.2 degrees
10. TV Distortion: -16.30%
11. Chief Ray Angle: Less than 12.24 degrees
12. Relative Illumination: 70%
13. Lens Construction: 1P3G
14. Thread: M12 x 0.5
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 290 cartons * 500 pcs = 145000 pcs
40HQ: 674 cartons * 500 pcs = 337000 pcs
|
|
