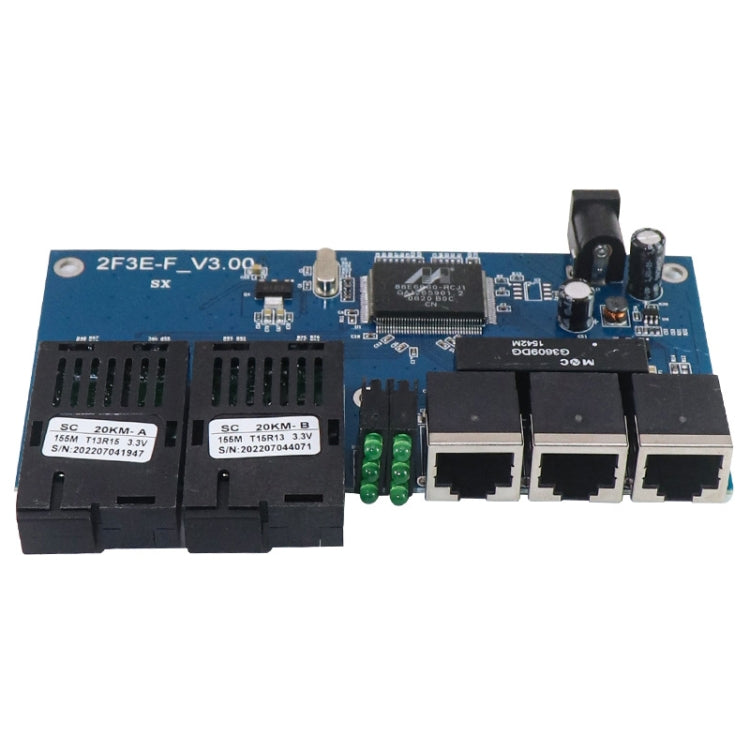

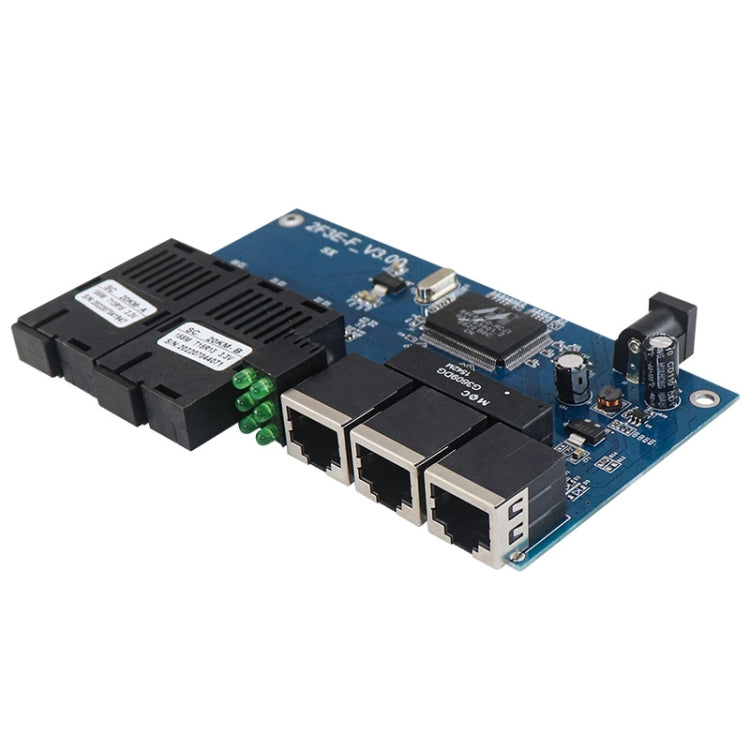

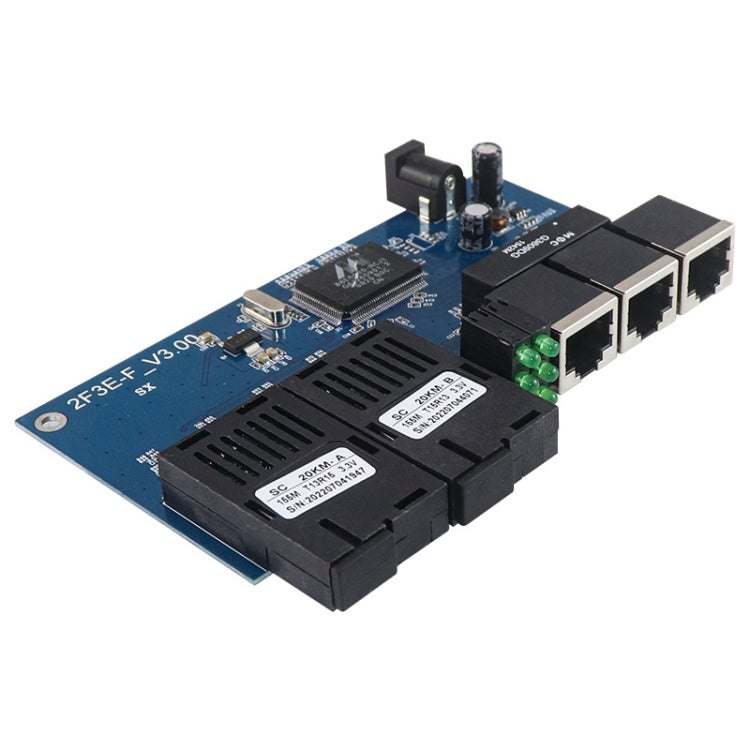

1. Specifications: 2 fiber optic ports + 3 RJ45 ports 100Mbps PCBA fiber optic converter
2. Transmission rate: 100Mbps
3. Fiber mode: single mode single fiber
4. Interface type: SC interface
5. Transmission distance: 20km
6. Product weight: 62g
7. Working voltage: DC 5V 2A
8. Working temperature: -10 to 60 degrees Celsius

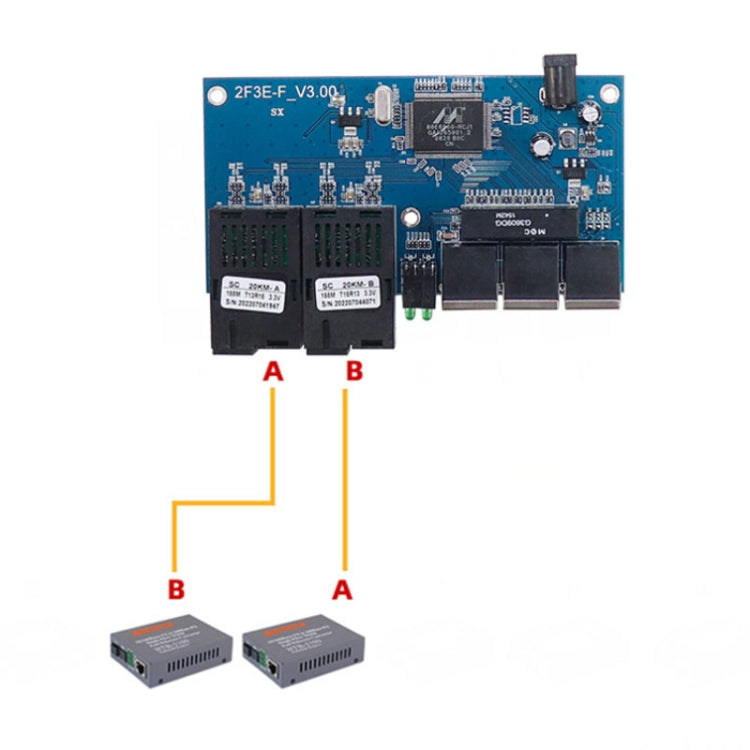

9. Working wavelength:
-A side: TX1310nm/RX1550nm
-B end: TX1550nm/RX1310nm
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 356 pcs = 63012 pcs
40HQ: 412 cartons * 356 pcs = 146672 pcs
|
|
