1. Reverse connection protection, positive and negative poles connected to the wrong not work, can well protect the governor
2. Fixed mounting lugs, easy installation
3. Working voltage: DC 9V-60V
4. Output voltage: linear under load
5. Continuous current: 18A
6. Control current: 0-20A
7. Speed regulation range: 0 percent - 100 percent
8. Speed regulation mode: potentiometer

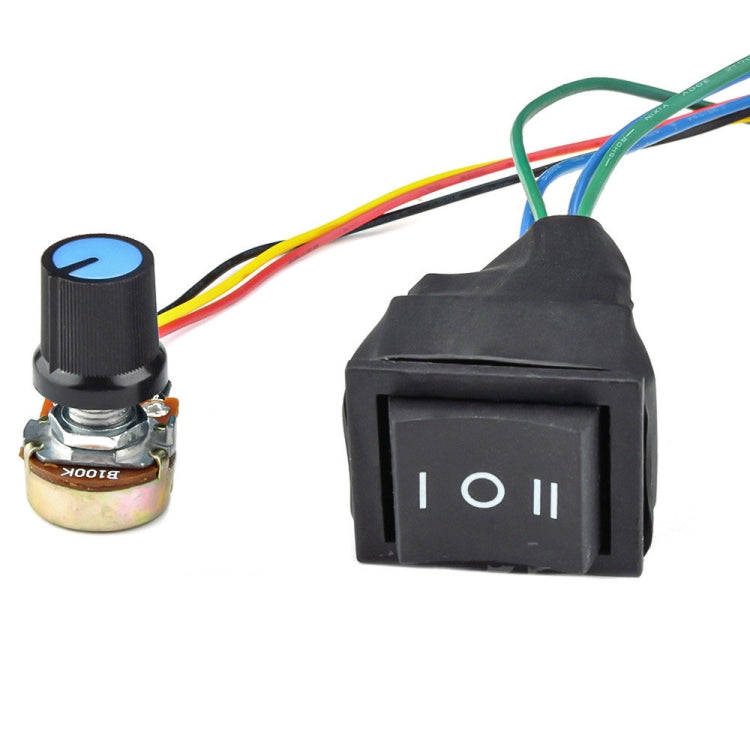

9. Forward and reverse: support
10. Speed regulation principle: flow regulation

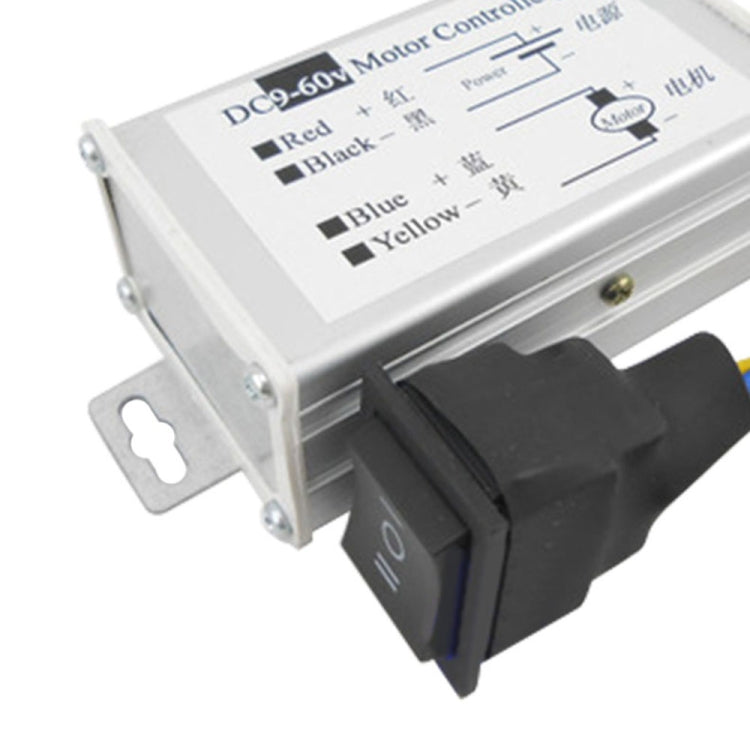

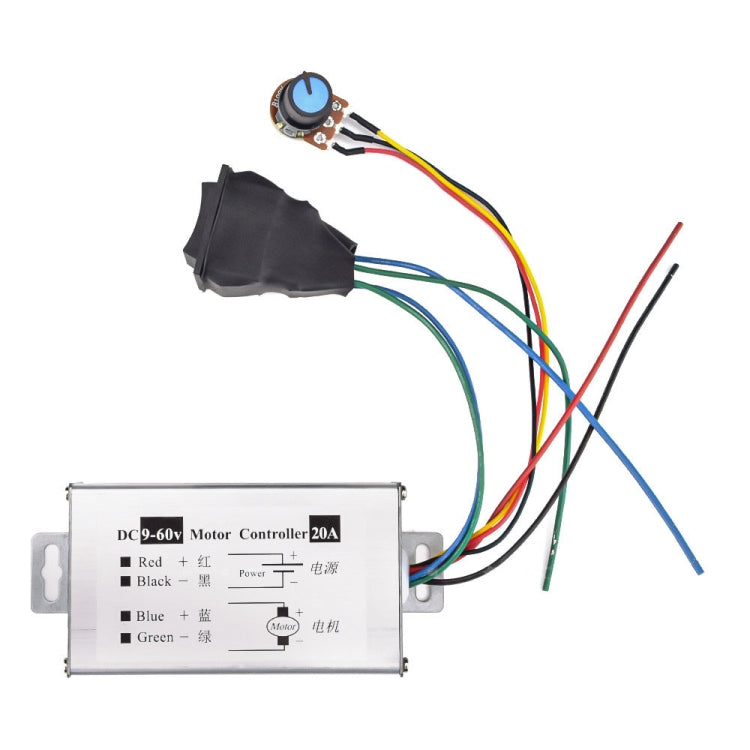

11. Wiring mode:
- Red wire connection: power supply positive +
- Black wire connection: power negative -
- Blue wire connection: motor positive +
- Green wire connection: motor negative -

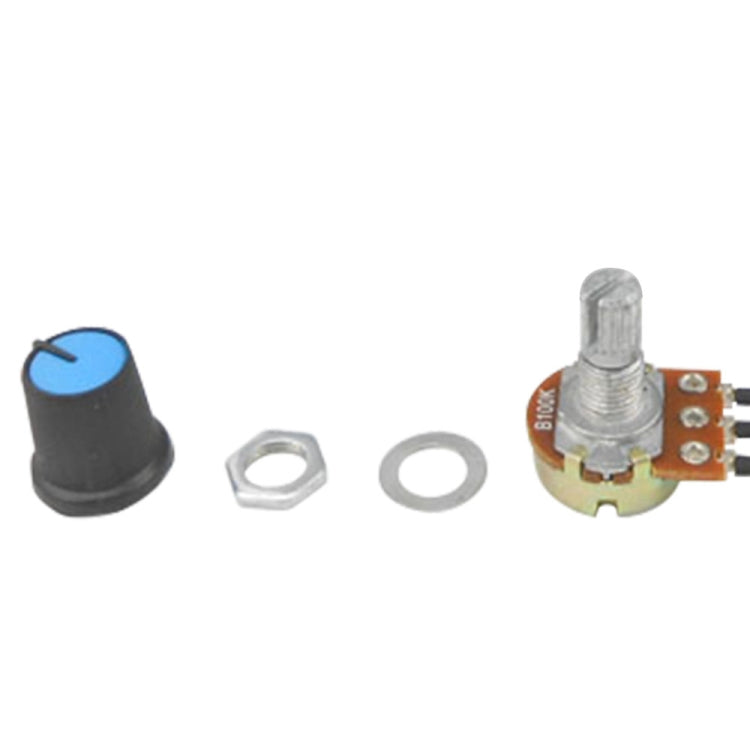

12. Potentiometer opening: 7mm
13. Mounting hole center distance: approx. 10.4cm

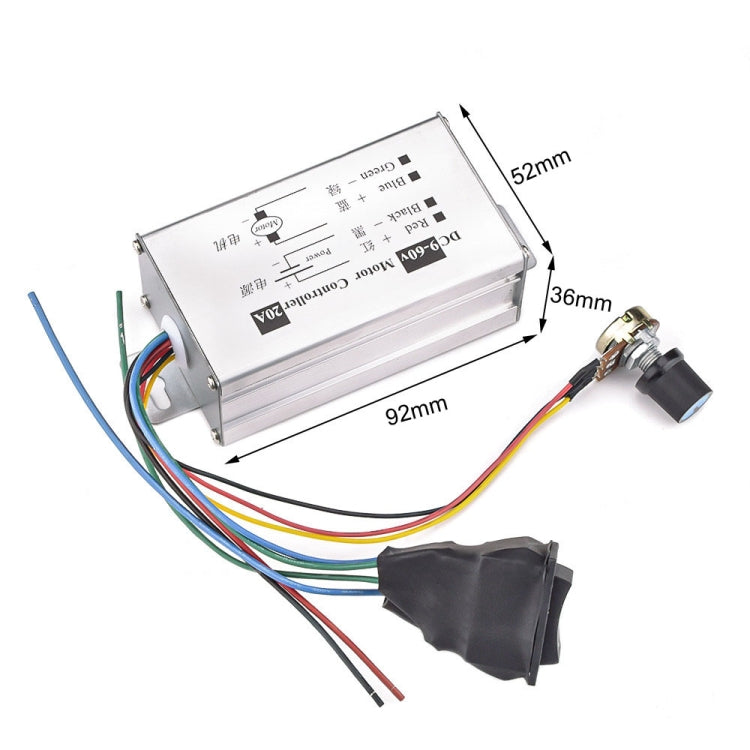

14. Dimensions: approx. 9.2 x 5.2 x 3.6cm
15. Weight: approx. 155g
16. Note: do not switch to the other direction while running at high speed, not for use on electric vehicles, not for use on geared motors
Specification:
|
Package Weight
|
| One Package Weight |
0.18kgs / 0.41lb
|
| One Package Size |
12cm * 8cm * 4cm / 4.72inch * 3.15inch * 1.57inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 162 pcs = 28674 pcs
40HQ: 412 cartons * 162 pcs = 66744 pcs
|
|
