1. Weight: 1400g
2. Wire length: 3 square meters X 45CM
3. Output voltage: 14.5v

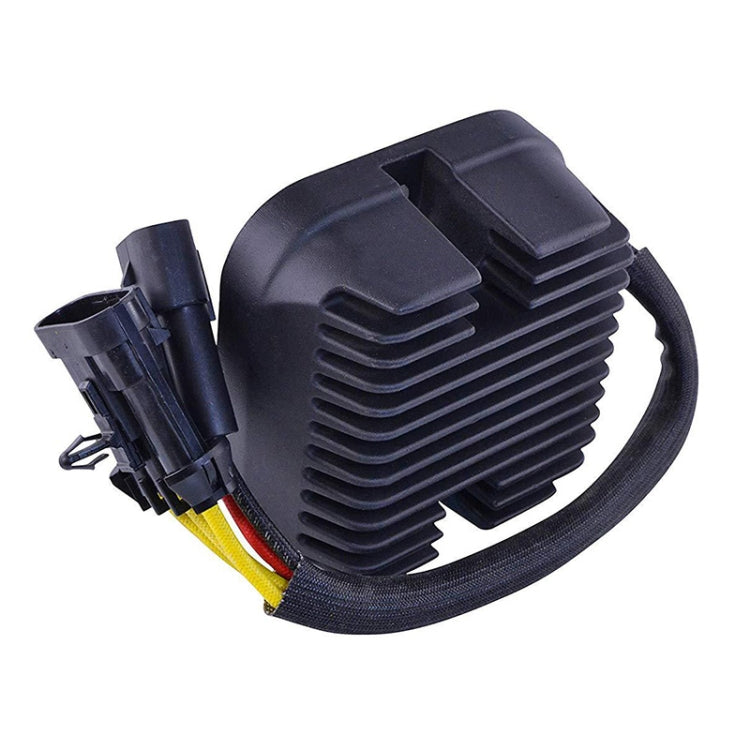

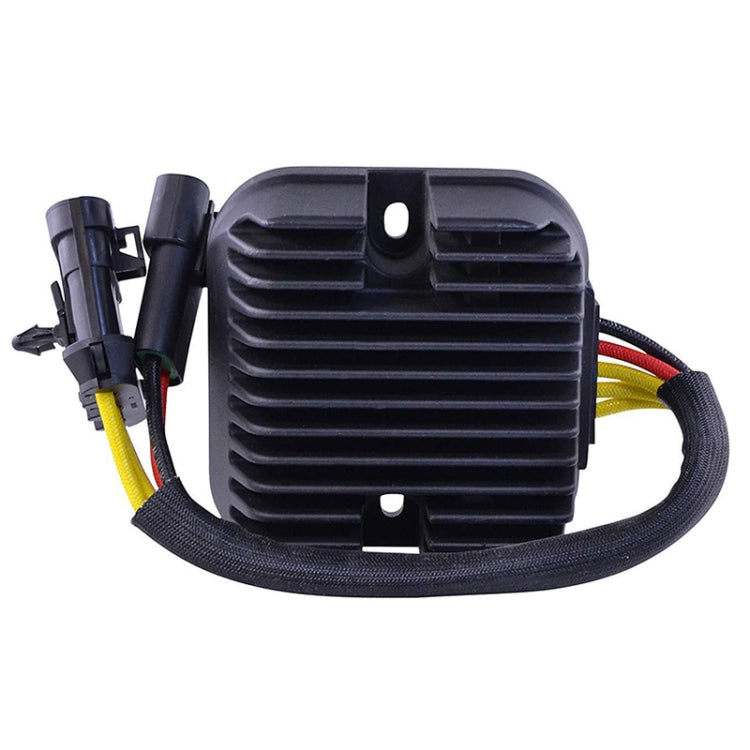

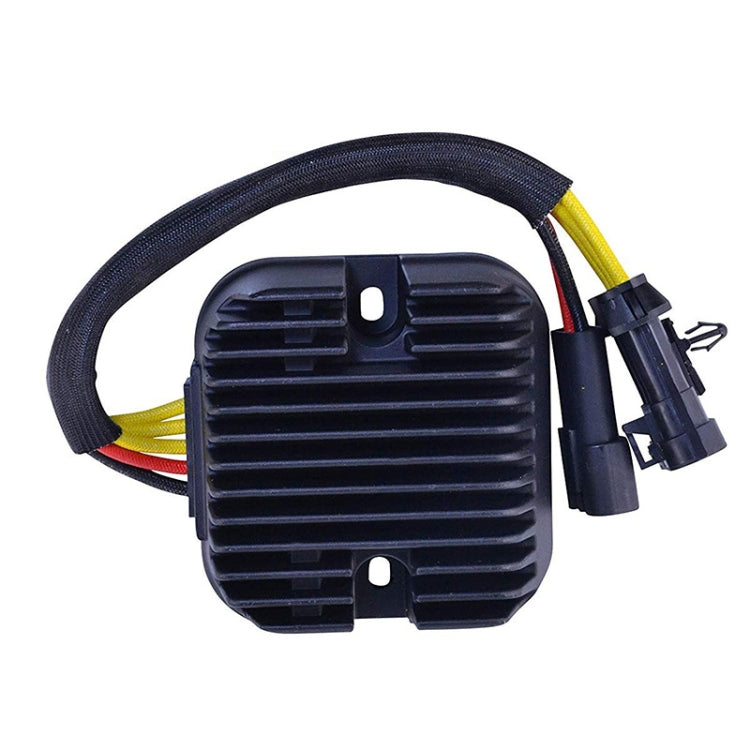

4. Category: Three-phase full-wave rectifier
Installation precautions:
1.The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2.The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

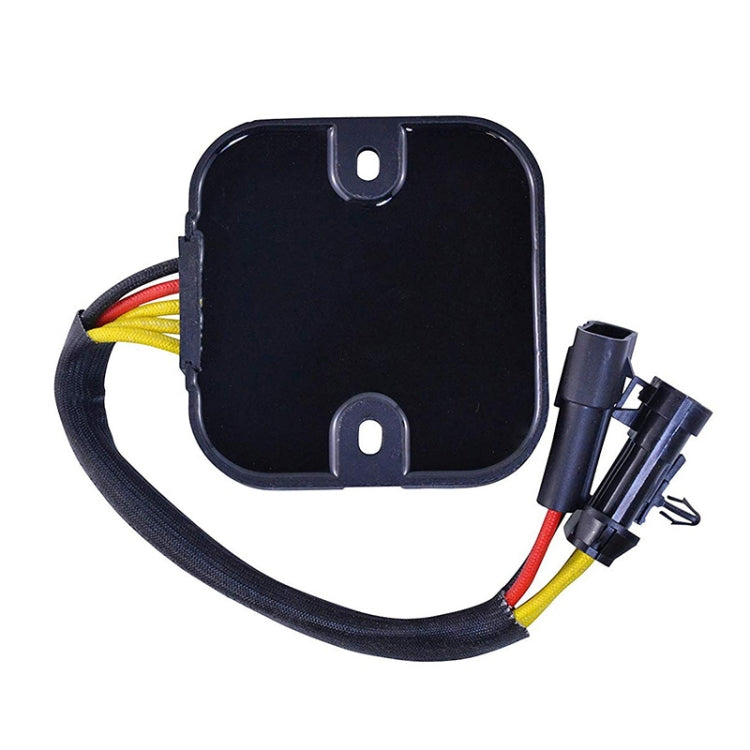

3.Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4.Do not press other wires between the rectifier and the frame
5.There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent excessive voltage from burning out other electrical components when the rectifier is damaged.
Applicable models:
For Polaris Ranger XP 900 2013 2015 4013978
For Polaris Ranger Crew 900 2014 2015 4013978
For Polaris RZR 60 inch 900 2015 4013978
Specification:
|
Package Weight
|
| One Package Weight |
1.50kgs / 3.32lb
|
| One Package Size |
22cm * 18cm * 12cm / 8.66inch * 7.09inch * 4.72inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
59cm * 48cm * 32cm / 23.23inch * 18.9inch * 12.6inch
|
| Loading Container |
20GP: 294 cartons * 20 pcs = 5880 pcs
40HQ: 683 cartons * 20 pcs = 13660 pcs
|
|
