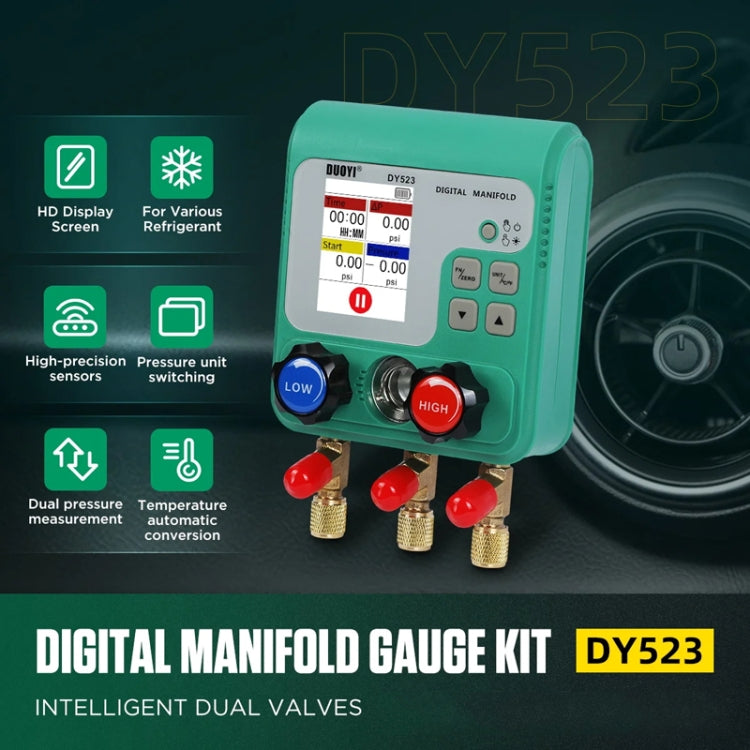

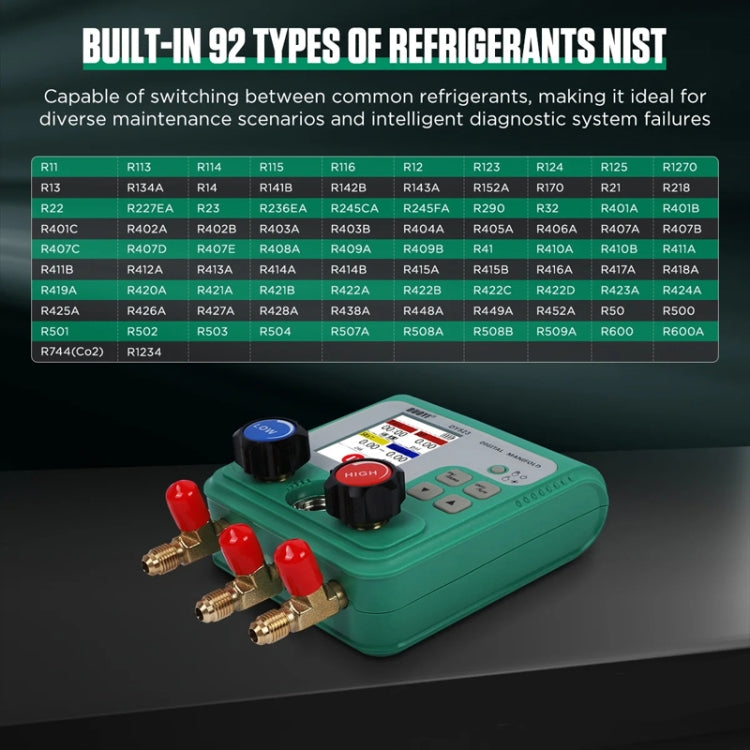

1. Suitable for various maintenance scenarios and intelligent diagnosis of system faults

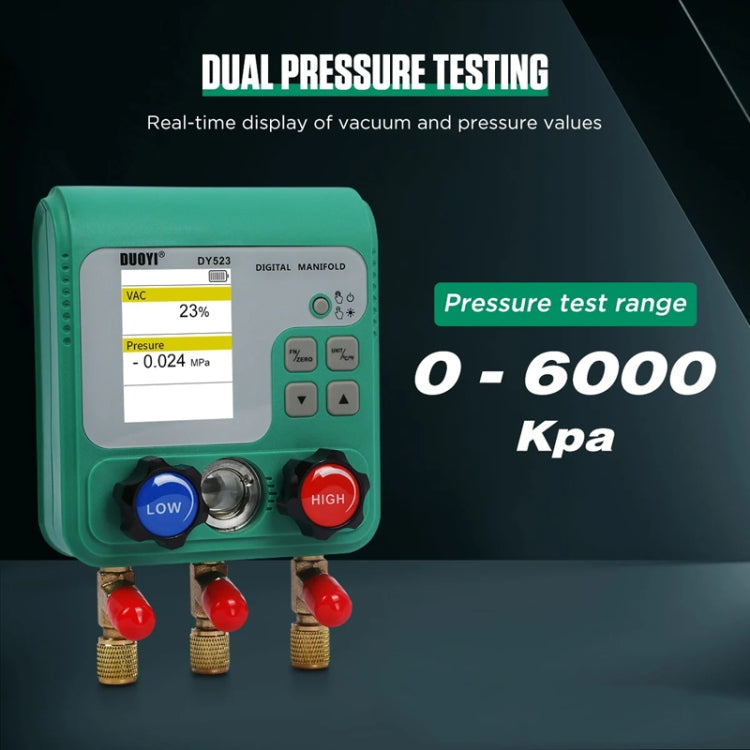

2. Dual pressure test, real-time display of vacuum and pressure values

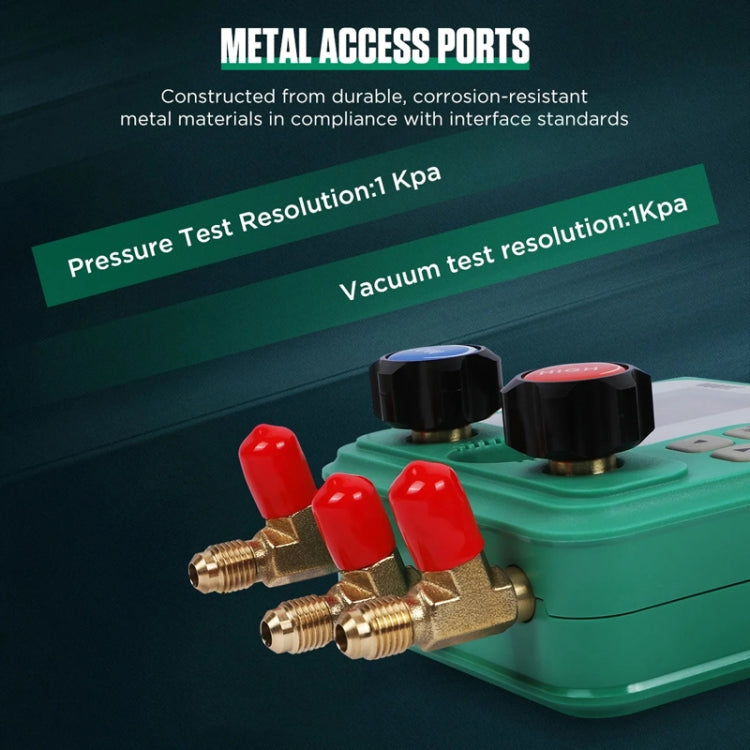

3. Metal access port is made of durable, corrosion-resistant metal material that meets interface standards

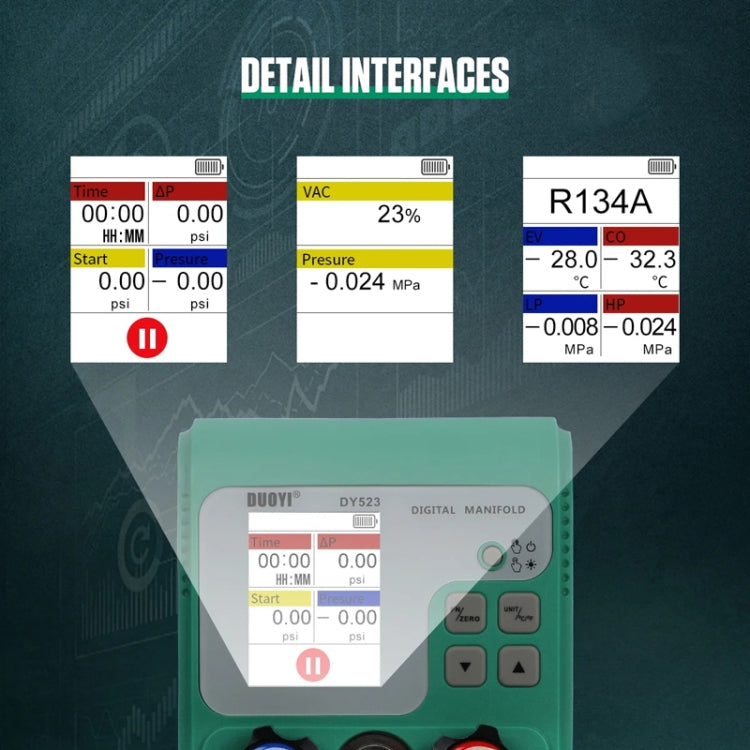

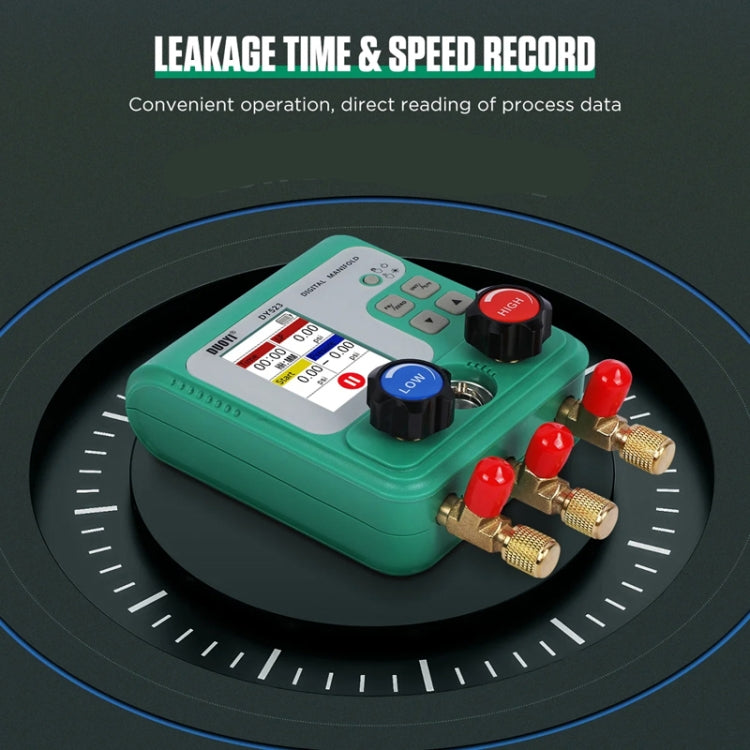

4. Easy to operate, direct readout of data

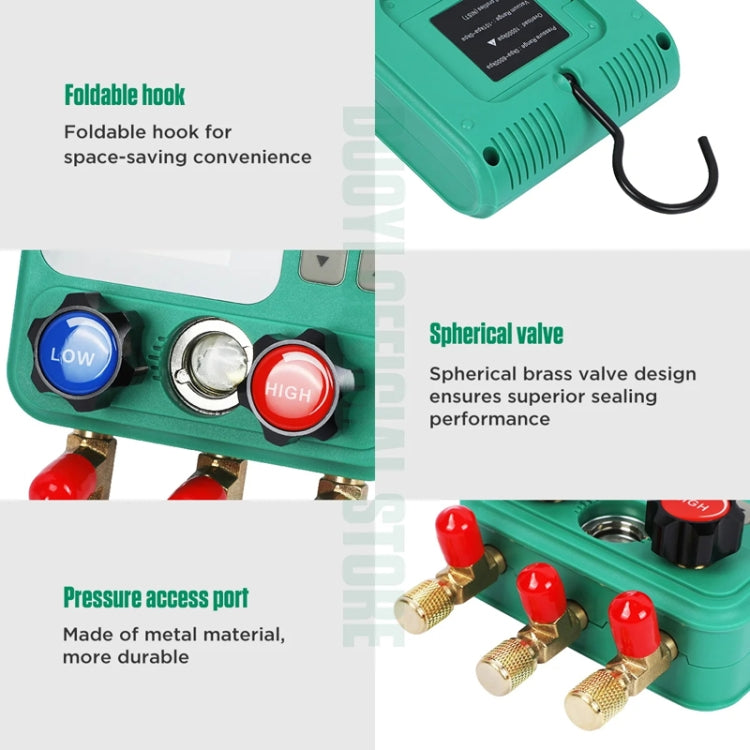

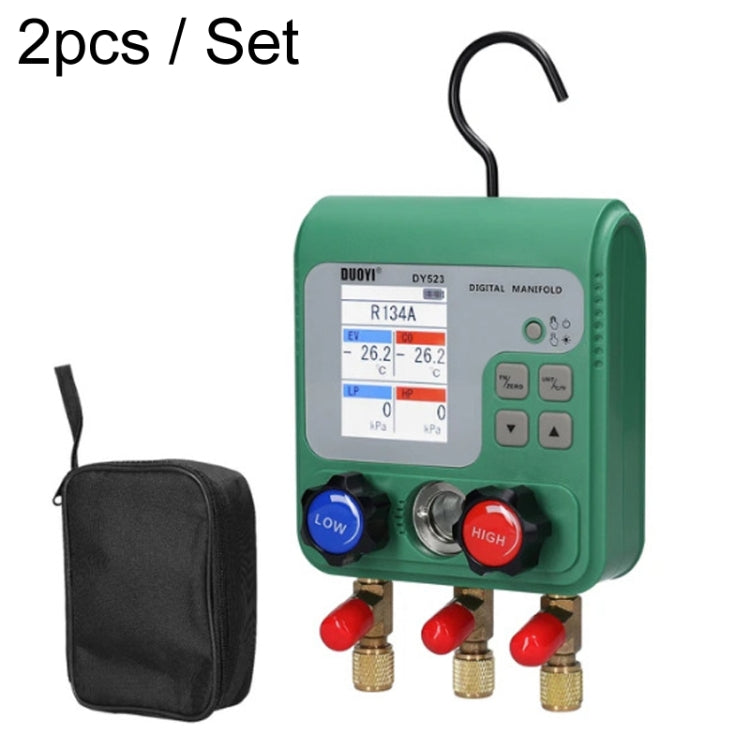

5. Folding hook for space-saving and easy access
6. Ball-type brass valve design, good sealing performance
7. Pressure access port made of metal, more durable
Parameters:
1. Pressure test: Psig
2. Pressure test unit: Kpa; Mpa; bar; inHG; PSI
3. Pressure test range: 0-600Kpa
4. Pressure test resolution: 1Kpa
5. Pressure testing accuracy: +/- 0.5 percent (FS) +5dgt
6. Pressure overload limit: 1000Kpa (10Mpa; 100bar)
7. Vacuum test: relative vacuum
8. Vacuum test unit: Kpa; Mpa; bar; inHG; PSI
9. Vacuum test range: -101Kpa-0Kpa
10. Vacuum test resolution: 1Kpa
11. Battery: 3 x 1.5V (AA / LR6), shipped without

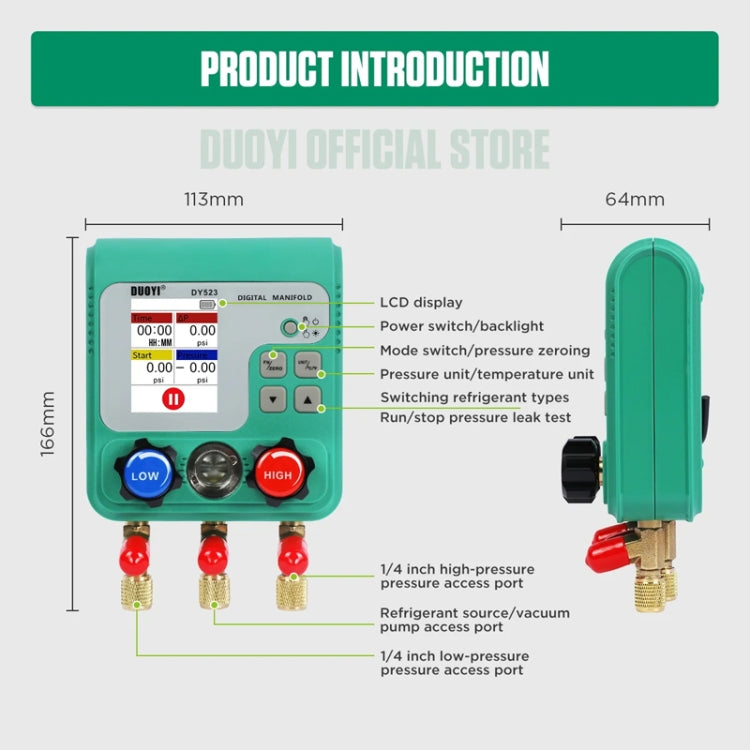

12. Size: 116 x 113 x 64mm
Specification:
|
Package Weight
|
| One Package Weight |
0.90kgs / 1.99lb
|
| One Package Size |
19cm * 16cm * 8cm / 7.48inch * 6.3inch * 3.15inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
47cm * 34cm * 43cm / 18.5inch * 13.39inch * 16.93inch
|
| Loading Container |
20GP: 388 cartons * 20 pcs = 7760 pcs
40HQ: 900 cartons * 20 pcs = 18000 pcs
|
|
