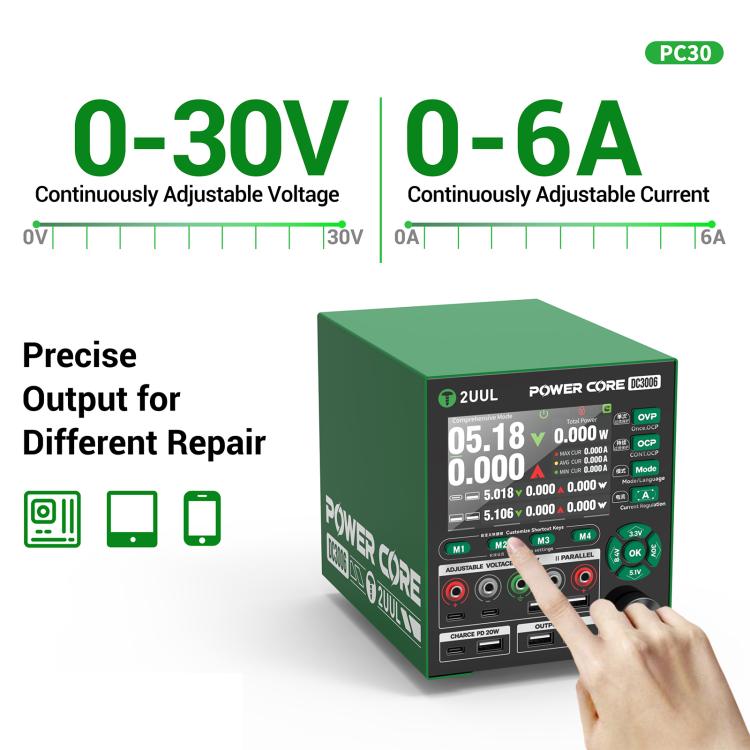

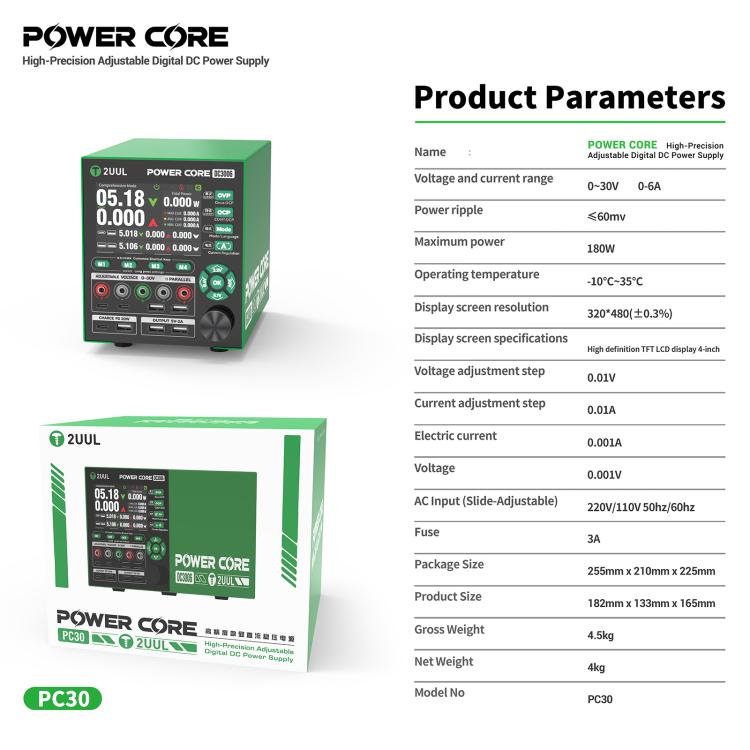

1. Voltage: 0-30V
2. Current Range: 0-6A
3. Power Ripple: Approx. 60mV
4. Maximum Power: 180W
5. Operating Temperature: -10°C to 35°C
6. Display Resolution: 320x480
7. Display Specifications: 4-inch High-Definition TFT LCD Screen
8. Voltage Adjustment Step: 0.01V
9. Current Adjustment Step: 0.01A
10. Current Resolution: 0.001A
11. Voltage Resolution: 0.001V

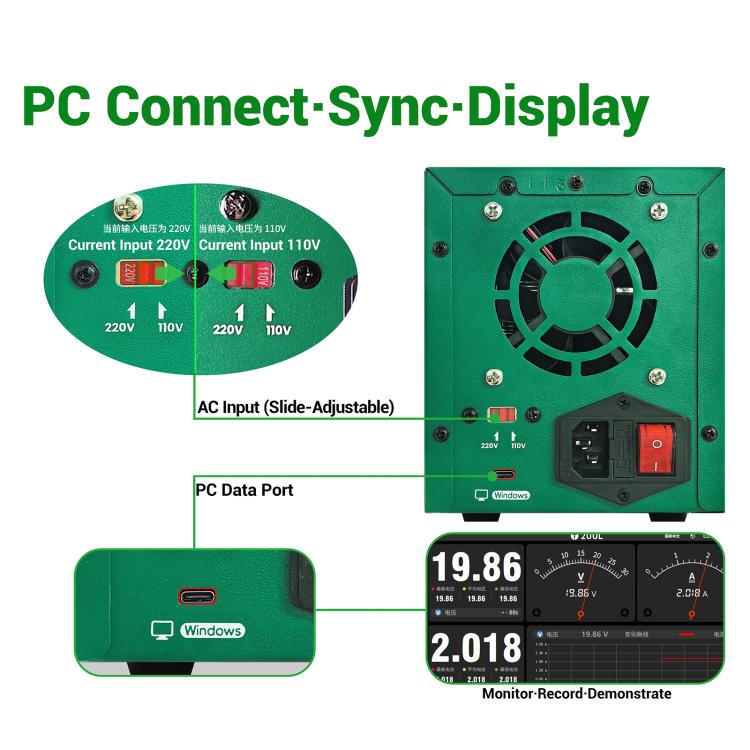

12. AC Input (Slide Adjustment): 220V/110V 50Hz/60Hz
13. Fuse: 3A

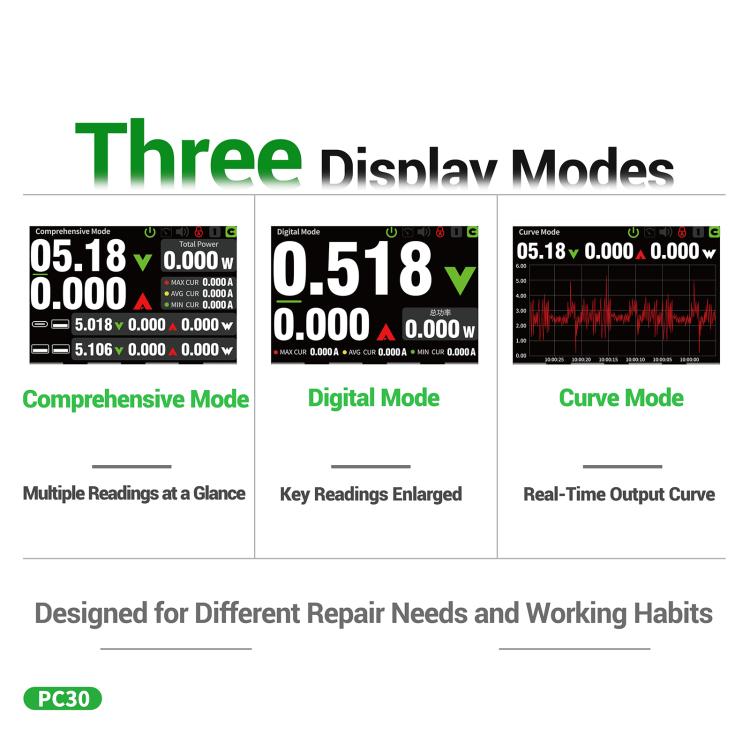

14. Three Display Modes: Comprehensive Mode, Digital Mode, Curve Mode
15. For mobile motherboard power supply, PCB testing, and electronic component troubleshooting

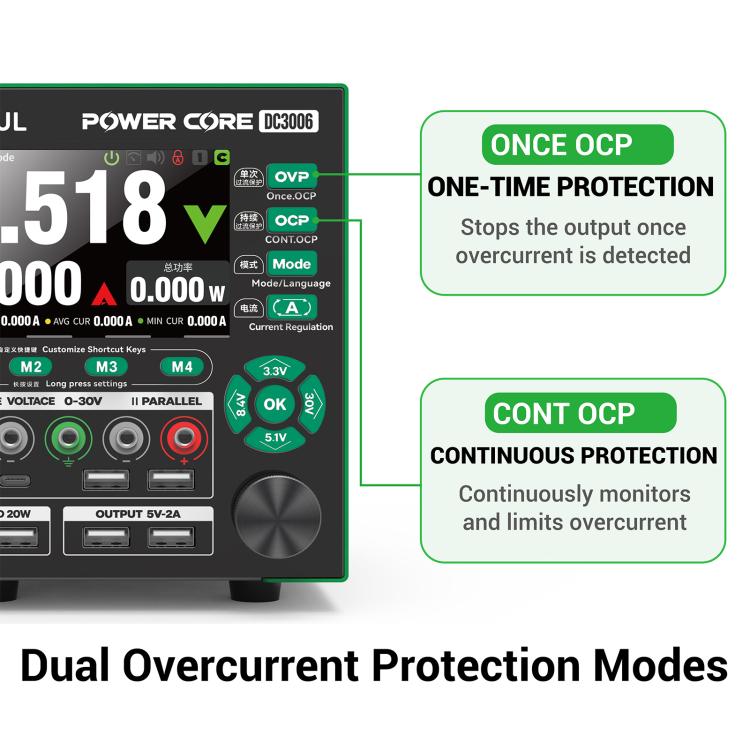

16. Built-in multiple safety protection mechanisms, including overvoltage, overcurrent, overpower, overtemperature, and short-circuit protection.
17. Adopts high-performance switching power supply design, with low ripple and stable constant voltage/constant current mode.
18. Specifically optimized for smartphone repair, suitable for motherboard startup testing, leakage current detection, component power-on testing, etc.
Specification:
|
Package Weight
|
| One Package Weight |
4.50kgs / 9.93lb
|
| One Package Size |
26cm * 23cm * 21cm / 10.24inch * 9.06inch * 8.27inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
54cm * 48cm * 23cm / 21.26inch * 18.9inch * 9.06inch
|
| Loading Container |
20GP: 447 cartons * 4 pcs = 1788 pcs
40HQ: 1038 cartons * 4 pcs = 4152 pcs
|
|
