1. Wire gauge/diameter: 1015 12AWG
2. Rated power: 360W
3. Rated voltage: 36V
4. Rated current: 30A

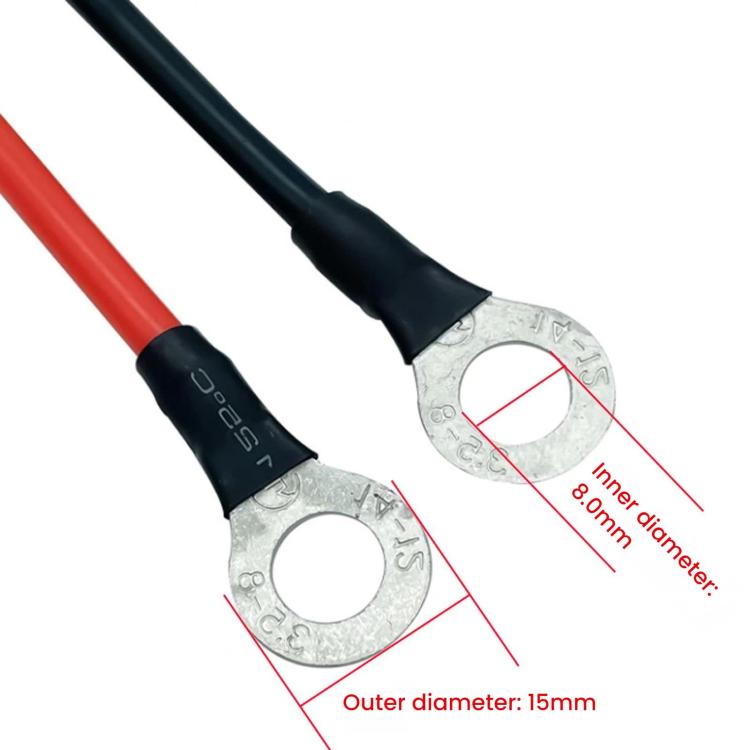

5. O-type terminal inner diameter: 8.0mm
6. O-type terminal outer diameter: 15mm

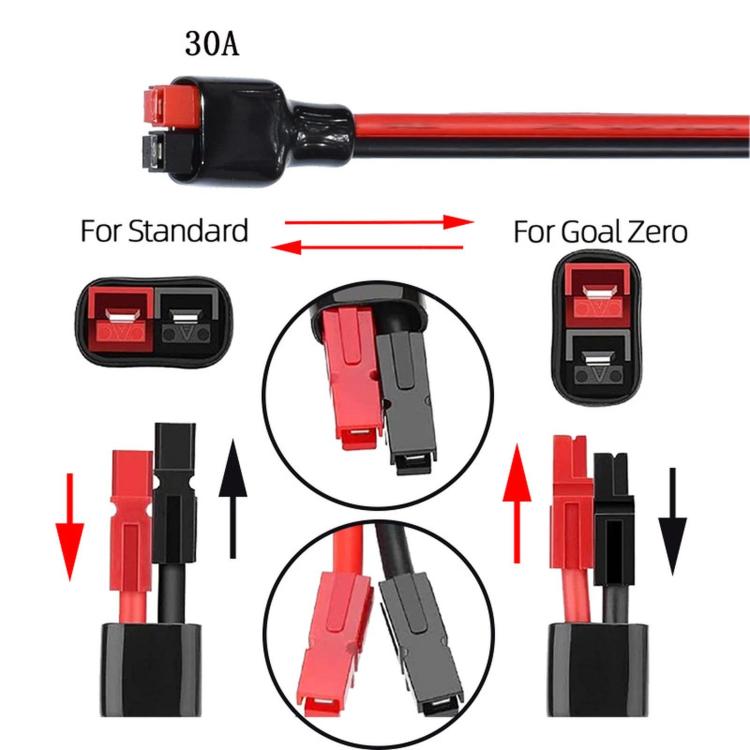

7. The outer casing has an injection-molded protective sleeve for easy insertion and removal and a secure connection.

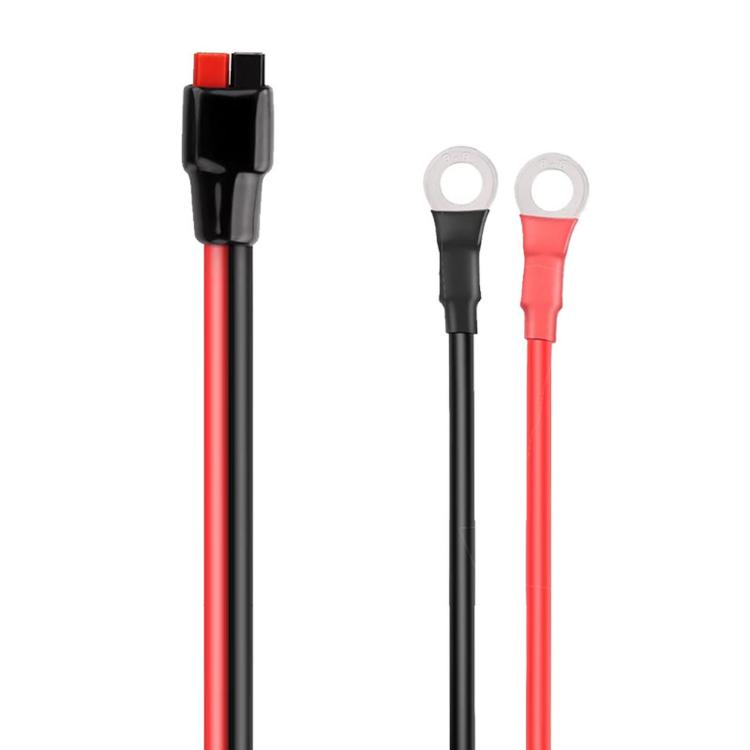

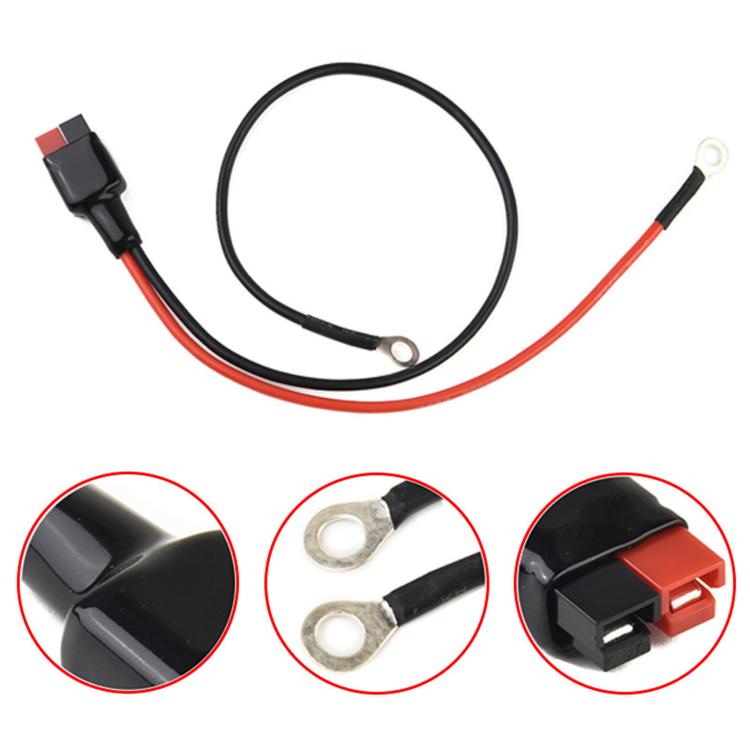

8. The other end has two metal O-type ring terminals (M8 specification, 8mm inner diameter), which are wrapped with heat-shrink tubing for insulation protection.
9. Uses red and black bicolor parallel wiring; red represents positive and black represents negative, facilitating quick polarity identification and preventing reverse connection.
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
18cm * 15cm * 5cm / 7.09inch * 5.91inch * 1.97inch
|
| Carton Weight |
1.90kgs / 4.19lb
|
| Carton Size |
38cm * 32cm * 32cm / 14.96inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 685 cartons * 24 pcs = 16440 pcs
40HQ: 1590 cartons * 24 pcs = 38160 pcs
|
|
