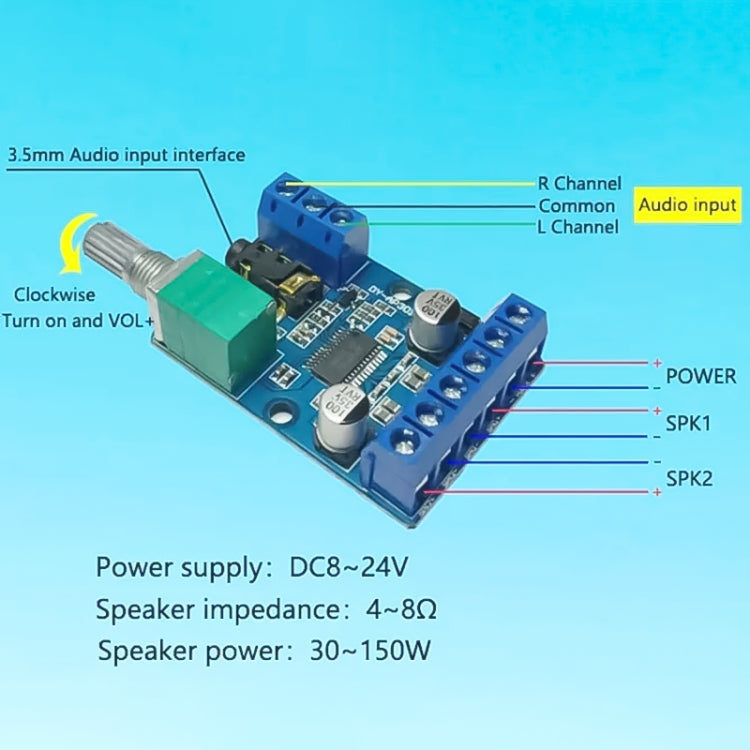

1. Operating voltage: DC 8~24V
2. Operating mode: class D (PMW modulation)
3. Number of channels: ctereo (dual channel)
4. Maximum output power:
18Wx@12V 4 Ohm
10Wx@12V 8 Ohm
15Wx@16V 8 Ohm
20Wx@20V 8 Ohm
30Wx@24V 8 Ohm
5. Adapted speakers(30W~150W):
4 ohms (8-12V power supply)
8 ohm (8-24V power supply)
6. Module protection mechanism: power reverse connection protection, short circuit protection, self-recovery overheating protection
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
10cm * 5cm * 2cm / 3.94inch * 1.97inch * 0.79inch
|
| Carton Weight |
11.70kgs / 25.79lb
|
| Carton Size |
42cm * 32cm * 26cm / 16.54inch * 12.6inch * 10.24inch
|
| Loading Container |
20GP: 763 cartons * 340 pcs = 259420 pcs
40HQ: 1771 cartons * 340 pcs = 602140 pcs
|
|
