1. Emission power: 150mW

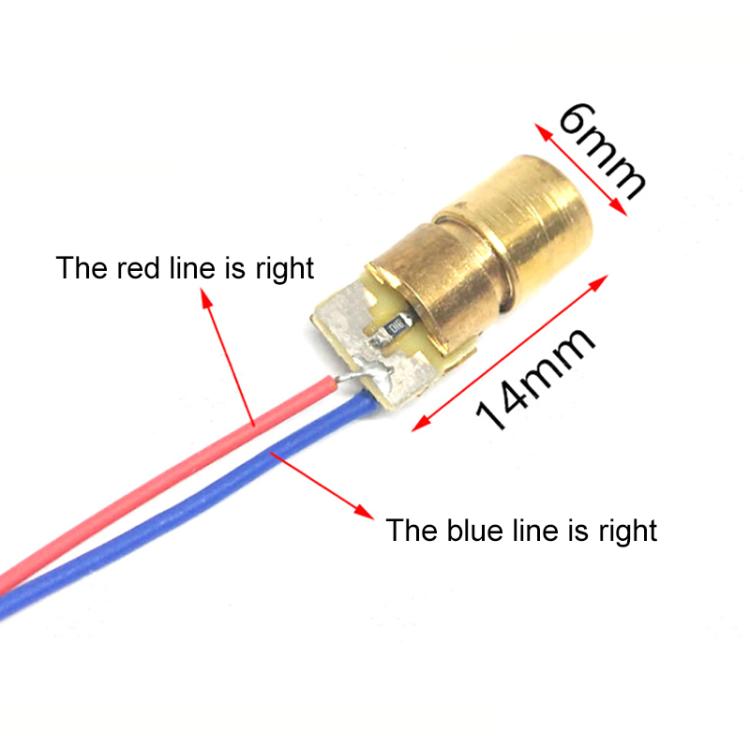

2. Standard size: 6x14mm
3. Working life: 1000H
4. Spot mode: dot spot, continuous output
5. Laser mode: 650nm (red)
6. Light output power: less than 5mW
7. Supply voltage: DC 5V
8. Working current: less than 40mA
9. Working temperature: -36 degrees Celsius to 65 degrees Celsius
10. Spot size: 10mm-15mm at 15m
11. Lead length: 6.5cm
12. Product weight: 1.1g
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.04lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
4.00kgs / 8.82lb
|
| Carton Size |
36cm * 32cm * 30cm / 14.17inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 771 cartons * 300 pcs = 231300 pcs
40HQ: 1791 cartons * 300 pcs = 537300 pcs
|
|
