1. Material: cast iron
2. Handle material: steel
3. Shape: flat mouth
4. Style: american
5. It can be used for single use, and can also be used with small bench drills and electric drill stands

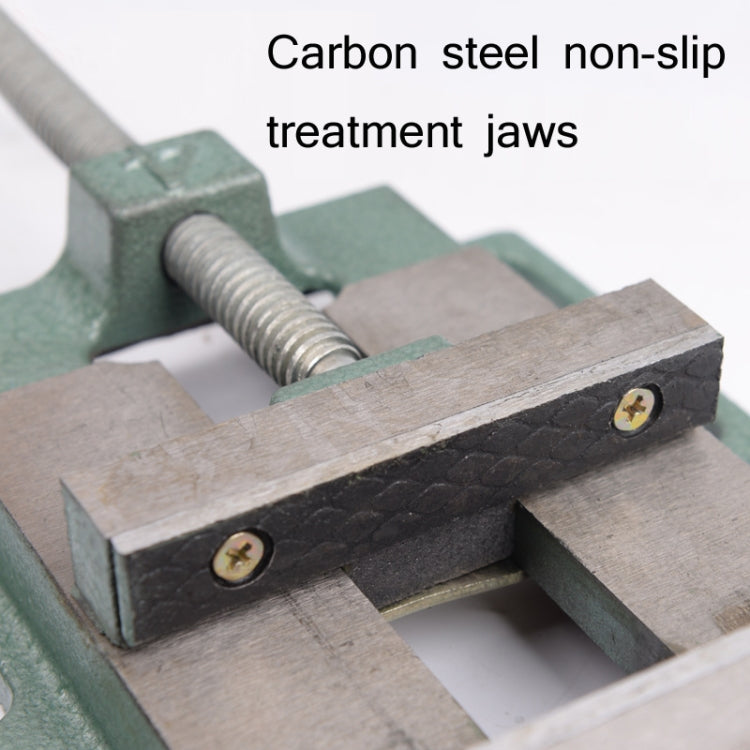

6. Carbon steel non-slip treatment jaws for tighter clamping

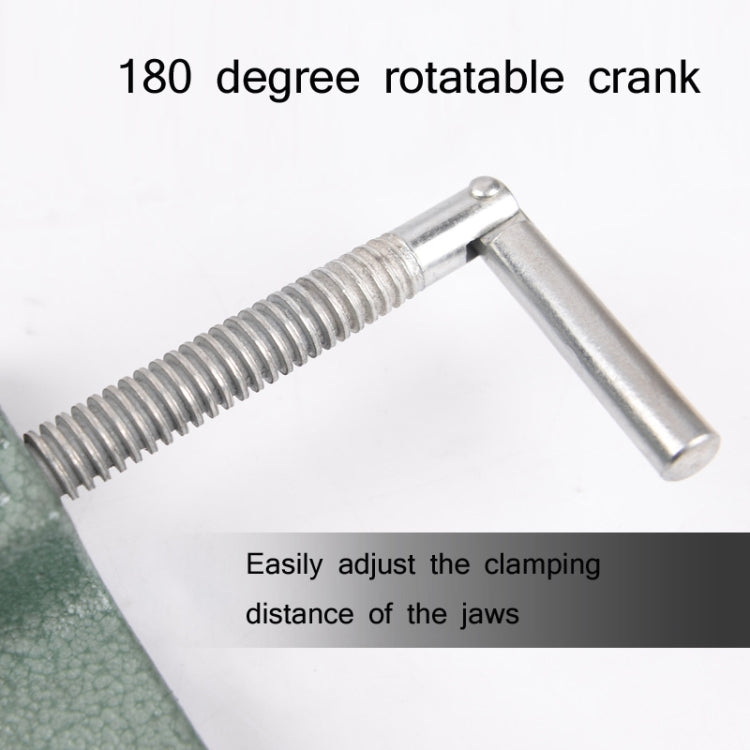

7. The 180-degree rotatable crank handle can easily adjust the clamping distance of the jaws

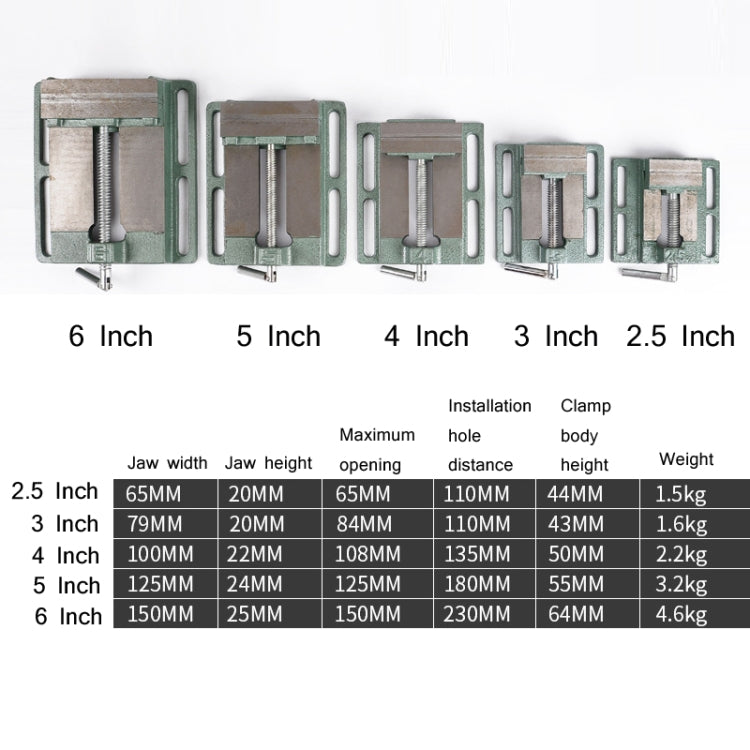

8. 2.5 inches: jaw width 60 mm, jaw height 20 mm, opening range 65 mm, mounting hole distance 110 mm, clamp body height 43 mm, weight 1.5 kg
9. 3 inches: jaw width 79 mm, jaw height 20 mm, opening range 84 mm, mounting hole distance 110 mm, clamp body height 43 mm, weight 1.6 kg
10. 4 inches: jaw width 110 mm, jaw height 22 mm, opening range 108 mm, installation hole distance 135 mm, clamp body height 50 mm, weight 2.2 kg
11. 5 inches: jaw width 125 mm, jaw height 24 mm, opening range 125 mm, mounting hole distance 150 mm, clamp body height 55 mm, weight 3.2 kg
12. 6 inches: jaw width 150 mm, jaw height 25 mm, opening range 150 mm, installation hole distance 185 mm, clamp body height 64 mm, weight 4.6 kg

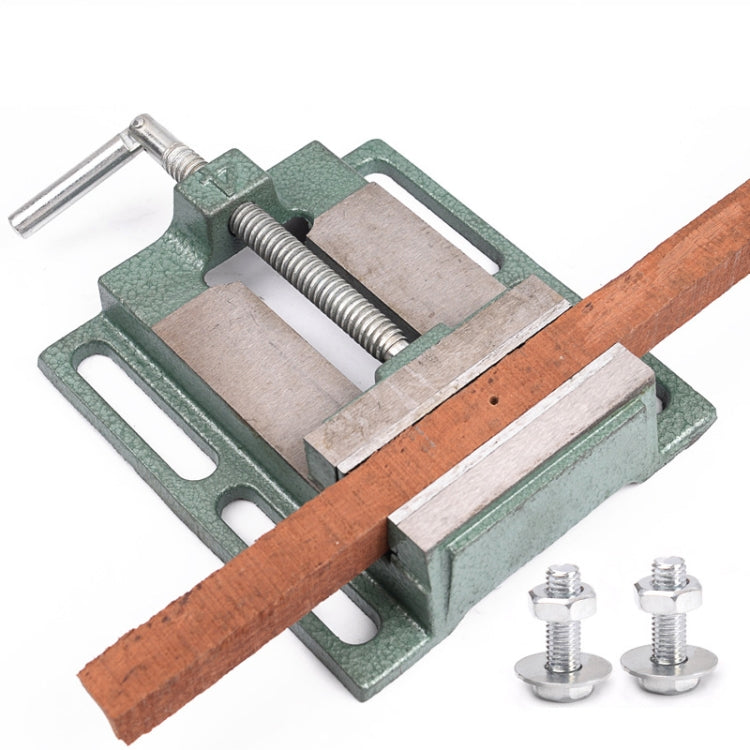

The package contains:
Flat nose pliers x 1
Fixing screw x 2
Specification:
|
Package Weight
|
| One Package Weight |
2.23kgs / 4.93lb
|
| One Package Size |
18cm * 14cm * 7cm / 7.09inch * 5.51inch * 2.76inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
42cm * 32cm * 16cm / 16.54inch * 12.6inch * 6.3inch
|
| Loading Container |
20GP: 1240 cartons * 12 pcs = 14880 pcs
40HQ: 2878 cartons * 12 pcs = 34536 pcs
|
|
