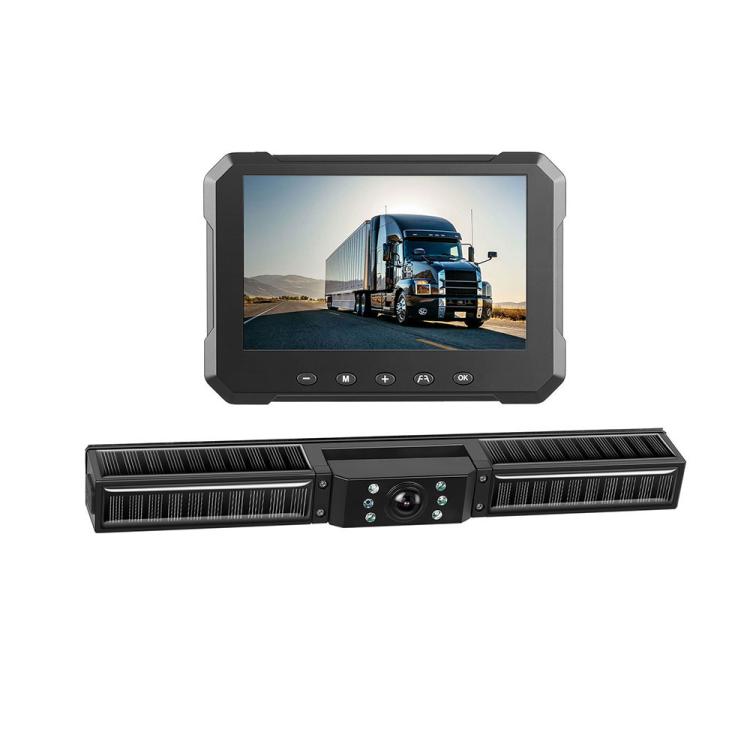

Features:
1. 5-inch Wireless HD IPS Display: Powered by a high-performance chip for video transmission and strong anti-interference capabilities, it delivers a clear, stable, and true-to-life rear-view image, significantly enhancing the user experience.

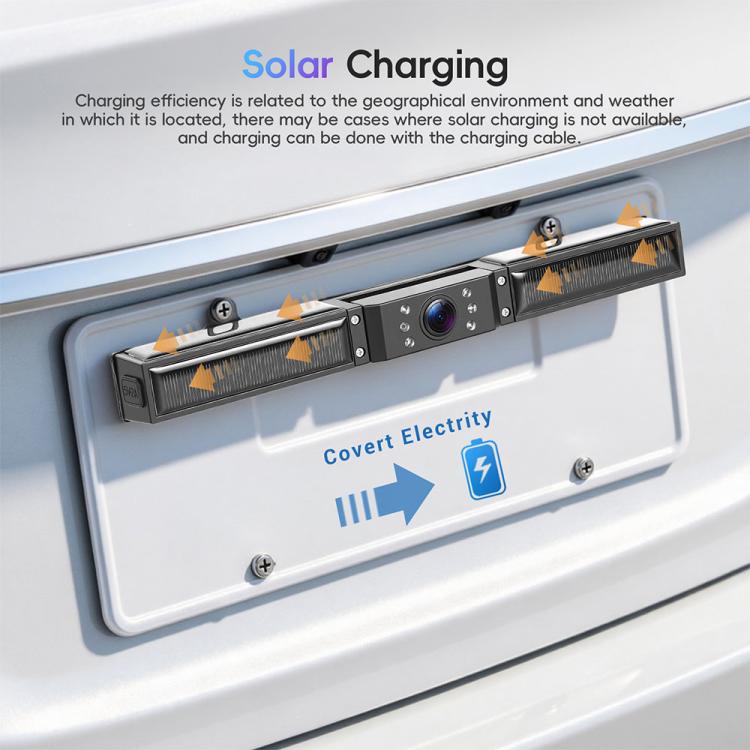

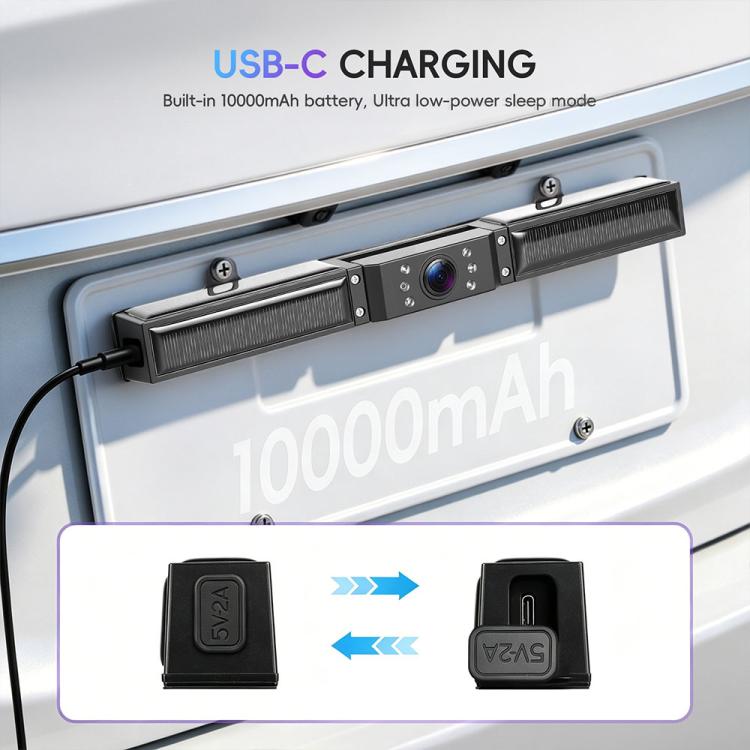

2. Solar-Charging Camera: Features a built-in high-capacity battery that supports both solar and wired charging. It eliminates the need for frequent manual recharging or complex wiring; sufficient daily sunlight allows for autonomous solar charging.

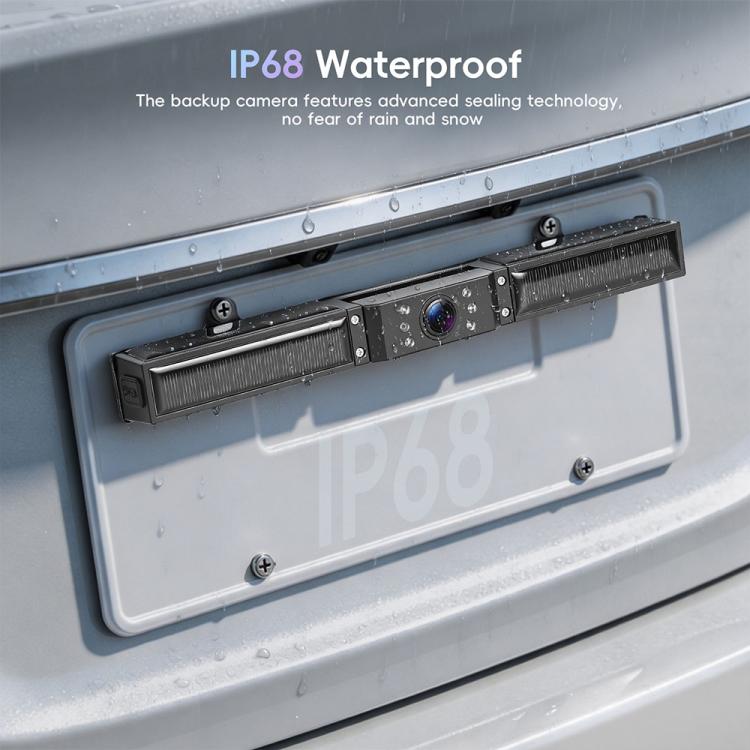

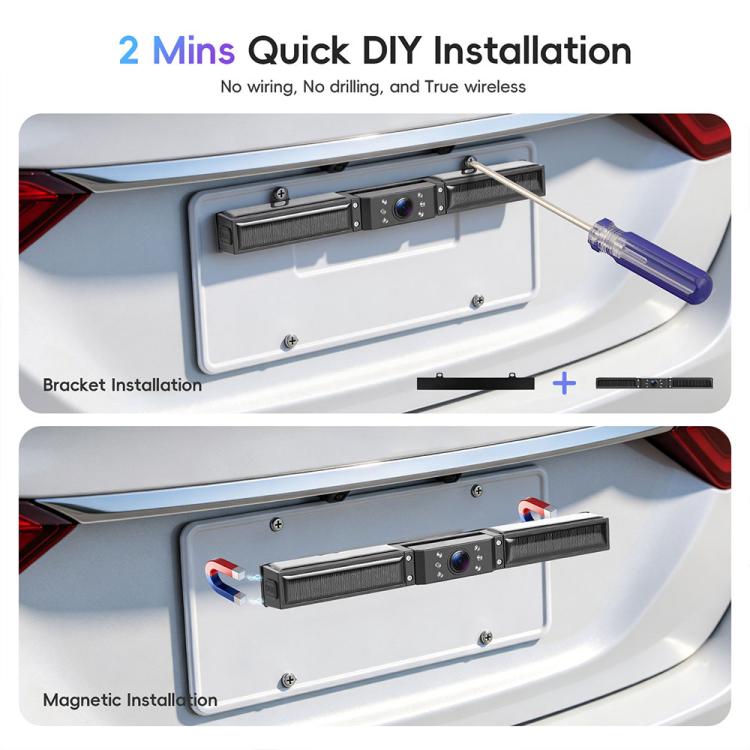

3. IP68 Waterproof Magnetic Camera: Equipped with a powerful magnetic base, it attaches securely to the vehicle's rear bodywork or other magnetic surfaces and is easy to install or remove. With an IP68 waterproof rating, it performs reliably in wind and rain, while the wide-angle lens captures a broader field of view.

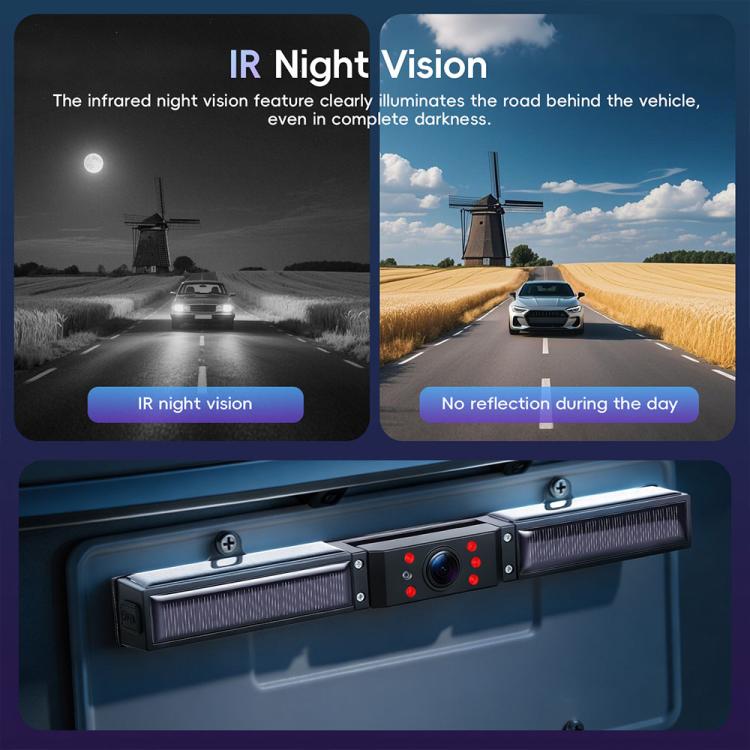

4. Infrared Night Vision: Equipped with an infrared night vision module, it provides clear visibility of surroundings even in complete darkness.

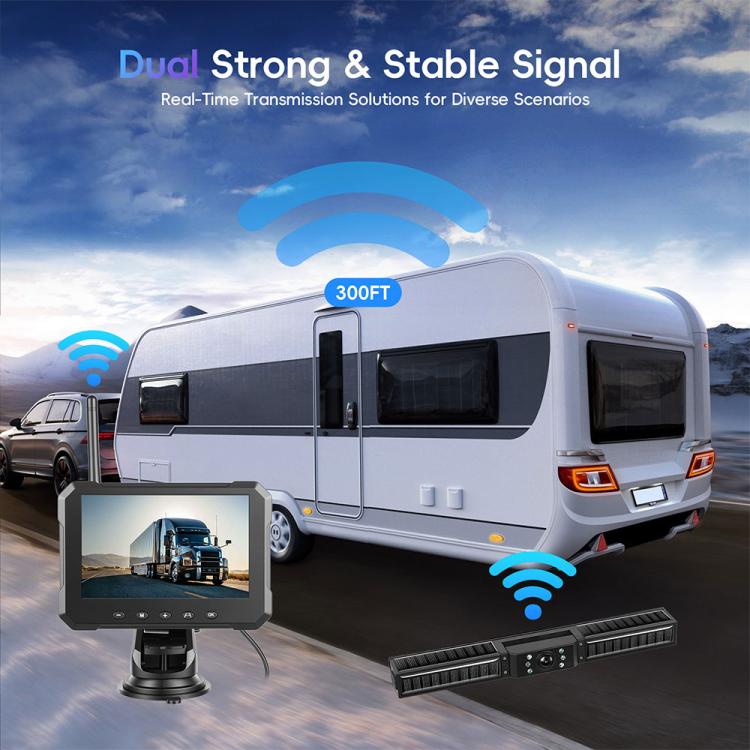

5. Wireless Signal Transmission: Utilizes wireless transmission technology for simple installation. The camera and display pair automatically upon startup, eliminating the need for complex wiring.
6. Easier Parking: This wireless backup camera system makes reversing effortless, even in complex road conditions or environments. Built-in night vision ensures clear visibility of surroundings at night.

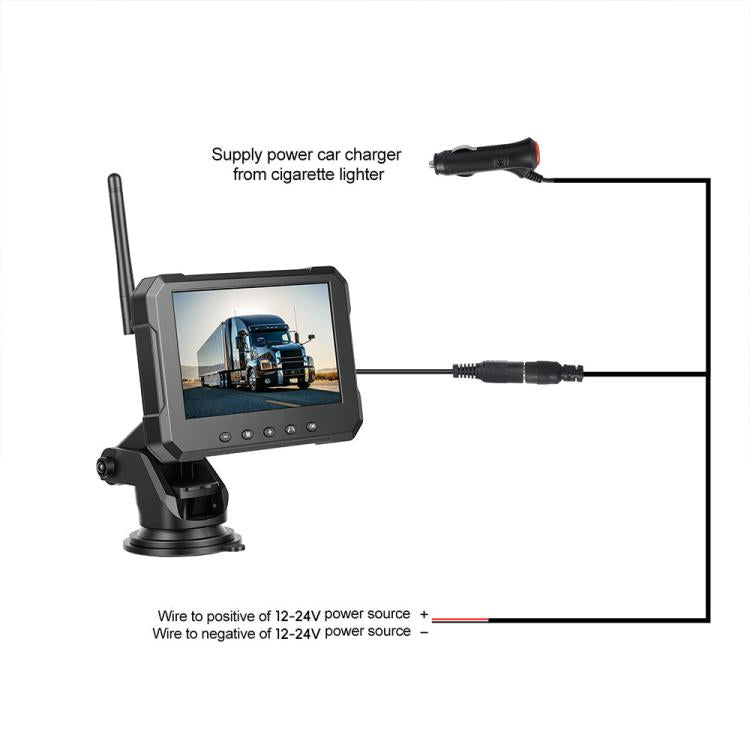

7. Simple Installation Design: Eliminates tedious wiring procedures; simply connect the display to a power source to start using it immediately.

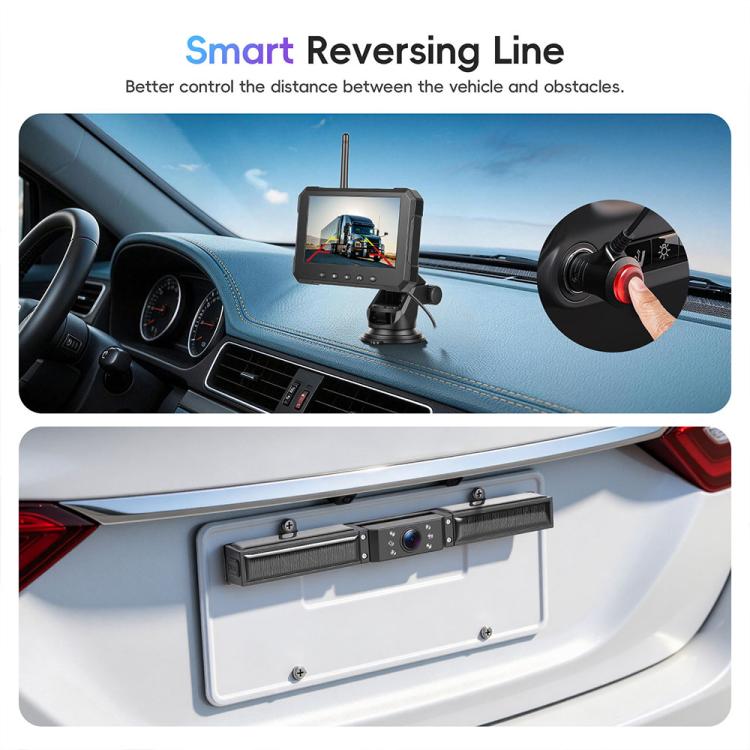

8. Parking Guide Lines: Accurately gauge the distance between the vehicle and obstacles, significantly improving reversing precision and driving safety.
Camera Specifications:
1. Waterproof rating: IP68
2. Signal type: VGA

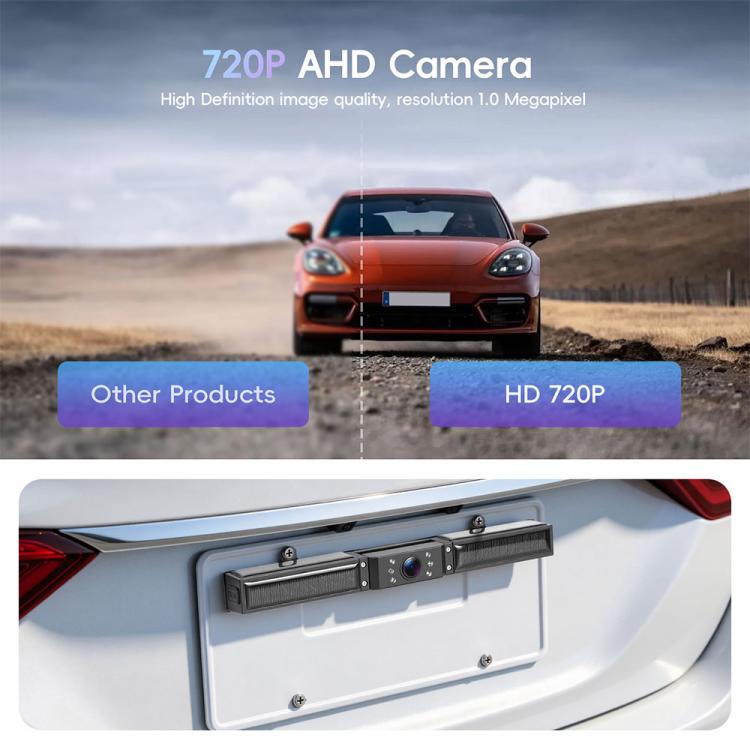

3. Resolution: 1284 (horizontal) x 724 (vertical)

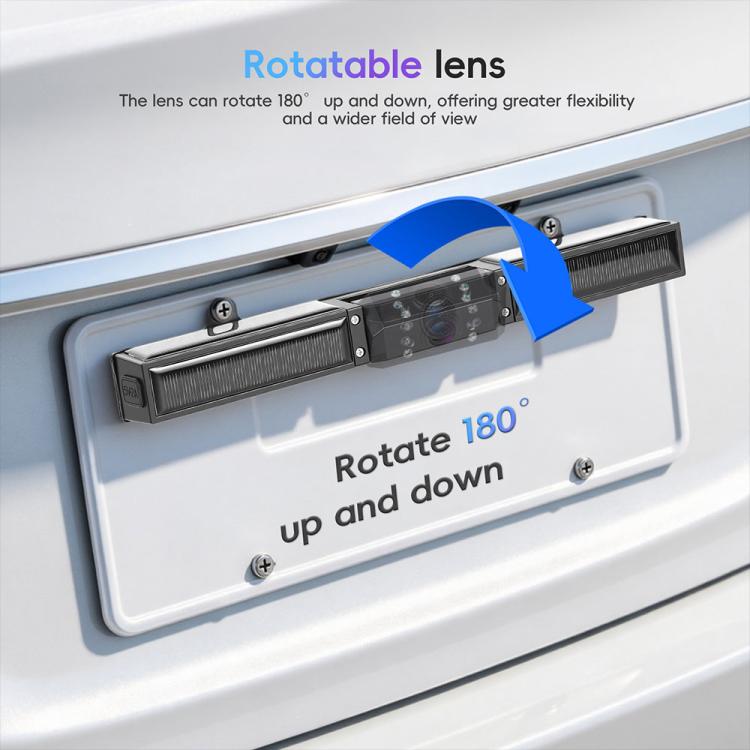

4. Field of view: 108° horizontal, 60° vertical; 120° total wide-angle lens field of view
5. Frame rate: 30 fps
6. Image sensor size: 1/4 inch
7. Day/night imaging mode: Full color (day), black and white (night)
8. Night vision type: Infrared (IR)
9. Minimum illumination: 0.1 lux
Display Specifications:

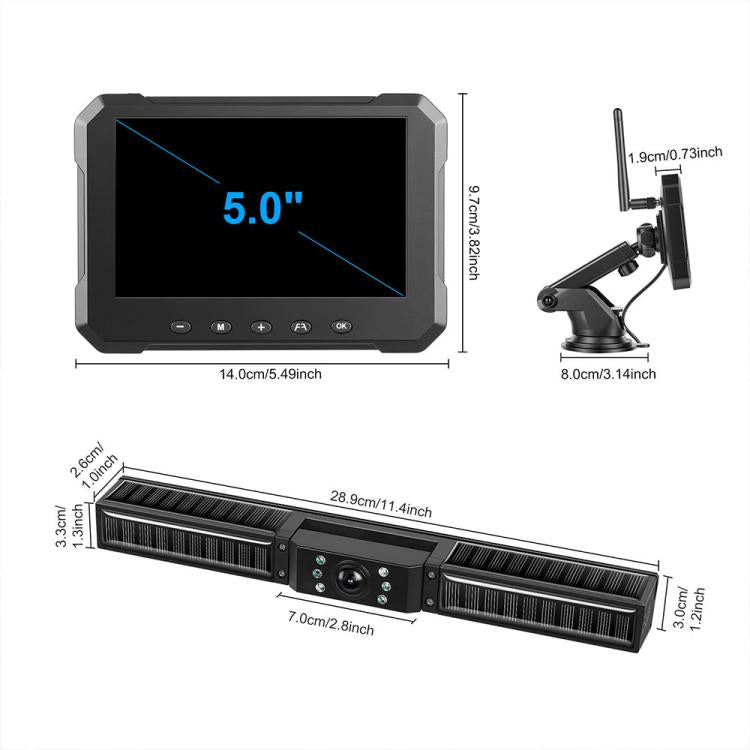

1. Screen size: 5 inches
2. System languages: Chinese, English, German, French, Russian, Italian, Spanish, Portuguese, Japanese, Korean, Finnish, Dutch
3. Resolution: 800x480
4. Operating temperature: -20°C to 60°C
5. Operating voltage: 12-24V

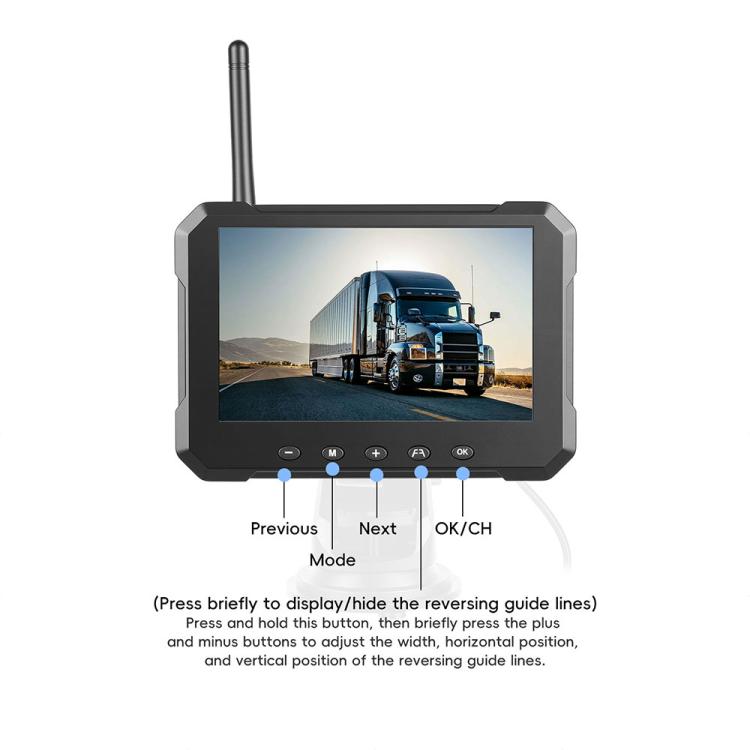

6. Operation method: Button controls
7. Image adjustment: Brightness, contrast, hue
8. Image flip modes: Normal, mirror, vertical flip, mirror + vertical flip
9. Split-screen mode: Single view / Dual view
10. Reversing guidelines: On / Off
11. Factory reset: Supported
Specification:
|
Package Weight
|
| One Package Weight |
1.07kgs / 2.35lb
|
| One Package Size |
31cm * 20cm * 9cm / 12.2inch * 7.87inch * 3.54inch
|
| Carton Weight |
9.51kgs / 20.97lb
|
| Carton Size |
33cm * 42cm * 38cm / 12.99inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 506 cartons * 8 pcs = 4048 pcs
40HQ: 1175 cartons * 8 pcs = 9400 pcs
|
|
