1. Adopting a switching power supply structure design, the main control chip frequency of the switching power supply is 300KHz, and it also has over-current and over-temperature protection functions, and the chip efficiency is as high as 92%;
2. Very small and light in weight;

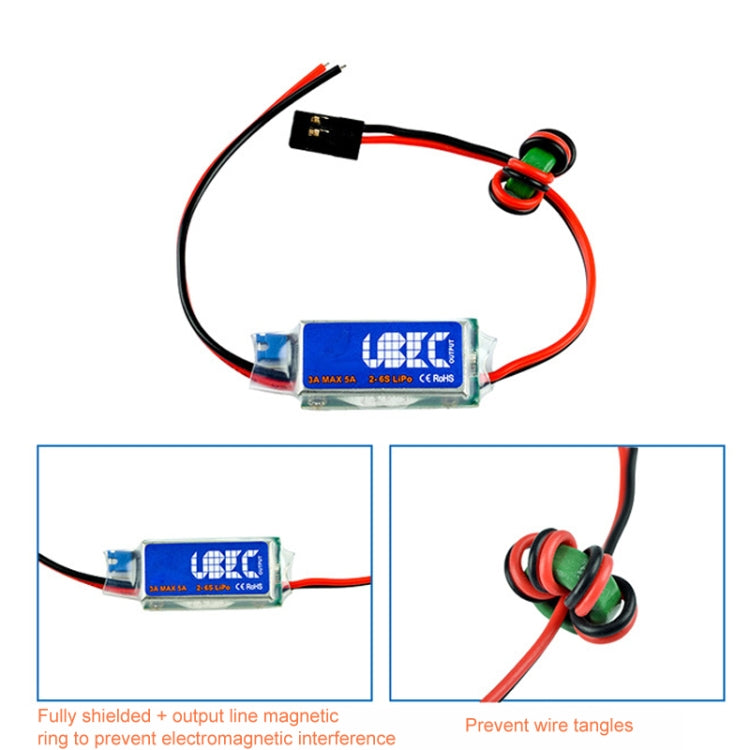

3. The electronic components are protected by a shield, and the output line is equipped with a magnetic ring, which greatly reduces electromagnetic interference and ensures the normal operation of the receiver.
4. It has the protection function to prevent the reverse polarity of the power supply. If the power supply is accidentally connected reversely, the UBEC will not be damaged.
5. It has LED light-emitting diode working status indicator light, which lights up when the output is normal.
6. Advantages compared with traditional BEC: Compared with BEC using linear voltage regulation, the advantages of BEC using switching power supply are mainly reflected in: when using more than 3 strings (11.1V) batteries, BEC heat generation can be greatly reduced and the battery life can be improved. Overall efficiency.
Product specifications:
1. Output capability: 5V/3A or 6V/3A (can be switched by jumper cap);
2. Power input: 5.5-23V (2-6 lithium battery packs or 5-15 nickel metal hydride/nickel cadmium battery packs)
3. Dimensions: 43mm x 17mm x 7mm (length x width x height)
4. Weight: 11g
5. Ripple: less than 50mVp-p (@2A/12V)
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
|
| Carton Weight |
15.50kgs / 34.17lb
|
| Carton Size |
34cm * 32cm * 47cm / 13.39inch * 12.6inch * 18.5inch
|
| Loading Container |
20GP: 521 cartons * 360 pcs = 187560 pcs
40HQ: 1210 cartons * 360 pcs = 435600 pcs
|
|
