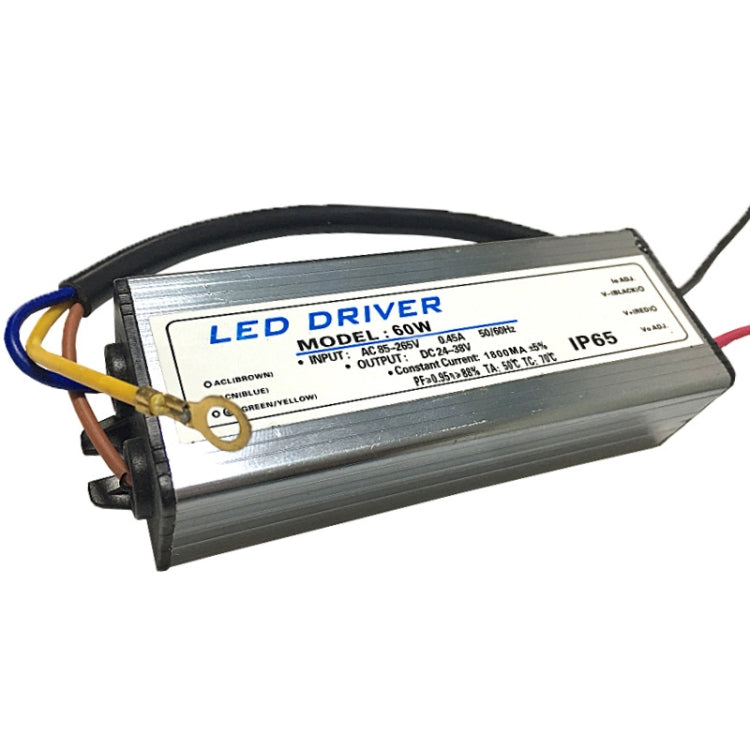

1. Import IC and large power transformer, to drive efficiently.
2. Thickened aluminum alloy shell, provides large heat dissipation area and long service life.

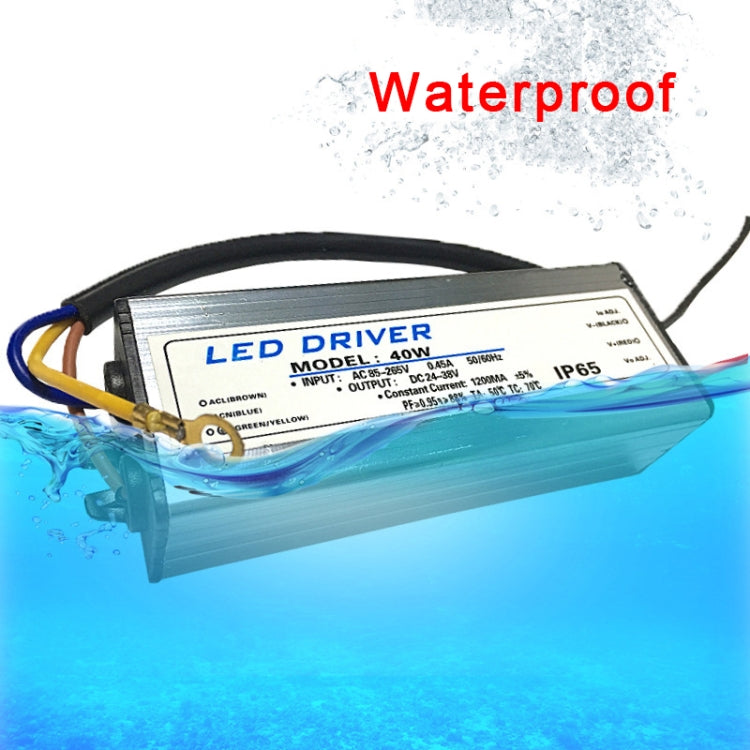

3. Adopt with internal epoxy silicone encapsulating material for high density waterproof.
4. Widely applied to LED lamps, floodlights, street lamps, miner lamps, tunnel lights
5. Input: AC 85-265V, 0.45A, 50/60Hz
6. Output: DC 24-38V
7. Constant current: 1800mA +/-5%
8. Working temperature: -40 ~ 80 Celsius degree
9. Size: 100 x 42 x 32mm
Specification:
|
Package Weight
|
| One Package Weight |
0.27kgs / 0.60lb
|
| One Package Size |
11cm * 4.8cm * 3.2cm / 4.33inch * 1.89inch * 1.26inch
|
| Carton Weight |
25.60kgs / 56.44lb
|
| Carton Size |
45cm * 25cm * 18cm / 17.72inch * 9.84inch * 7.09inch
|
| Loading Container |
20GP: 1316 cartons * 100 pcs = 131600 pcs
40HQ: 3057 cartons * 100 pcs = 305700 pcs
|
|
