Features:
1. High Definition Imaging: Provides clear and detailed image capture for access control, face recognition, and other security camera applications.

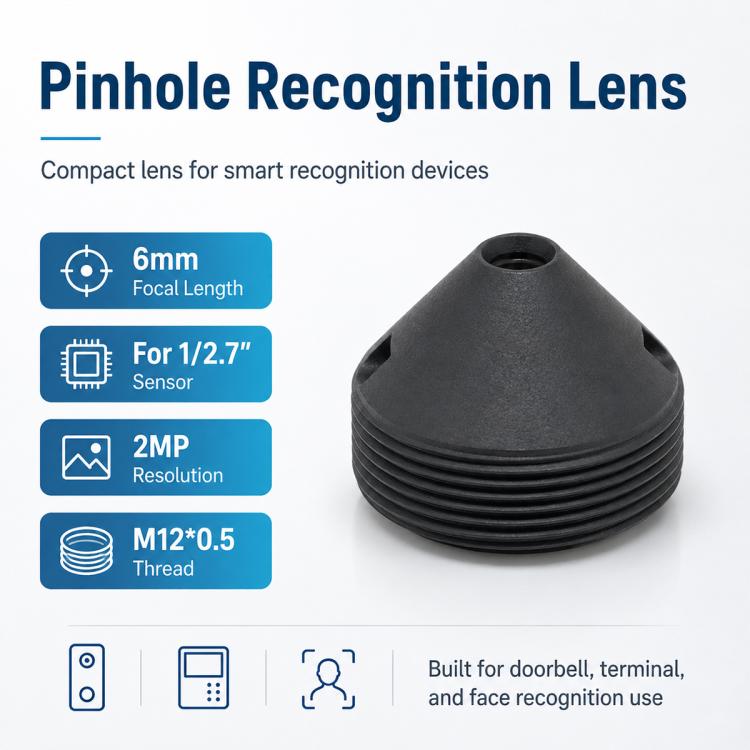

2. 2MP Camera Compatibility: Designed for 1/2.7 inch image sensors, suitable for compatible 2MP security camera modules.
3. F2.6 Aperture: The F2.6 aperture provides stable light transmission for clear imaging in different lighting conditions.
4. 4G Optical Construction: The 4G lens construction provides reliable optical performance for surveillance and recognition applications.
5. M12 Interface: Features an M12 x 0.5 thread for convenient installation with compatible security camera modules.
Specification:
1. Compatible Sensor: 1/2.7 inch sensor
2. Maximum Image Circle: 7.0mm
3. Effective Focal Length: 6.2mm
4. Back Focal Length: 6.5mm
5. Mechanical Back Focal Length: 4.84mm
6. Aperture: F2.6
7. Field of View: Diagonal 74 degrees / Horizontal 62 degrees / Vertical 33.5 degrees
8. TV Distortion: -12%
9. Chief Ray Angle: Less than 15 degrees
10. Relative Illumination: 58%
11. Lens Construction: 4G
12. Thread: M12 x 0.5
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 290 cartons * 500 pcs = 145000 pcs
40HQ: 674 cartons * 500 pcs = 337000 pcs
|
|
