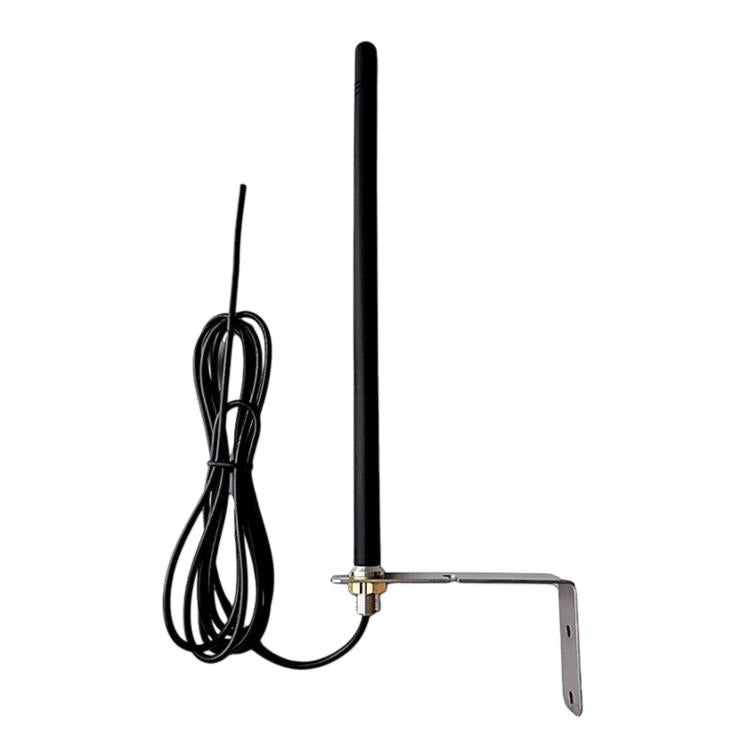

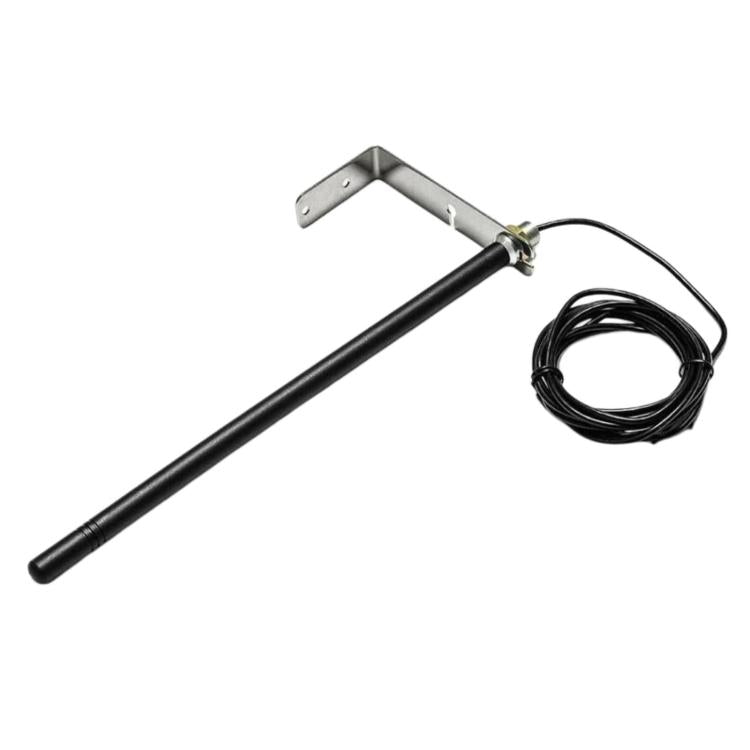

1. Frequency: 868 MHz
2. Bandwidth: 10 MHz
3. VSWR (Voltage Standing Wave Ratio) is less than or equal to 1.5
4. Gain: 3 dBi
5. Maximum input power: 20 W
6. Input impedance: 50 ohms
7. Polarization mode: vertical polarization

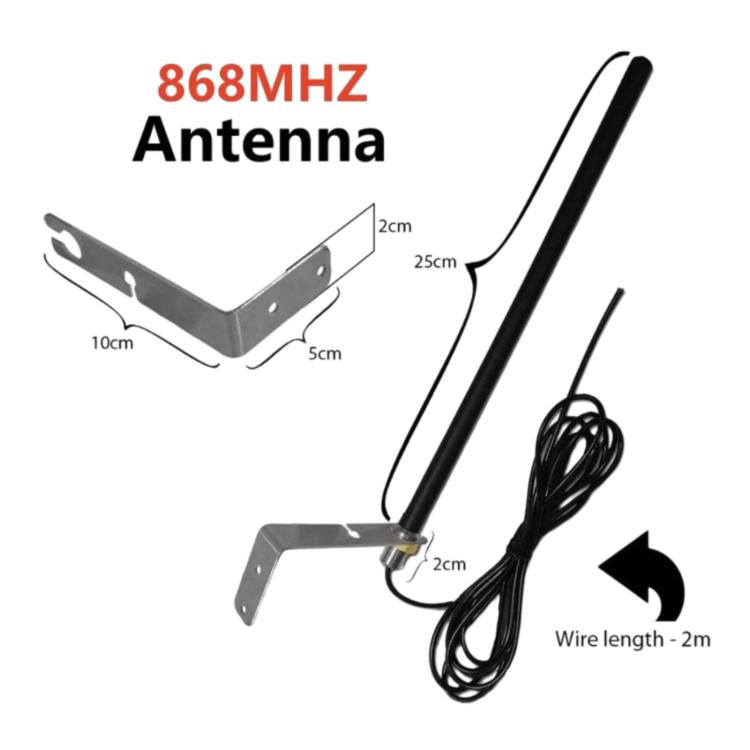

8. Antenna length: 250 mm
9. Cable type: RG174
10. Impedance: 50 ohms
11. Installation method: screw fixation (wall-mounted)
12. Wide range of applications: garage doors, electronic doors, gates, sliding doors, automatic doors, rolling shutters, blinds, household appliances/household smart devices, such as lighting systems, alarm systems, access control systems

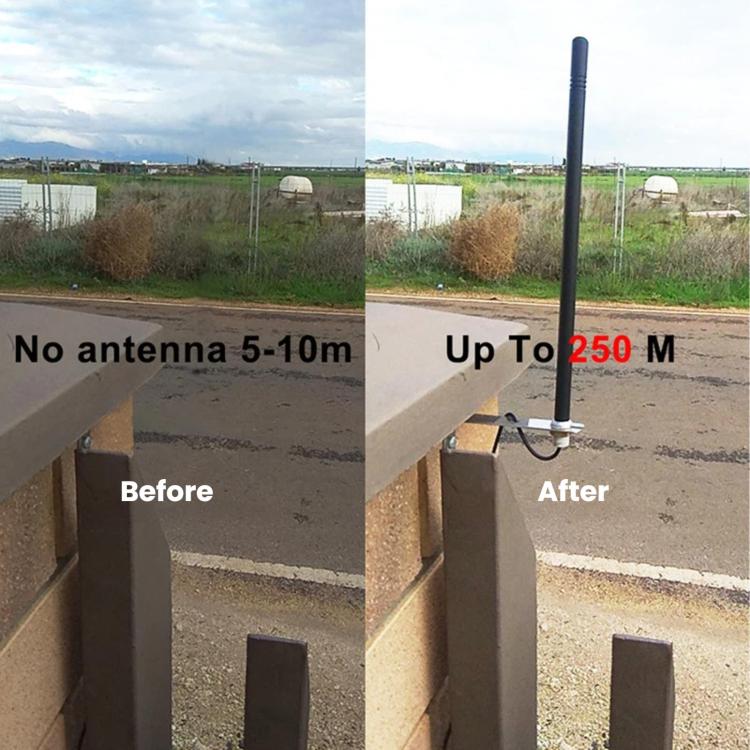

13. Suitable for extending the range of all 868 MHz remote controllers
14. Materials: ABS, metal
15. Bracket material: stainless steel
16. Cable length: 2 meters
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.31lb
|
| One Package Size |
33cm * 16cm * 4cm / 12.99inch * 6.3inch * 1.57inch
|
| Carton Weight |
5.00kgs / 11.02lb
|
| Carton Size |
50cm * 35cm * 34cm / 19.69inch * 13.78inch * 13.39inch
|
| Loading Container |
20GP: 448 cartons * 24 pcs = 10752 pcs
40HQ: 1040 cartons * 24 pcs = 24960 pcs
|
|
