Features1. H.264, 8ch 960P/720P/960H/ D1 wireless network hard disk DVR.

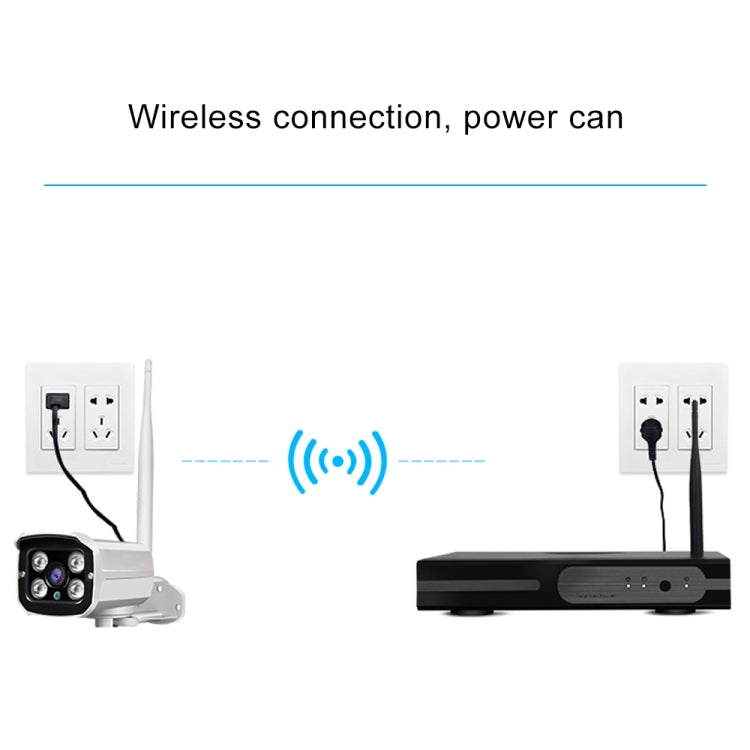

2. Built-in high performance stability wireless Wi-Fi router module, support 802.11b/g/n protocol, 150Mbps.
3. Automatically access the Wi-Fi network camera through the network cable.
4. Video preview / video / playback / backup.

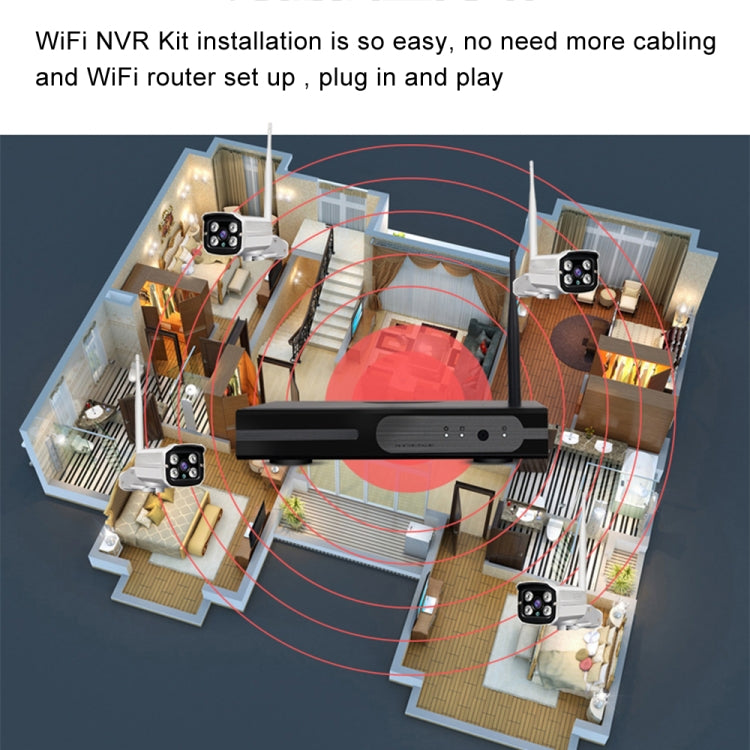

5. Ease of use (wireless easy pairing, setup wizard, common function menu, easy to view network).
6. Support N1, IPC access protocol.
7. Supported network service functions: P2P, DHCP, DDNS, PPPoE, E-Mail, FTP, etc.
8. Support a variety of alarm trigger (video loss / motion detection, etc.) and alarm output (sound / E-Mail / FTP, etc.).
9. Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control.
10. Support PC (client or browser) remote (local area network and Internet) access and control.
11. Support IPC configuration (encoding control, image adjustment, OSD display, etc.).
12. Support video motion detection with IPC.
13. Support video cover function with IPC.
14. Support user rights management.

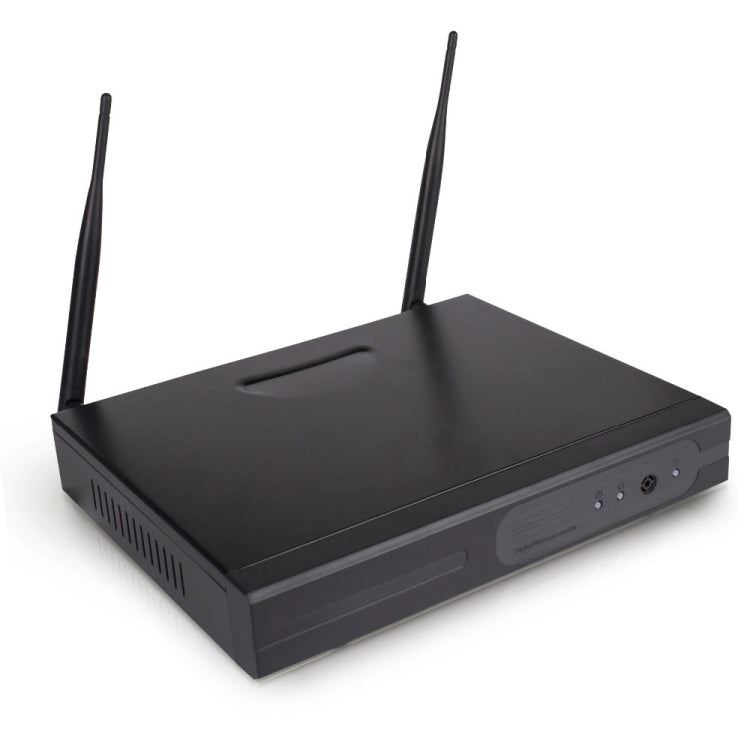

NVR1. Professional industrial processor.
2. Embedded linux operating system.
3. Network video input 8 channels 960P, 20Mbps network video access bandwidth.
4. HDMI output: 1 channel, resolution: 1024x768, 1366x768, 1440x900, 1920x1080p.
5. VGA output: 1 channel, resolution: 1024x768, 1366x768, 1440x900, 1920x1080p
IP Camera1. 1/4 inch Progressive scan sensor, 1280*720 resolution.
2. Streaming: Two streaming at the Same Time:
- H.264 1280x720@15fps or below
- H.264 640x360@15fps or below
Specification:
|
General
|
| Power Depletion |
<6W(Camera) |
|
|
Network
|
| Network Interface |
RJ45 10/100MB Ethernet interface |
| Wireless |
WiFi 802.11 b/g/n |
|
|
System / Hardware
|
| Sensor Size |
1/4 inch Progressive Scan |
| Day/Night |
Auto / Color / BW |
| Minimum Illumination |
B/W: 0.01Lux, Color: 0. 1Lux |
|
|
NVR
|
| System |
Operating system: Embedded LINUX OS |
| Recording |
Recording mode: Manual recording, motion detection recording, time recording, alarm recording
Playback mode: Instant playback, regular playback, event playback
Backup mode: Regular backup |
| NVR Interface |
1 x VGA, 1 x HDMI, 1 x RJ45, 2 x USB 2.0 |
| Video input |
D1, 960H, 720P, 960P, 1080P, 8ch |
| Video interface |
Video output: 1ch VGA and 1ch HDMI, Network video Input: 8ch |
| HDMI Output Resolution |
1024x768, 1366x768, 1440x900, 1920x1080 |
| Network |
1 x RJ45 / 10/100MB |
| HDD |
SATA HDD (not included), Max 4TB |
|
|
Dimensions
|
| Size |
205*70*55mm(camera); 257*210*45mm (NVR) |
| Weight |
500g (Camera); 1kg (NVR) |
|
|
Package Include
|
| Package Contents |
8 x Cameras
1 x Mounting Accessories
1 x USB Mouse
1 x NVR
1 x User Manual
1 x Network Cable
9 x Power Adapters (US, UK, EU, AU Optional)) |
|
|
Package Weight
|
| One Package Weight |
7.70kgs / 16.98lb
|
| One Package Size |
52cm * 36cm * 26cm / 20.47inch * 14.17inch * 10.24inch
|
| Carton Weight |
16.50kgs / 36.38lb
|
| Carton Size |
52cm * 38cm * 52cm / 20.47inch * 14.96inch * 20.47inch
|
| Loading Container |
20GP: 259 cartons * 2 pcs = 518 pcs
40HQ: 602 cartons * 2 pcs = 1204 pcs
|
|
