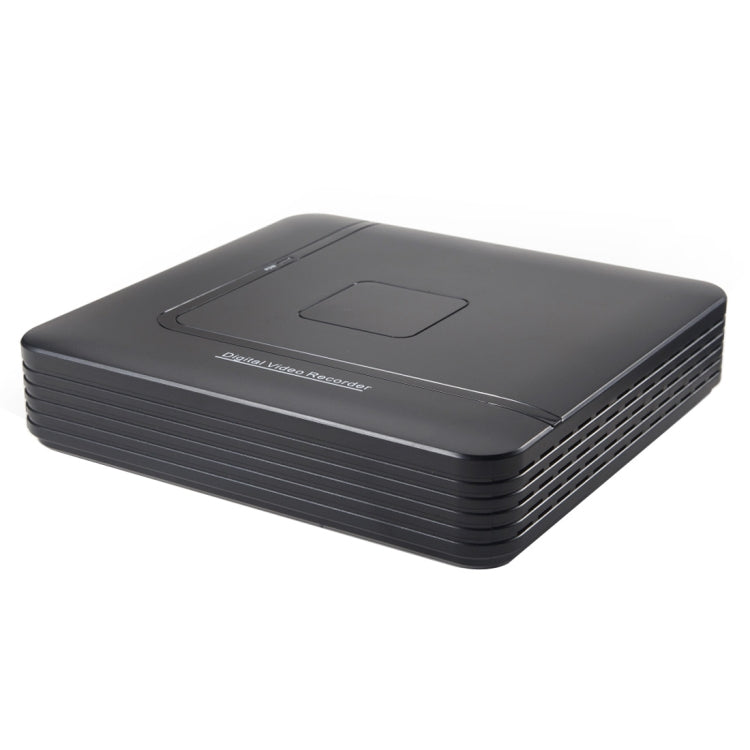

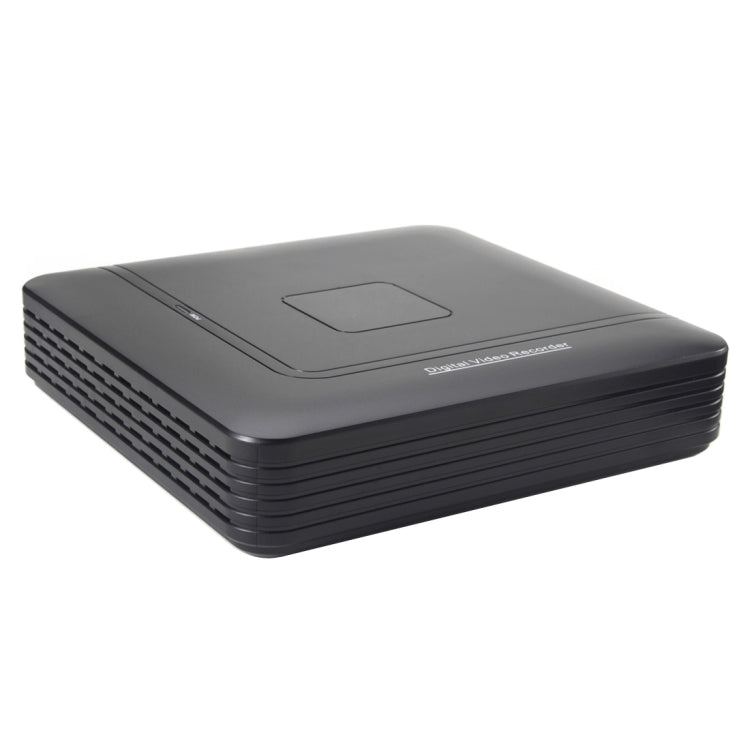

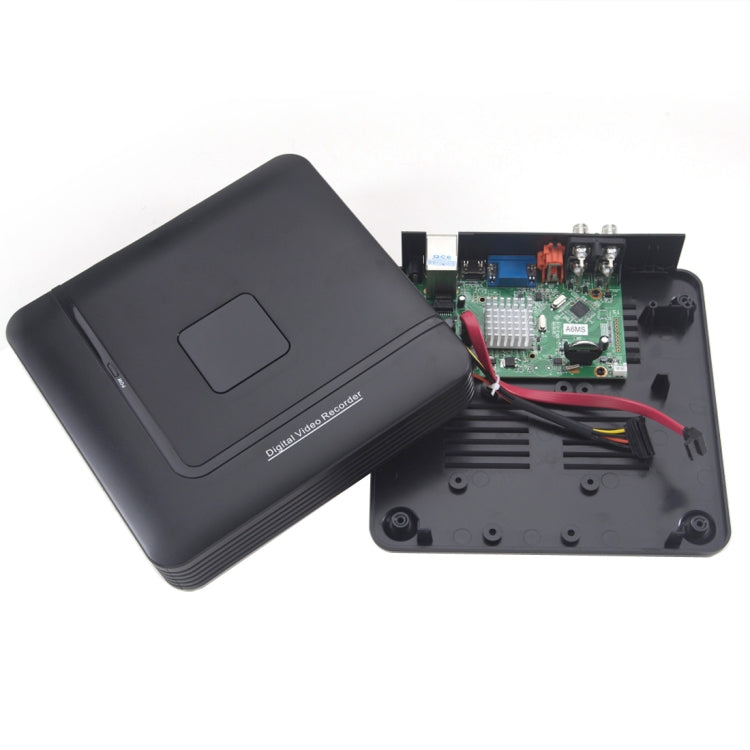

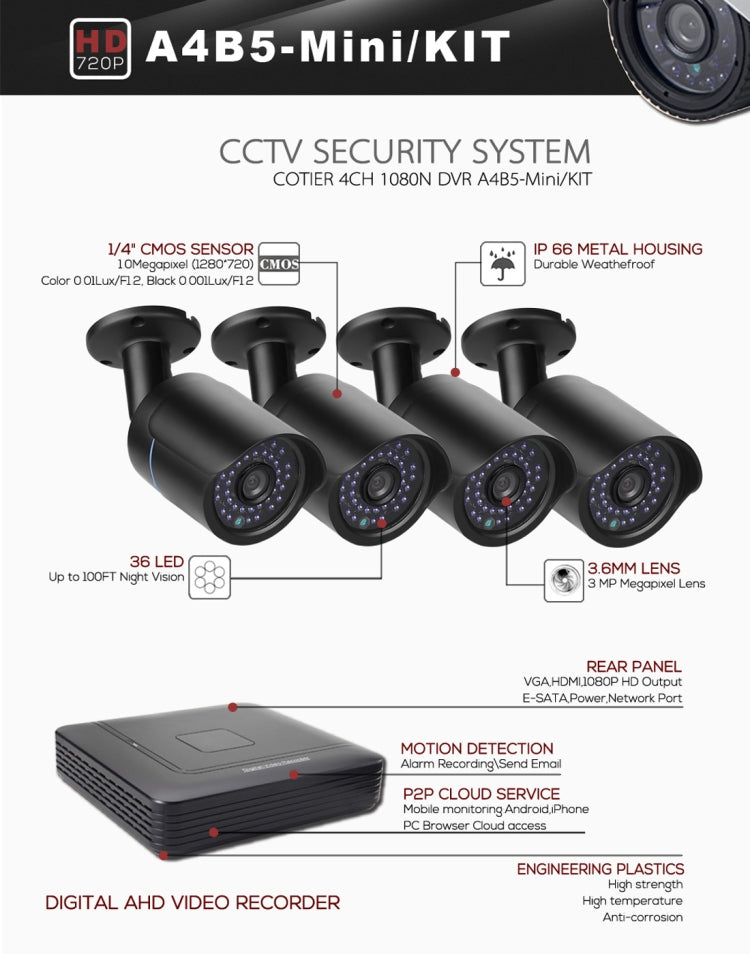

AHD DVR1. Support 4CH 960P/720P 1HDD AHD DVR
2. Support 4pcs 1MP AHD Camera(36pcs 5mm IR LED,IR distance 20M)
3. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
4. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

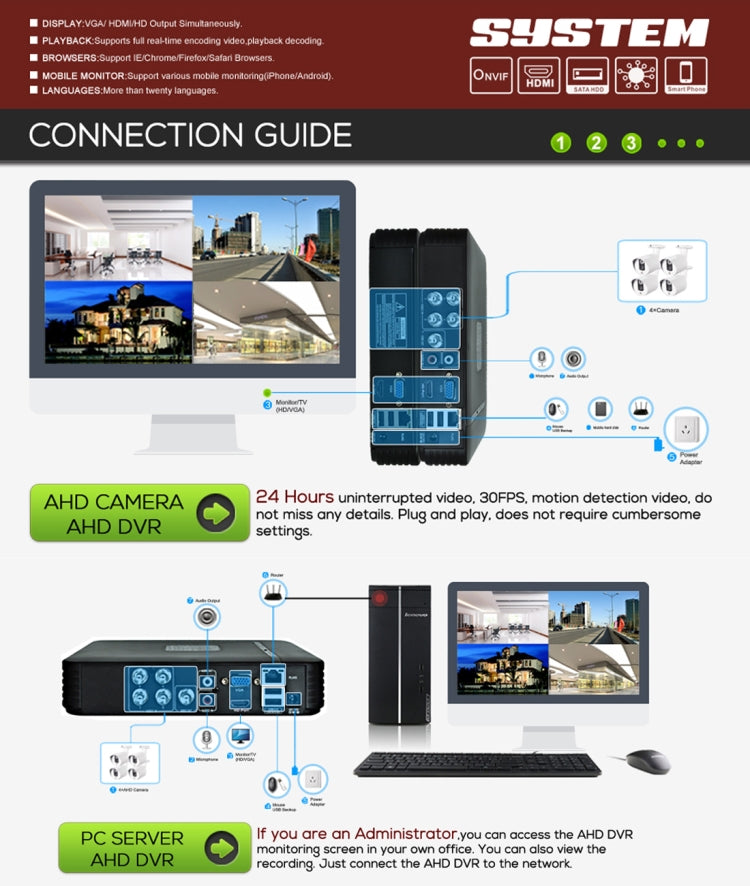

6. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.
7. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.

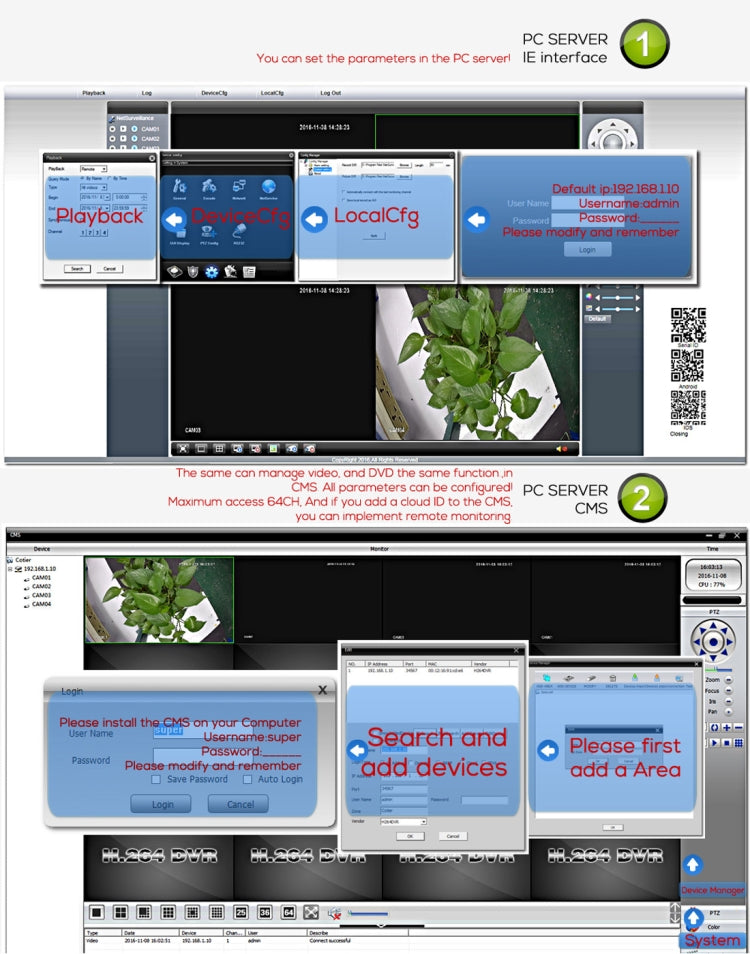

8. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
9. Browsers: Support IE, Chrome, Firefox, Safari browsers.

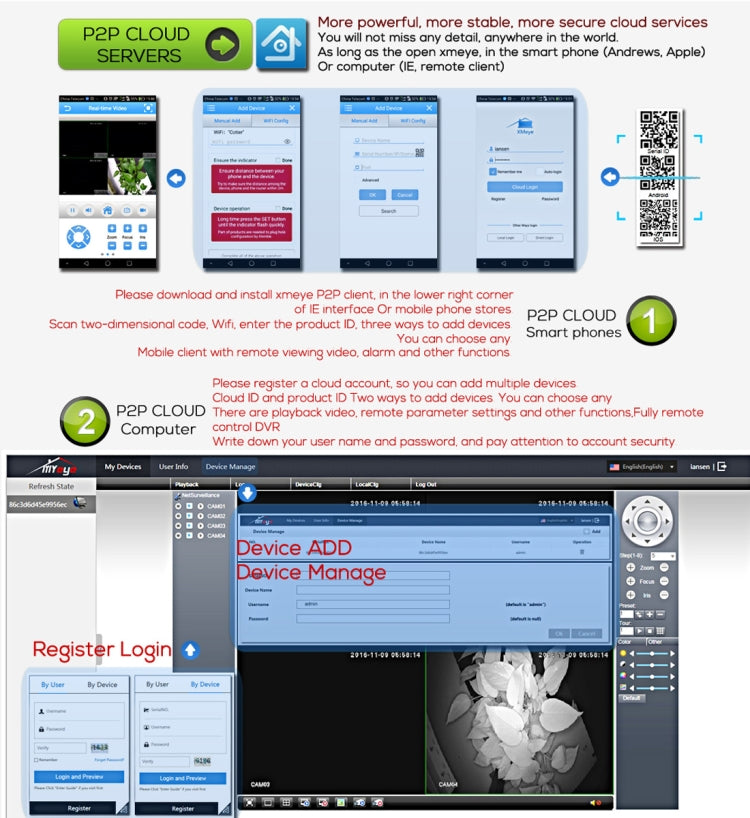

10. Remote Access: With DNS (ARSP),easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
11. Step on the Internet: one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
12. Mobile monitor: Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
13. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
14. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
15. Monitor quality: VGA, HDMI; Preview ability: 4*1080N; Encode ability: 4*1080N; Decode ability: 4*1080N.
16. Multi-mode input: Analog: 4*1080N; 4*720P; 4*960P; Hybrid: 2*720P(analog) + 2*720P(network); Network: 8*1080P, 12*960P, 8*720P, 4*1080P, 4*720P, 1*1080P.
17. Motion Detection: Each screen can be set to 192 (16*12) detection areas; Multi-level sensitivity can be set (Limited local channel).
18. Search mode: Search by time, calendar, event, channel.
19. Backup mode: Network, USB hard disk, USB burner, SATA burner.

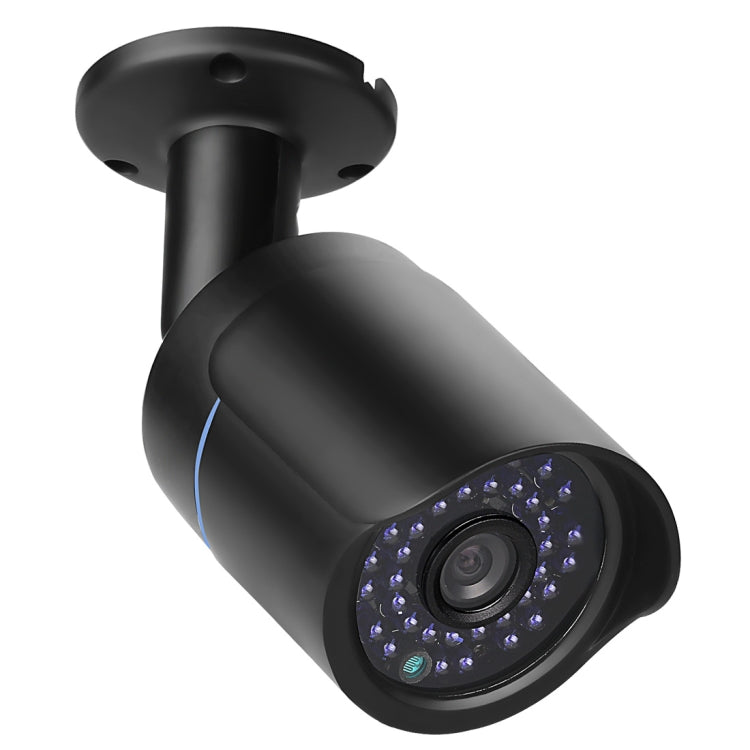

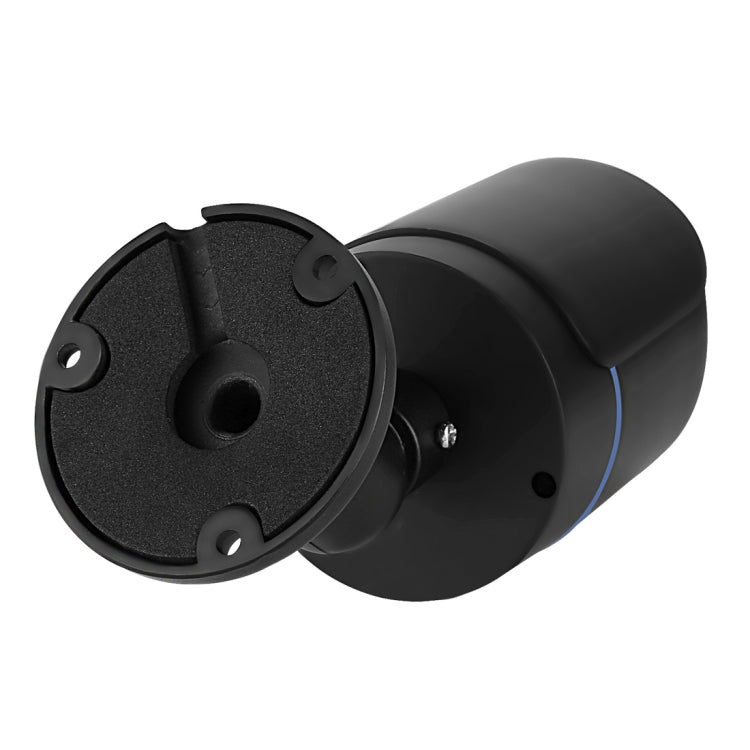

AHD Camera1. Wide power supply design, can work in a wide voltage range.
2. Green products, low current, low power consumption, energy saving.
3. Video lightning, anti-static dry flex circuit design - effective against high-voltage outdoor lightning, power surges and static electricity.
4. Each product through rigorous aging test. International brands of materials, creating product consistency and stability.
5. 1/4 inch 1.0Mega pixel (1280*800) CMOS sensor lens.
6. High speed, long distance real-time transmission.
7. Max IR LEDs length 20m, smart IR.
Specification:
|
General
|
| Mount Types |
Wall bracket, Ceiling Bracket |
| Performance |
Motion detection, Night Vision |
|
|
System / Hardware
|
| Sensor Size |
1/4 inch Progressive Scan |
| Effective Pixel |
1280(H) x 800(V) |
| Electronic Shutter |
1/50s~1/100,000s |
| Day/Night |
Auto(ICR) / Color / B/W |
| Minimum Illumination |
0.1Lux@F1.2 (AGC ON), 0.01Lux (IR on) |
|
|
Media Format
|
| Video Compression Format |
H.264 |
| Audio Compression Format |
G711-A |
| Frame Rate (FPS) |
30 fps NTSC, 25 fps PAL |
|
|
Night Vision
|
| IR LED |
36 pcs 5mm IR LEDs |
|
|
NVR
|
| Recording |
Recording mode: Manual recording, motion detection recording, time recording, alarm recording
Recording storage: HDD network |
| Video interface |

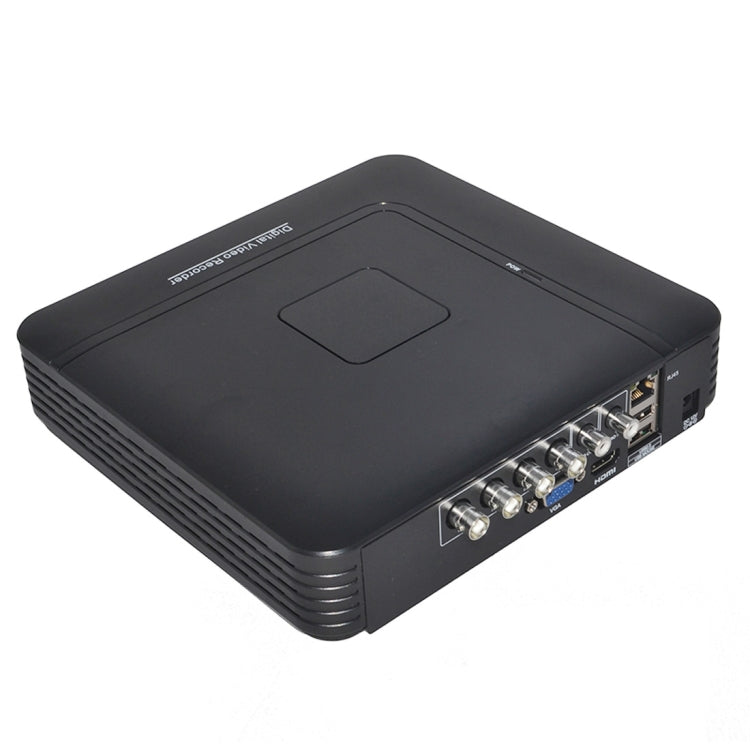

Video output: 1ch VGA and 1ch HDMI, BNC Port |
| Network |
1*RJ45 10/100 Base-T |

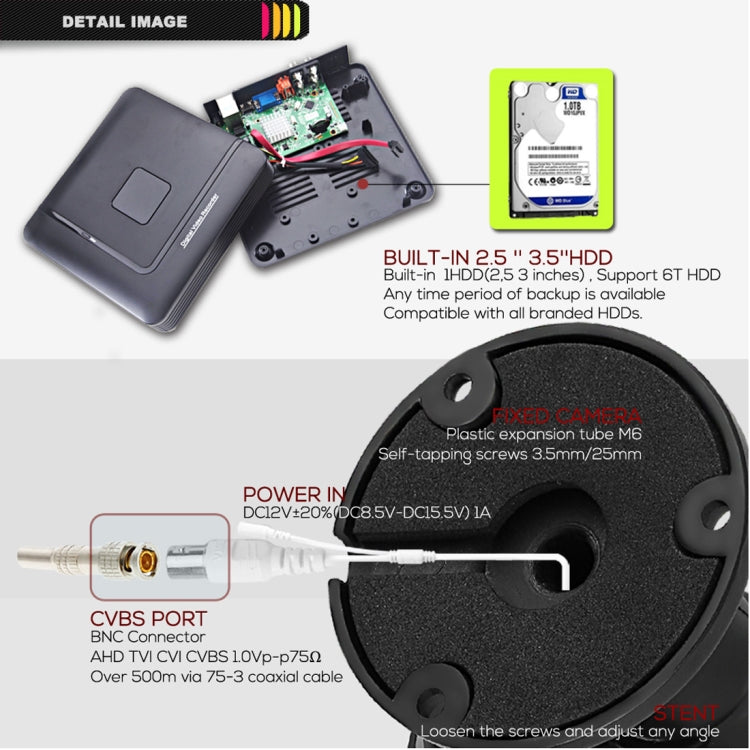

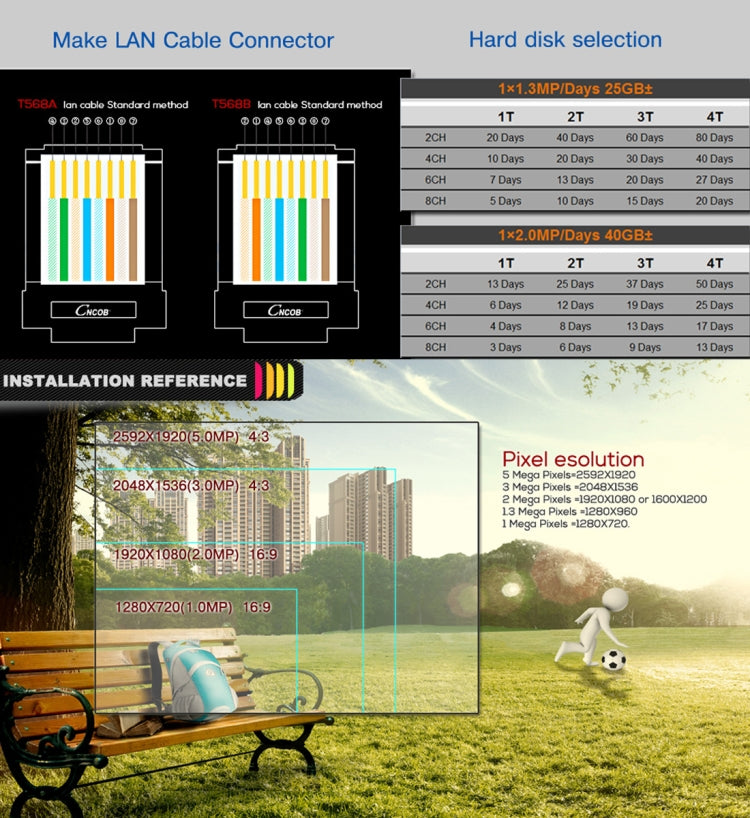

| HDD |
2 SATA HDDs (not included), Max 6TB / PER |
| Operation temperature |
0 to 55 Degree Celsius |
| Operation humidity |
10-90 percent |
| Power |
DC 12V 2.0A, DC 12V 4.0A |
| Power consumption |
< 15W (without HDD) |
|
|
Physical Environment
|
| Environment |
Outdoor, Indoor |
|
|

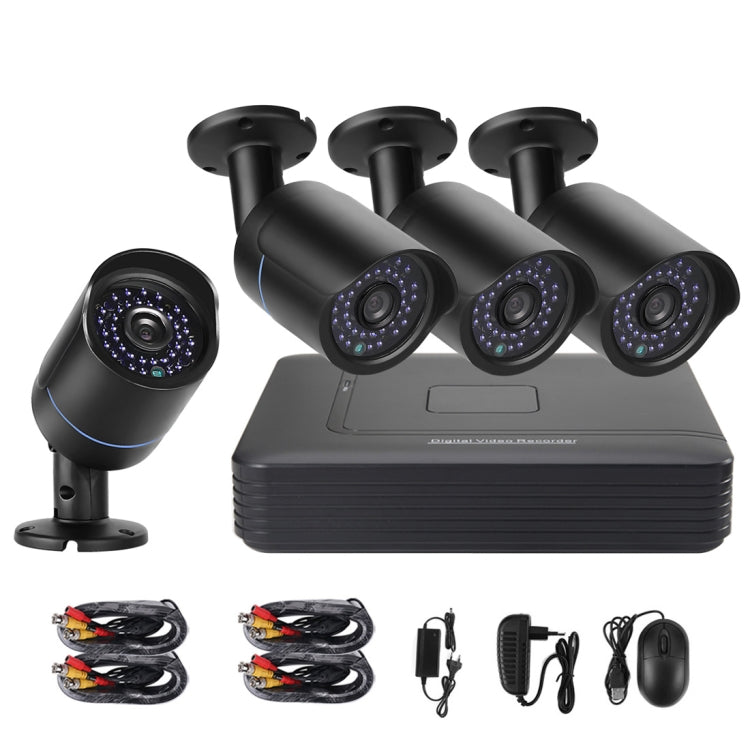

Package Include
|
| Package Contents |
4 x Cameras
1 x Remote Controller
4 x Connecting Cable
1 x USB Mouse
1 x CD
1 x User Manual
1 x DVR
1 x Mouse

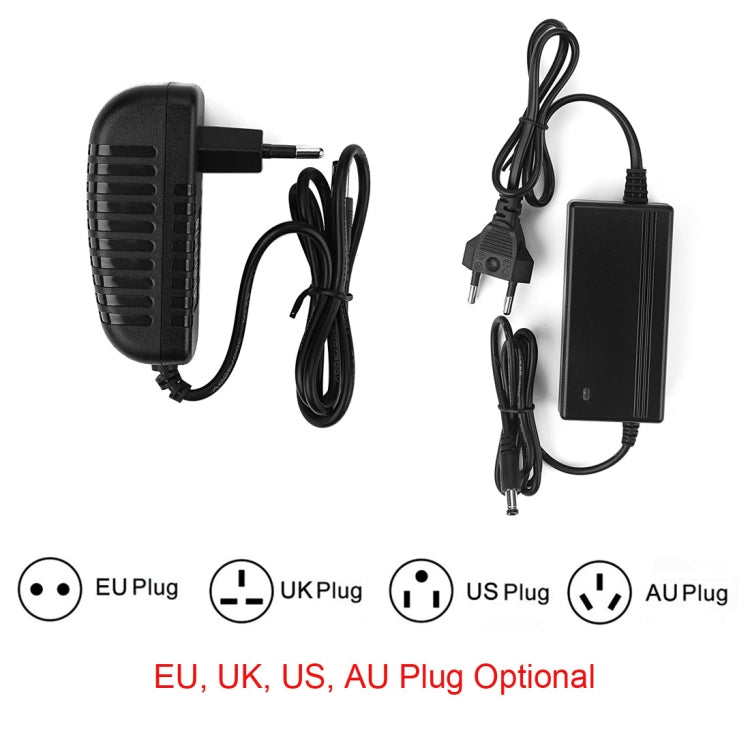

2 x Power Adapter (US, UK, EU, AU Optional) |
|
|
Package Weight
|
| One Package Weight |
3.75kgs / 8.27lb
|
| One Package Size |
29cm * 23cm * 24cm / 11.42inch * 9.06inch * 9.45inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
31cm * 28cm * 50cm / 12.2inch * 11.02inch * 19.69inch
|
| Loading Container |
20GP: 614 cartons * 4 pcs = 2456 pcs
40HQ: 1426 cartons * 4 pcs = 5704 pcs
|
|
