1. Made of high quality material, easy installation, strong and durable, long service life, can replace damaged or old busbars.
2. Install the screw holes under the cover for better protection.
3. Connection points: 4 M6 studs and 6 M4 screws
4. Metal material: nickel-plated copper
5. Voltage: 300V AC/48V DC max
6. Current: 130A AC/150A DC
7. Base material: flame retardant plastic

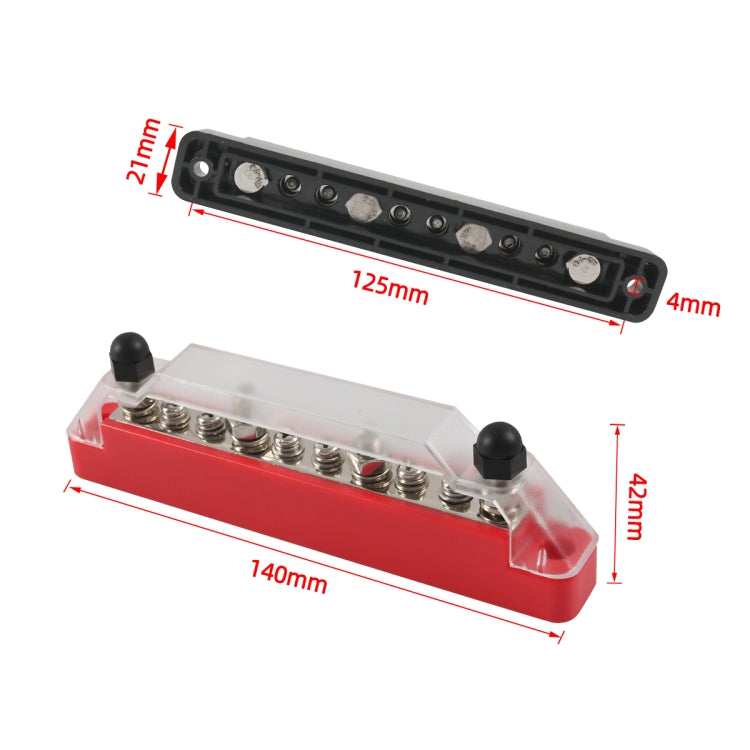

8. Center distance: 125mm
9. Screw hole distance: 4mm
10. Applicable scenarios: RV, yacht, solar line renovation
Specification:
|
Package Weight
|
| One Package Weight |
0.24kgs / 0.54lb
|
| One Package Size |
14cm * 12cm * 4cm / 5.51inch * 4.72inch * 1.57inch
|
| Carton Weight |
18.30kgs / 40.34lb
|
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 522 cartons * 70 pcs = 36540 pcs
40HQ: 1212 cartons * 70 pcs = 84840 pcs
|
|
