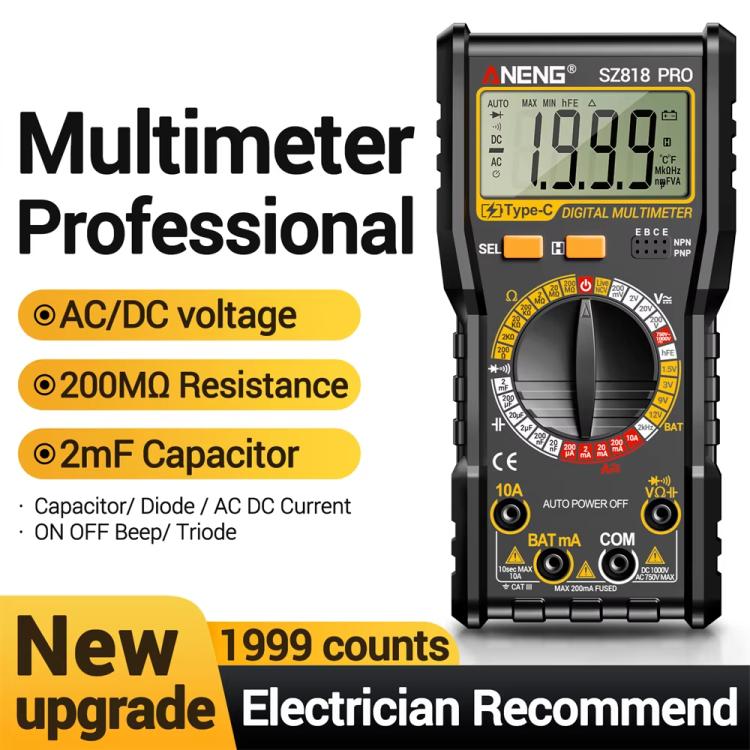

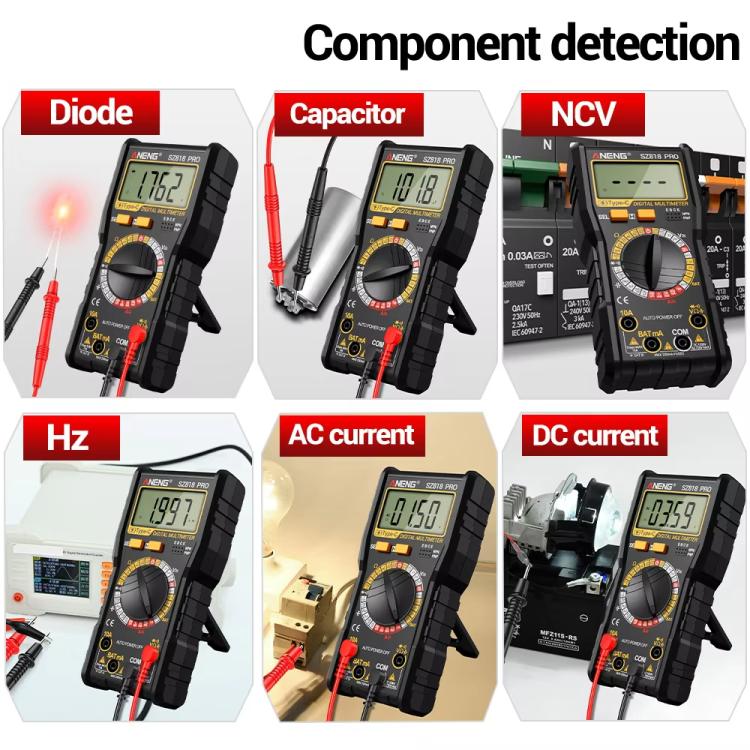

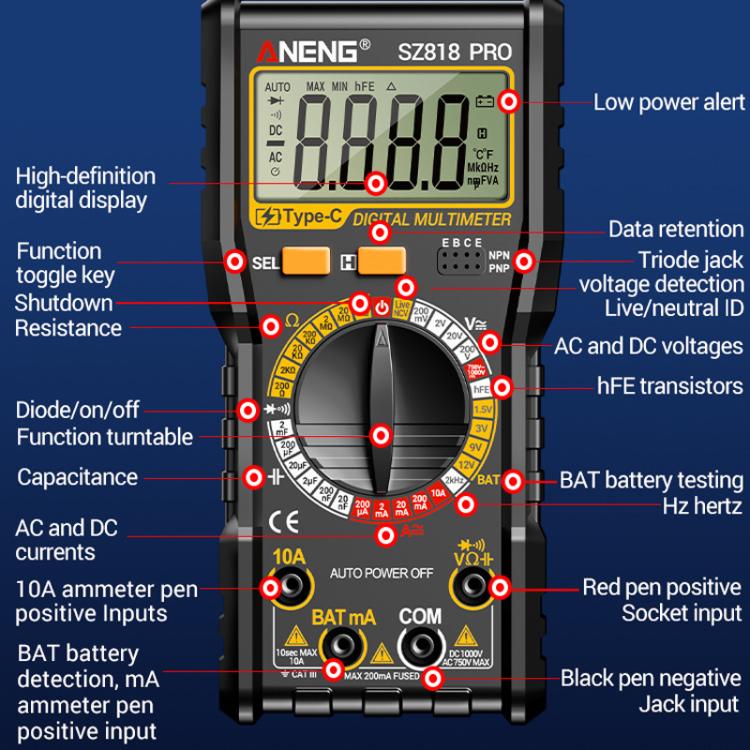

1. Main Functions: AC Voltage Measurement / DC Voltage Measurement / Diode Test / Continuity Buzzer / Capacitance Measurement / Resistance Measurement / Live/Neutral Wire Discrimination / AC Current Measurement / DC Current Measurement / NCV (Non-Contact Voltage) Detection / BAT Battery Test / hFE Transistor Test
2. Auto Power Off: 15 minutes of inactivity
3. Data Hold Function: Yes
4. Low Battery Indication: Yes
5. Maximum Display Count: 1999 counts

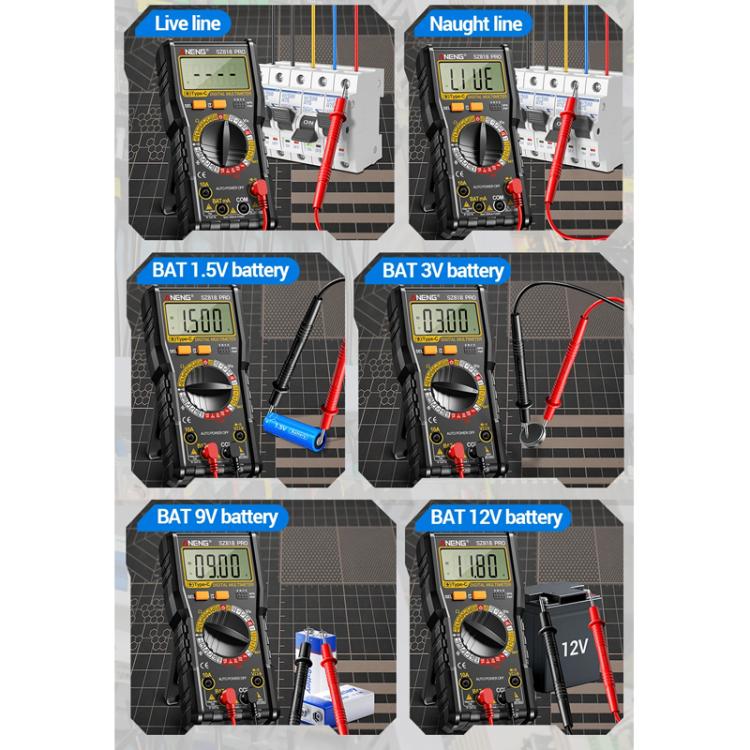

6. BAT Battery Test Voltage: 1.5V/3V/9V/12V
7. Power Supply:
--SZ818: 2x AA batteries (not included)
--SZ818 Pro: Built-in 3.7V 14500 Li-ion battery, Type-C charging

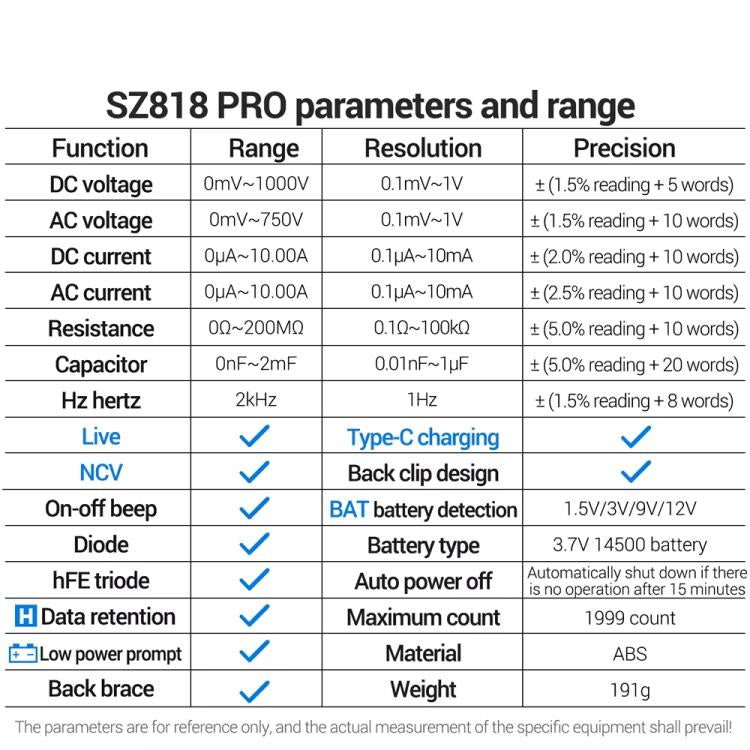

Parameters: (Range/Resolution)

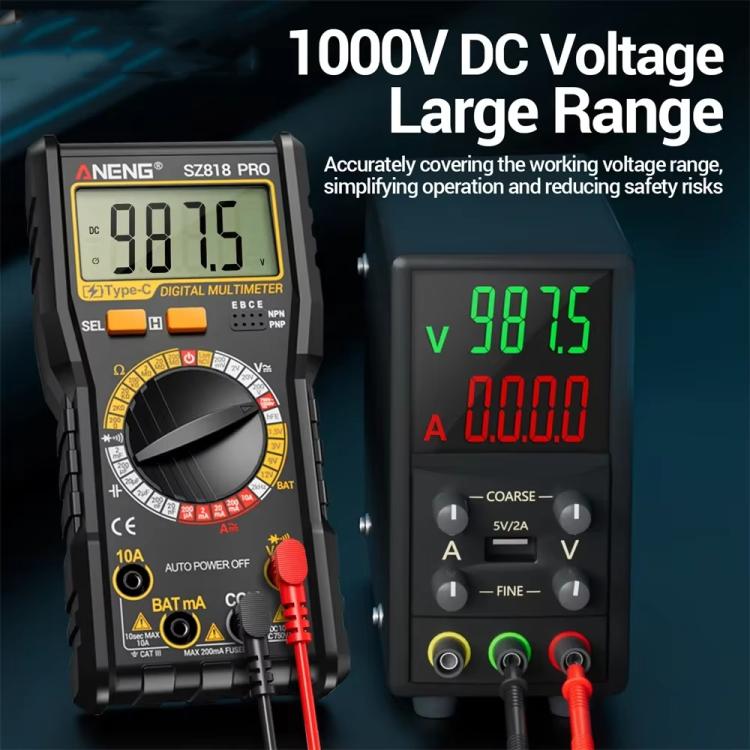

1. DC Voltage: 0mV - 1000V / 0.1mV - 1V
2. AC Voltage: 0mV - 750V / 0.1mV - 1V
3. DC Current: 0μA ~ 10.00A / 0.1μA ~ 10mA

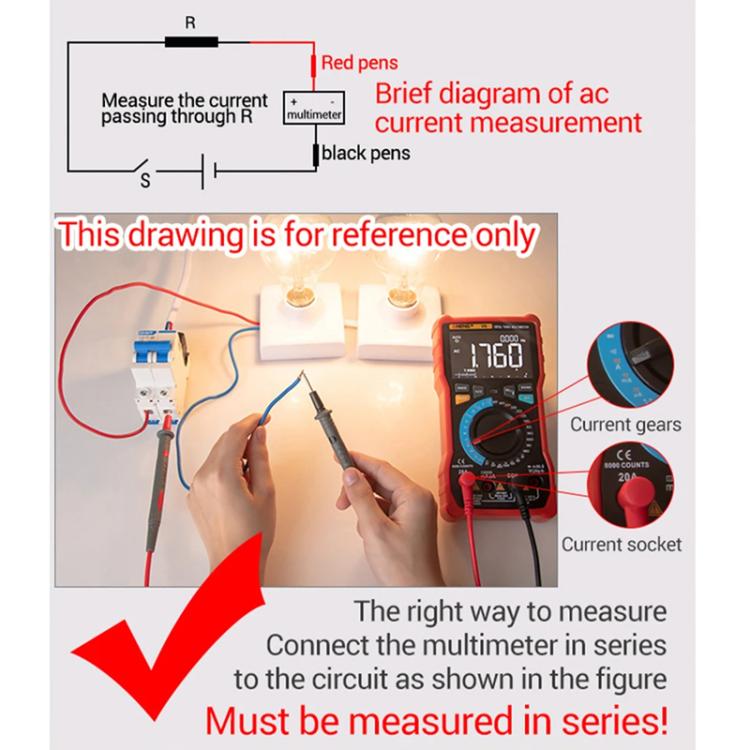

4. AC Current: 0μA ~ 10.00A / 0.1μA ~ 10mA
5. Resistance: 0Ω ~ 200MΩ / 0.1Ω ~ 100kΩ
6. Capacitance: 0nF ~ 2mF / 0.01nF ~ 1μF
7. Frequency: 2kHz / 1Hz
Specification:
|
Package Weight
|
| One Package Weight |
0.25kgs / 0.56lb
|
| One Package Size |
24cm * 14cm * 8cm / 9.45inch * 5.51inch * 3.15inch
|
| Carton Weight |
5.10kgs / 11.24lb
|
| Carton Size |
50cm * 30cm * 34cm / 19.69inch * 11.81inch * 13.39inch
|
| Loading Container |
20GP: 522 cartons * 16 pcs = 8352 pcs
40HQ: 1213 cartons * 16 pcs = 19408 pcs
|
|
