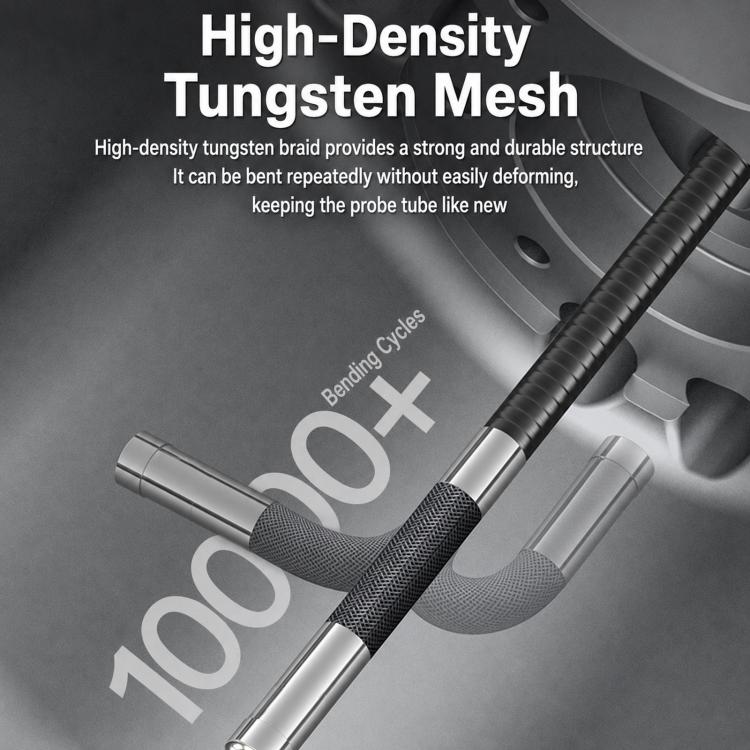

1. High-density tungsten wire woven probe tube, durable and long-lasting

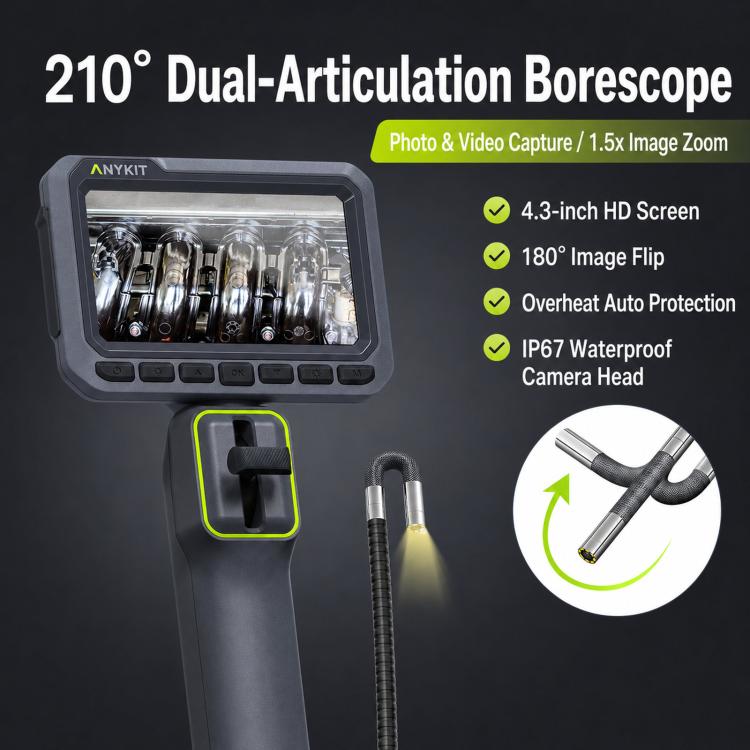

2. 210° bidirectional damping steering lens, capable of flexible exploration in engine, pipe bends, and narrow gaps, with no observation blind spots

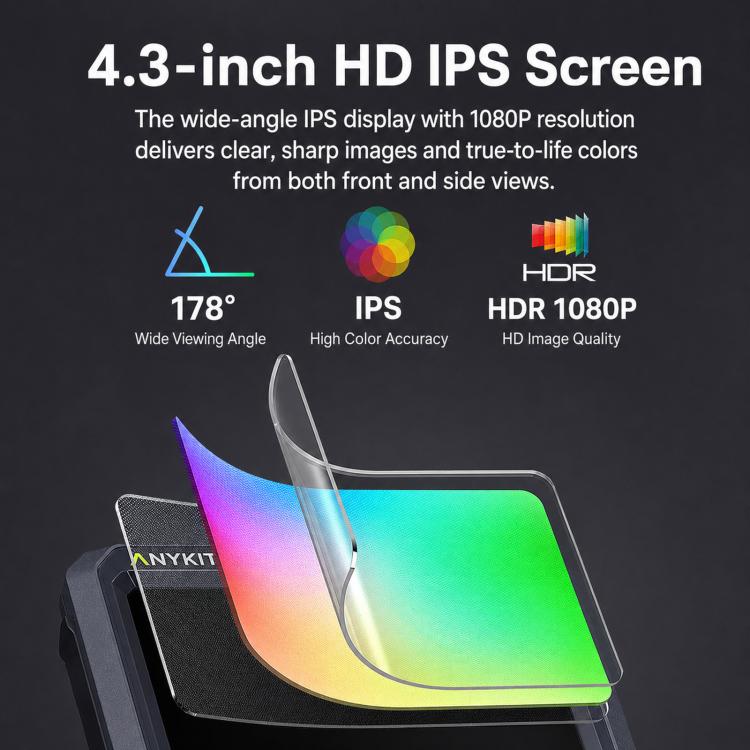

3. 4.3-inch IPS high-definition wide-angle display, color reproduction is true. Equipped with physical function keys, intuitive operation, and can view the picture in real time without external mobile phone connection

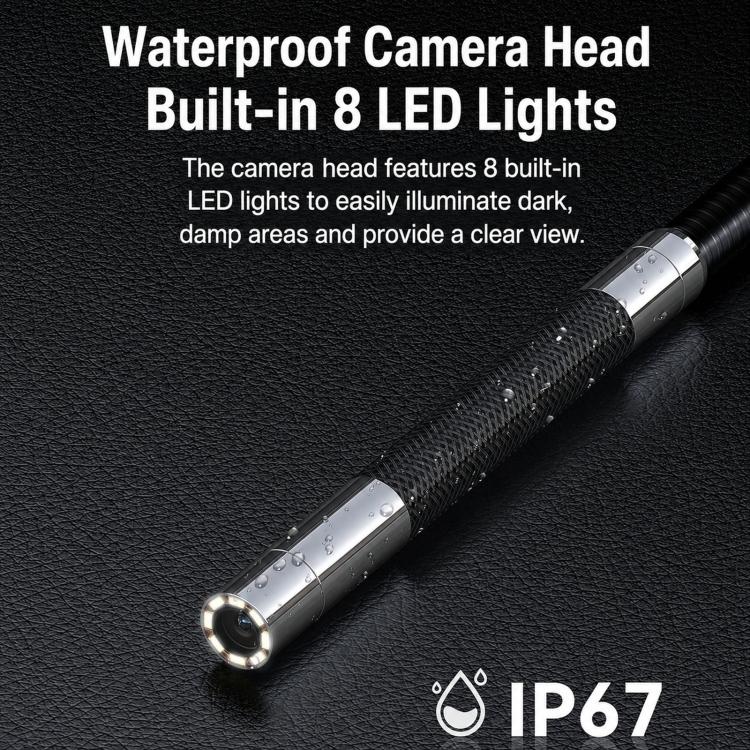

4. IP67 waterproof lens + 8 LED lighting fixtures, automatic lighting in dim and dark narrow spaces, clear and bright picture
5. 180° picture flipping, up-down inverted rotation of the picture, more comfortable to view when detecting pipes upside down

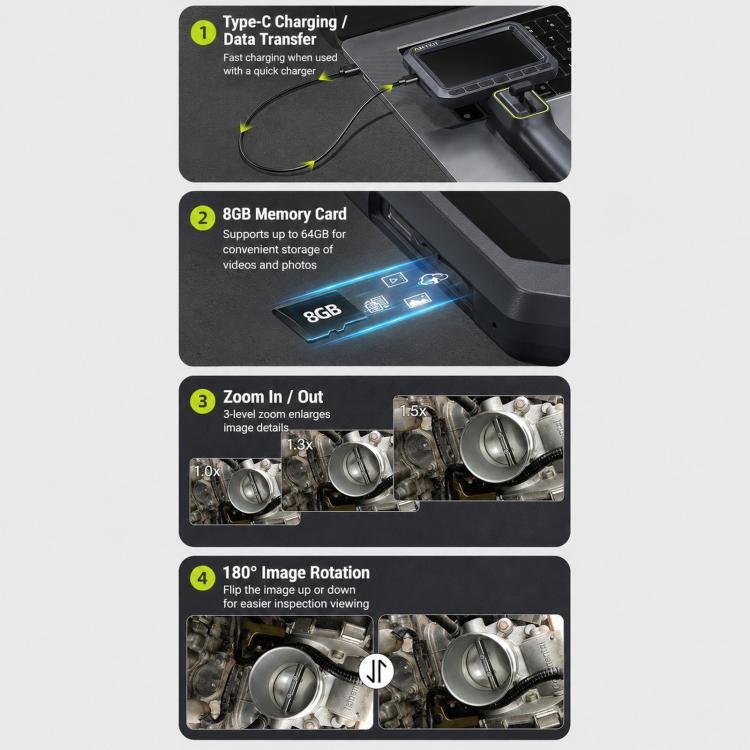

7. The body comes with a TF card slot, standard 8G storage card, maximum expansion to 64G, can directly take pictures and record videos for saving in the device
8. 3000mAh large-capacity lithium battery, fully charged can last for 3-4 hours, Type-C fast charging data cable for rapid recharging
9. The lens has a built-in temperature sensing chip, automatically powers off in high-temperature conditions to prevent overheating and lens burnout, making maintenance of high-temperature engines safer
10. Widely applicable scenarios, suitable for automotive mechanical inspection, non-destructive testing, home maintenance, pipe blockage inspection, etc
Parameters
1. Screen: 4.3-inch LED color LCD screen
2. Camera and video resolution: 1920 x 1080, 1280 x 720

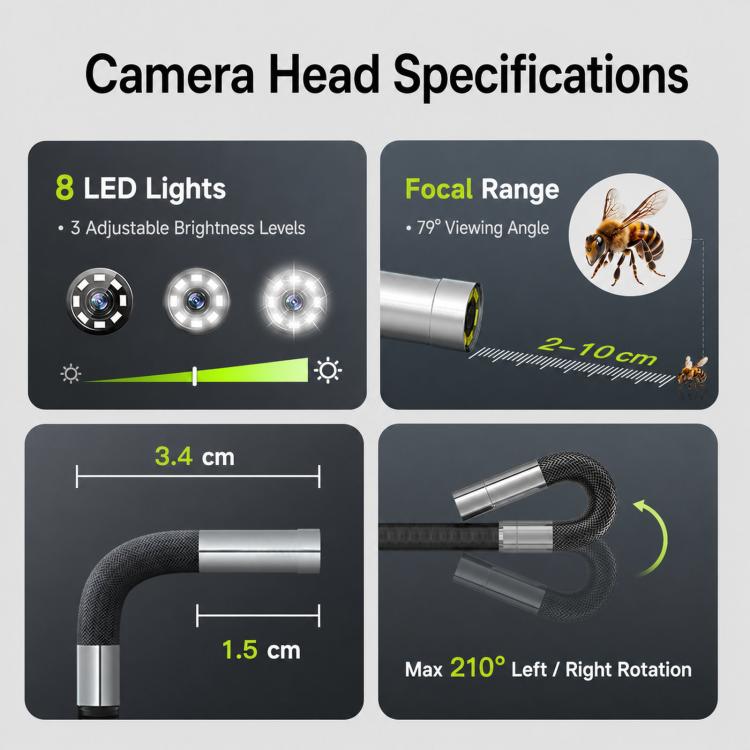

3. Lens diameter: 5.5mm
4. Camera pixel: 1 million
5. Focusing range: 2cm - 10cm for normal viewing
6. Viewing angle: 79°
7. Lens supplementary light: 8 adjustable LED light beads
8. Picture magnification: 1x / 1.3x / 1.5x three levels of magnification
9. Picture function: 180° up and down picture flipping
10. Waterproof rating: IP67 (only the lens and probe tube are waterproof, the body is not waterproof)

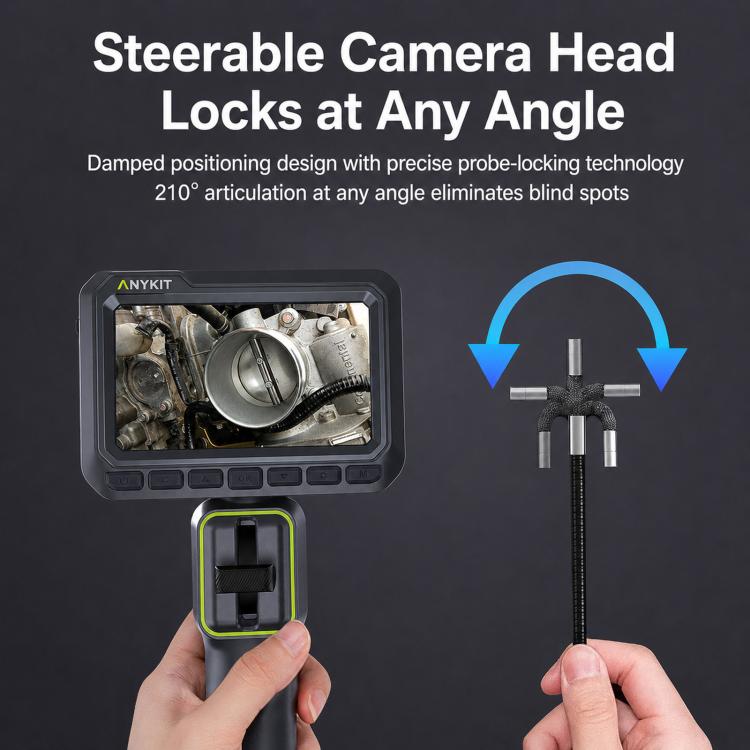

11. Steering angle: 210° for both left and right directions, mechanical steering, damping positioning can be locked at any angle
12. Battery capacity: 3000mAh
13. Battery life: continuous use for 3-4 hours
14. Charging/data interface: Type-C, fast charging charging + data transmission dual use
15. Storage expansion: TF card slot, standard 8G storage card, maximum support 64G memory card
16. Safety protection: built-in temperature control chip, automatic power-off protection for the lens in high temperature
17. Languages: Chinese, English, Japanese, German, Spanish, French, Italian, Russian
Specification:
|
Package Weight
|
| One Package Weight |
0.71kgs / 1.57lb
|
| One Package Size |
40cm * 24cm * 9cm / 15.75inch * 9.45inch * 3.54inch
|
| Carton Weight |
4.00kgs / 8.82lb
|
| Carton Size |
42cm * 38cm * 26cm / 16.54inch * 14.96inch * 10.24inch
|
| Loading Container |
20GP: 642 cartons * 4 pcs = 2568 pcs
40HQ: 1491 cartons * 4 pcs = 5964 pcs
|
|
