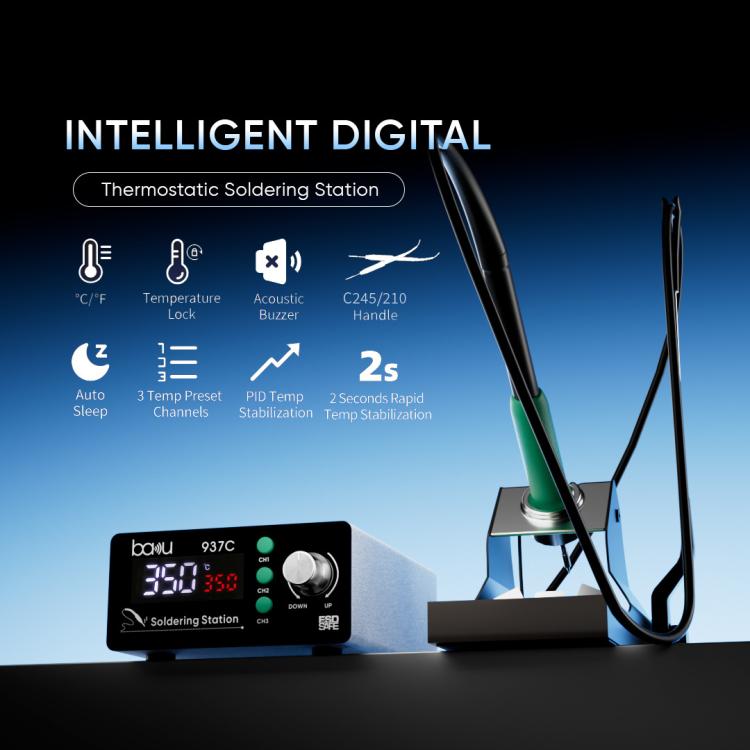

1. Intelligent Temperature Management: This station features three temperature preset channels for quick access to common settings, PID temperature stabilization technology for accuracy, and rapid heating that stabilizes within 2 seconds. It includes temperature lock, an acoustic buzzer for alerts, and auto sleep mode to conserve energy and extend tip life when the handle is idle.

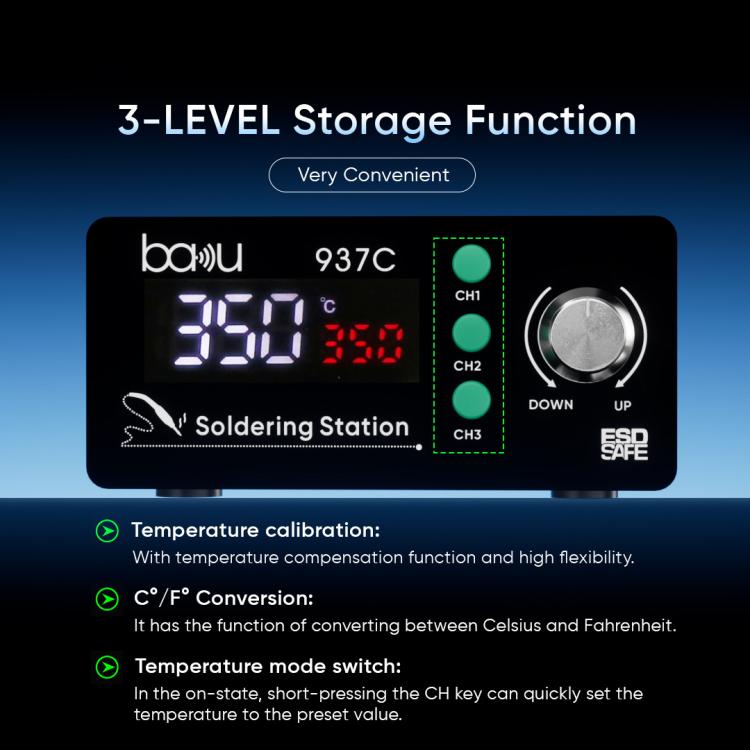

2. Versatile Storage and Calibration: The 3-level storage function allows for temperature calibration, Celsius to Fahrenheit conversion, and easy mode switching via the CH key for preset temperature recall, providing high flexibility in various working conditions.

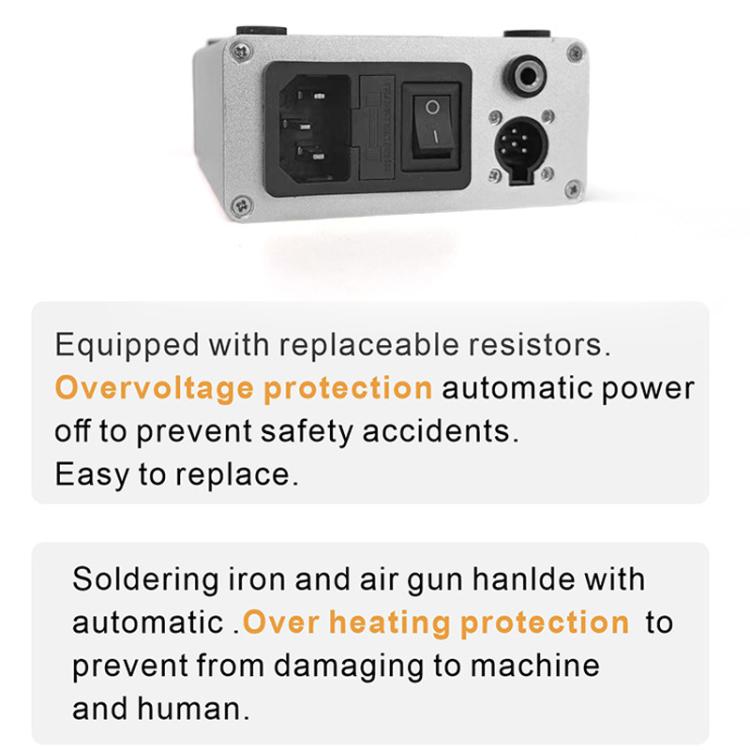

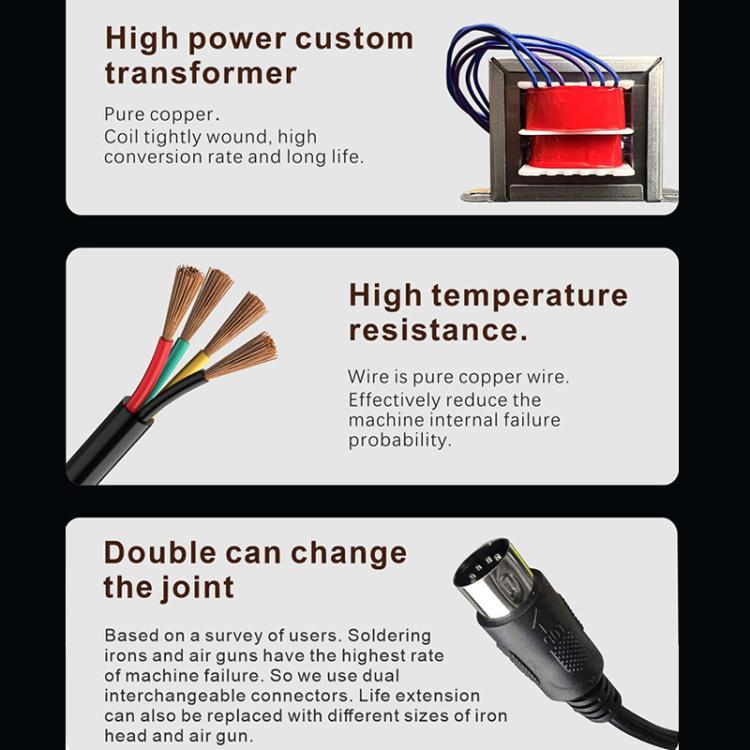

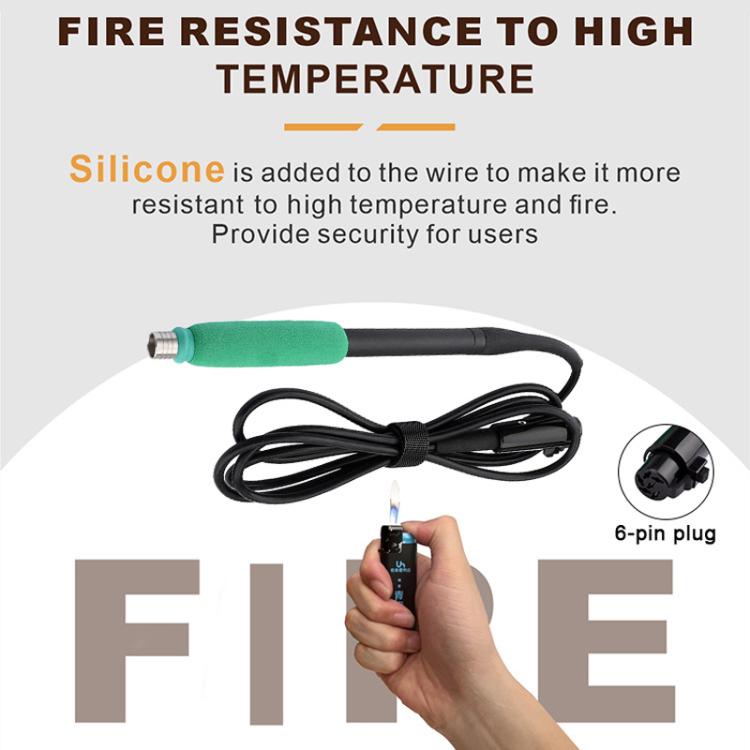

3. Enhanced Safety Protections: Equipped with replaceable resistors, overvoltage protection that automatically powers off the unit, and overheating protection for the handle. The wiring uses silicone insulation for high temperature and fire resistance, ensuring user safety during operation.

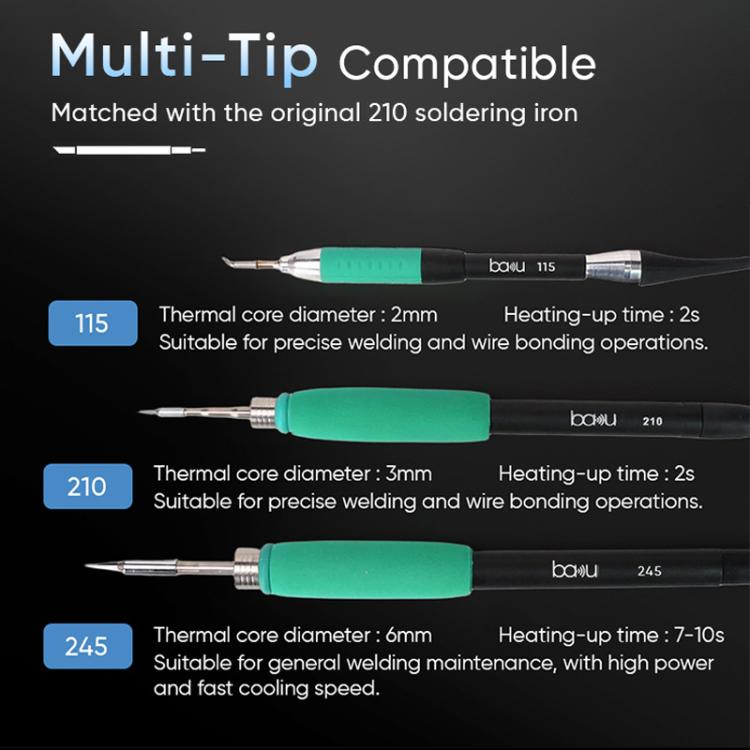

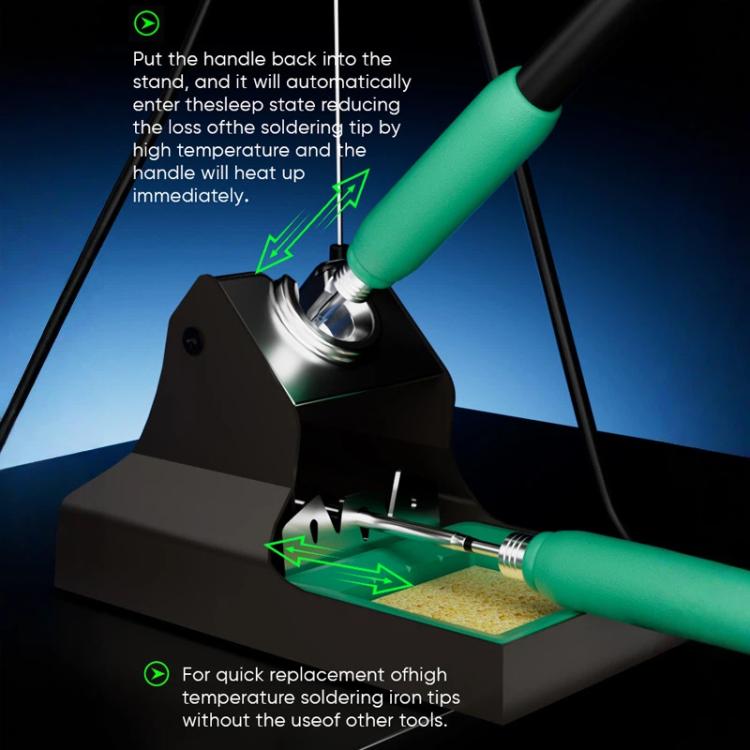

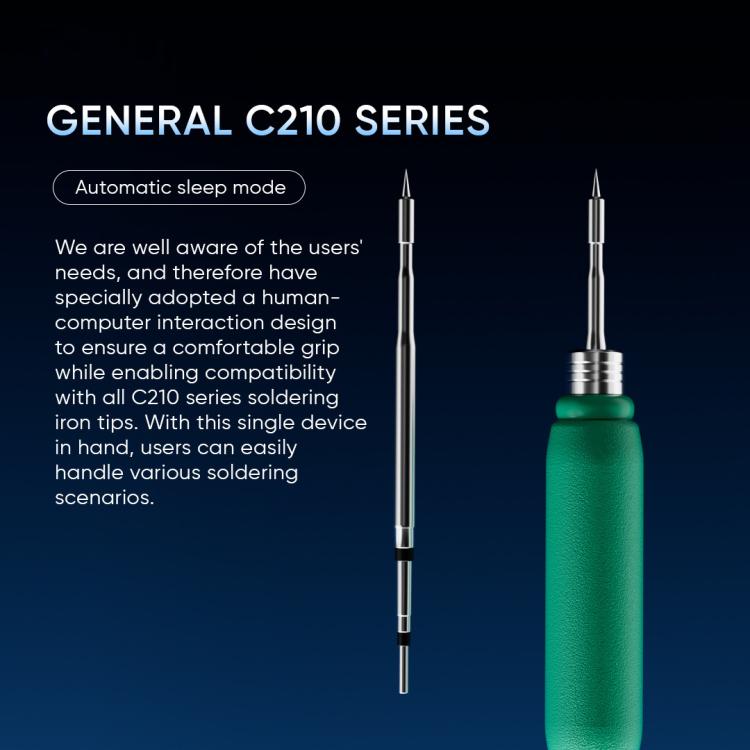

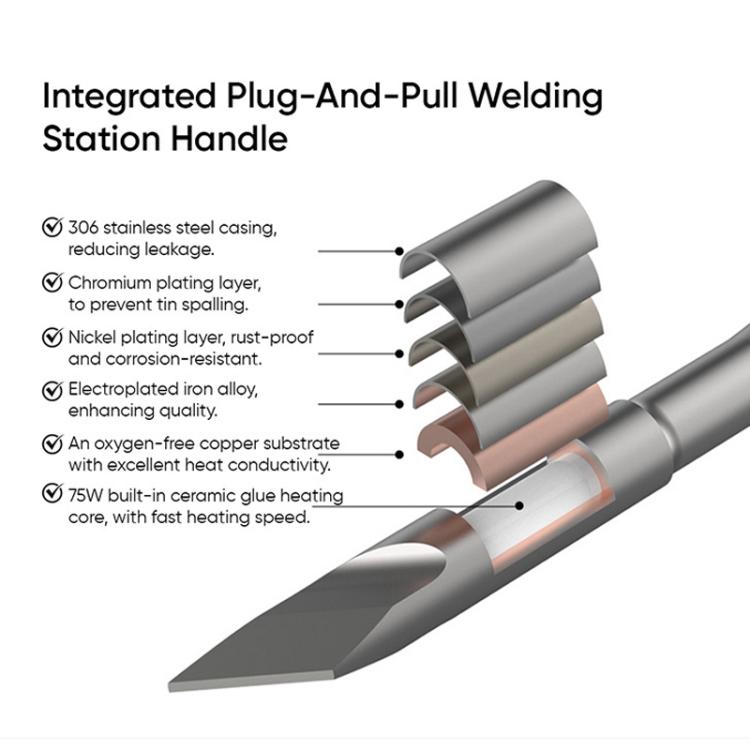

4. User-Friendly Design: The integrated plug-and-pull handle simplifies tip changes, and the station is compatible with multiple tips. Returning the handle to the stand triggers auto sleep, reducing tip degradation.

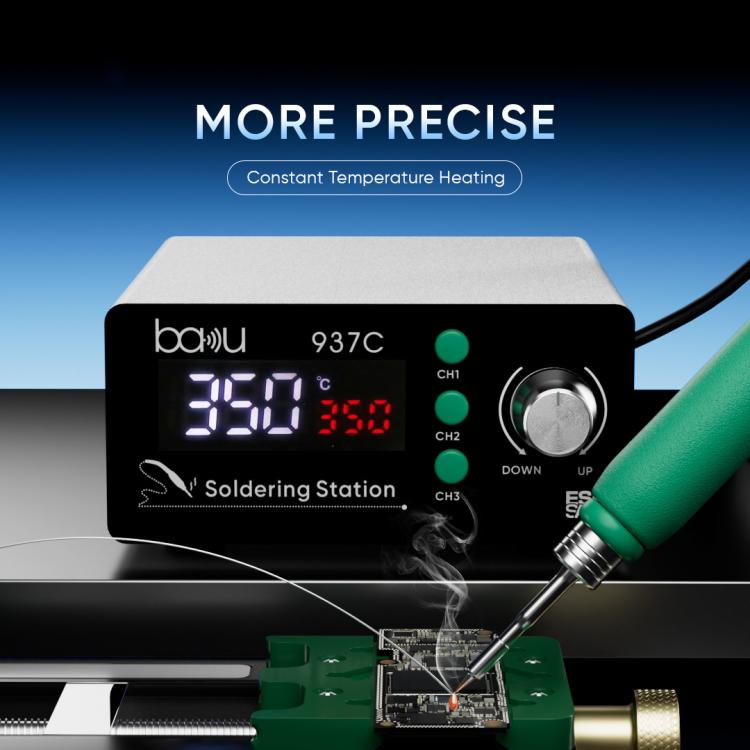

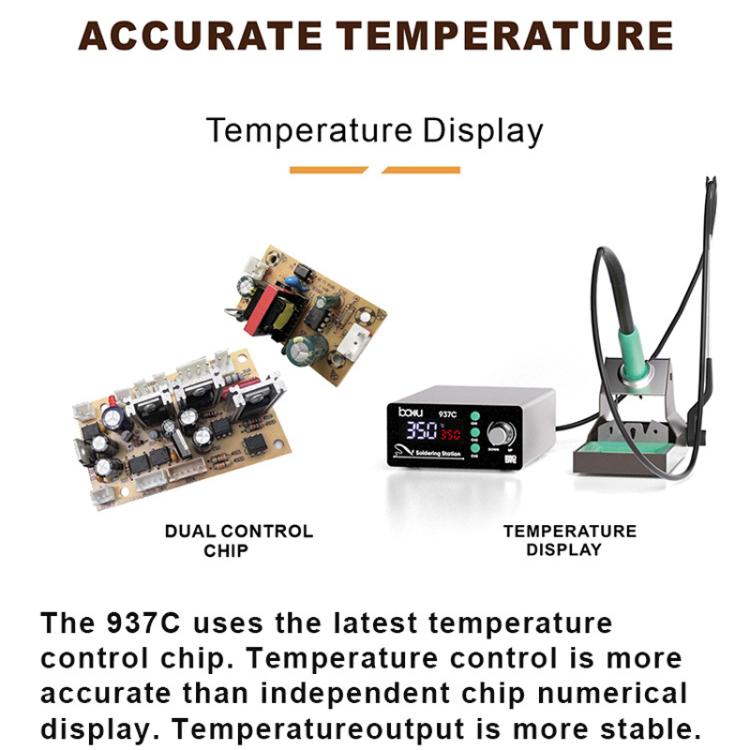

5. Precise Control System: Utilizing the latest temperature control chip, the station delivers more accurate and stable temperature output compared to standard displays, with an LED digital screen for clear readability.
Technical Specifications:

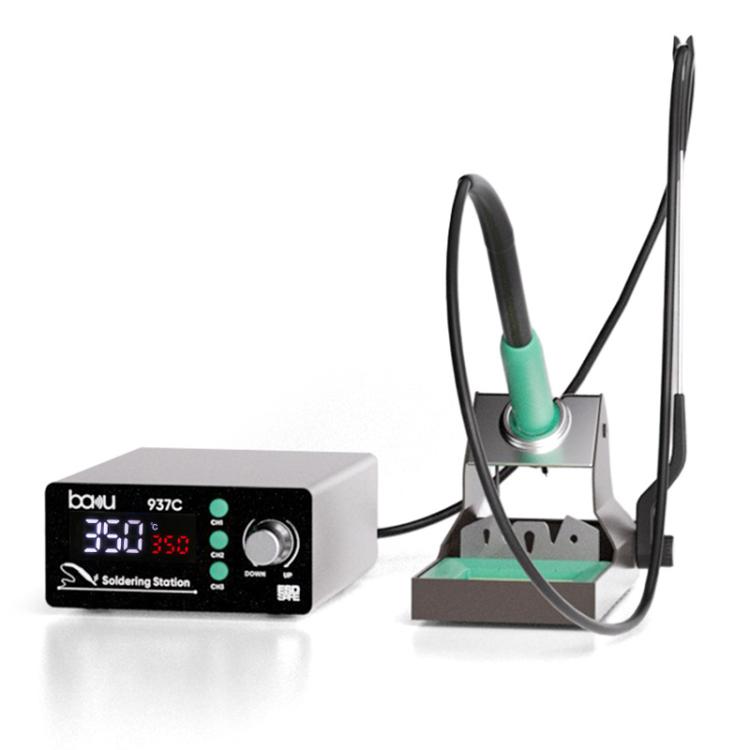

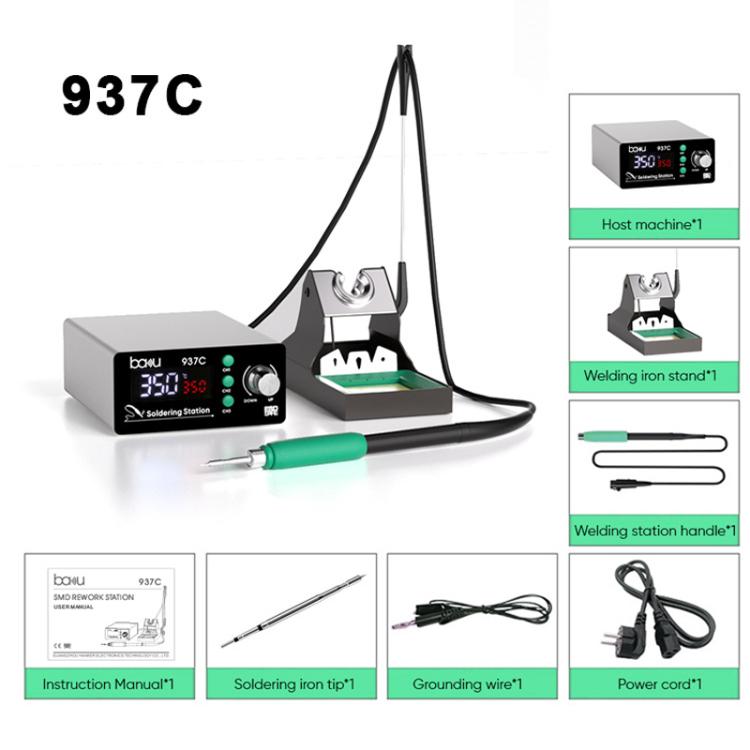

1. Model: 937C
2. Power: 120W
3. Display Type: LED microcomputer digital display
4. Soldering Iron Temperature Range: 200 to 500 degrees Celsius
5. Dimensions: 225mm x 194mm x 105mm
6. Weight: 1.0 kg
7. Noise Level: Below 45 dB
Specification:
|
Package Weight
|
| One Package Weight |
0.95kgs / 2.10lb
|
| One Package Size |
24cm * 12cm * 24cm / 9.45inch * 4.72inch * 9.45inch
|
| Carton Weight |
16.20kgs / 35.71lb
|
| Carton Size |
48cm * 41cm * 46cm / 18.9inch * 16.14inch * 18.11inch
|
| Loading Container |
20GP: 294 cartons * 16 pcs = 4704 pcs
40HQ: 683 cartons * 16 pcs = 10928 pcs
|
|
