About the productAs one resistance meter for object surface, it can measure the resistance value on object surface by putting two parallel electrodes close to object surface to be measured, so as to judge whether the measured object is a conductor, static material or insulator; meanwhile the meter can be used to measure the resistance to ground of object, which is specially applied to different anti-static fields
Features1. Surface resistance test
2. Three modes to display resistance value on object surface or material property simultaneously
3. Ambient temperature measuring
4. Temperature unit conversion
5. Data holding
6. LCD backlight
Specification:
|
General
|
| Measuring Precision of Resistance |
+-10% |
| Response Time of Resistance Measurement |
1s |
| Measuring Range of Temperature |
0-50 Celsius Degree |
| Measuring Precision of Temperature |
+-2 Celsius Degree |
| Measure Range |
10 to the 3rd power-10 to the 12th power ohm |
| Power Supply |
9V 6F22 battery |
| Size |
125.8mm x 63.6mm x 31mm |
|
|

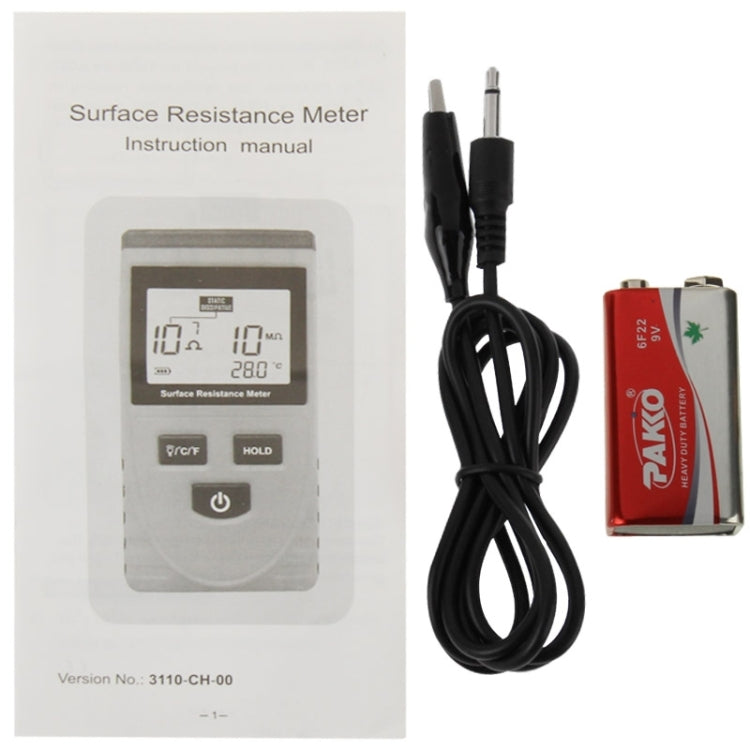

Package Include
|
| Package Contents |
1 x Manual
1 x Battery
1 x Resistance Meter
1 x Cable |
|
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.46lb
|
| One Package Size |
21cm * 15cm * 6.5cm / 8.27inch * 5.91inch * 2.56inch
|
| Carton Weight |
5.60kgs / 12.35lb
|
| Carton Size |
46cm * 35cm * 35cm / 18.11inch * 13.78inch * 13.78inch
|
| Loading Container |
20GP: 473 cartons * 20 pcs = 9460 pcs
40HQ: 1098 cartons * 20 pcs = 21960 pcs
|
|
