Features

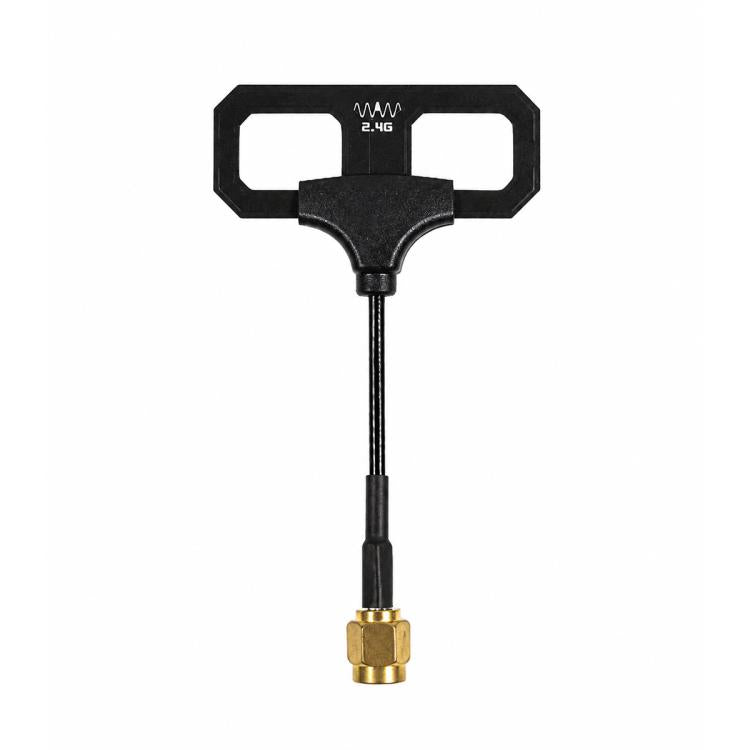

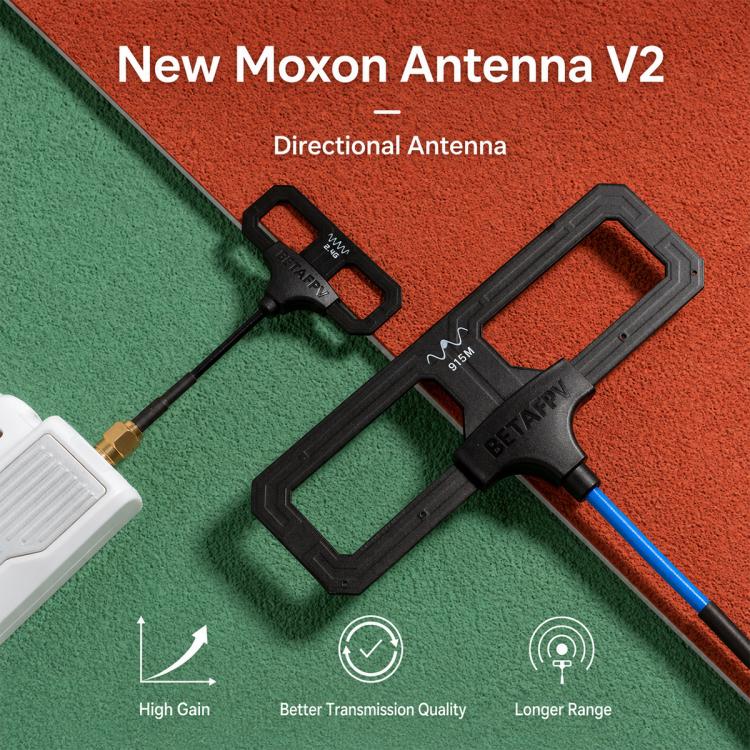

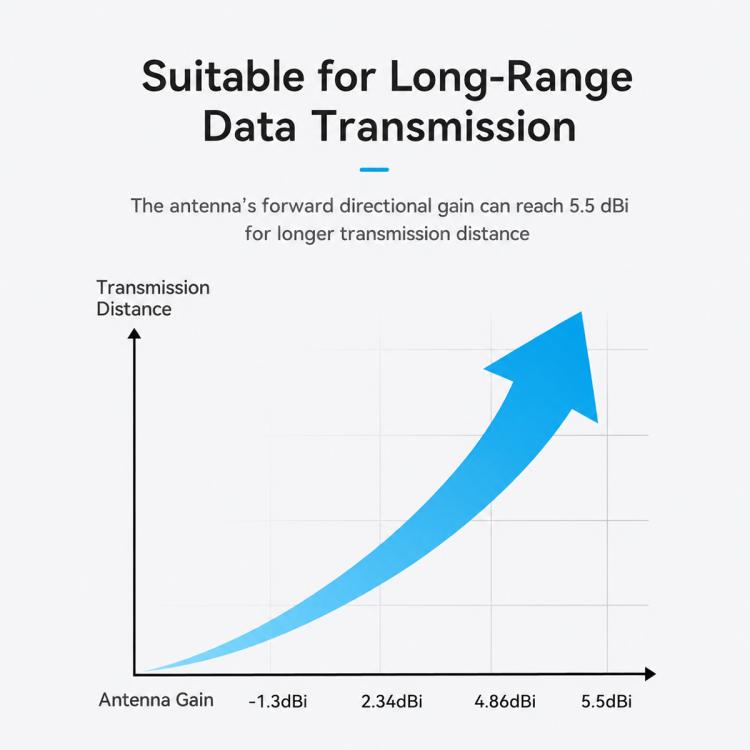

1. Moxon V2 High-Gain Directional Antenna: An upgraded Moxon directional antenna offering a forward gain of up to 5.5dBi. It significantly extends transmission range and improves signal quality for long-range RC flight and FPV operations.

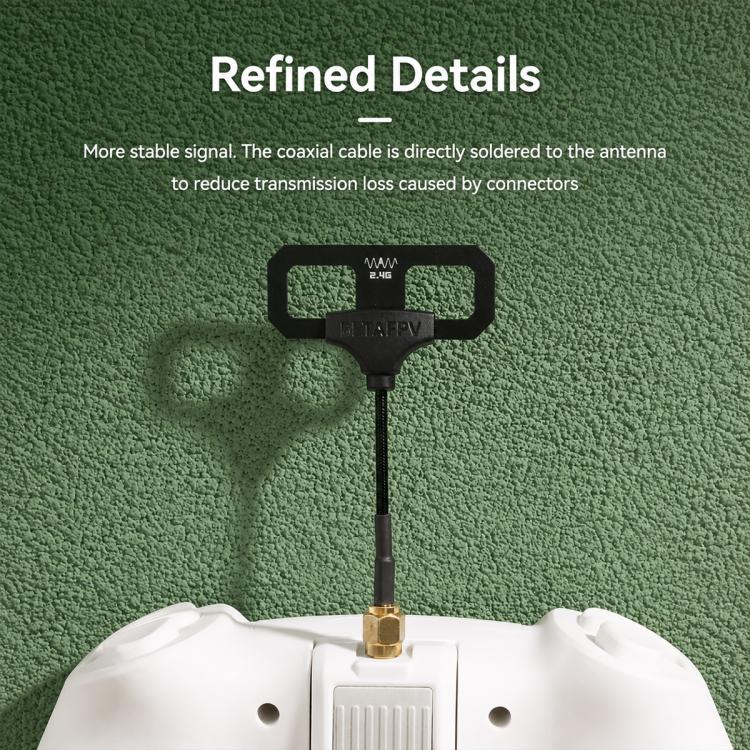

2. Direct-Soldered Coaxial Cable for Reduced Signal Loss: The coaxial feeder is soldered directly to the antenna body, minimizing signal loss caused by connectors and ensuring a stable, reliable signal during extended outdoor flights.

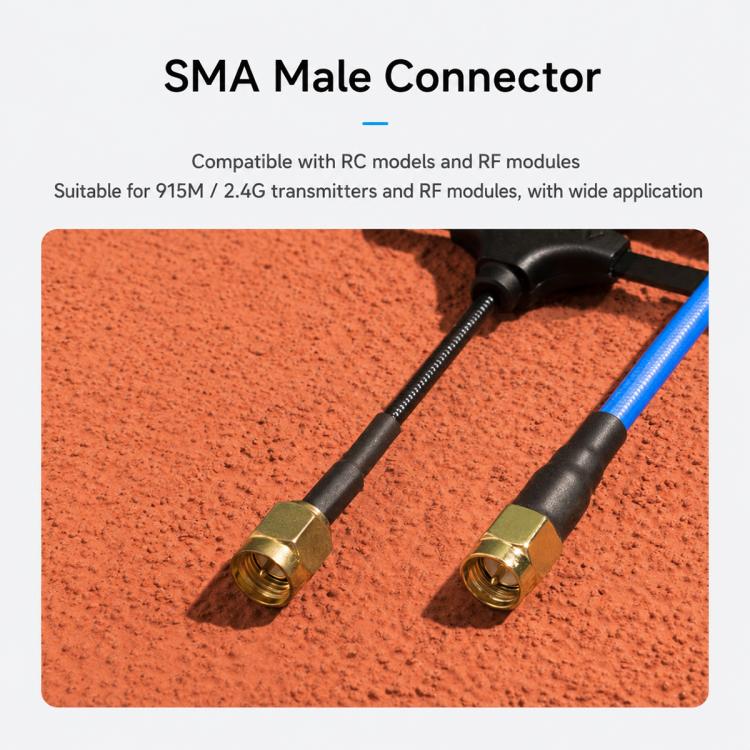

3. Standard SMA Male Connector for Broad Compatibility: Features a gold-plated SMA male connector compatible with 2.4GHz and 915MHz transmitters and RF modules. It supports mainstream ELRS systems and fits the vast majority of remote controllers.

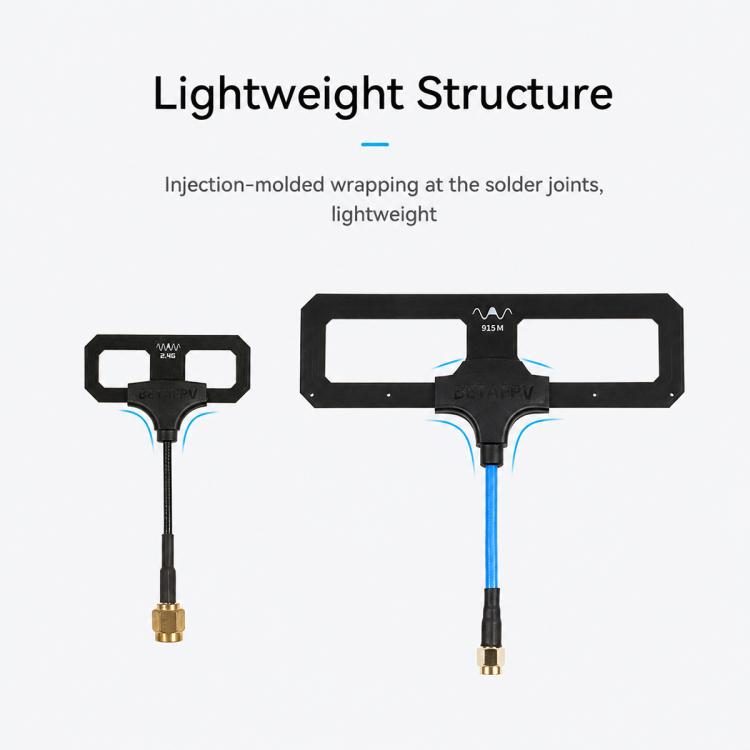

4. Lightweight, Reinforced Injection-Molded Structure: Lightweight design adds no significant load; the solder joints are protected by injection molding, offering resistance to vibration and repeated bending for enhanced durability.

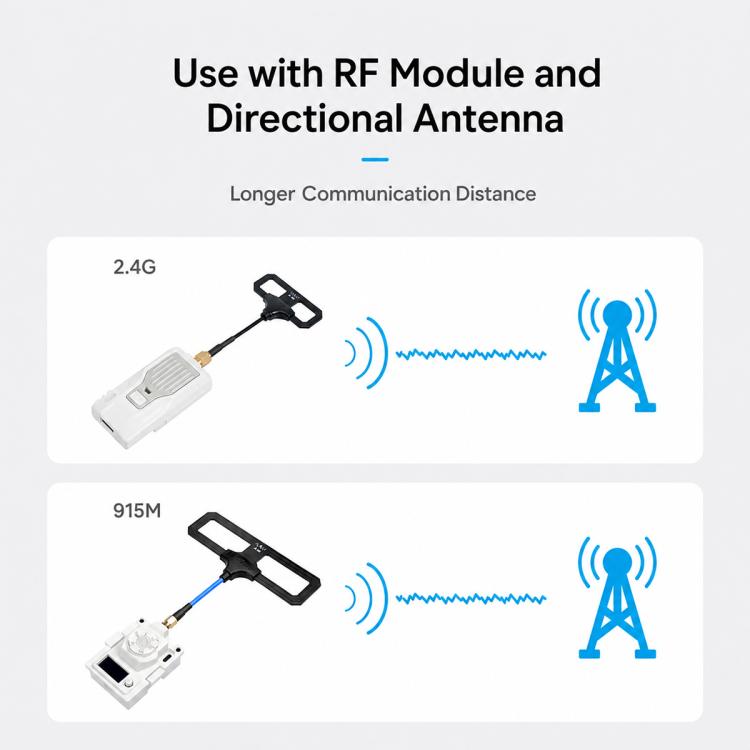

5. Dual-Band Options and Easy Installation: Available in 2.4GHz and 915MHz versions with plug-and-play functionality; ideal for long-range FPV drones, fixed-wing aircraft, and various RC equipment.
Specifications

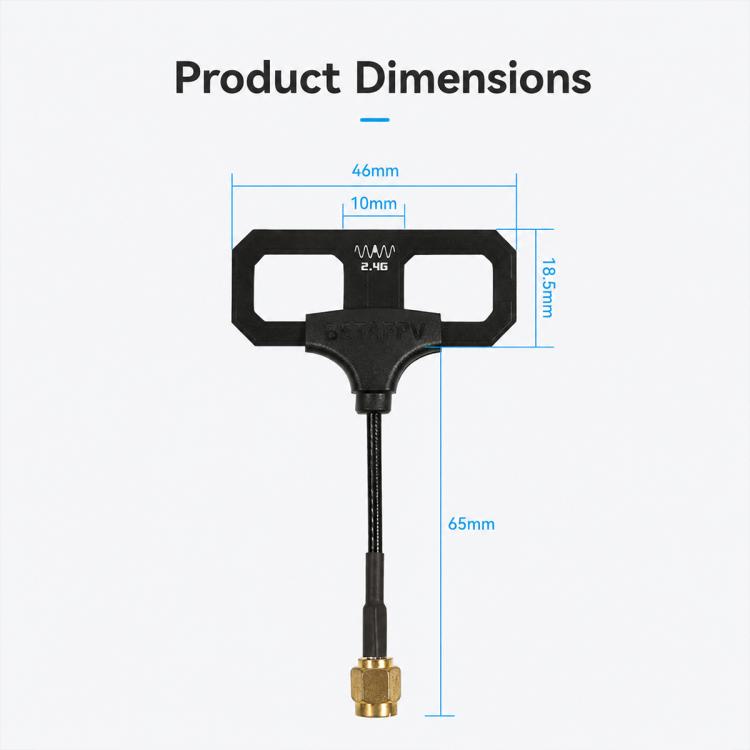

1. Coaxial Cable Length: 65mm (2.4GHz) / 90mm (868MHz/915MHz)
2. Connector Type: SMA Male (Internal thread, internal pin)
3. Gain: 5.4dBi (2.4GHz) / 5.9dBi (915MHz)
4. VSWR: less than 2.0 (2.4GHz) / less than 2.0 (915MHz)
5. Polarization: Linear Polarization

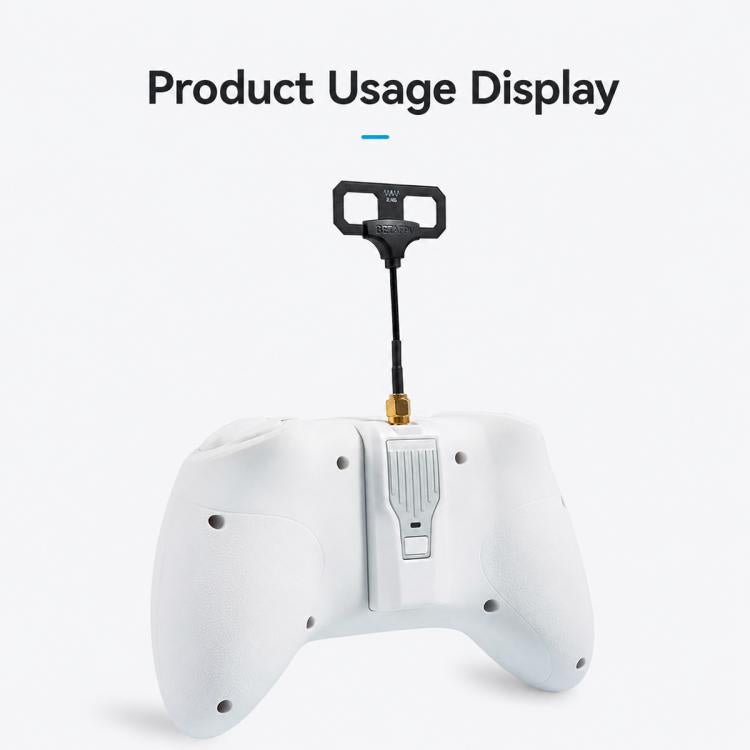

6. Compatible Transmitters: Remote controllers or RF modules operating at 2.4GHz or 915MHz
Specification:
|

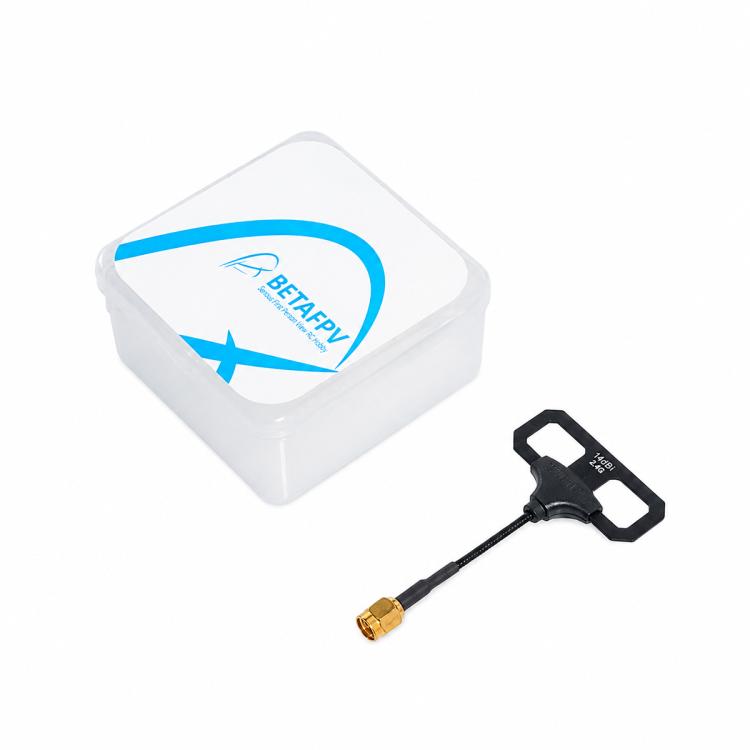

Package Weight
|
| One Package Weight |
0.07kgs / 0.16lb
|
| One Package Size |
15cm * 10cm * 12cm / 5.91inch * 3.94inch * 4.72inch
|
| Carton Weight |
1.00kgs / 2.20lb
|
| Carton Size |
35cm * 25cm * 32cm / 13.78inch * 9.84inch * 12.6inch
|
| Loading Container |
20GP: 952 cartons * 15 pcs = 14280 pcs
40HQ: 2210 cartons * 15 pcs = 33150 pcs
|
|
