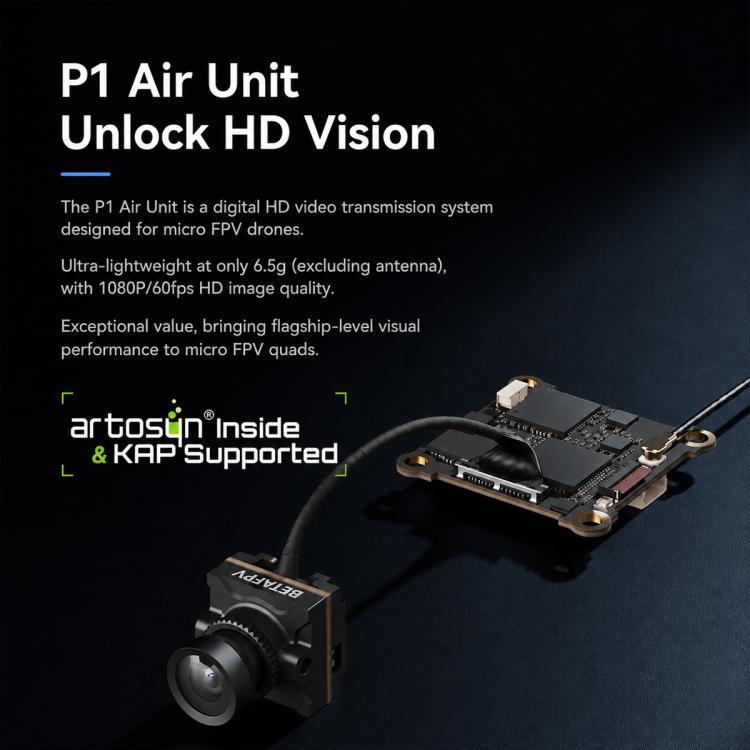

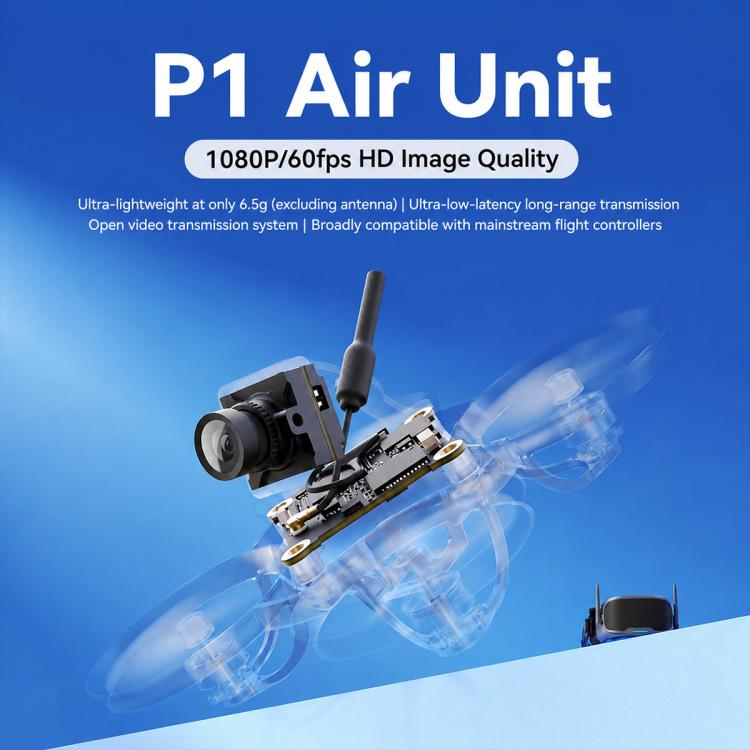

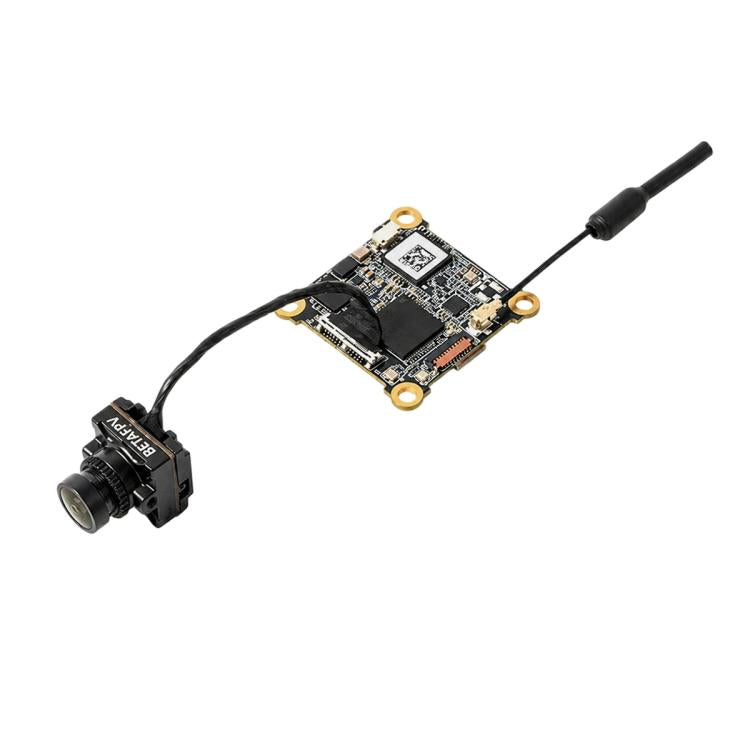

BETAFPV P1 Air Unit HD VTX Module FPV Drone System for Aerial Photography(Black)

Features:
1. ArtLynk Protocol: Uses the low-latency ArtLynk communication protocol to provide stable, long-range digital video transmission with improved performance compared with traditional analog VTX systems.
2. Lightweight HD VTX: The compact air unit weighs approximately 3.61g without the camera and approximately 6.5g with the camera, providing a lightweight and cost-effective HD video transmission solution for FPV drones.
3. Reliable Video Transmission: Supports a video transmission range of over 5km with approximately 60ms latency, providing smooth and responsive live video for FPV flight.
4. Wide-Angle 1080p Video: Equipped with a 1/2.9-inch CMOS image sensor and a 170-degree FOV lens, supporting 1080p video at 60fps for a wide and immersive live view.
5. Plug-and-Play Connection: Features a standard SH 1.0 6-pin FC port for convenient connection with compatible Betaflight and BETAFPV flight controllers, plus a 4-pin USB port for configuration and firmware updates.

Specifications:
1. Product Type: ArtLynk HD Air Unit
2. Air Unit Weight: Approximately 3.61g (Camera Excluded), Approximately 6.5g (Camera Included)
3. Antenna Weight: Approximately 0.44g

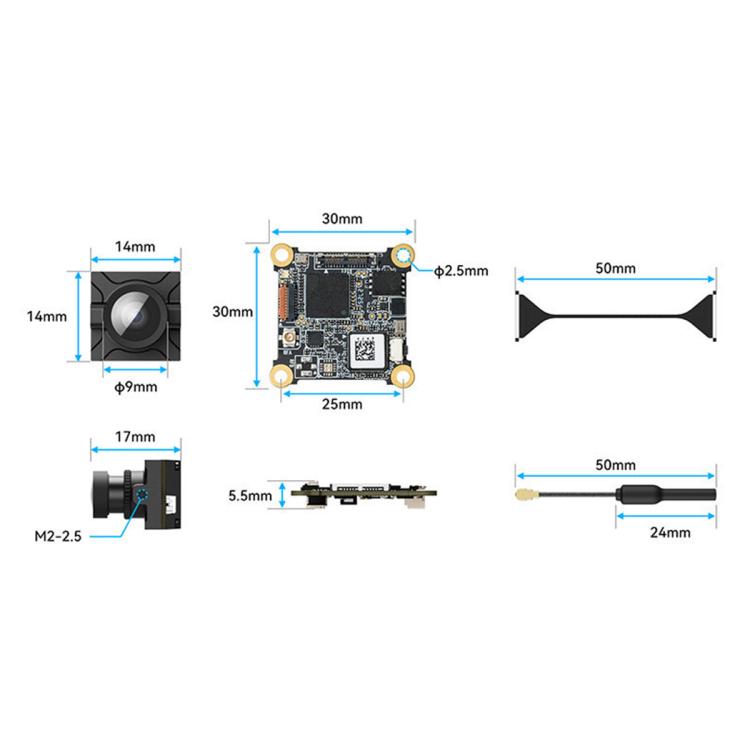

4. Air Unit Dimensions: 30 x 30 x 5.5mm
5. Camera Dimensions: 14 x 14 x 17mm

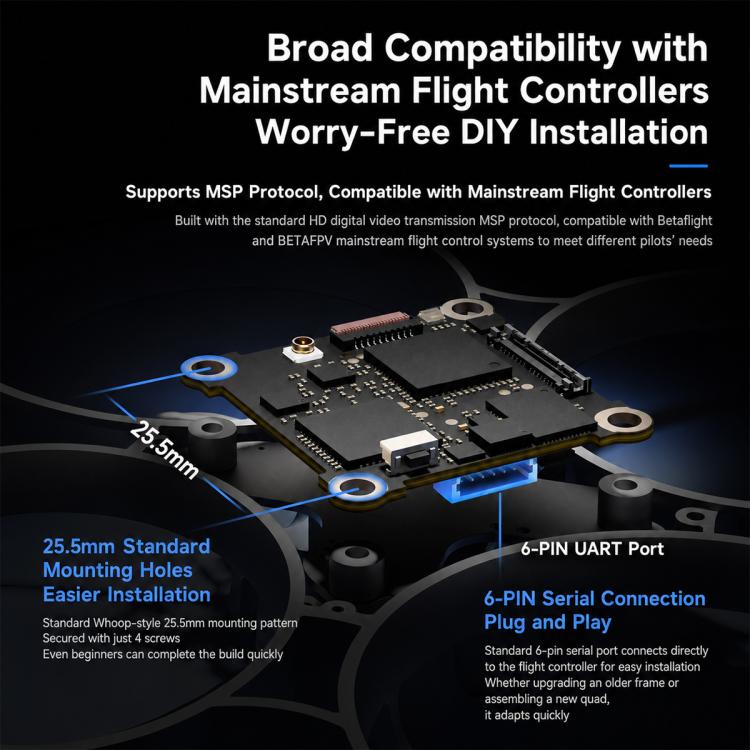

6. Mounting Hole Size: 25.5 x 25.5mm
7. Mounting Hole Diameter: 2.5mm

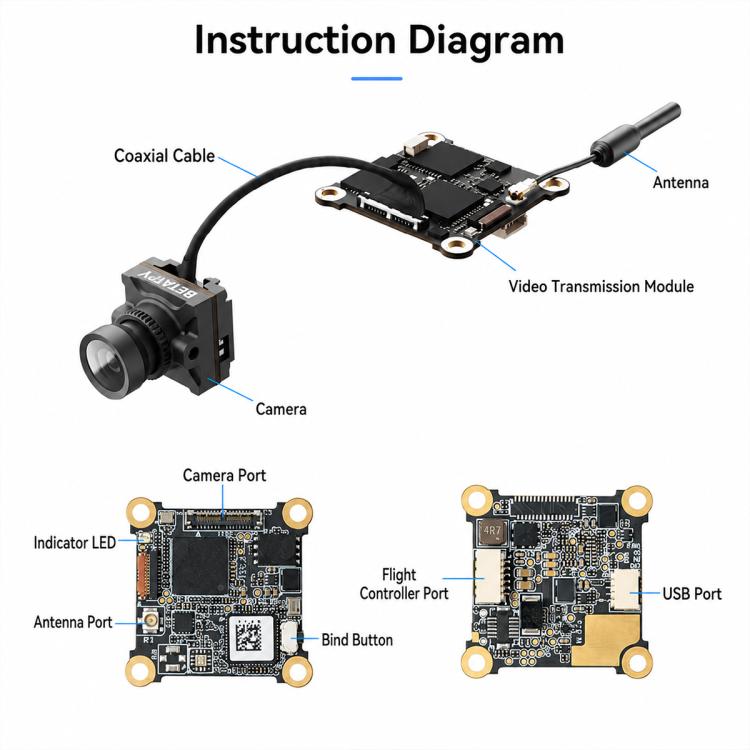

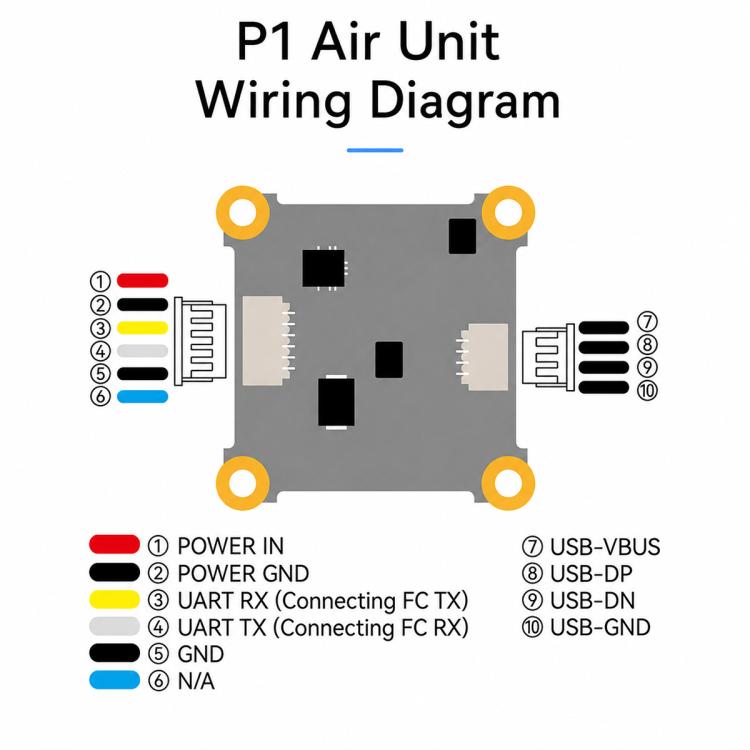

8. Air Unit Ports: SH 1.0 6-pin (FC), SH 1.0 4-pin (USB)
9. VTX Frequency: 5.1-5.9GHz
10. EIRP: Less than 200mW (FCC/SRRC), Less than 25mW (CE)
11. Video Transmission Range: Greater than 5km
12. Video Transmission Latency: Approximately 60ms
13. Live View Quality: 1080p at 60fps
14. Bandwidth: 10MHz
15. Antenna: Single Antenna
16. Channels: 3
17. Camera Mounting Width: 14mm
18. Camera Mounting Hole: M2
19. Image Sensor: 1/2.9-inch CMOS
20. Lens FOV: 170 degrees
21. Video Format: MP4
22. Maximum Video Transmission Bitrate: 20Mbps
23. OSD: Canvas Mode
24. Input Voltage: 5V
25. Operating Temperature: -10C to 40C
