Product Features

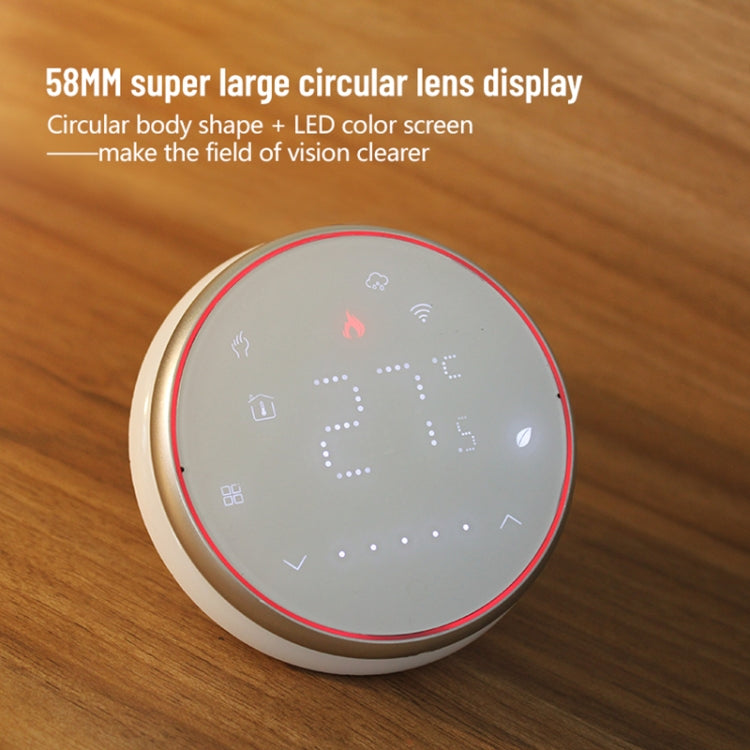

1. LED display, more friendly interface.
2. Touch the operation buttons for smoother interaction.
3. The ultra-thin embedded panel perfectly fits various wall surfaces.
4. The round screen design is adopted, which is simple and elegant.
5. Rainbow changing light strip, 8 kinds of light reaction design.
6. ECO switch key design, one key to automatically save energy.

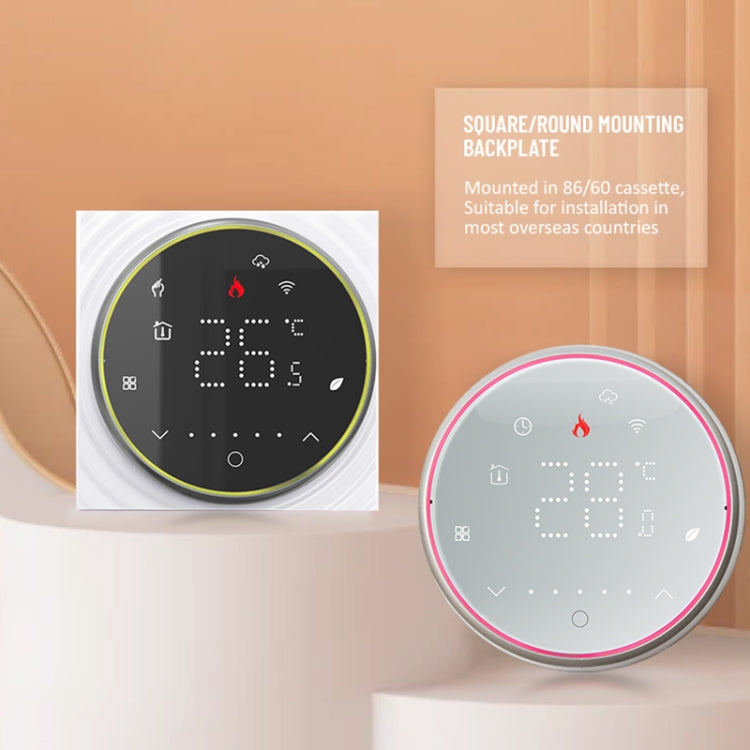

7. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet the needs of different installation environments.
Function Features
1. Rich function selection, Modbus, WIFI, key card, etc., to meet all your needs.
2. Strict temperature control accuracy (+/-1 degree Celsius), providing the warmth you want.
3. Built-in power-off protection function to save all your settings safely.
4. Provide weather information and humidity display.
5. 5+1+1 mode preset adjustment every week, programmable settings for 6 time periods per day, green energy saving, smarter and more environmentally friendly.
6. Support the creation of local product groups/sharing, and realize the unlimited centralized control/multi-terminal control of the number of products.

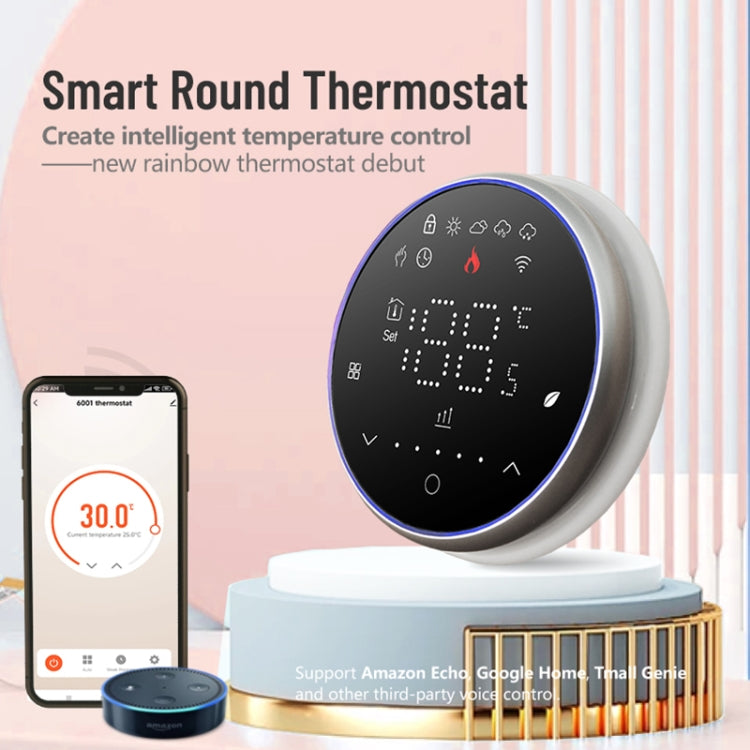

7. Perfect access to Tmall Genie, Amazon echo, Google Home, full experience of a new voice control method.
Product Parameters
1. Voltage range: 95 ~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
2. Current: 5A
3. Sensor: NTC3950, 10K
4. Temperature error: +/-1 degree Celsius
5. Temperature control range: 5 - 35 degrees Celsius
6. Room temperature range: 5 - 99 degrees Celsius
7. Display temperature range: 5 - 99 degrees Celsius
8. Normal working environment temperature: 0 - 45 degrees Celsius
9. Normal working environment humidity: 5 - 95 % RH (non-condensing)
10. Storage temperature: -10 - 45 degrees Celsius

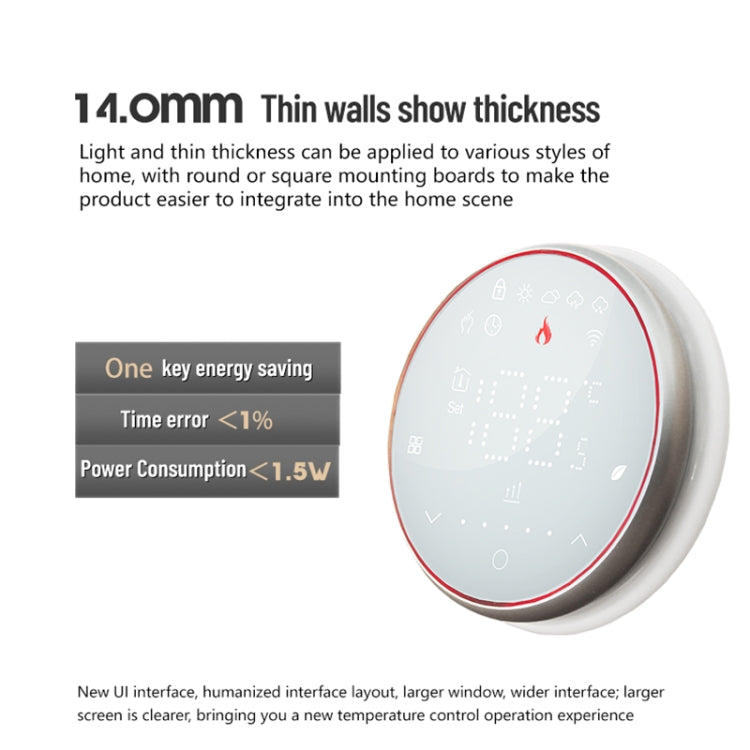

11. Power: less than 1. 5W
12. Time error: less than 1%

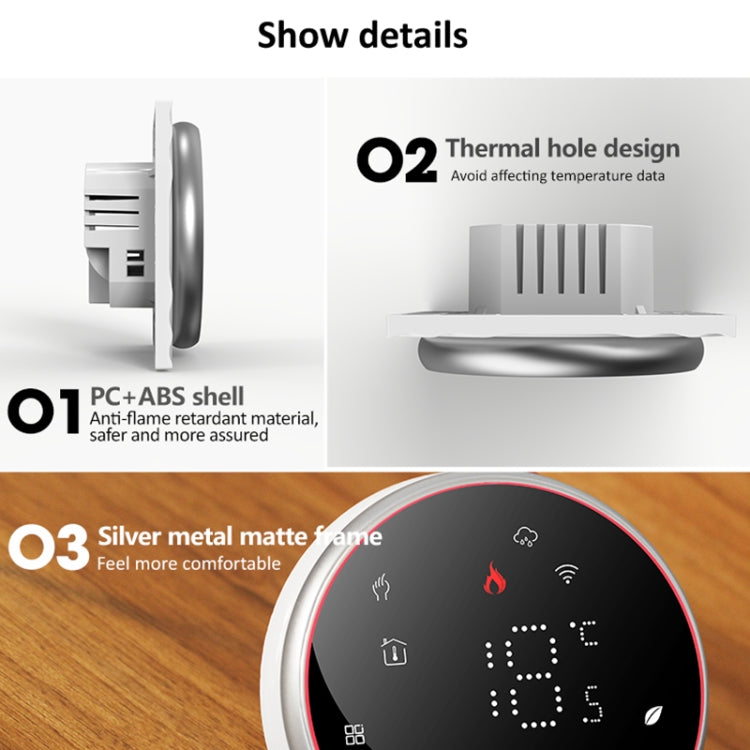

13. Panel material: PC +ABS (flame retardant)

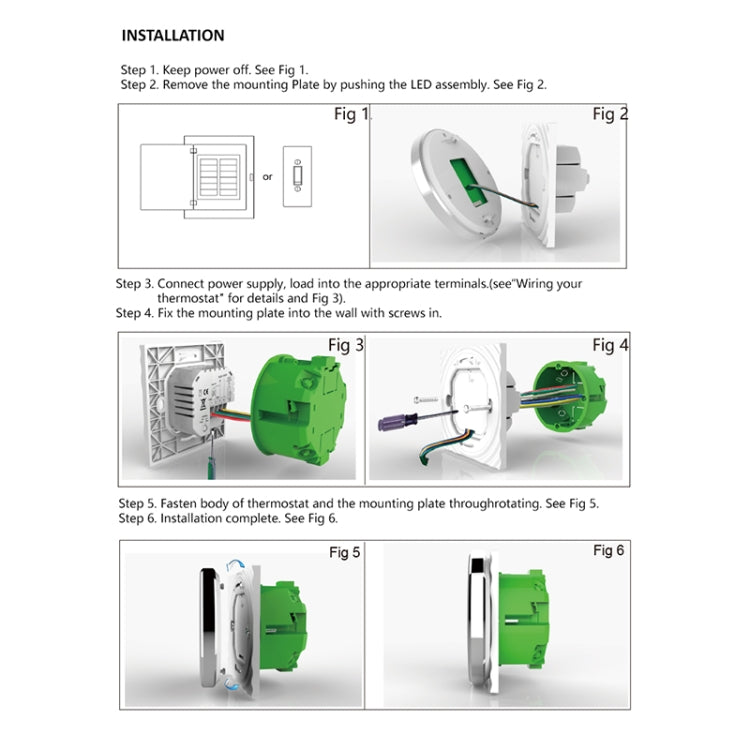

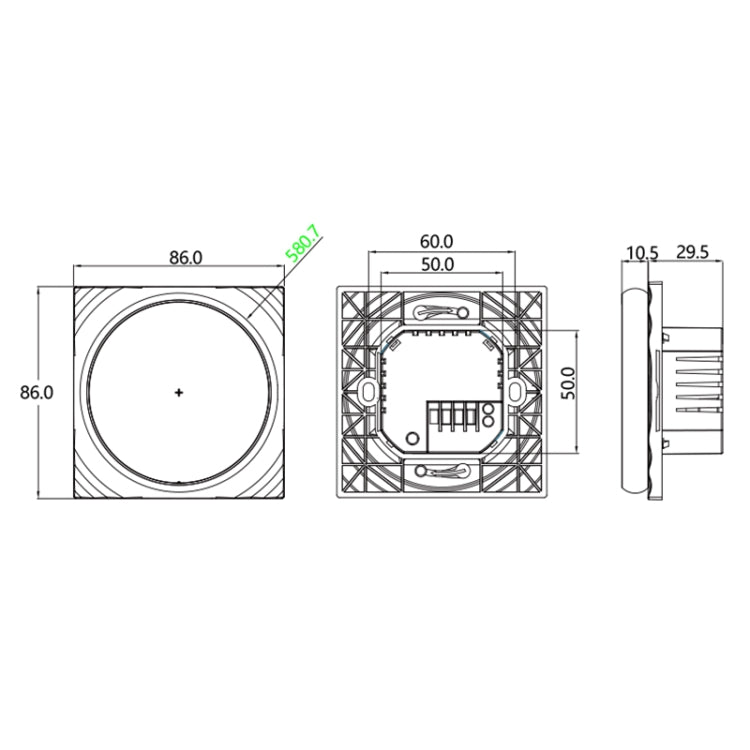

14. Install the embedded box: 86 x 86mm / European style cassette
15. Wiring port: 2x1.5mm2 or 1x2.5mm2
16. Protection level: IP20
17. Button type: capacitive touch button
Product List:
- Thermostat x 1
- User Guide x 1
- Screw x 1
- Sensing line (2.5m, optional) x 1
- Inspection certificate x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.17kgs / 0.38lb
|
| One Package Size |
10cm * 10cm * 6cm / 3.94inch * 3.94inch * 2.36inch
|
| Carton Weight |
8.50kgs / 18.74lb
|
| Carton Size |
32cm * 30cm * 30cm / 12.6inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 925 cartons * 50 pcs = 46250 pcs
40HQ: 2149 cartons * 50 pcs = 107450 pcs
|
|
