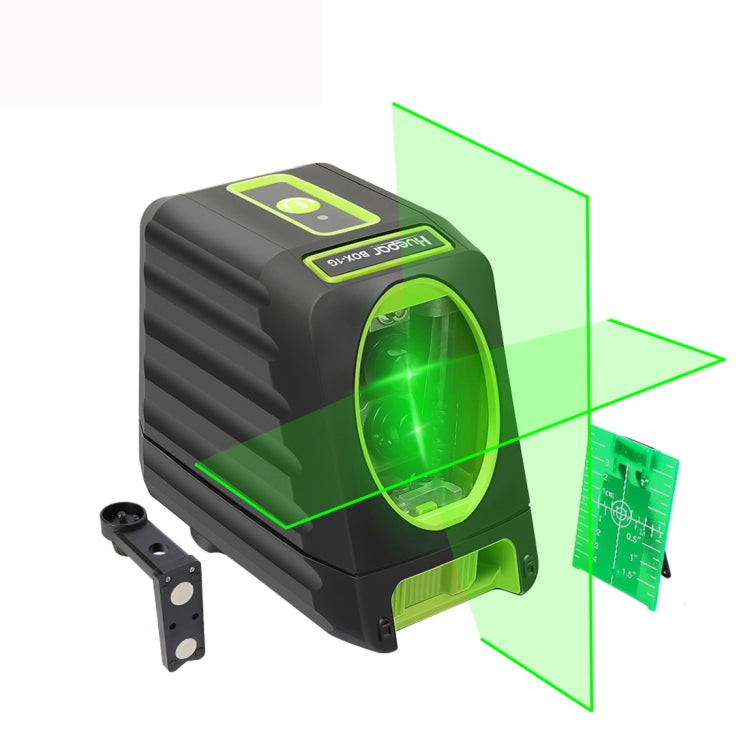

1. Type: 2 lines of green light
2. Extension Angle: 130 Degrees Horizontal/130 Degrees Vertical
3. Laser Category: Class 2
4. Light source: 40mW&10mW
5. Laser wavelength: 510 nm
6. Horizontal/vertical accuracy: +3mm/10m
7. Self-level range: 4 [+1].
8. Self-level time: Less than or equal to 3s
9. Working Distance (Line): 45m, > 60m Cooperative Receiver
10. Operation time: >4 hours (full light)
11. Power Supply: 4 Sections 5 Dry Batteries
12. IP Rating: IP54
13. Operating temperature range: - 10 C to 50 C
14. Storage temperature and time: - 20 C to 70 C

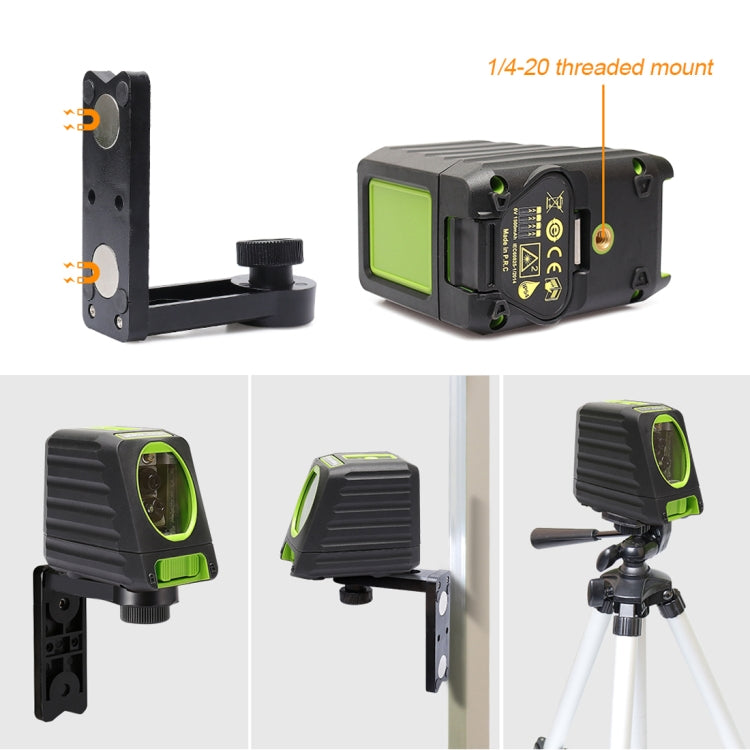

15. Installation Size: 1/4-20

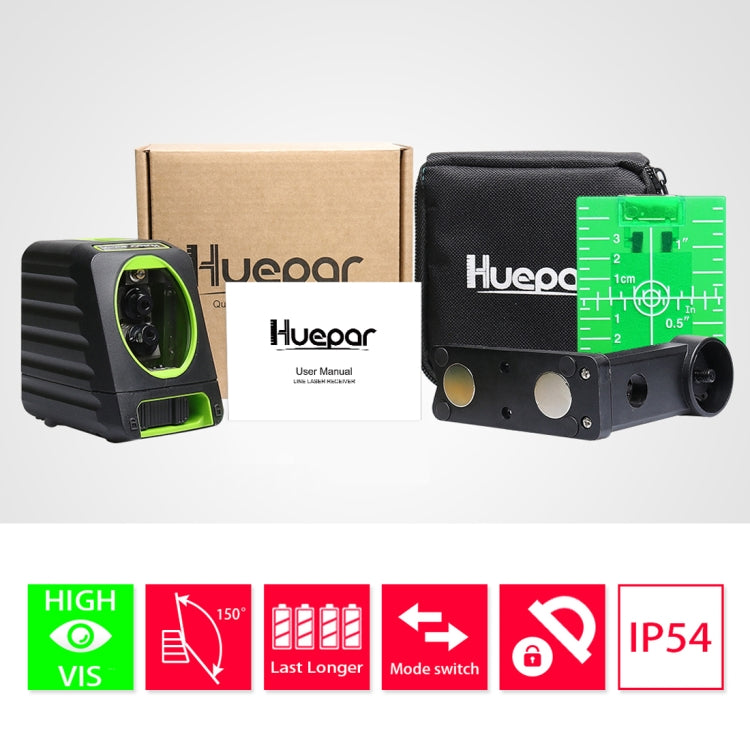

16. Accessories: Packing cartons, black soft packs, 4 dry batteries, PV1 brackets, instructions
Specification:
|
Package Weight
|
| One Package Weight |
0.66kgs / 1.45lb
|
| One Package Size |

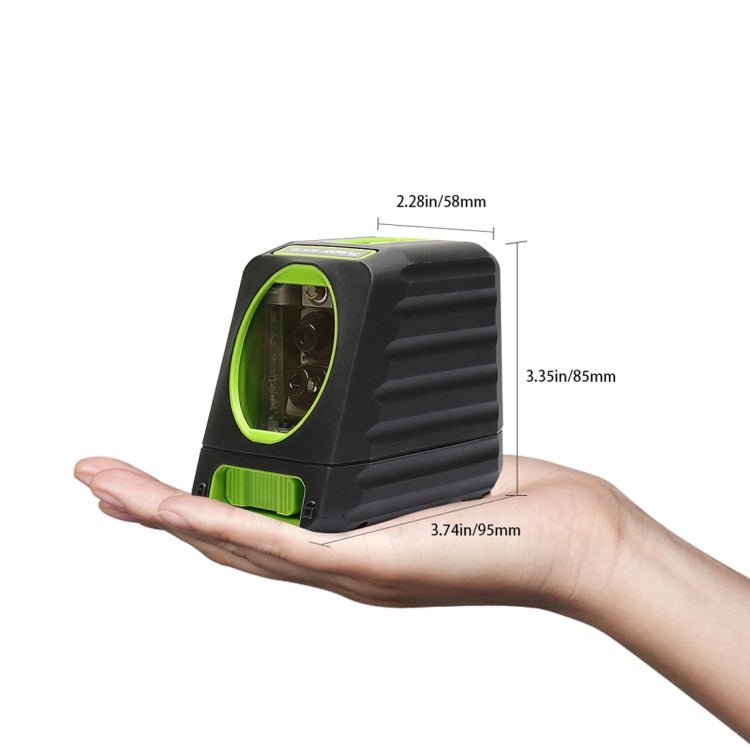

9.5cm * 5.8cm * 8.5cm / 3.74inch * 2.28inch * 3.35inch
|
| Carton Weight |
14.60kgs / 32.19lb
|
| Carton Size |
34cm * 20cm * 18cm / 13.39inch * 7.87inch * 7.09inch
|
| Loading Container |
20GP: 2178 cartons * 20 pcs = 43560 pcs
40HQ: 5057 cartons * 20 pcs = 101140 pcs
|
|
