1. Communication Frequency: 5.730–5.815 GHz
2. Transmit Power (EIRP): FCC/SRRC: ≤27 dBm; CE: <14 dBm
3. Connectors: JST 1.0 x 4 (power cable), HSG 0.8 x 5 (USB)
4. Number of Frequencies: 3
5. Wide Voltage Input: 3 V–12.6 V
6. Supported Flight Controller Systems: Betaflight; Inav; Fettec; Kiss; ArduPilot
7. Data Rate: MAX 25 Mbps
8. OSD: Canvas mode
9. MIC recording: Supported
10. End-to-end latency: Average latency of 35 ms
11. Antenna: 1 (Ipex-1)
12. Operating bandwidth: 5 MHz/10 MHz/20 MHz/Auto
13. Image sensor: 1/2.8 inch
14. Resolution: 1080p/120 fps, 1080p/100 fps, 1080p/60 fps, 720p/120 fps, 720p/100 fps, 720p/60 fps
15. Aspect Ratio: 16:9
16. Microphone: Built-in microphone
17. Mounting Hole Spacing: 20 x 20 mm (M2)
18. Weight: Approx. 10.5 g

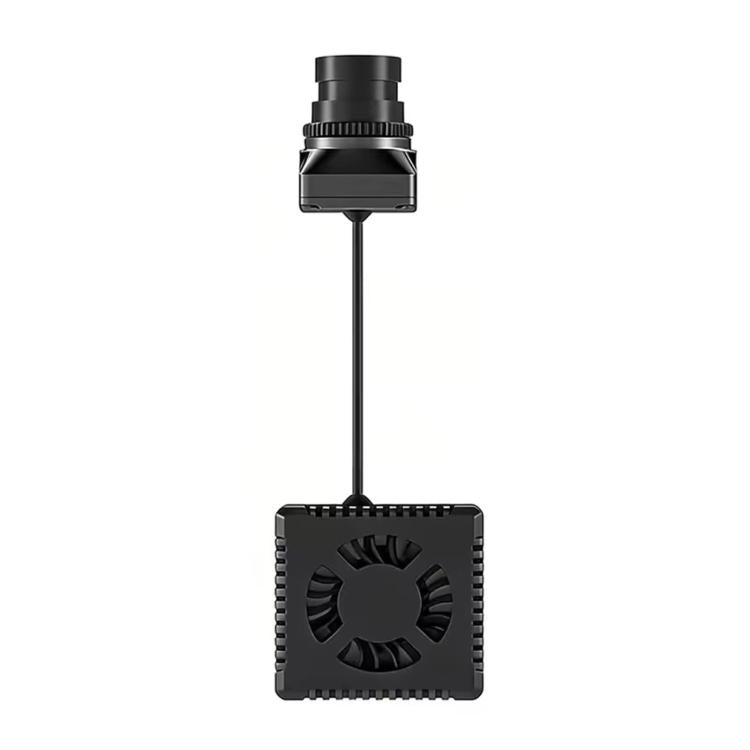

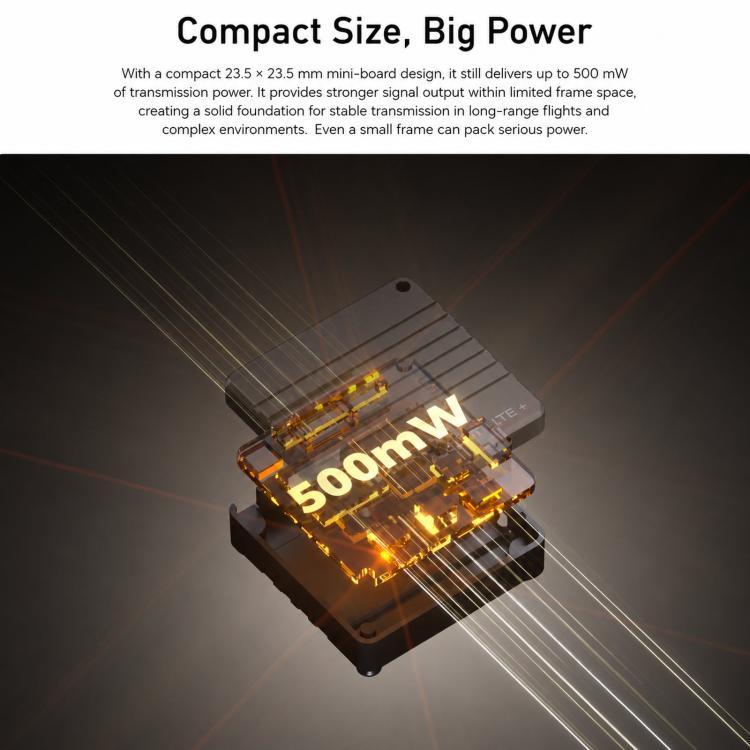

19. Dimensions: Camera: Approx. 12 x 14 x 15.8 mm; VTX: Approx. 23.5 x 23.5 x 8 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.16kgs / 0.36lb
|
| One Package Size |
16cm * 7cm * 3cm / 6.3inch * 2.76inch * 1.18inch
|
| Carton Weight |
12.20kgs / 26.90lb
|
| Carton Size |
50cm * 30cm * 30cm / 19.69inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 592 cartons * 70 pcs = 41440 pcs
40HQ: 1375 cartons * 70 pcs = 96250 pcs
|
|
