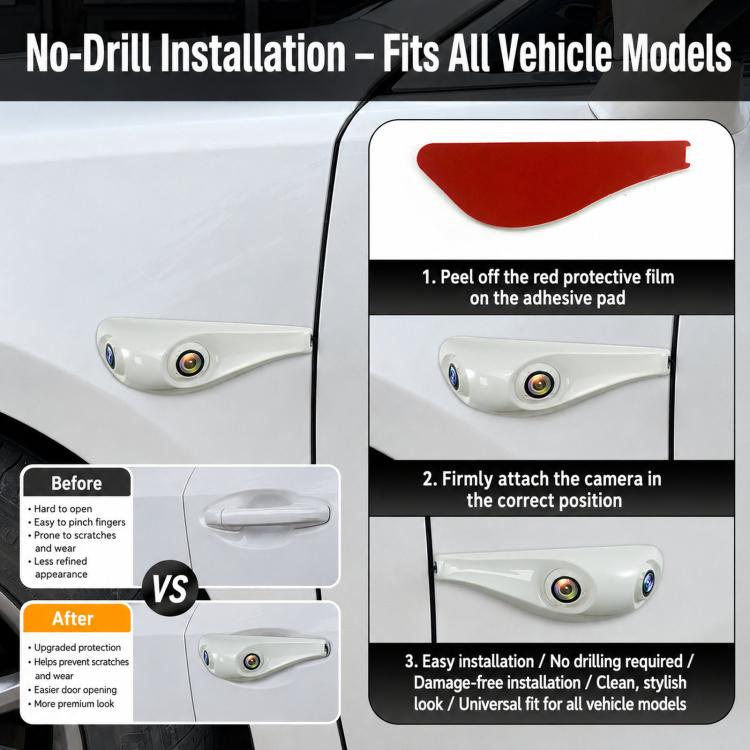

1. No-drilling adhesive for seamless installation, without damaging the original vehicle paint surface, applicable to the entire vehicle

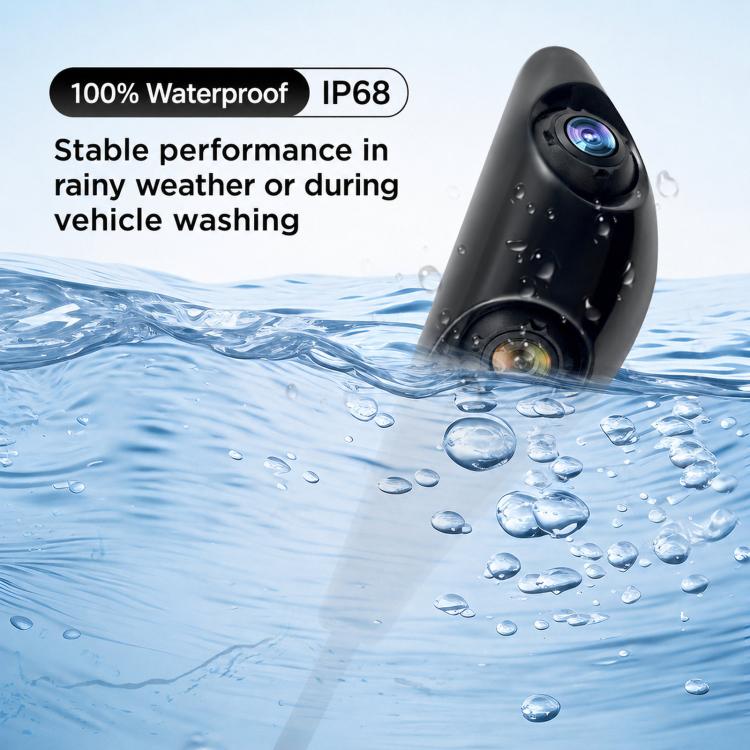

2. IP68 fully waterproof sealing, no fear of water ingress and fogging in rainy weather or during car washing

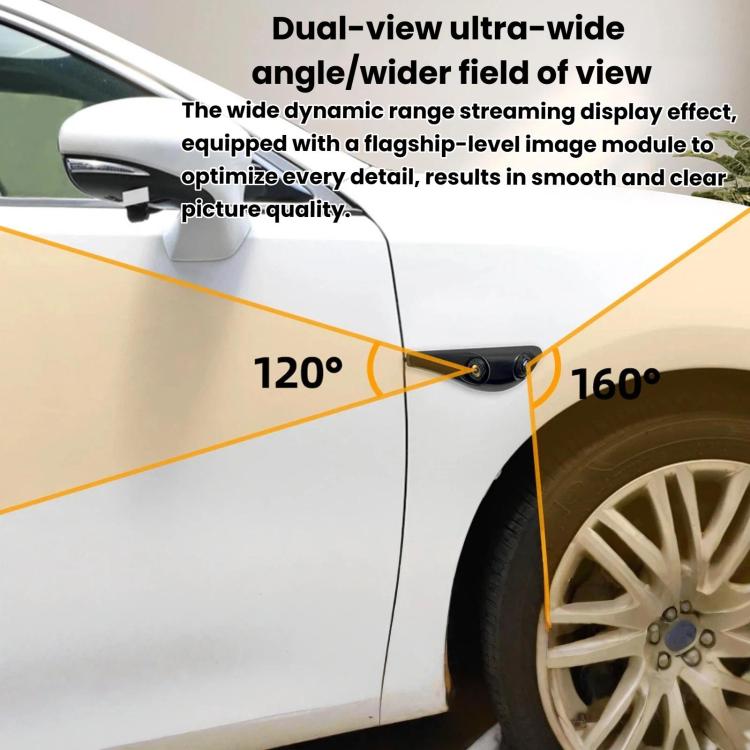

3. 120° + 160° dual wide-angle dual lenses, covering all blind spots on the side of the wheels
4. Simple streamlined shell, fitting the vehicle without being obtrusive
5. Used to eliminate blind spots during turning and parking, effectively preventing vehicle scratches

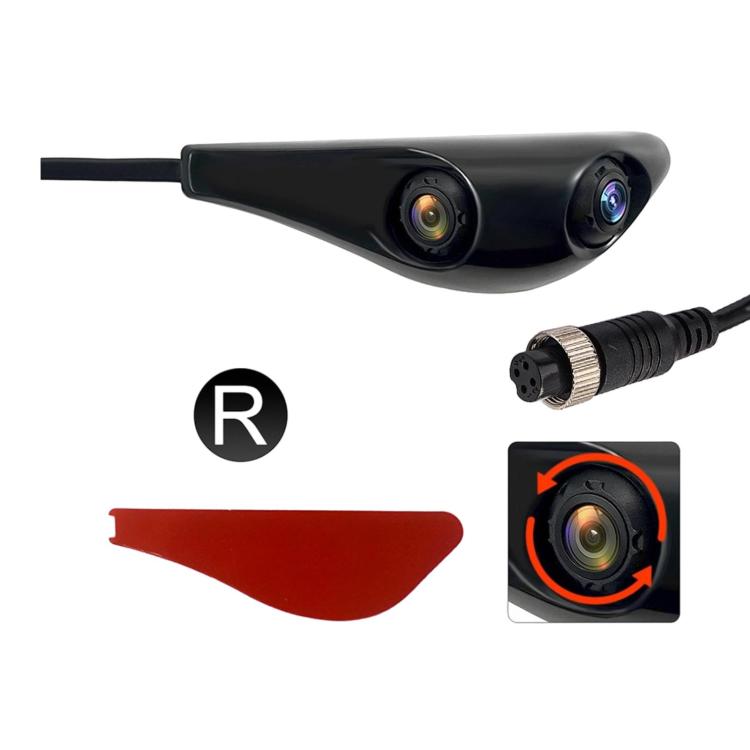

6. Rotating lens design, facilitating angle adjustment
Parameters
1. Camera pixel: 1080P
2. Camera signal: AHD signal (not applicable to CVBS monitors or 720P AHD monitors, only applicable to AHD 1080P monitors)
3. Television system: AHD 25FPS
4. Waterproof rating: IP68
5. Power supply: DC12-24V
6. Horizontal angle: front lens 160 degrees, rear lens 120 degrees
7. Camera sensor: GC2053
8. Wiring method: flat wire design, passing through the door gap

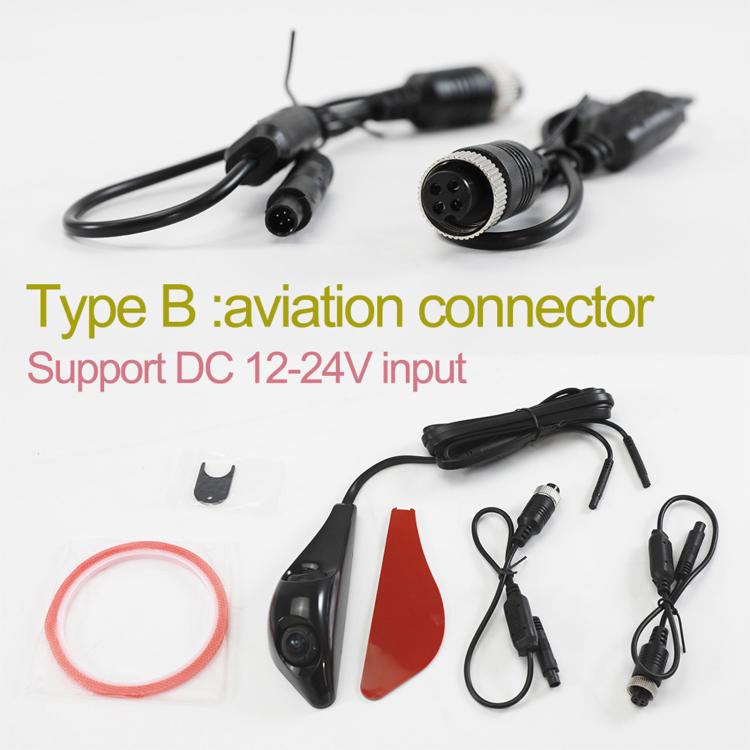

9. Video output connector: 4PIN aviation connector (RCA connector optional)
10. Camera installation type: double-sided adhesive tape
11. Optional installation side: left or right fender

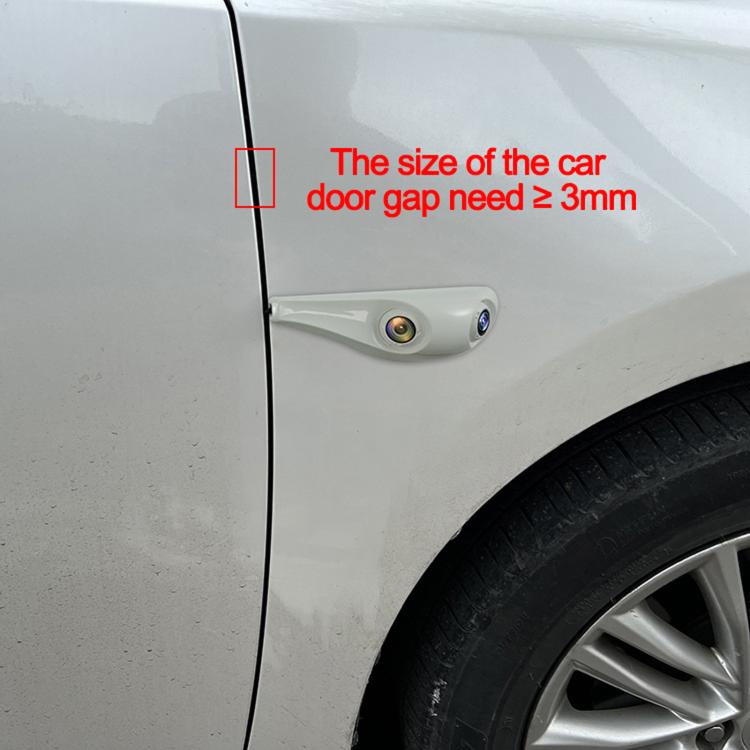

12. Door gap size should be greater than or equal to 3 millimeters
Specification:
|
Package Weight
|
| One Package Weight |
0.29kgs / 0.65lb
|
| One Package Size |
22cm * 14cm * 8cm / 8.66inch * 5.51inch * 3.15inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
46cm * 34cm * 30cm / 18.11inch * 13.39inch * 11.81inch
|
| Loading Container |
20GP: 568 cartons * 16 pcs = 9088 pcs
40HQ: 1319 cartons * 16 pcs = 21104 pcs
|
|
