1. Product material: iron, steel, rubber, copper, nylon
2. Surface treatment: electroplating, painting
3. Product attributes: hammer crimping tool pliers
4. Terminal material: copper T2

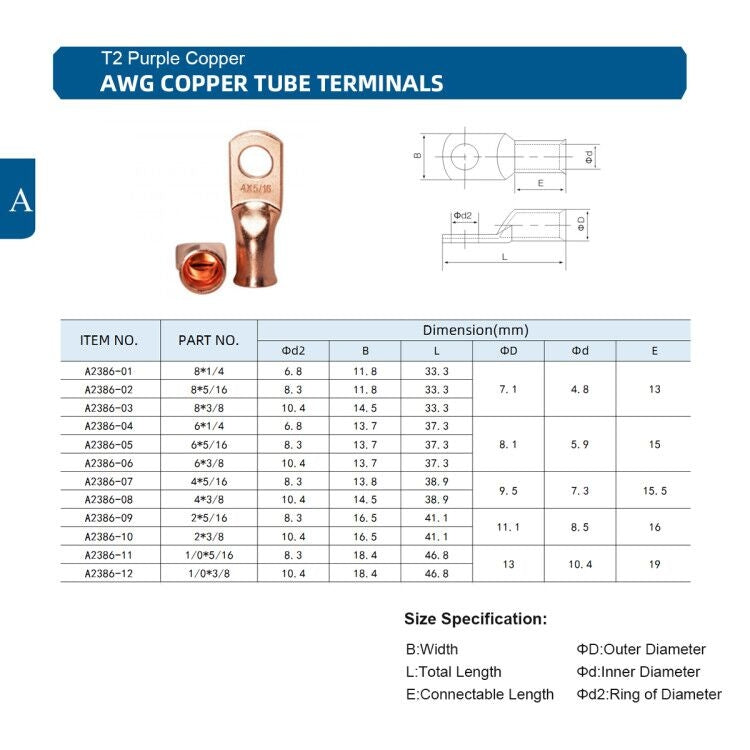

5. Terminal specifications:
2 x 3/8 terminals: product length 41.1MM, fixed aperture 10.4MM, wiring aperture 8.5MM
6. Heat shrinkable tube size: diameter 16mm (2: 1 shrink ratio)
7. Product role: crimping terminals of various sizes
8. Simple operation and convenient
9. Scope of application: ships, automobiles, garden tractors, golf carts, power cable terminals, insulated battery terminals, automobile cable terminals, inverters, motor vehicle battery cable terminals, marine wire terminals, audio modified cable terminals
10. Crimping range: 8AWG, 6AWG, 4AWG, 2AWG, 1AWG
11. Product features: instead of using a hydraulic press to complete crimping of cable terminal equipment
12. Matters needing attention:
(1). When using a hammer to crimp, be sure to take precautions, such as gloves, goggles, etc.
(2). After one press, if the spring pops out, you can press it in manually and continue to use it.

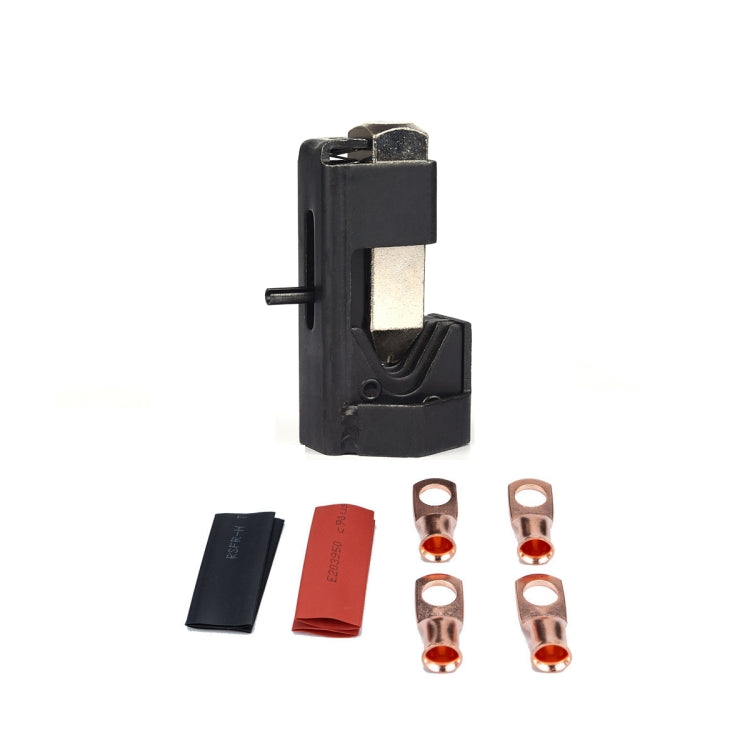

13. Product composition:
Hammer crimping tool pliers x 1 PCS
Copper terminal 2 x 3/8 x 4 PCS
Heat shrinkable tube red diameter 16mm x 2 PCS
Heat shrinkable tube black diameter 16mm x 2 PCS
Specification:
|
Package Weight
|
| One Package Weight |
0.74kgs / 1.64lb
|
| One Package Size |
12cm * 12cm * 10cm / 4.72inch * 4.72inch * 3.94inch
|
| Carton Weight |
22.95kgs / 50.60lb
|
| Carton Size |
38cm * 38cm * 32cm / 14.96inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 577 cartons * 30 pcs = 17310 pcs
40HQ: 1339 cartons * 30 pcs = 40170 pcs
|
|
