1. The car inverter circuit has automatic protection for overload, overvoltage, overtemperature, and short circuit. The aluminum alloy shell is sturdy, beautiful, lightweight, convenient and practical.
2. Intelligent dual digital display inverter, support solar panel to switch battery.
3. It has over temperature protection, input low voltage protection, input high voltage protection, overload protection, short circuit protection, etc. to ensure that the inverter is better protected during use.
4. Intelligent digital display allows you to keep track of the output voltage value.

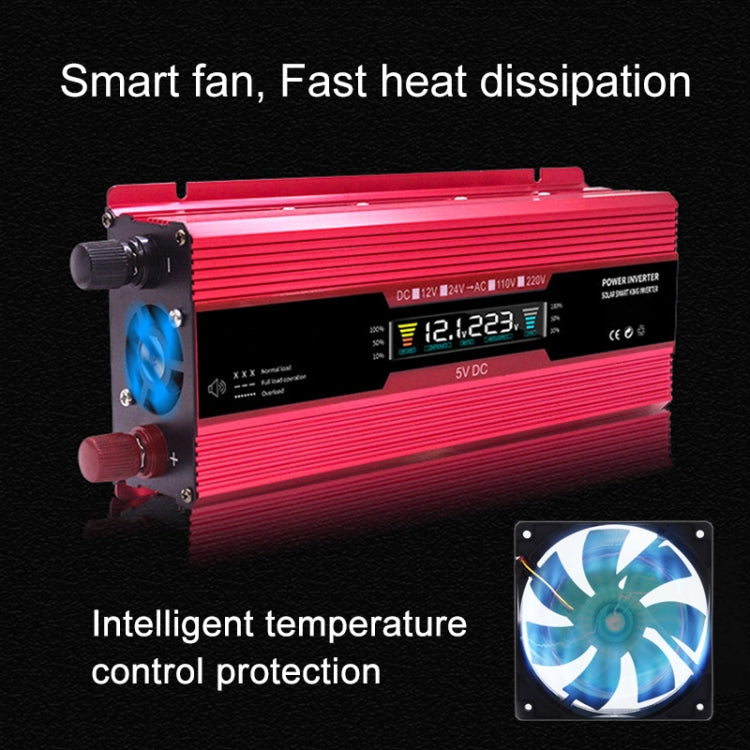

5. Intelligent fan, high-speed heat dissipation, controlled by temperature, when the inverter starts, the fan will automatically start, the higher the temperature, the faster the fan speed.

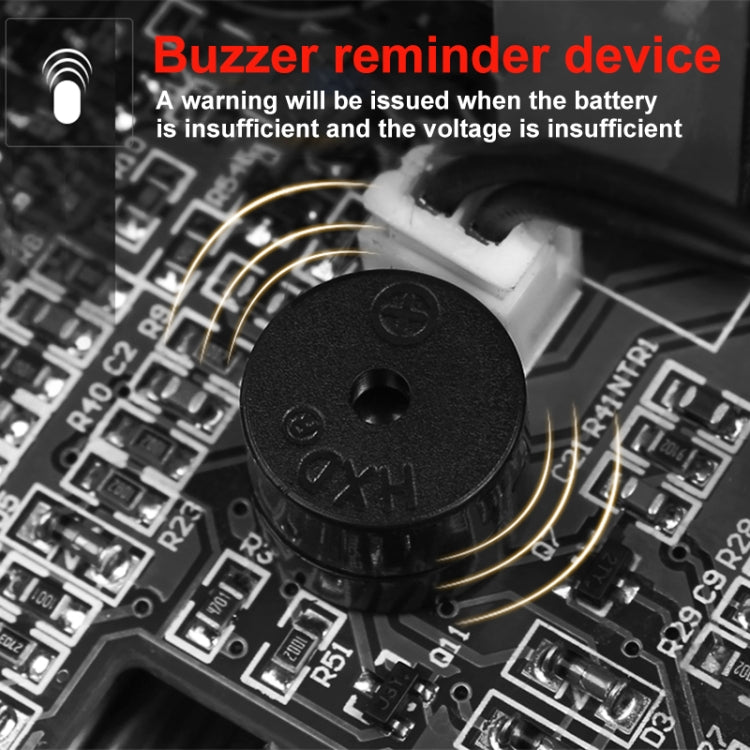

6. The buzzer device reminds that when the inverter is in use, when the power supply battery is insufficient and the voltage is insufficient, the inverter will emit a buzzer warning sound to protect electrical appliances from damage due to insufficient voltage.
7. Good heat dissipation comes from design and materials. Surface concave-convex design + aluminum alloy casing effectively improves heat dissipation. Thickened aluminum alloy casing greatly improves heat dissipation and compression resistance.

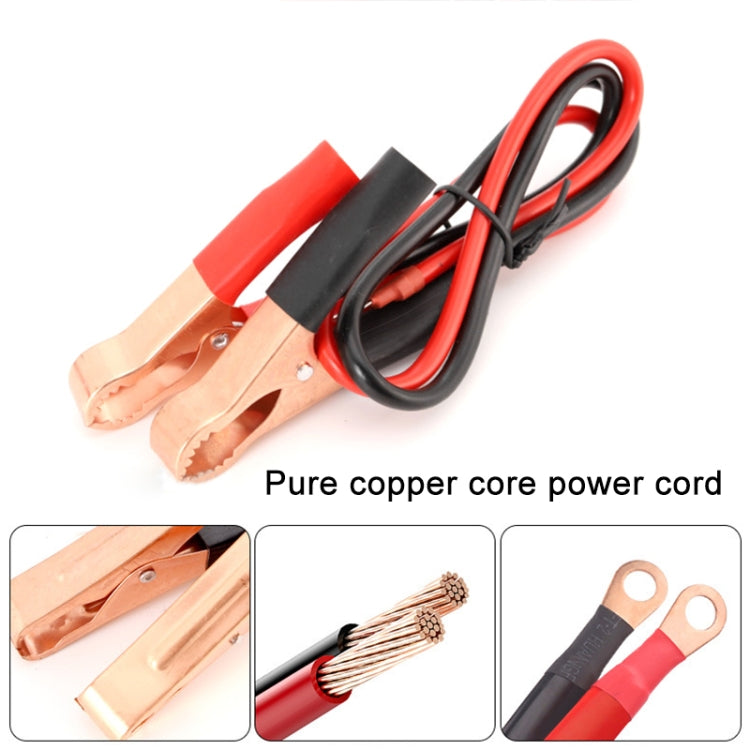

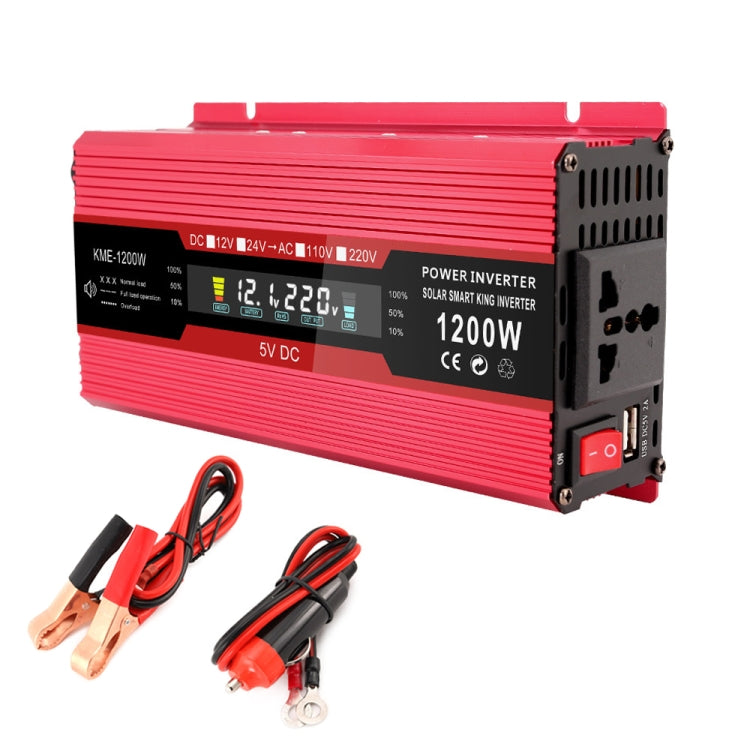

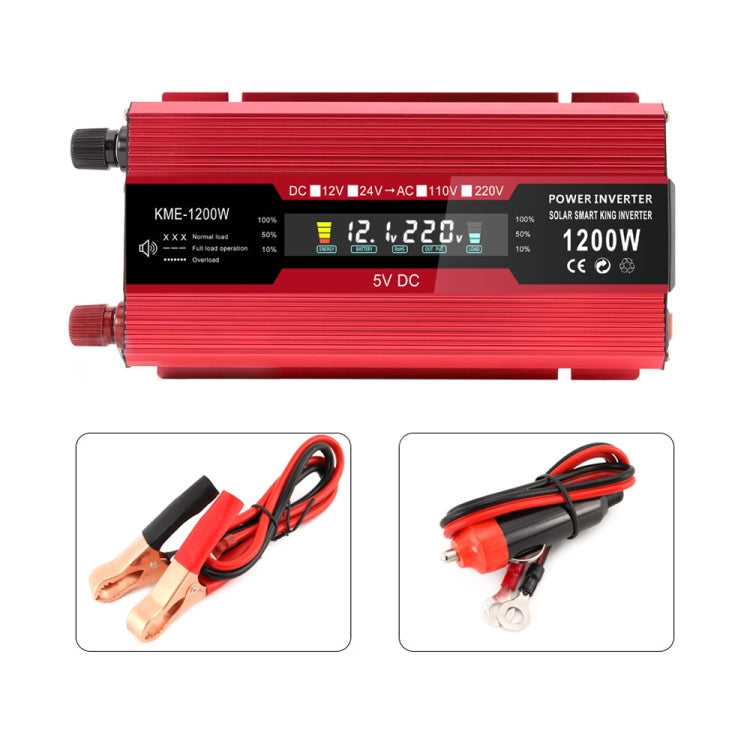

8. Equipped with cigarette lighter and alligator clip power cable.
9. Parameters:
Starting peak power: 1200W
Continuous power: 650W
Digital display: battery capacity/input/output/load power
Input voltage: 24V
Output voltage: 220VAC/50Hz+/-3Hz
USB output: 5VDC/2.1A
No-load current: less than 0.9A
Conversion efficiency: greater than 90%
Type: modified sine wave
Specification:
|
Package Weight
|
| One Package Weight |
0.96kgs / 2.12lb
|
| One Package Size |
23cm * 16cm * 7cm / 9.06inch * 6.3inch * 2.76inch
|
| Carton Weight |
20.80kgs / 45.86lb
|
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 348 cartons * 20 pcs = 6960 pcs
40HQ: 808 cartons * 20 pcs = 16160 pcs
|
|
