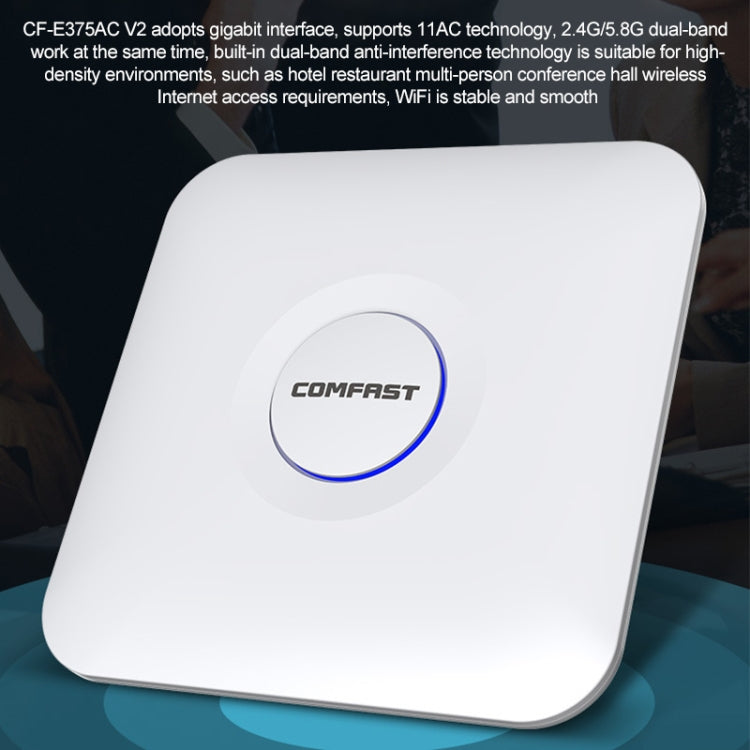

Features1. Qualcomm three chips, stable performance
2. 1300Mbps dual-band, Gigabit Ethernet port
3. 48V standard POE power supply, remote power supply
4. Support users 160+ max
5. Memory 128M, flash memory 16M
6. Transmit power 500mW (27dBm) max
Specification1. Hardware Specifications:
Qualcomm, QCA9563+QCA8337+QCA9886 chip solution
Memory: 128MB
Flash: 16MB
Power amplifier chip: 2.4G SKY85330, 5.8G SKY85735-11
Configure the watchdog chip
2. Antenna Specifications: Built-in hardware smart antenna system, 5 x 3dBi
3. Wireless speed: 2.4GHz: 450Mbps/5GHz: 867Mbps
4. RF parameters:
Transmit power: 200mW (23dBm)
Receive sensitivity: -96dBm
Operating frequency: 5.8GHz: 5.18-5.825GHz, 2.4GHz: 2.412GHz-2.472GHz
5. Modulation technology:
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
OFDM: DBPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

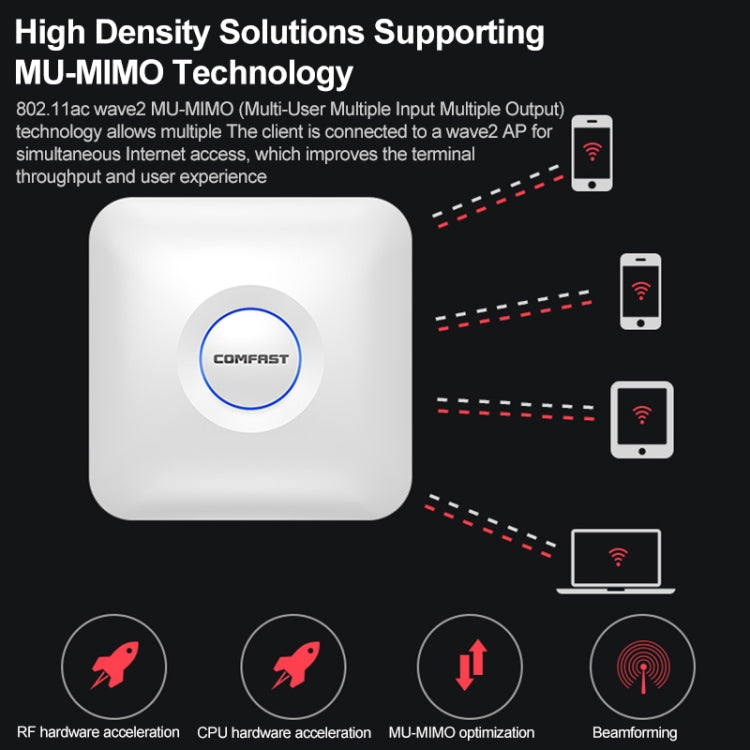

MIMO-OFDM(11n): MCS 0-23
MIMO-OFDM(11ac): MCS 0-29
6. Physical interface:
1 10/100/1000Mbps WAN RJ45 port, support POE power supply
1 10/100/1000Mbps LAN RJ45 port, support POE power supply
1 RESET reset button
7. Indicator light: 1 tri-color indicator light
8. Power supply:
Power supply mode: POE power supply, support 802.3af/802.3at standard
Power adapter: 48V 0.32A POE power adapter
9. Power consumption: less than 13W
10. Shell material: ABS
11. Dimensions: 220 x 220 x 35mm
12. Weight: 0.38kg
Specification:
|
Package Weight
|
| One Package Weight |
1.07kgs / 2.36lb
|
| One Package Size |
35cm * 28cm * 6cm / 13.78inch * 11.02inch * 2.36inch
|
| Carton Weight |
18.78kgs / 41.40lb
|
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 348 cartons * 12 pcs = 4176 pcs
40HQ: 808 cartons * 12 pcs = 9696 pcs
|
|
