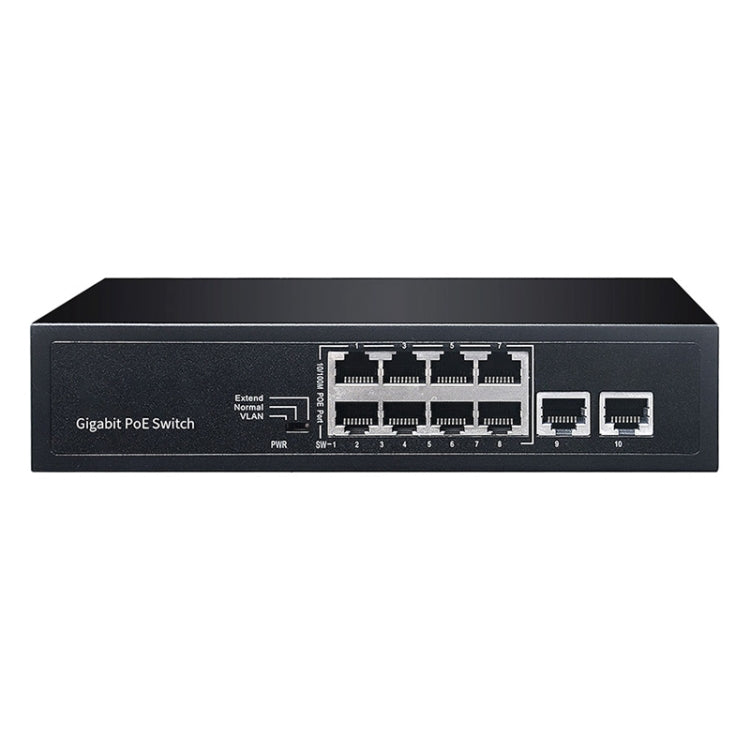

Feature1. 8 10/100/1000M Rj45 adaptive POE power supply ports, 2 10/100/1000M Rj45 uplink ports.
2. Gigabit port ensures high-speed data transmission.
3. Compatible with 802.3af/at standard.
4. Support power output management.

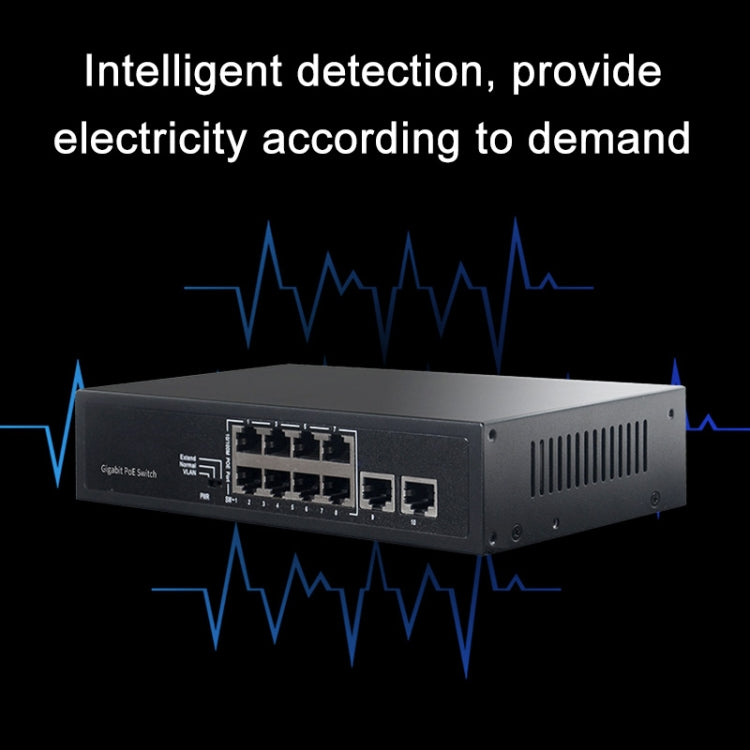

5. Automatically detect PD devices.
6. Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
7. Supports 2K MAC addresses, automatic learning and automatic updating.
8. Panel indicator lights monitor working status and help fault analysis.
9. Support IEEE802.3az high-efficiency energy-saving function.
Specifications1. Power supply:
- Input: AC110-260V
- Output: 52V 2.88A
2. POE parameters:
- POE standard: meets IEEE802.3af/IEEE802.3at
- Single port: 15.4W (IEEE802.3af)
- Single port: 30W (IEEE802.3at)
- POE compatibility: IEEE802.3af/IEEE802.3at adaptive
- Output voltage: DC48V
- Power supply core: 1/2+, 3/6-
3. Material: metal
4. Backplane broadband: 20Gbps
5. Network protocol: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

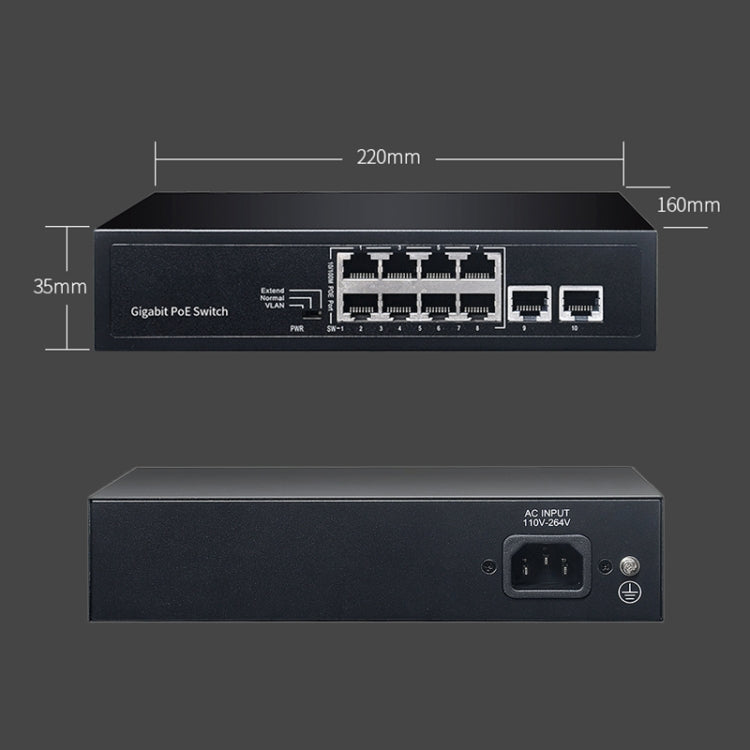

6. Size: 220x160x35mm
7. Usage environment:
- Working temperature: -20~55 degrees Celsius
- Storage temperature: -40~80 degrees Celsius
- Working humidity: 10~90%RH non-condensing
- Storage humidity: 5~90%RH, non-condensing
Specification:
|
Package Weight
|
| One Package Weight |
2.19kgs / 4.83lb
|
| One Package Size |
30.5cm * 19cm * 6cm / 12.01inch * 7.48inch * 2.36inch
|
| Carton Weight |
11.66kgs / 25.71lb
|
| Carton Size |
44cm * 25cm * 45cm / 17.32inch * 9.84inch * 17.72inch
|
| Loading Container |
20GP: 538 cartons * 5 pcs = 2690 pcs
40HQ: 1250 cartons * 5 pcs = 6250 pcs
|
|
