1. Support platform: Intel / AMD
2. Rated voltage: 12V
3. Fan speed: about 1800 RPM
4. Rated current: about 0.2A
5. Fan airflow: about 48CFM
6. Rated power: about 2.4W
7. Fan noise: about 20dB(A)
8. Connector type: 3PIN
9. Bearing type: hydraulic bearing
10. Lighting: fixed color lighting
11. TDP: single fan: 80w, double fan: 100w
12. Material: copper, aluminum, ABS
13. Fan size: about 9 x 2.5cm
14. Overall size: single fan: about 13 x 9.5 x 6.5cm; dual fan: about 13 x 9.5 x 8.8cm
15. Weight: single fan: about 290g, dual fan: about 385g
Features:

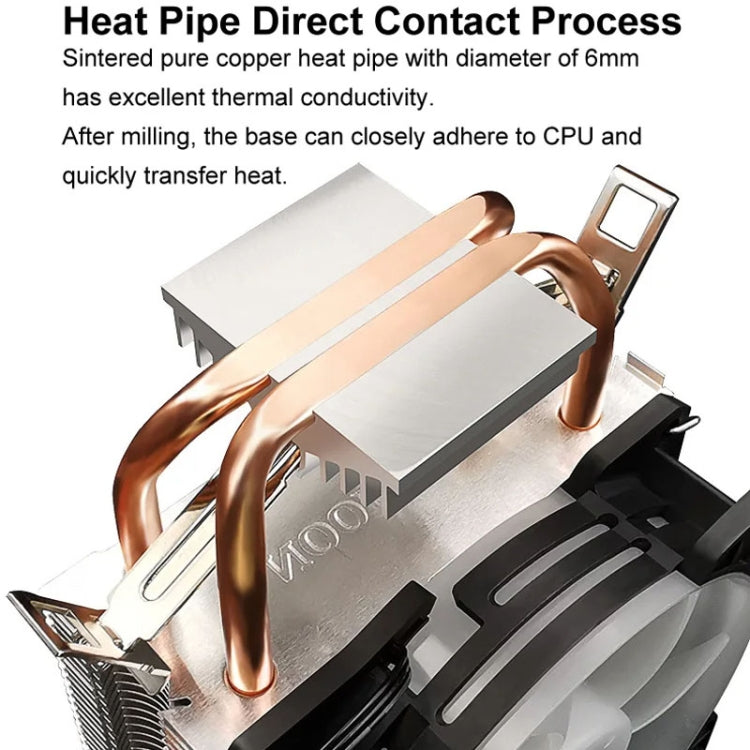

1. Heatpipe direct touch process, 6mm diameter sintered copper heatpipes with excellent thermal conductivity, the base has been milled flat, can closely fit the CPU, quickly transfer heat away

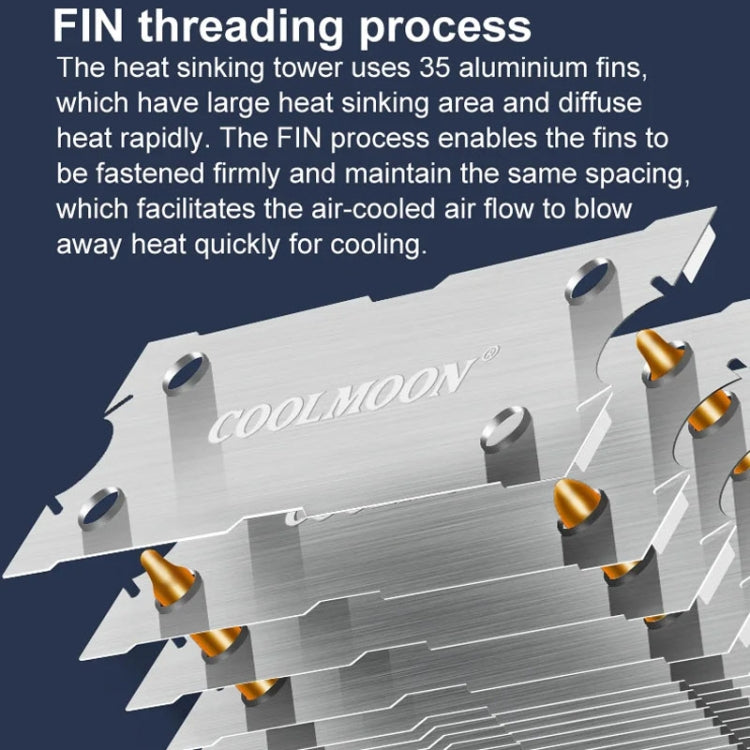

2. 35 aluminum fins are used in the cooling tower to provide a large heat dissipation area and spread the heat quickly, and the FIN process makes the fins solidly interlocked and maintains the same spacing, which is conducive to the circulation of air-cooled air to blow away the heat quickly for cooling
3. With cool light

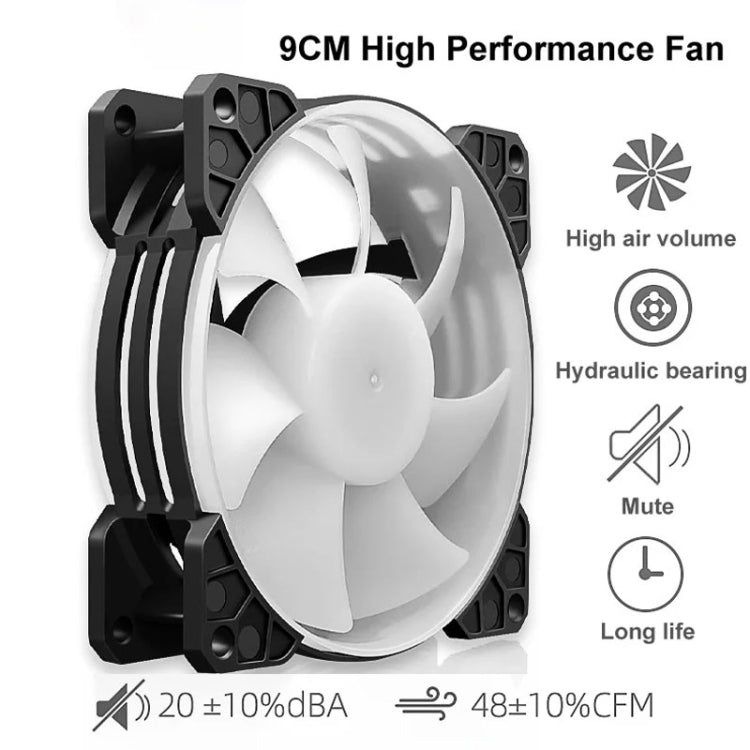

4. 9025 fan, 7 large fan blades to provide large air volume, hydraulic bearing, quiet and durable

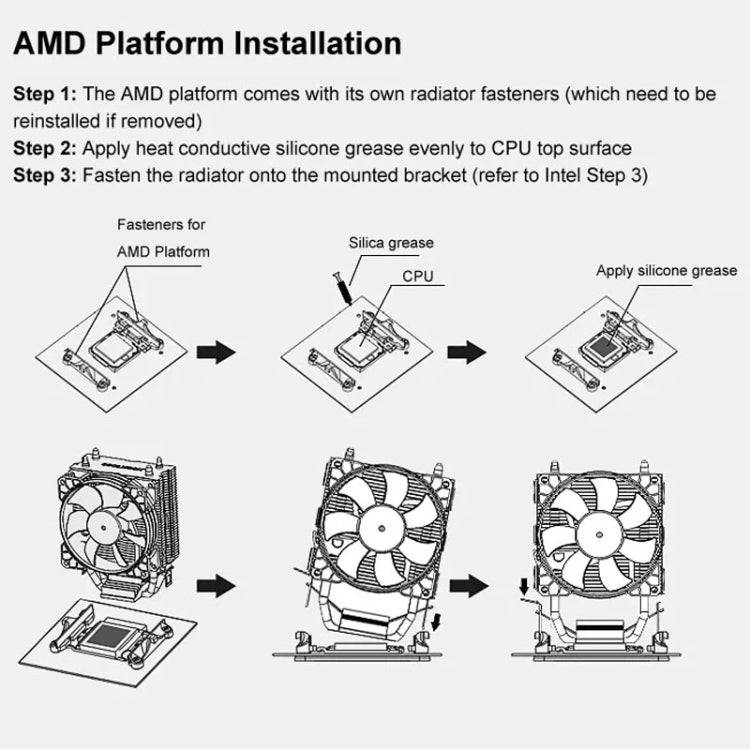

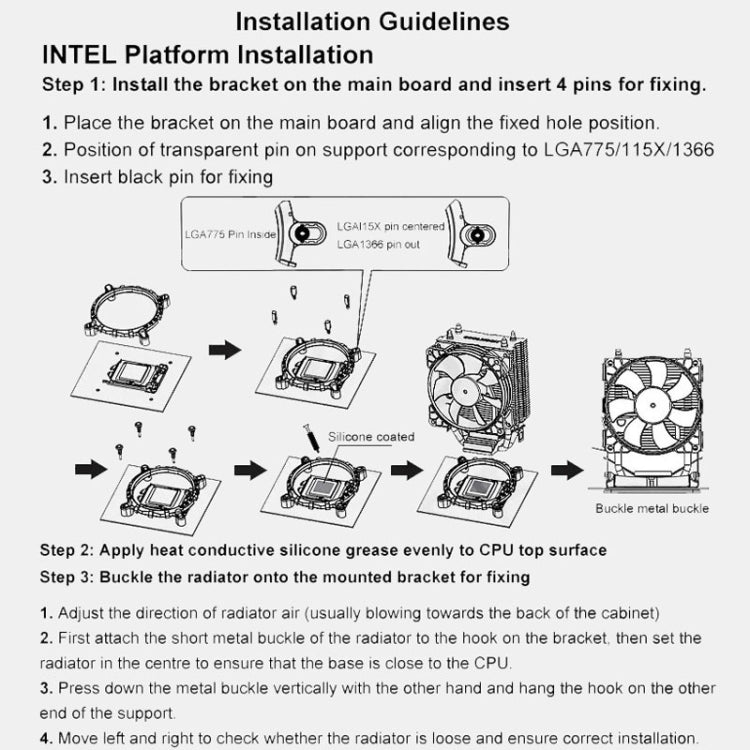

5. Support INTEL, AMD mainstream platforms, without removing the motherboard, simple installation

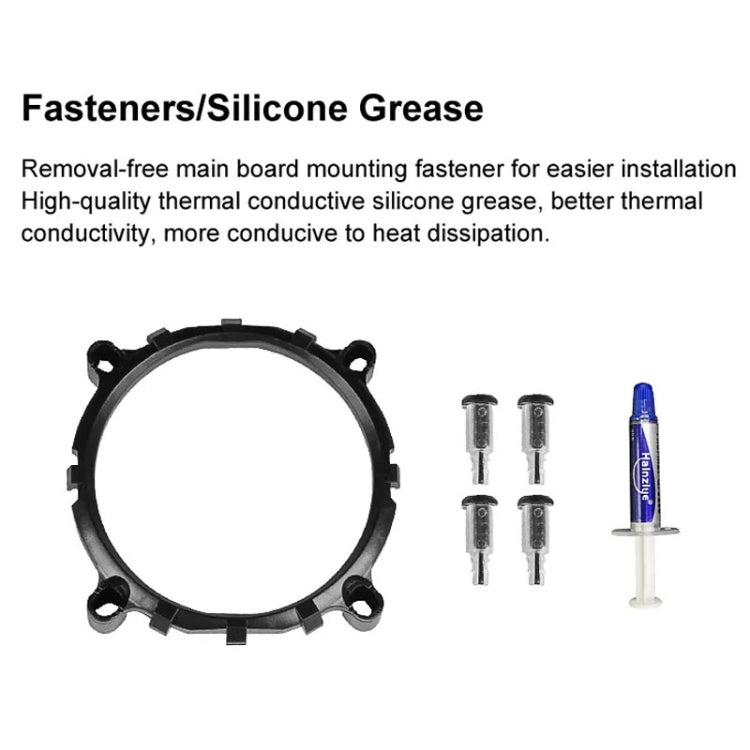

6. Removal of the motherboard mounting fasteners, installation is more convenient, high-quality thermal grease, better thermal conductivity, more conducive to heat dissipation
Specification:
|
Package Weight
|
| One Package Weight |
0.35kgs / 0.78lb
|
| One Package Size |
15cm * 11cm * 9cm / 5.91inch * 4.33inch * 3.54inch
|
| Carton Weight |
10.65kgs / 23.48lb
|
| Carton Size |
48cm * 36cm * 32cm / 18.9inch * 14.17inch * 12.6inch
|
| Loading Container |
20GP: 482 cartons * 30 pcs = 14460 pcs
40HQ: 1119 cartons * 30 pcs = 33570 pcs
|
|
