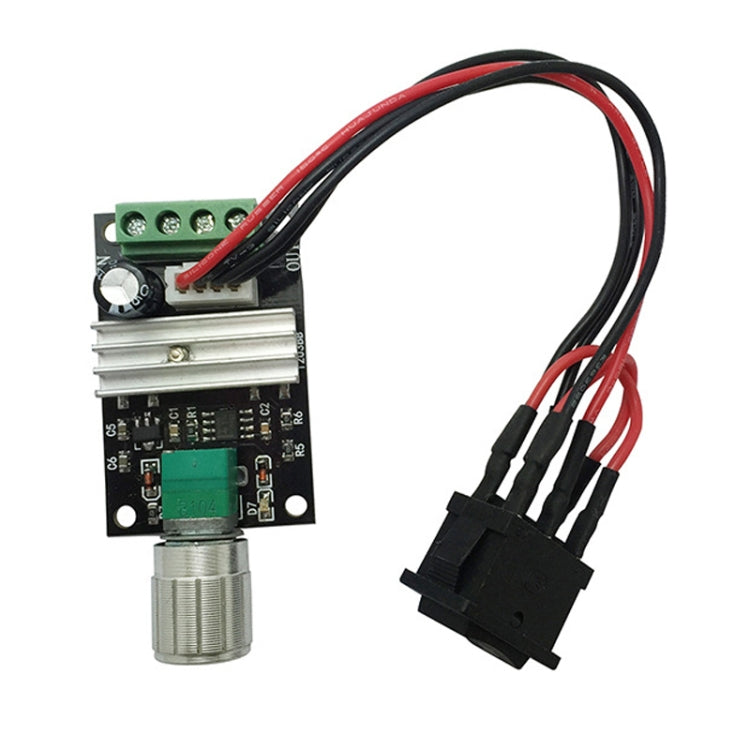

1. The 1203BB DC motor speed regulator controls the speed of the DC motor by adjusting pulse width modulation (PWM). It provides 3A of continuous current to your DC motor or other DC load.

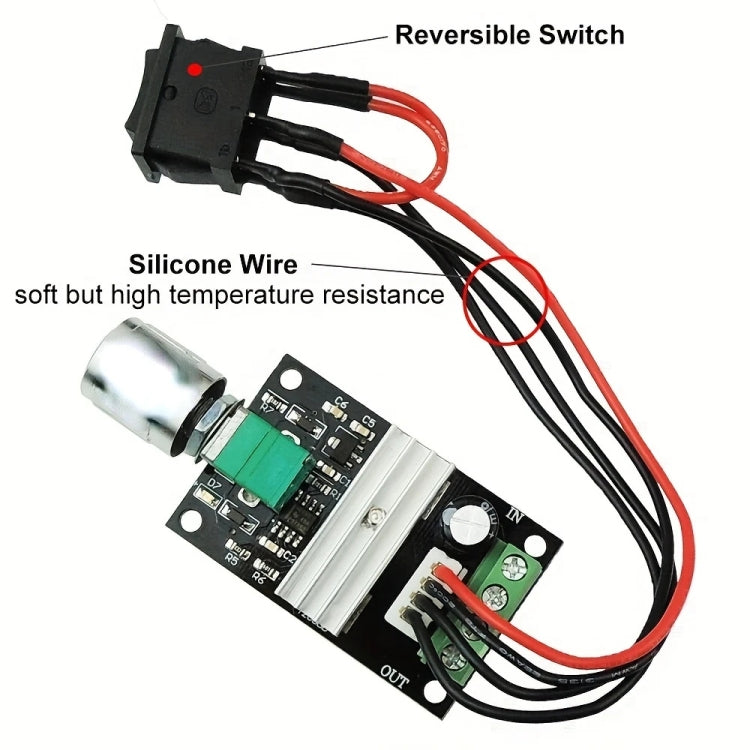

2. The circuit contains a 3A fuse for reverse power supply, and controls the forward, reverse, and stop of the DC motor through a switch.
3. Material: metal
4. Input voltage: DC 6-28V
5. Dimensions: 5 x 3.2 x 1.5cm
6. Weight: 30g
Instructions:
Make sure the power is off before trying to connect the controller.

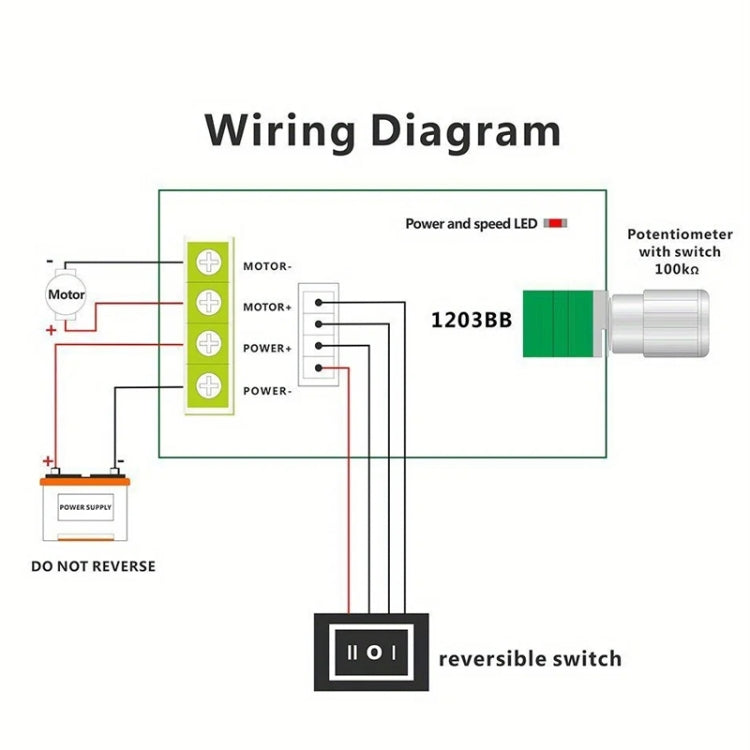

1. Connect the wires according to the wiring diagram.
2. Turn on the power and adjust the potentiometer.
3. LED indicates power on and motor speed.
Warning: Do not connect the positive and negative power supplies reversely. This will damage the controller!
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
|
| Carton Weight |
10.70kgs / 23.59lb
|
| Carton Size |
34cm * 32cm * 32cm / 13.39inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 765 cartons * 240 pcs = 183600 pcs
40HQ: 1778 cartons * 240 pcs = 426720 pcs
|
|
