1. Optimised ground path to reduce ripple noise

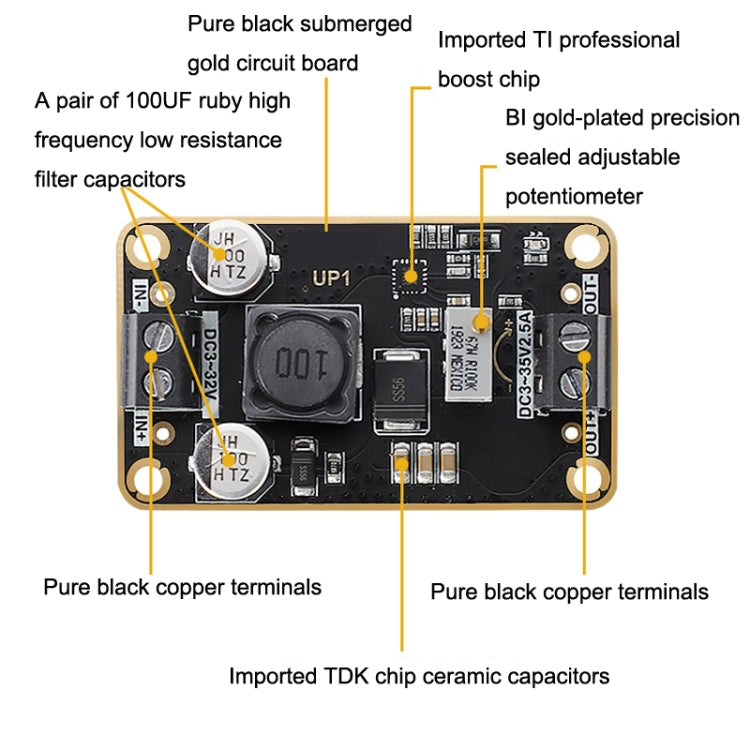

2. Pure black submerged gold circuit board, a pair of 100UF ruby high frequency low resistance filter capacitors
3. Imported TI professional boost chip, BI gold-plated precision sealed adjustable potentiometer
4. Pure black copper terminals, imported TDK chip ceramic capacitors

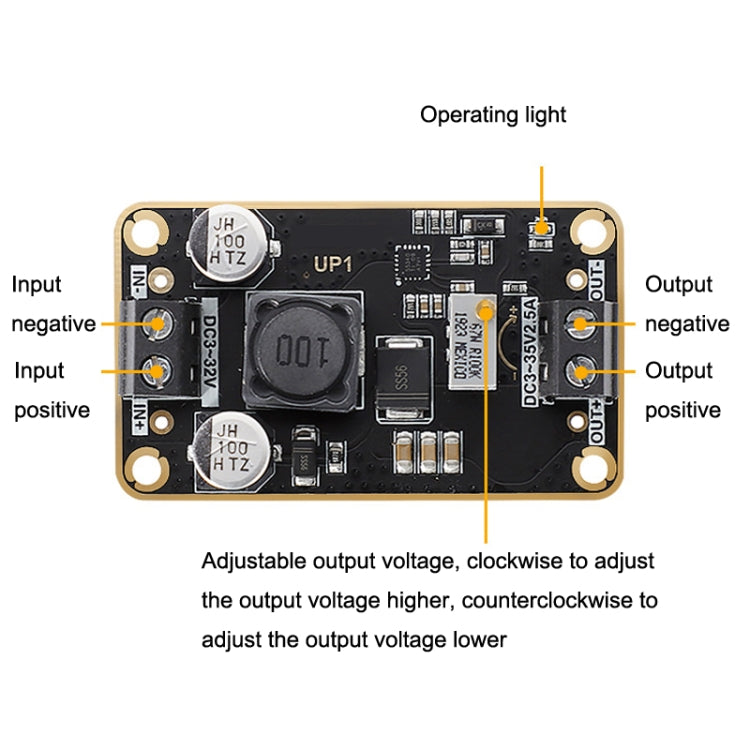

5. Adjustable output voltage, clockwise to adjust the output voltage higher, counterclockwise to adjust the output voltage lower
6. Output power: 36V/12A/72W
7. Input voltage: DC3V-32V
8. Output voltage: DC3V-36V
9. Protection function: power input reversal protection, under voltage protection, over current protection, over heat protection, anti-backflow voltage protection
10. Operating temperature: -40 to 80 degrees Celsius
11. Application scenarios: Tablet PC charging, car computer voltage regulator power supply, lithium battery charging, LED energy saving lamp power supply, mini stereo power supply

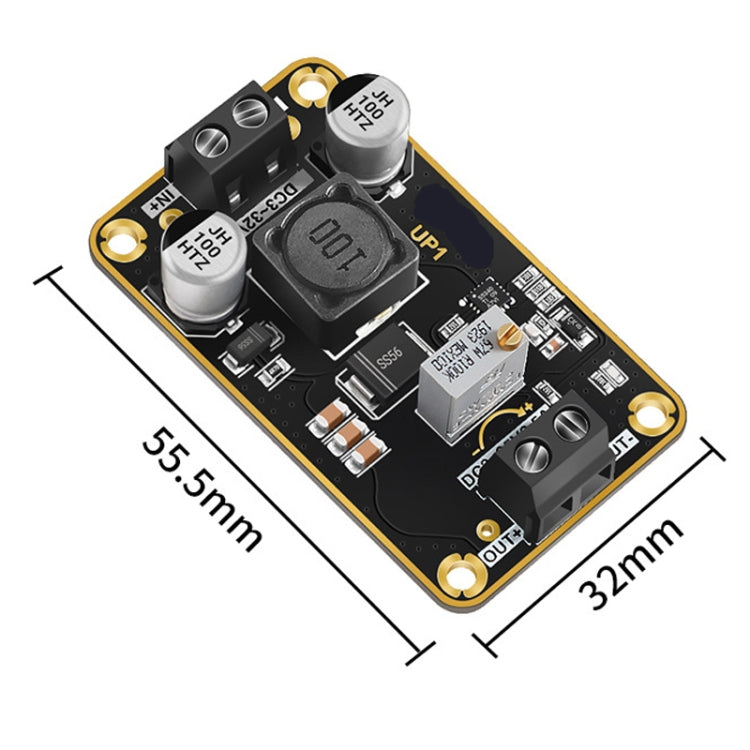

12. PCB board size: 55.12x32.26mm
13. Mounting hole pitch: 48.26 x 25.4mm
14. Overall size: 55.12x32.26x13mm
15. Net weight: approx. 18g
Commonly used output voltage and power.
-3V input to 5V output 1.6A/8W
-3V input boost 12V output 0.6A/7W
-3V input boost 24V output 0.2A/4.7W
-3V input boost 36V output 0.12A/4.2W
-5V input boost 12V output 1.4A/17W
-5V input boost 24V output 0.6A/14W
-5V input boost 36V output 0.26A/13W
-12V input boost 24V output 1.7A/40W
-12V input boost 36V output 0.9A/36W
-24V input boost 36V output 2A/72W
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
|
| Carton Weight |
22.00kgs / 48.50lb
|
| Carton Size |
50cm * 50cm * 44cm / 19.69inch * 19.69inch * 17.32inch
|
| Loading Container |
20GP: 242 cartons * 500 pcs = 121000 pcs
40HQ: 562 cartons * 500 pcs = 281000 pcs
|
|
