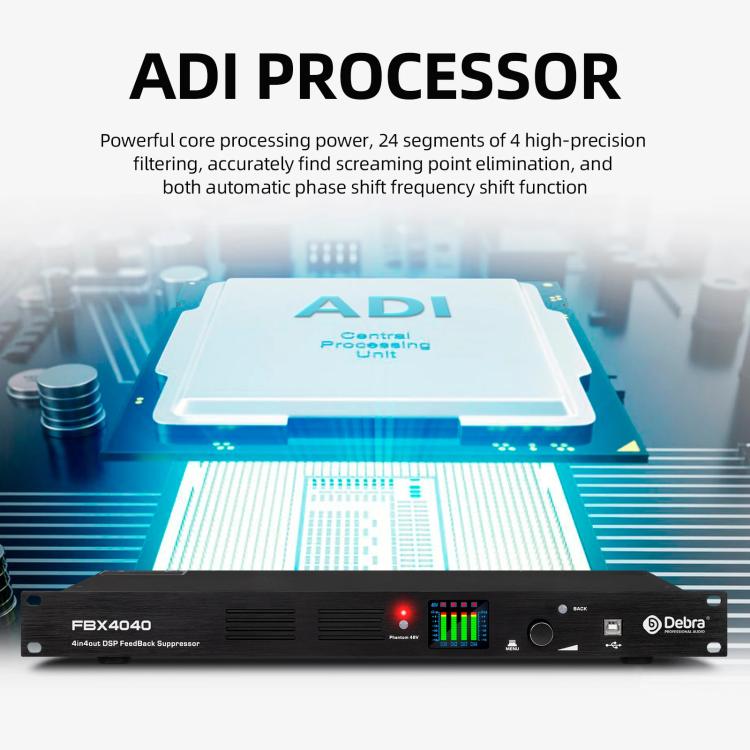

1. Powerful core processor with built-in 24-band, 4-channel independent high-precision filtering accurately identifies and eliminates howling frequencies.

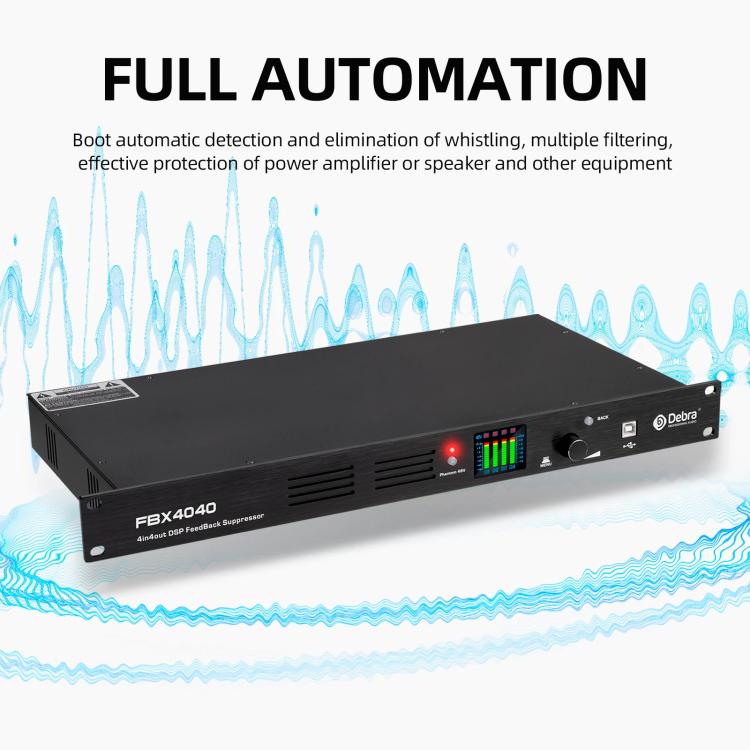

2. Automatic detection upon power-up effectively protects back-end amplifiers or speakers.

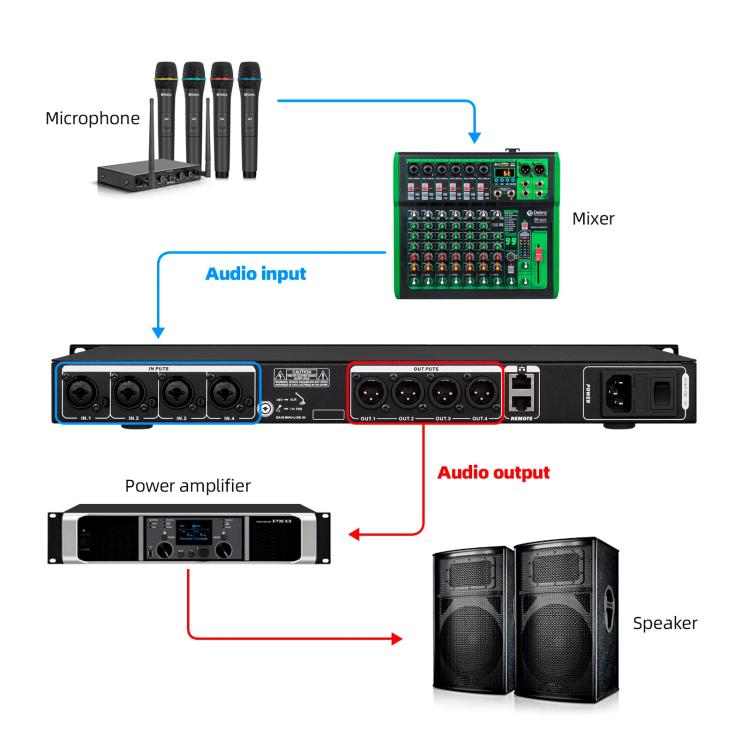

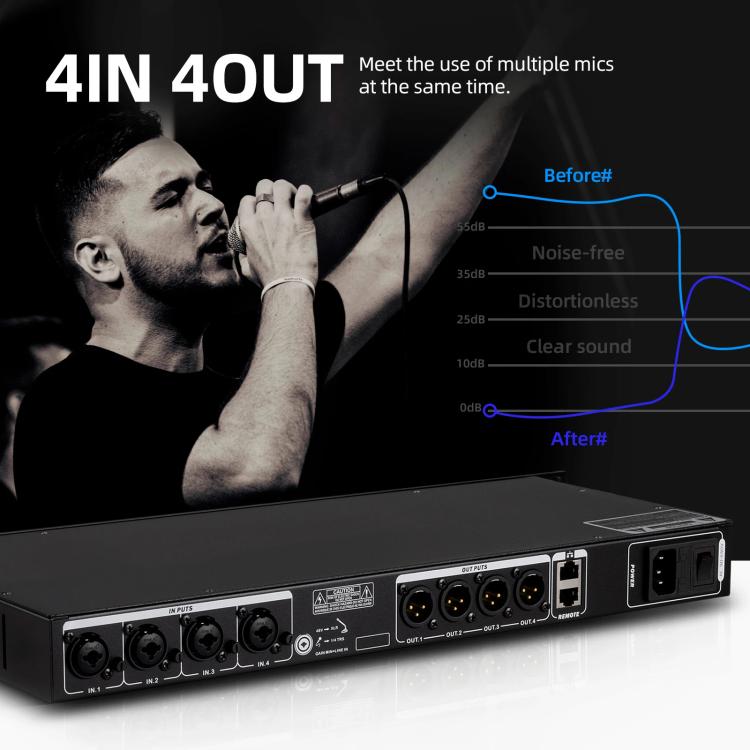

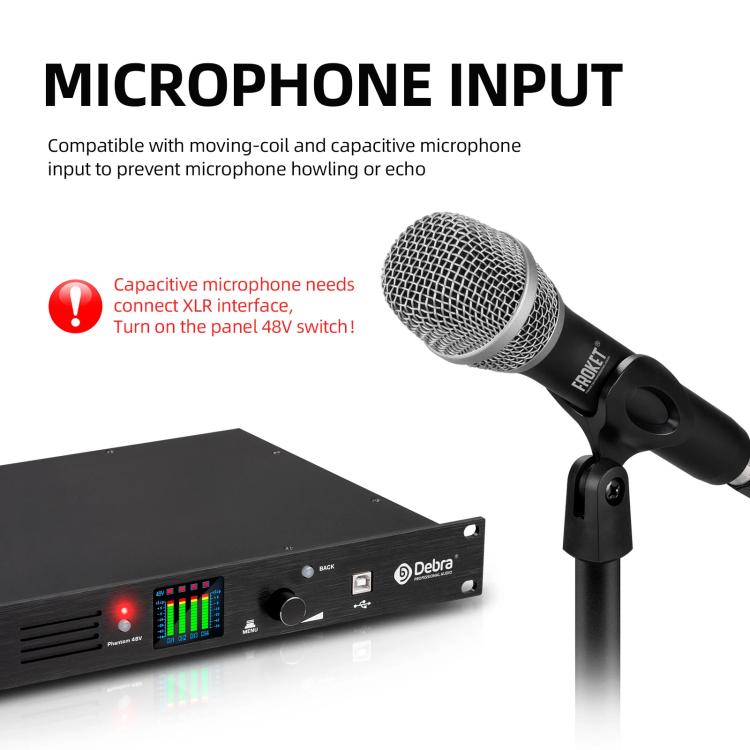

3. 4 inputs and 4 outputs accommodate simultaneous use of multiple microphones.

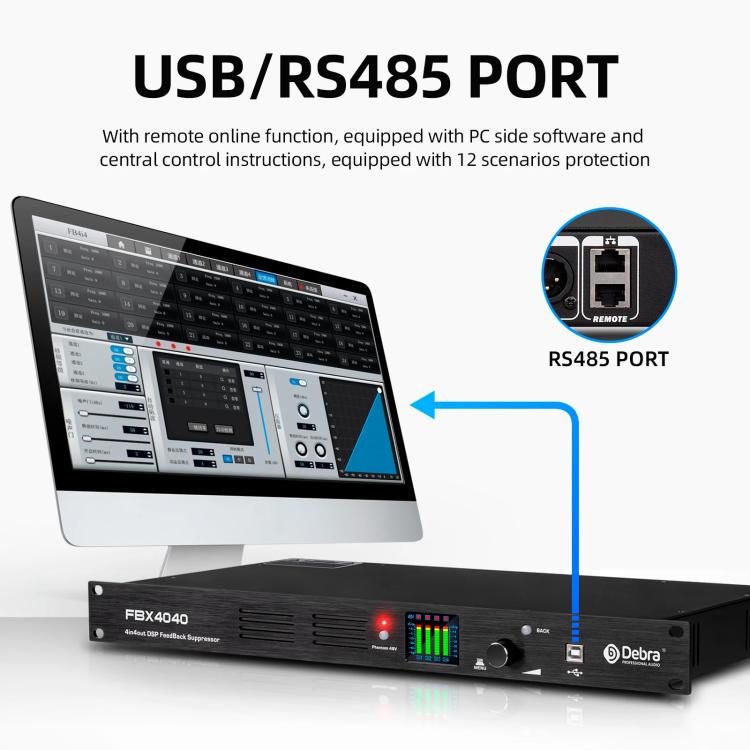

4. Remote connection capability, including PC software and central control commands, facilitates debugging and control.

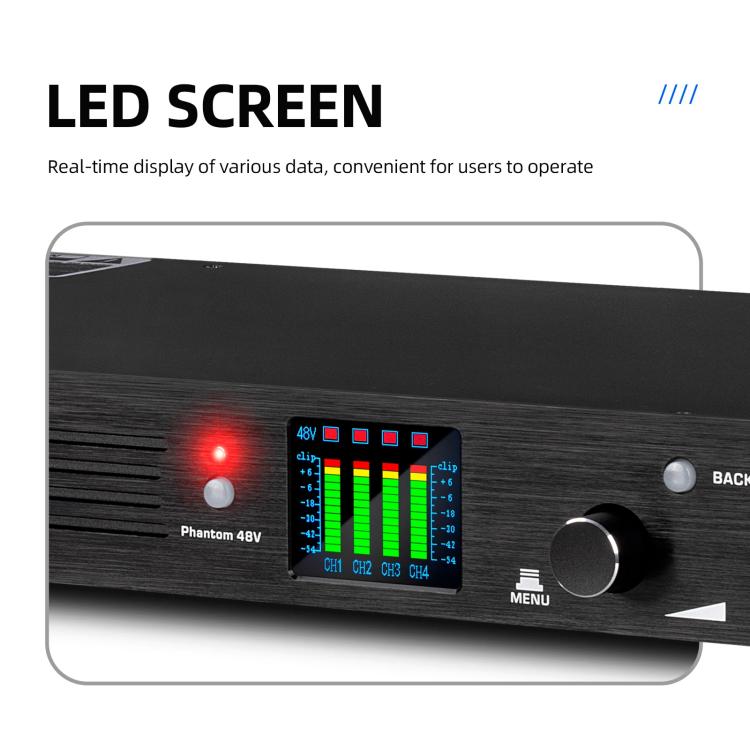

5. High-definition LED display displays detailed data in real time for easy operation.

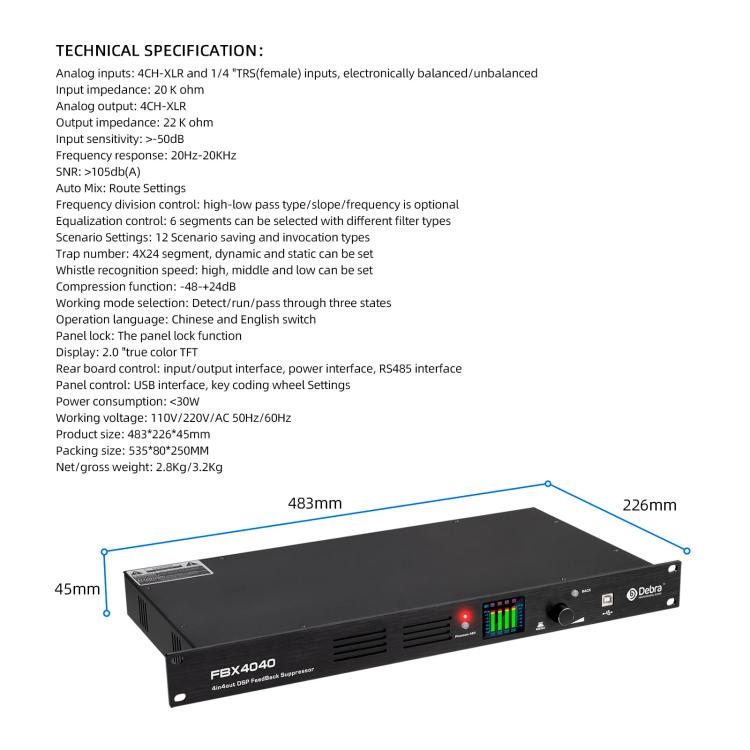

Technical Parameters

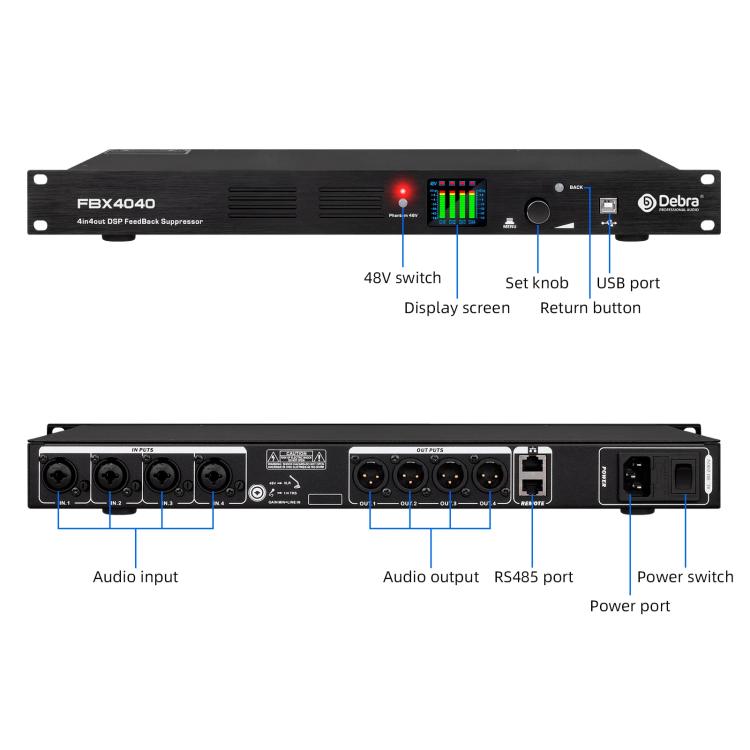

Analog Input: 4CH XLR and 1/4 TRS Female
Input Impedance: 20K ohm
Analog Output: 4CH XLR
Output Impedance: 22K ohm
Input Sensitivity: more than -50dB
Frequency Response: 20Hz-20kHz
Signal-to-Noise Ratio: more than 105dB
Specification:
|
Package Weight
|
| One Package Weight |
3.20kgs / 7.06lb
|
| One Package Size |
54cm * 25cm * 8cm / 21.26inch * 9.84inch * 3.15inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
55cm * 27cm * 42cm / 21.65inch * 10.63inch * 16.54inch
|
| Loading Container |
20GP: 427 cartons * 5 pcs = 2135 pcs
40HQ: 992 cartons * 5 pcs = 4960 pcs
|
|
