1. One-button emergency stop function (STOP button) is more convenient to use

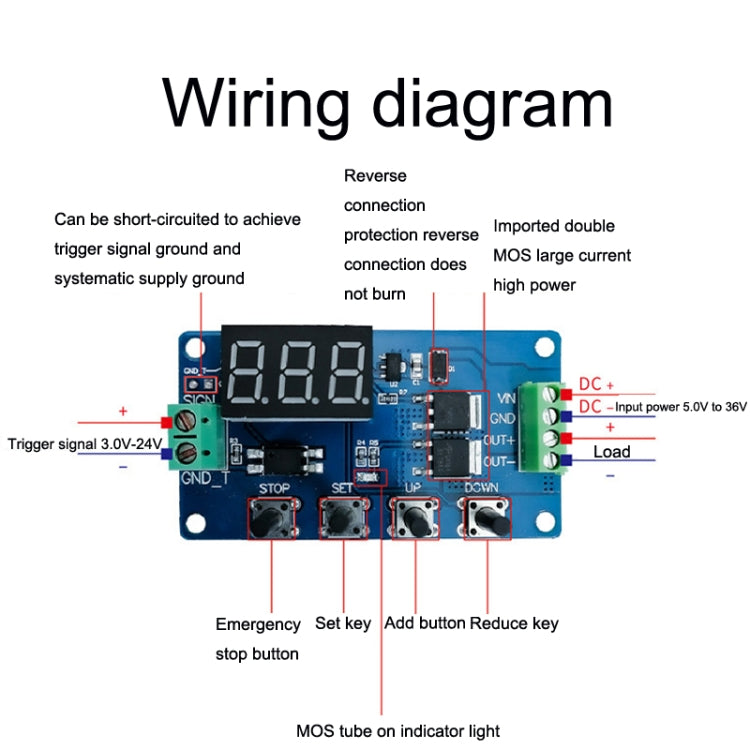

2. Voltage input anti-reverse connection circuit, worry-free wiring
3. Setting parameters power off, power off memory function
4. Added sleep mode, automatically turn off the display if there is no operation within 5 minutes
5. Working voltage: DC5-30V
6. Output capacity: Controllable equipment within DC 30V/10A or AC 250V/10A
7. Working temperature: -40 to 85 degrees Celsius
8. Signal source: high level trigger DC 3.0V-24V
9. Mounting hole: diameter 3mm
10. Power consumption: 400W

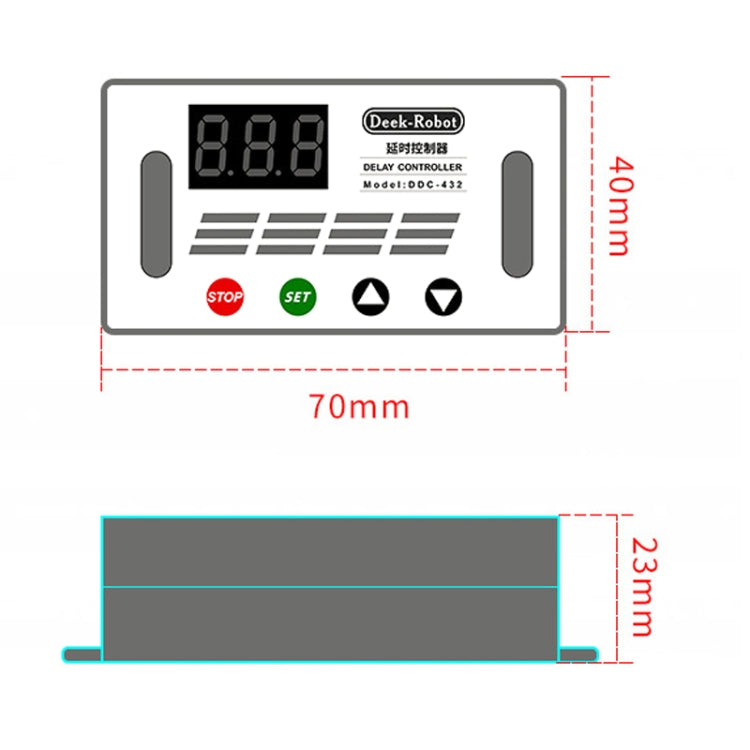

11. Dimensions: 70 x 40 x 23mm
12. Net weight: about 44g
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
10cm * 6cm * 4cm / 3.94inch * 2.36inch * 1.57inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 356 pcs = 63012 pcs
40HQ: 412 cartons * 356 pcs = 146672 pcs
|
|
