1. Temperature measurement range: -20-60 degrees Celsius
2. Humidity range: 0-100 percent RH

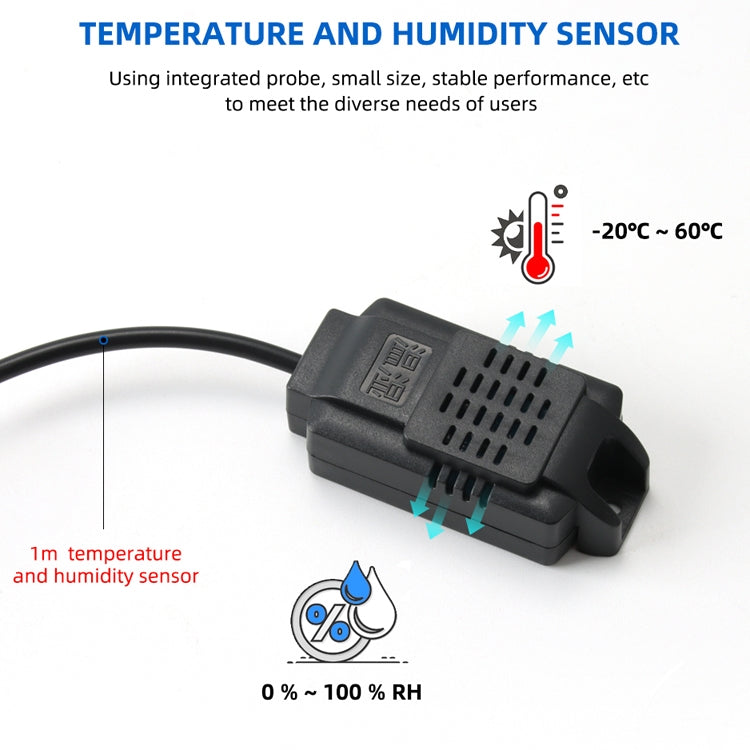

3. Detection probe: Integrated sensor

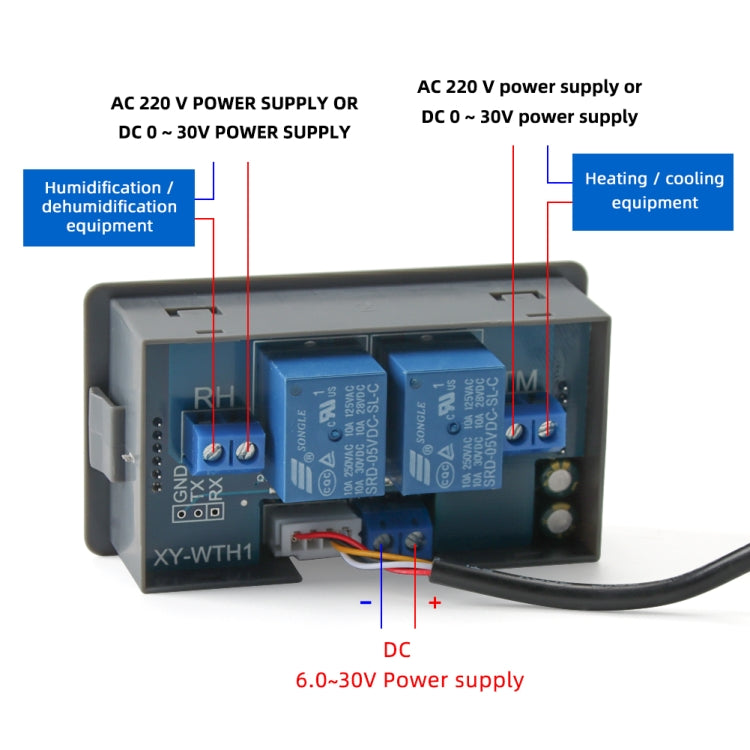

4. Output type: relay output
5. Output capacity: up to 10A
6. Power supply voltage: DC 6-30V
7. Suitable for opening size: about 7.5x3.95cm
8. Weight: about 95 grams
9. Appearance size: about 7.1x3.9cm
Function:

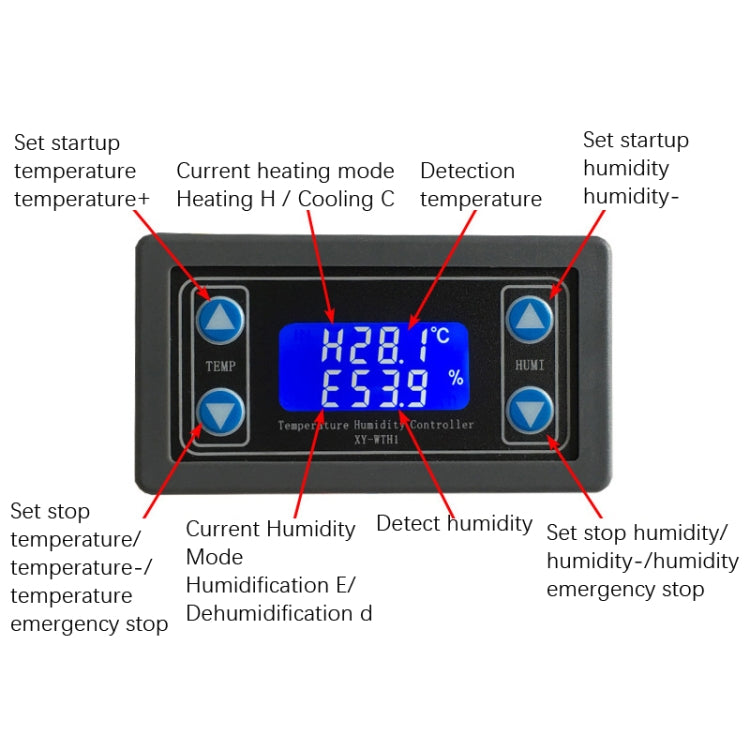

1. Remote reading/setting of parameters: parameters such as start temperature/humidity, stop temperature/humidity, temperature/humidity, correction can be set through UART
2. Real-time temperature/humidity reporting: If the temperature/humidity reporting function is enabled, the temperature/humidity and relay status will be detected at 1s intervals, and transmitted to the terminal through UART to facilitate data collection

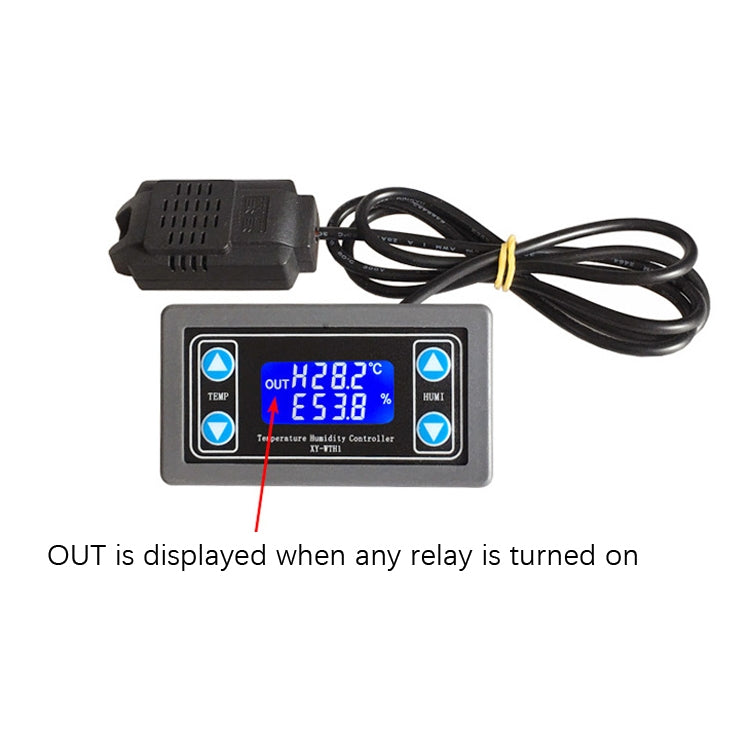

3. Relay enable (default on): If the relay enable is turned off, the relay remains disconnected
Specification:
|
Package Weight
|
| One Package Weight |
0.11kgs / 0.23lb
|
| One Package Size |
10cm * 5cm * 5cm / 3.94inch * 1.97inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 242 pcs = 42834 pcs
40HQ: 412 cartons * 242 pcs = 99704 pcs
|
|
