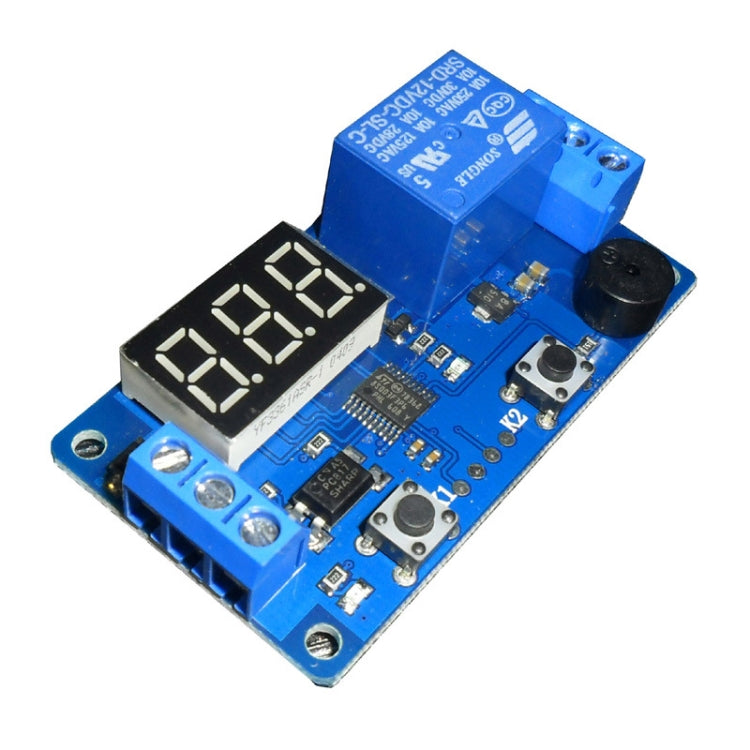

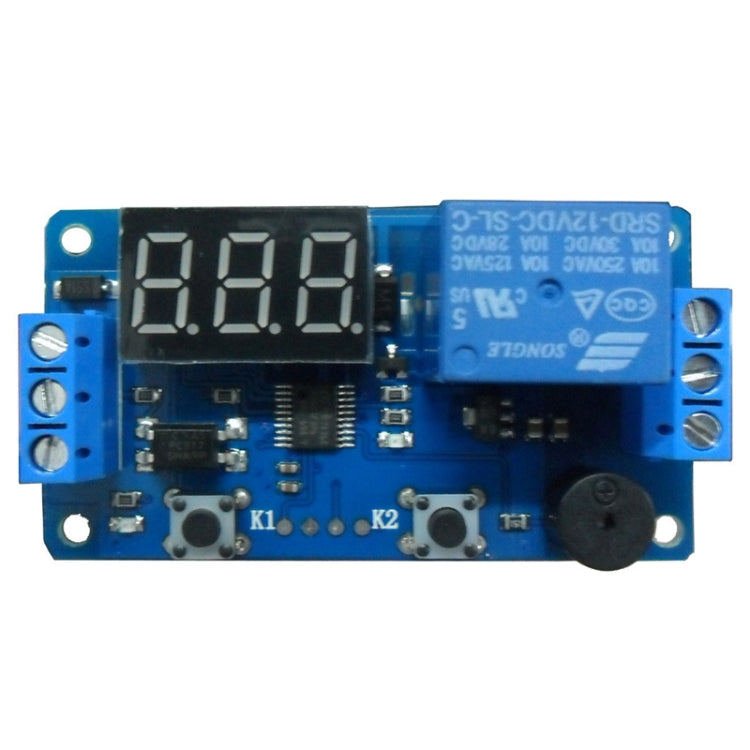

DK-C-01 Car Programmable Timing LCD Digital Display Relay Module Can Control DC AC Delay Relay

1. Widely used in car modification and industrial mechanical, electrical and electrical equipment
2. Voltage input anti-reverse connection circuit, worry-free wiring
3. Signal input optocoupler isolation, strong anti-interference ability
4. The set parameters are permanently memorized when the power is off
5. Powerful FLASH MCU online programming function, according to user needs, you can contact the manufacturer to customize the required functions.
6. Working voltage: DC12V (normal working voltage DC10V-16V)
7. Output capability: It can control equipment within DC 30V 5A or AC 220V 5A
8. Static current: 20MA
9. Working current: 50MA
10. Service life: more than 100000 times
11. Working temperature: -40 to 85 degrees Celsius
12. Signal source: DC4V-20V (common power supply positive trigger, button, PNP sensor, PLC signal, etc.)
13. Function: Turn on the power, receive the trigger signal, start counting down, at the same time the relay works, when the timing is over, the relay stops working, the time returns to the setting, and waits for the next trigger signal
14. Dimensions: 64.2 x 34.8 x 18.5MM
15. Net weight: about 26G

Instructions
1. Press K1 to enter the time setting, the hundreds digital tube starts to flash, press K2 at this time, the hundreds digit changes; press K1+ digit digital tube starts to flash again, press K2 at this time, the tens digit changes; press again Press K1 once and the unit digit digital tube starts to flicker, press K2 at this time, the unit digit changes; press K1 again, exit the setting, and the digital tube no longer flickers
2. When the digital tube displays normally, press K2 to shift the decimal point. The decimal point in the ones represents 0 to 999 minutes, and the tens digit represents 0 to 99.9 seconds. Without a decimal point, it represents 0 to 999 seconds; the time setting is now complete.
