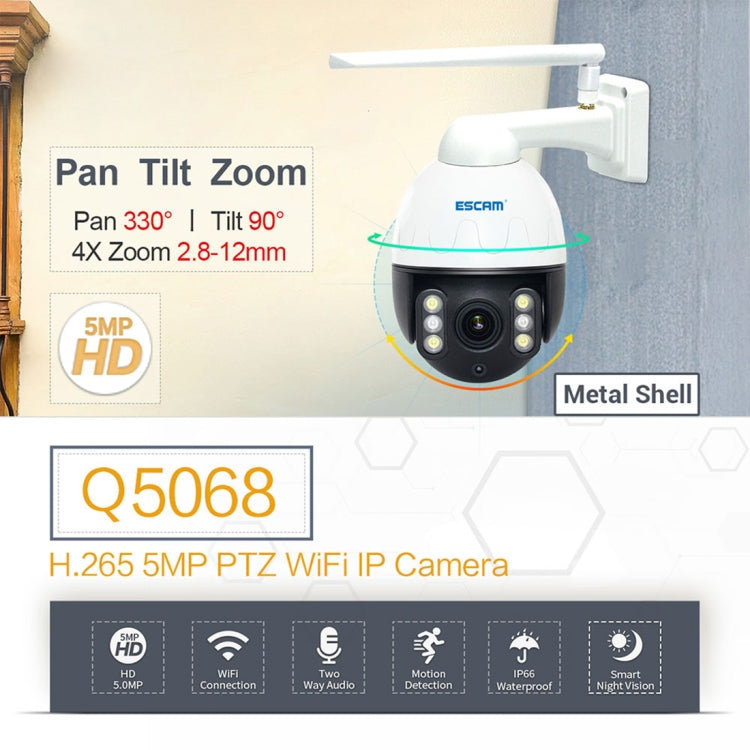

1. 5MP resolution, high definition quality
2. Support PTZ monitoring, PTZ 330 degrees + tilt 90 degrees
3. Equipped with 2.8-12mm zoom lens, support 4x optical zoom
4. H.265 compression, saving a lot of transmission and storage costs
5. Support smart night vision, three night vision modes. Infrared distance up to 60m
6. Two-way audio with noise cancellation
7. Support WiFi connection and AP connection
8. Support motion detection and sound detection
9. Maximum support for 64GB Mirco SD card
10. Support IP66 waterproof
11. Support multiple platforms, support APP, web browser and PC client
12. Support APP push notifications
13. Support Onvif and Rtsp protocols
Product parameters:
1. Sensor: 1/2.8 inch 5 megapixel progressive scan CMOS
2. Electronic shutter: automatic / manual movement, 1/25-1/10000s
3. Focal length: 2.8-12mm
4. Day and night switch: 2 infrared LEDs and 4 white LEDs
5. Infrared distance: 20m
6. White balance: automatic white balance
7. Digital noise reduction: support 3D noise reduction
8. Motion detection: support motion detection
9. Privacy Shelter: Support 4 areas
10. OSD support: OSD settings
11. Automatic restart: support scheduled restart
12. Video compression: H.265 / H.264
13. Resolution mainstream: 5MP (2560x1920)
14. Substream: (800x600), (640x480)
15. Video frame rate: 25fps (50Hz), 25fps (60Hz)
16. Bit rate: 32Kbps-6Mbps CBR/VBR adjustable
17. Video adjustment: brightness, saturation, chroma adjustment
18. Input: Built-in microphone
19. Output: Built-in speaker
20. Compression: G.711
21. Ethernet: RJ-45 (10 / 100Base-T)
22. Wireless: WiFi 802.11b / g / n, only supports 2.4G and AP mode
23. IP Type: Dynamic IP & Static IP
24. Network Protocol: HTTP, TCP / IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP
25. Access Agreement Support: ONVIF
26. Maximum number of users: 6
27. Client: iPhone, iPad, Android, Windows PC
28. Power: DC 12V 2A
29. Power consumption: 2.5W (infrared LED off) / 7.2W (infrared LED on)
30. Working environment: -3-60 degrees Celsius, 10-90%.
31. Product size: 180x160x105mm
32. Product weight: 0.96kg
Packing list:
Camera x 1
Power adapter x 1
Waterproof cap x 1
Instruction manual x 1
Antenna x 1
Screw bag x 1
Specification:
|
General
|
| Performance |
Motion detection, Night Vision, Privacy Masking, Two Way Audio, Alarm Function |
| Memory |
up to 64GB (not included) |
| Privacy Masking Range |
Support 4 areas |
|
|
Network
|
| Wireless |
WiFi 802.11 b/g/n, 2.4GHz |
| Protocol |
DDNS, NTP, SMTP, UPNP, DHCP, FTP, RTSP, HTTP, DNS, TCP/IP, ONVIF |
|
|
System / Hardware
|
| Sensor Size |
1/2.8 inch Progressive Scan |
| Pan/Tilt-Horizontal Angle |
330 degree |
| Pan/Tilt-Vertical Angle |
90 degree |
| Electronic Shutter |
automatic / manual movement, 1/25-1/10000s |
|
|
Media Format
|
| Video Compression Format |
H.264, H.265 |
| Audio Compression Format |
G.711 |
| Video Bit rate |
32Kbps-6Mbps CBR/VBR adjustable |
| Frame Rate (FPS) |
50Hz: 25fps, 60Hz: 25fps |
|
|
Night Vision
|
| Infrared Distance |
20m, 60m |
| Configuration |
2 infrared LEDs |
|
|
Package Include
|
| Package Contents |
1 x Camera
1 x User Manual
1 x WiFi Antenna
1 x Screws Set |
|
|
Package Weight
|
| One Package Weight |
1.30kgs / 2.87lb
|
| One Package Size |
19.5cm * 16.5cm * 13.5cm / 7.68inch * 6.5inch * 5.31inch
|
| Carton Weight |
16.80kgs / 37.04lb
|
| Carton Size |
44cm * 42cm * 36cm / 17.32inch * 16.54inch * 14.17inch
|
| Loading Container |
20GP: 400 cartons * 12 pcs = 4800 pcs
40HQ: 930 cartons * 12 pcs = 11160 pcs
|
|
