Features:
1. H.265 3MP camera, resolution 2304x1296
2. Support 2.4ghz WiFi connection

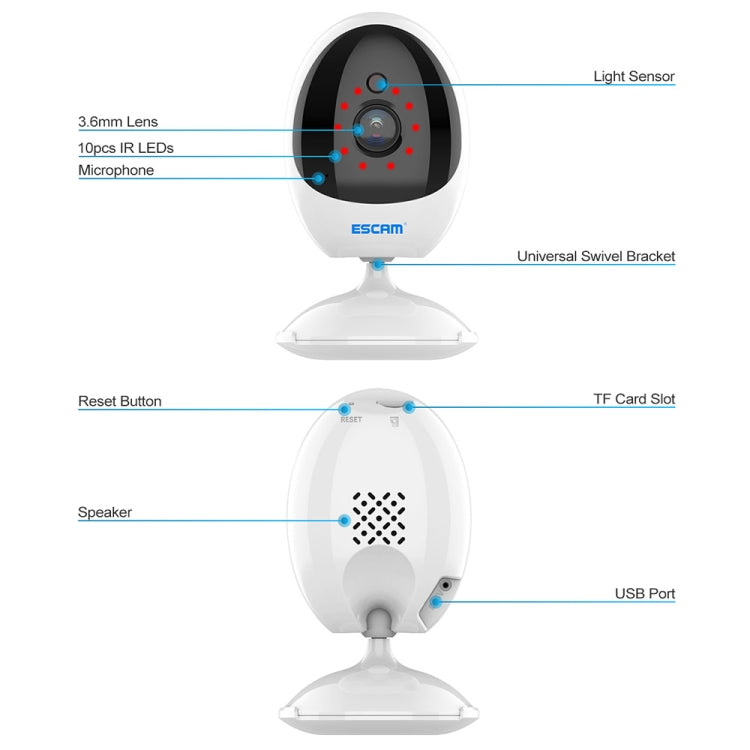

3. Support humanoid detection and motion tracking, support APP push alarm and sound alarm
4. Support infrared night vision, 10 infrared lights, 10m detection distance
5. Support cloud storage, support 128G memory card max, support audio recording and alarm recording
6. Support two-way voice
7. Support multi-screen viewing at the same time
8. APP:icsee (without network port does not support ONVIF protocol)
parameter:
1. Operating system: Embedded Linux operating system
2. Lens:
Image sensor: 1/4 inch CMOS, automatic white balance, automatic gain control, backlight compensation function
Lens / angle of view: 2.8mm / angle of view 92 degrees
Illuminance (Min.): Color 0.1 Lux , 0.01 Lux (night vision mode)
3. Infrared:
Infrared distance: 10 infrared lights, infrared distance 10m
Infrared adjustment: automatic
4. Video:
Video compression standard: H.265/H.264+
Resolution: 3MP 2304*1296
Frame rate: NTSC: 30fps/PAL: 25fps
5. Audio:
Compression Standard: G.711A
Input: Built-in Microphone
Output: Built-in speaker
6. Network:
Wireless protocol: WIFI 802.11 b/g/n (2.4G WIFI)
IP address: Dynamic IP
7. Mobile phone viewing: support Android phones and Apple phones (IOS4.3, Android OS 2.3 and above)
8. Alarm:
Alarm Detection: Motion Detection
Alarm action: APP push
9. Storage: support 128GTF card max (not included)
10. Rated voltage: DC5 0.3V
11. Power consumption: 3.5W (infrared on) / 7W (P/T work)
12. Working environment: -10~50 degrees Celsius 10%~90%
13. Weight: 100g

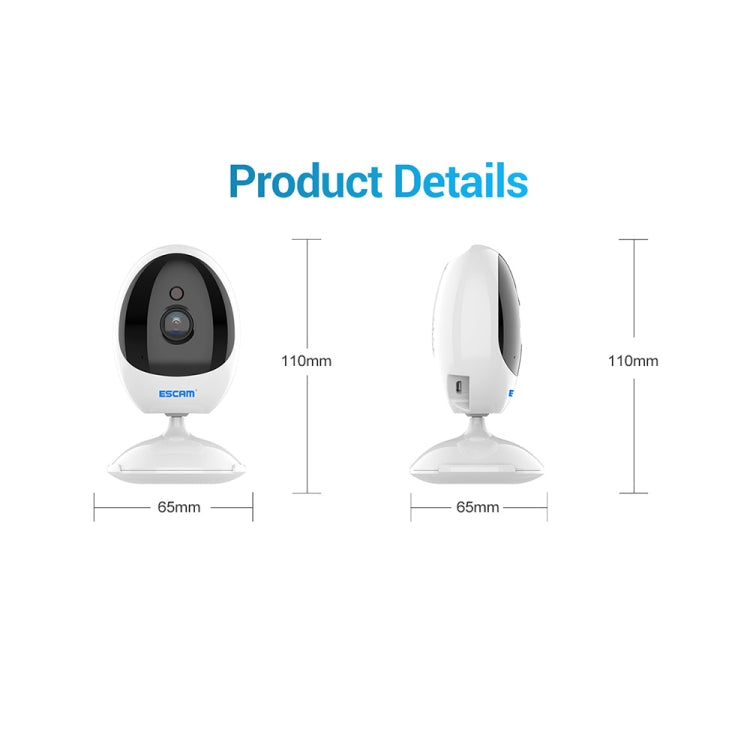

14. Dimensions: 65x65x110mm

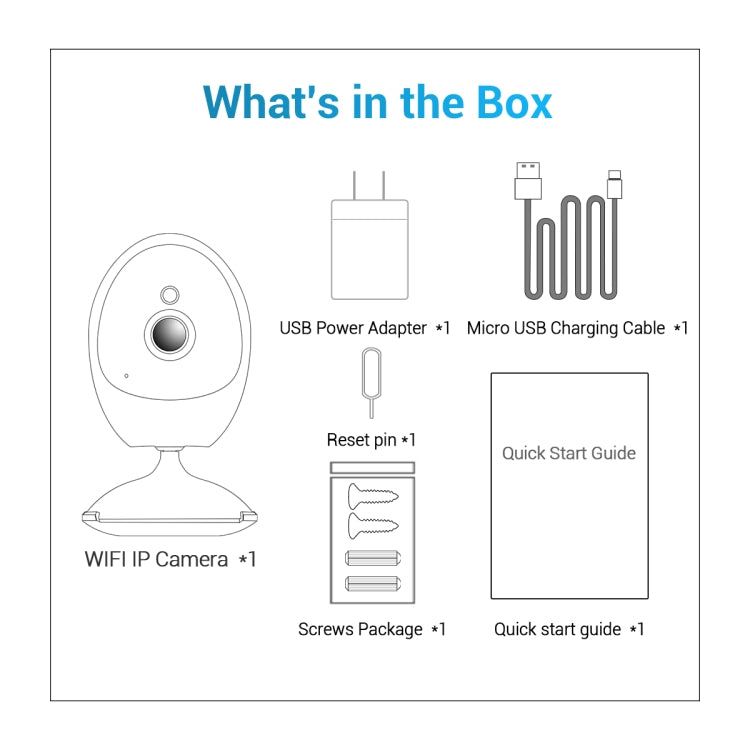

15. Checklist:
IP camera x 1
Charge x 1
USB cable x 1
User Manual x 1
Screw Pack x 1
Specification:
|
General
|
| Power Depletion |
3.5W (IR Opening), 7W (P/T Working) |
| Performance |
Motion detection, Night Vision, Two Way Audio, Alarm Function |
| Memory |
up to 128GB (not included) |
|
|
Network
|
| Wireless |
WiFi 802.11 b/g/n |
|
|
System / Hardware
|
| Mobile Access |
Android, iPhone OS |
| Sensor Size |
1/4 inch Progressive Scan |
| Minimum Illumination |
Color: 0.1Lux |
|
|
Media Format
|
| Video Compression Format |
H.265 |
| Audio Compression Format |
G.711A |
| Video Bit rate |
NTSC:30fps/PAL:25fps |
|
|
Physical Environment
|
| Operate Temperature |
-10 to 50 Degree Celsius |
| Working Humidity |
10 to 90 percent |
|
|
Package Include
|
| Package Contents |
1 x Camera
1 x USB Cable
1 x Power Adapter (US, UK, EU, AU Optional)
1 x User Manual
1 x Set of Mounting Screws |
|
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.46lb
|
| One Package Size |
19cm * 12cm * 6cm / 7.48inch * 4.72inch * 2.36inch
|
| Carton Weight |
11.75kgs / 25.90lb
|
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 348 cartons * 50 pcs = 17400 pcs
40HQ: 808 cartons * 50 pcs = 40400 pcs
|
|
