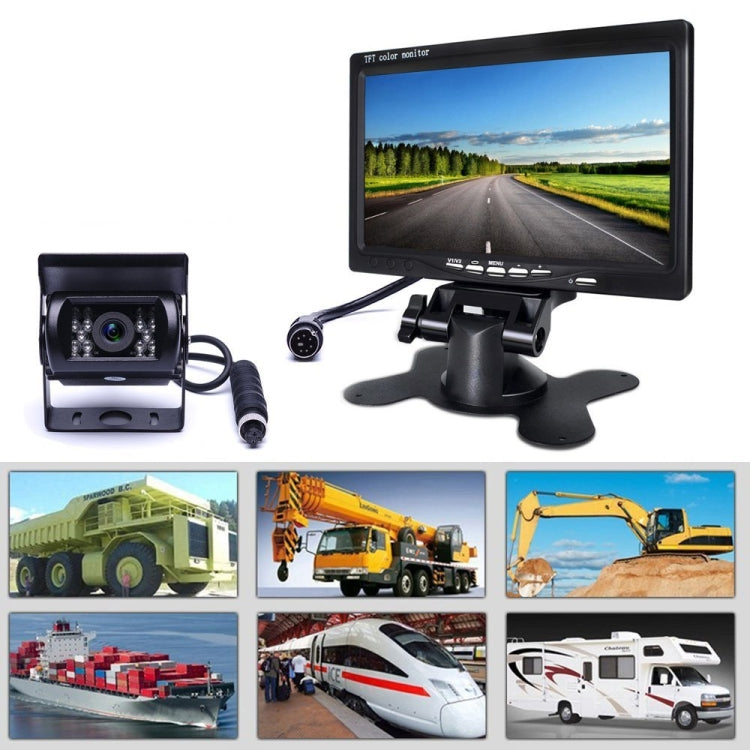

Description:
1. Use as a Full-Time Rear View Monitor When connect the camera to 12V-24V, so it could also used as security monitor.??
2. Use as a Car Back-Up Monitor When connect the camera to reverse light.
Specification:

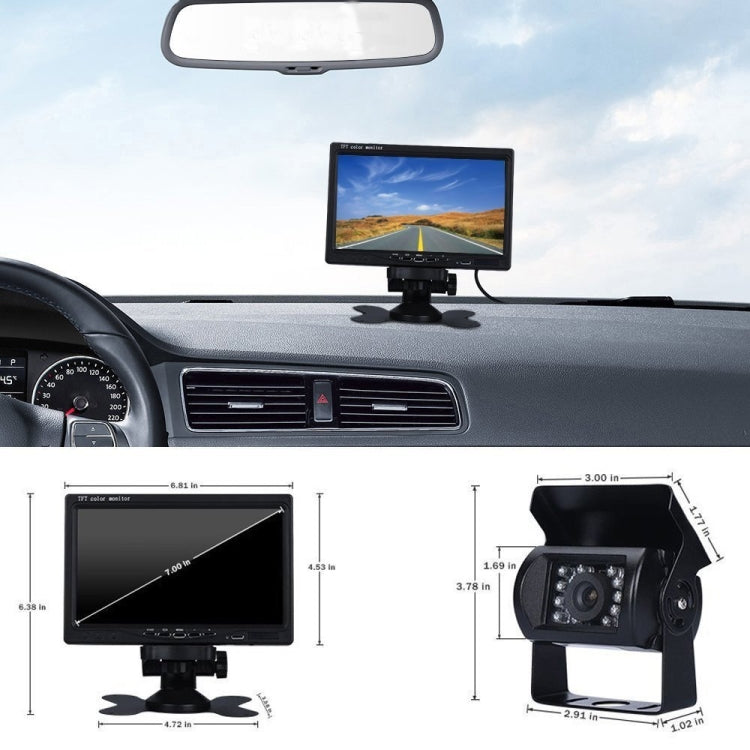

1. Screen Size: 7 inch
2. Resolution: 800*480
3. Housing: ABS
4. TV System: NTSC/PAL
5. Video: 2 video input
6. Rear-view: V2 auto reverse when trigger activated
7. Screen: up/down/left/right
8. Power Supply: DC 12V - 24V
9. Power Consumption: 5W

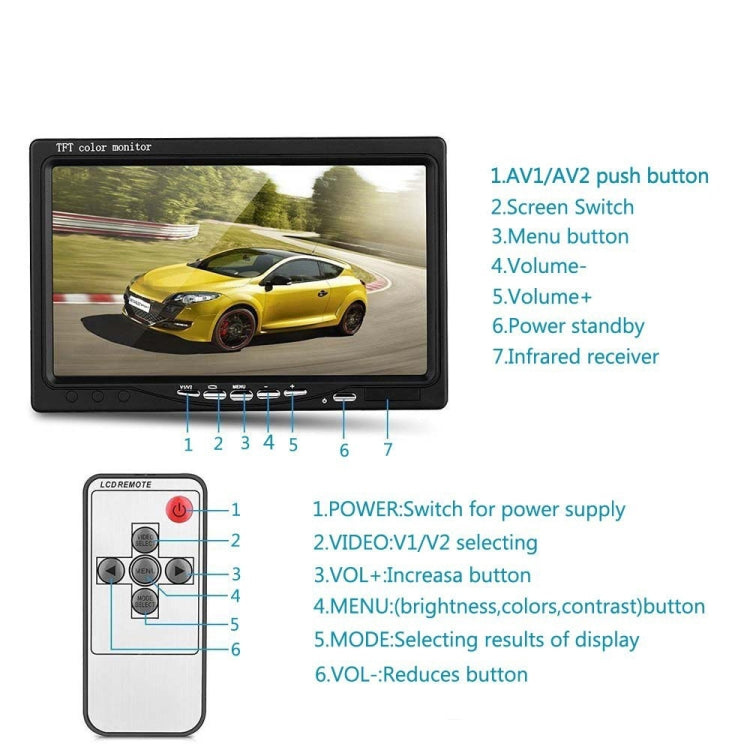

10. Operate mode: the key operation and remote control
11. Work temp.: -10 ~+40 degree Celsius
12. Storage temp.:-25 ~+80 degree Celsius
13. Language: English/French/Spanish/German/Italian/Protuguese/Dutch/Russian/Chinese

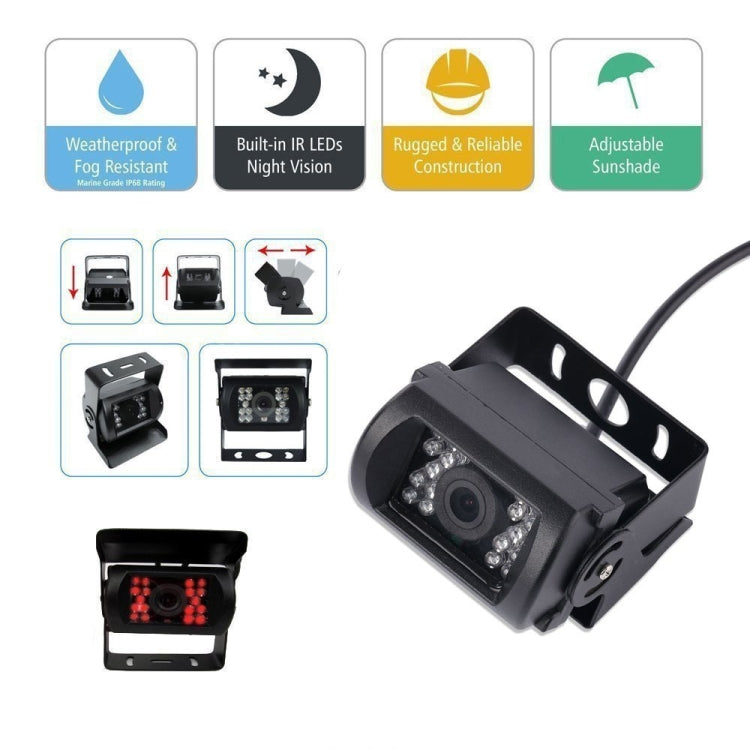

18 IR LEDs Backup Camera(No backup line)
1. Metal body with bracket for easy installation
2. High-definition and wide viewing angles
3. Support color CMOS image
4. Waterproof: IP67
5. Horizontal Resolution: 420TV lines
6. Effective Pixels: NTSC: 648??488 pixels
7. Power Supply: DC 12V-24V
8. Operating Temperature:-20 ~70 degree Celsius, RH95% MAX
9. Storage Temperature:-40 ~85 degree Celsius, RH95% MAX

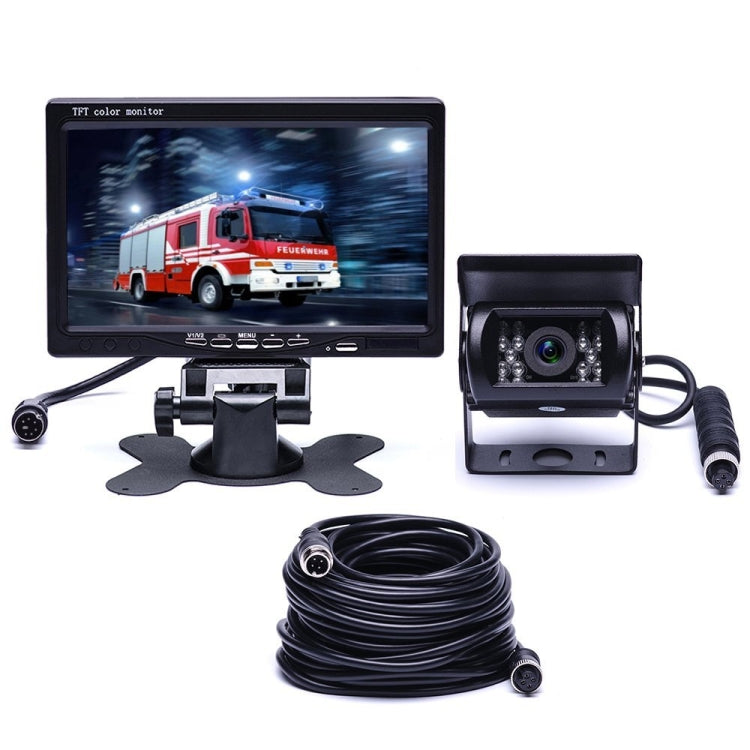

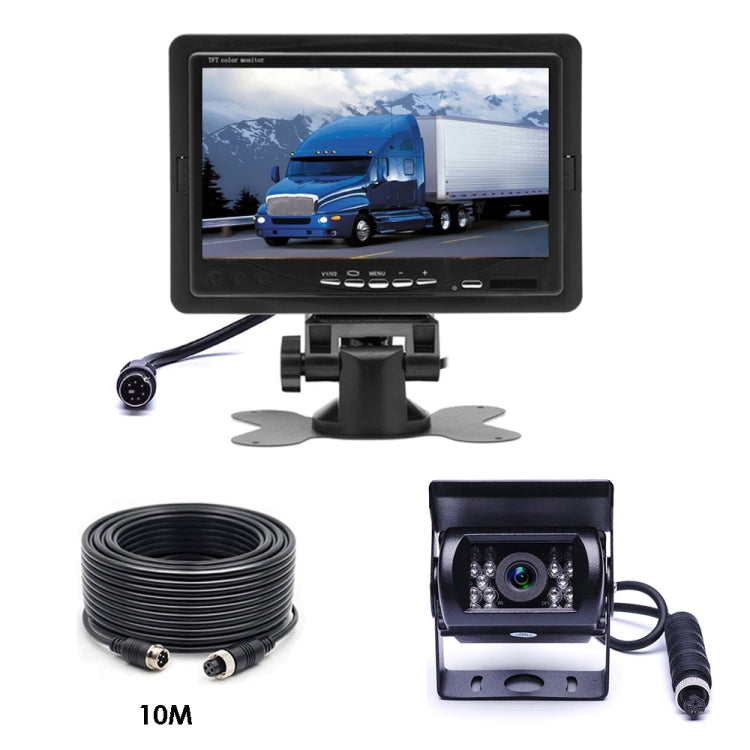

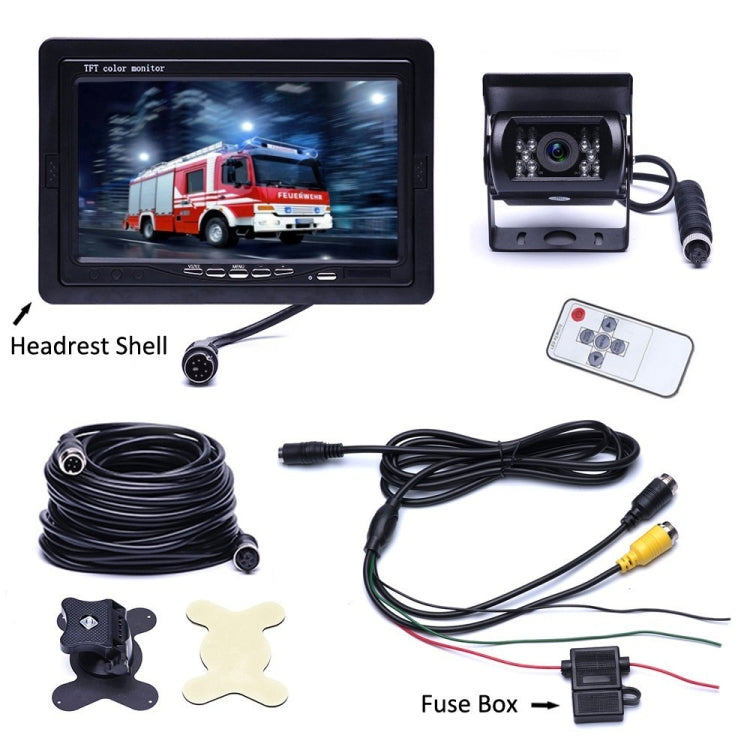

Package Included:
1 x 7 inch Car Monitor
1 x Backup Camera (Without guidelines)

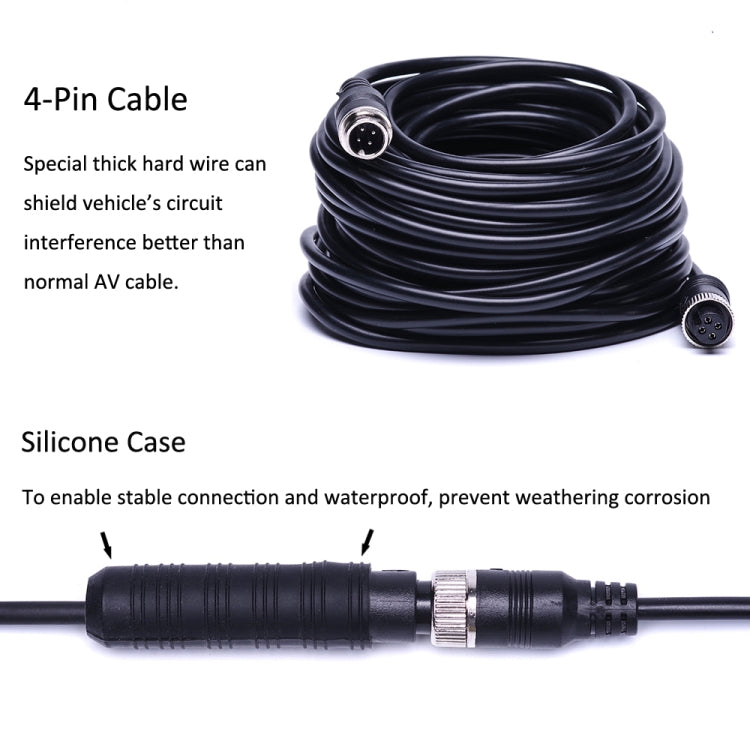

1 x Aviation Connector Video Cable 10M
1 x Remote Controller

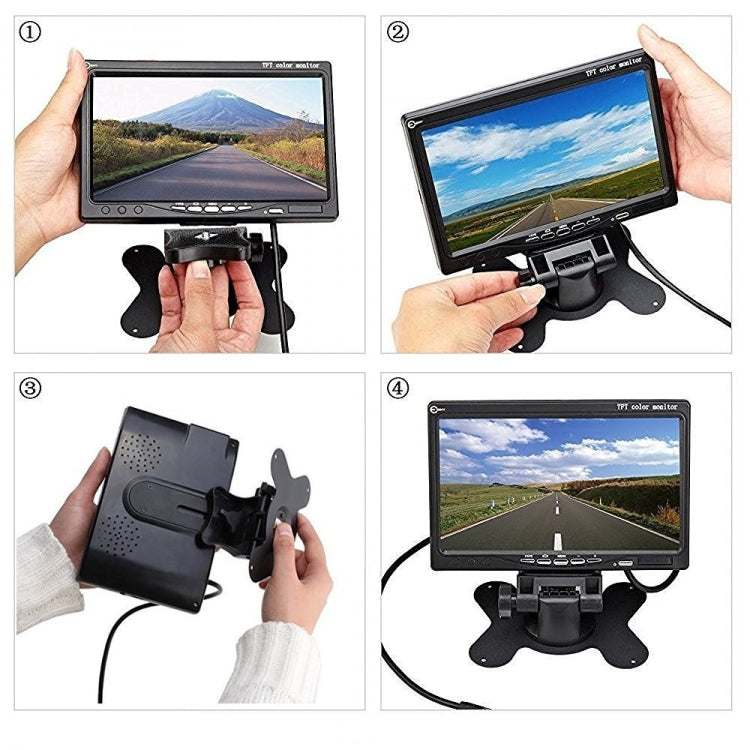

1 x Mount Bracket
1 x Two-sided Adhesive Tap
1 x User Manual
Specification:
|
Package Weight
|
| One Package Weight |
1.31kgs / 2.88lb
|
| One Package Size |
22.5cm * 21cm * 10.5cm / 8.86inch * 8.27inch * 4.13inch
|
| Carton Weight |
14.35kgs / 31.64lb
|
| Carton Size |
64cm * 38cm * 30cm / 25.2inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 365 cartons * 10 pcs = 3650 pcs
40HQ: 848 cartons * 10 pcs = 8480 pcs
|
|
