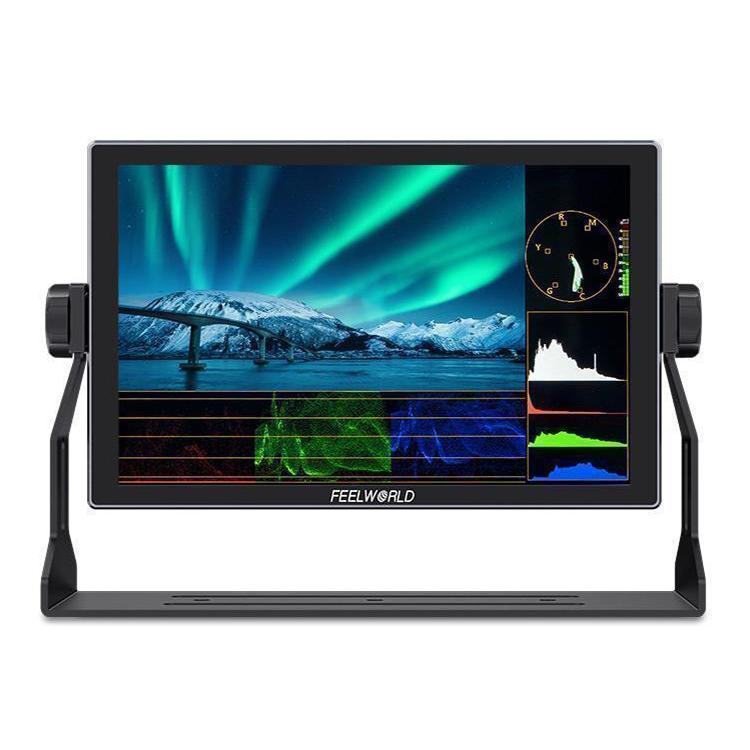

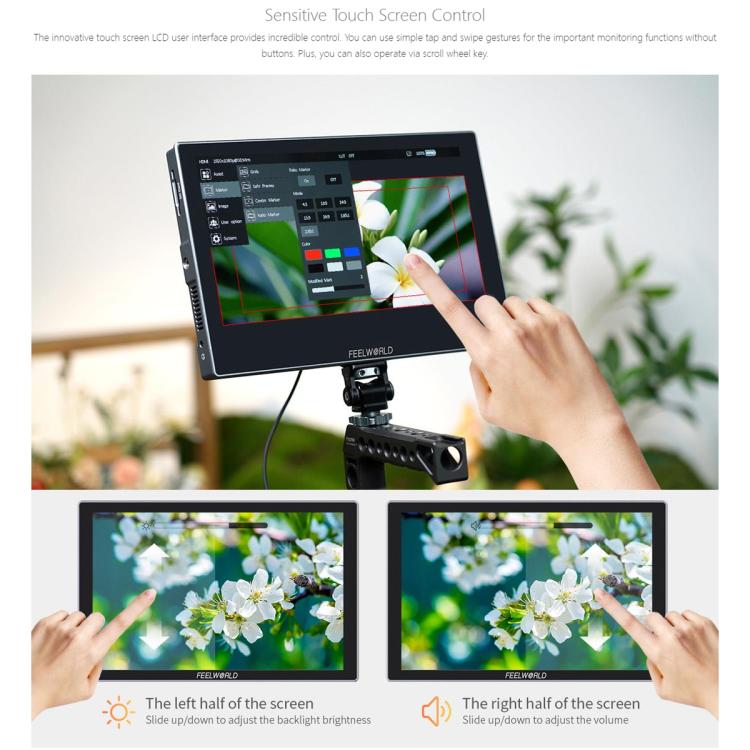

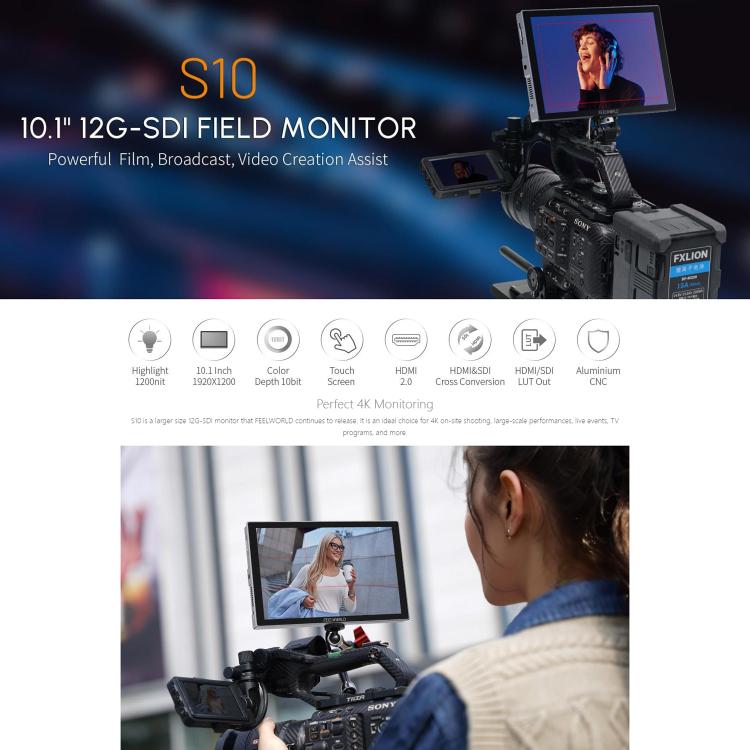

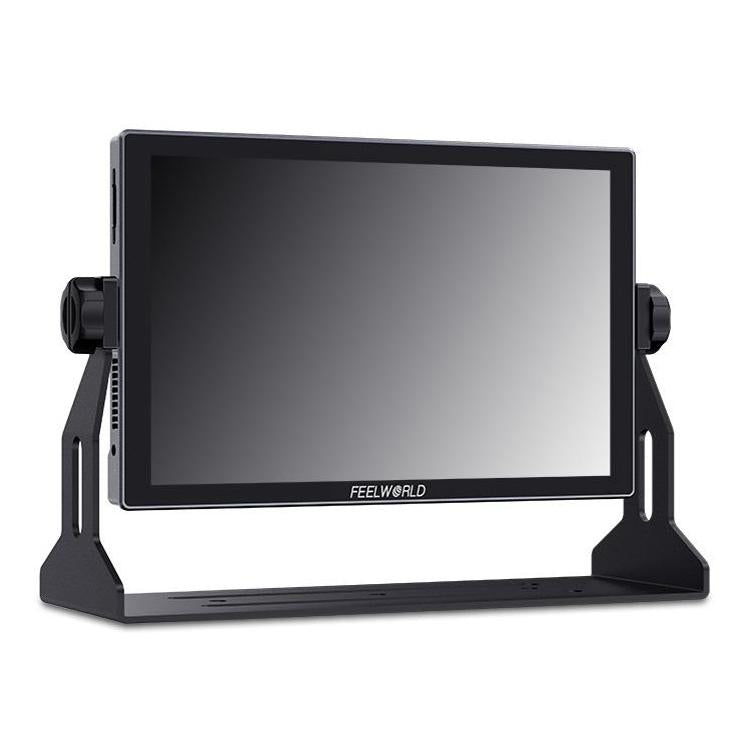

FEELWORLD S10 10.1 inch 12G SDI HDMI2.0 Camera Field Monitor High Brightness 1200nit Touchscreen Monitor (Black)

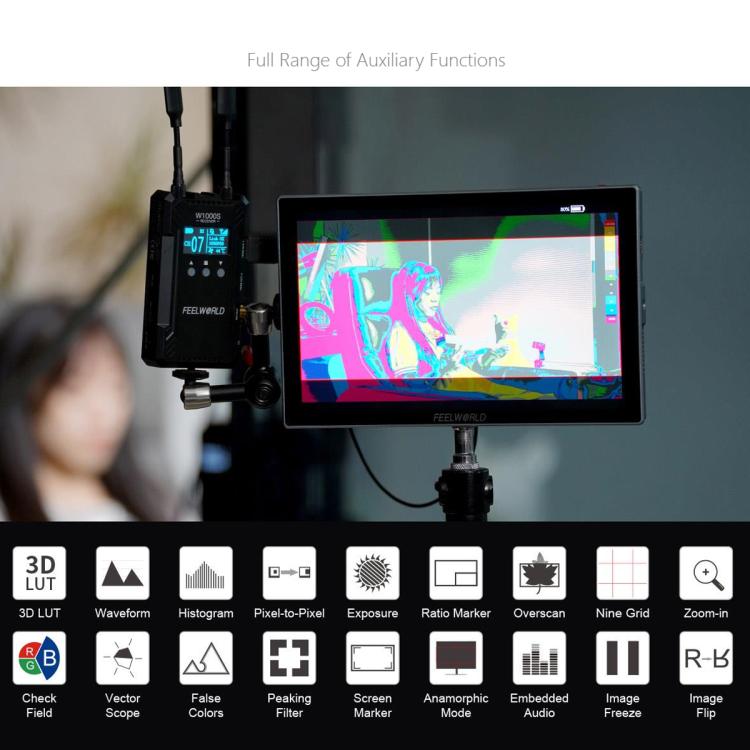

Features

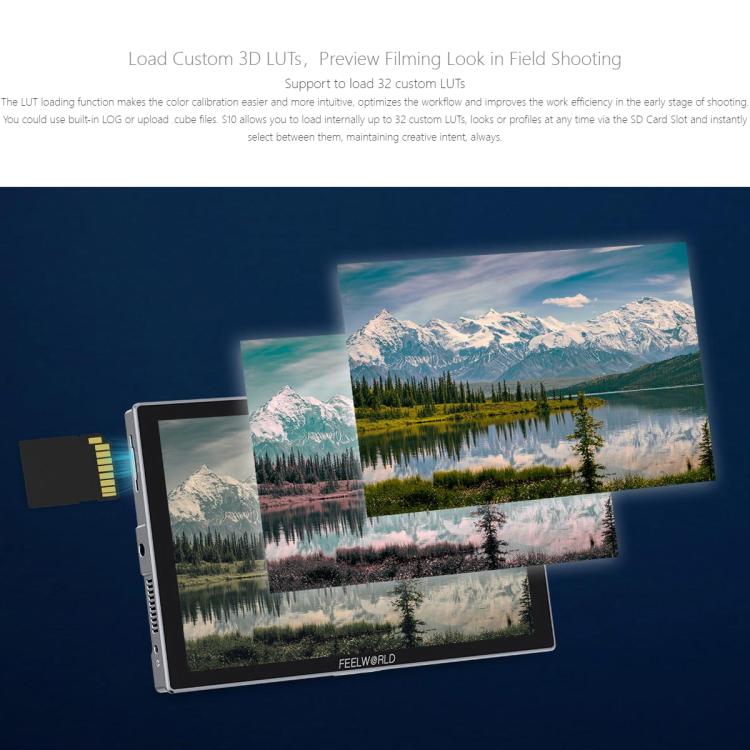

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

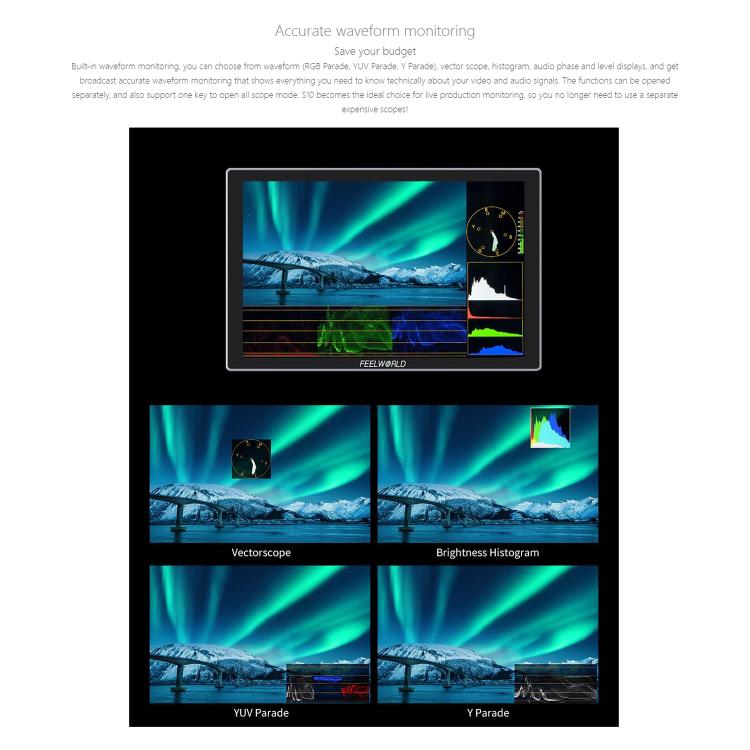

2. Waveform (RGB, YUV, Y)

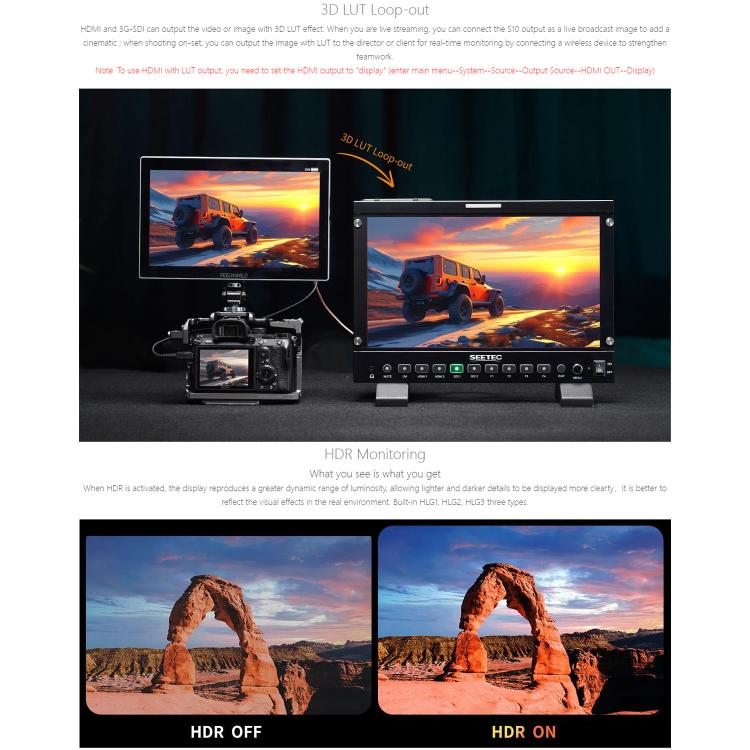

3. HDR
4. Vector
5. Histogram (RGB,Y)
6. Embedded Audio

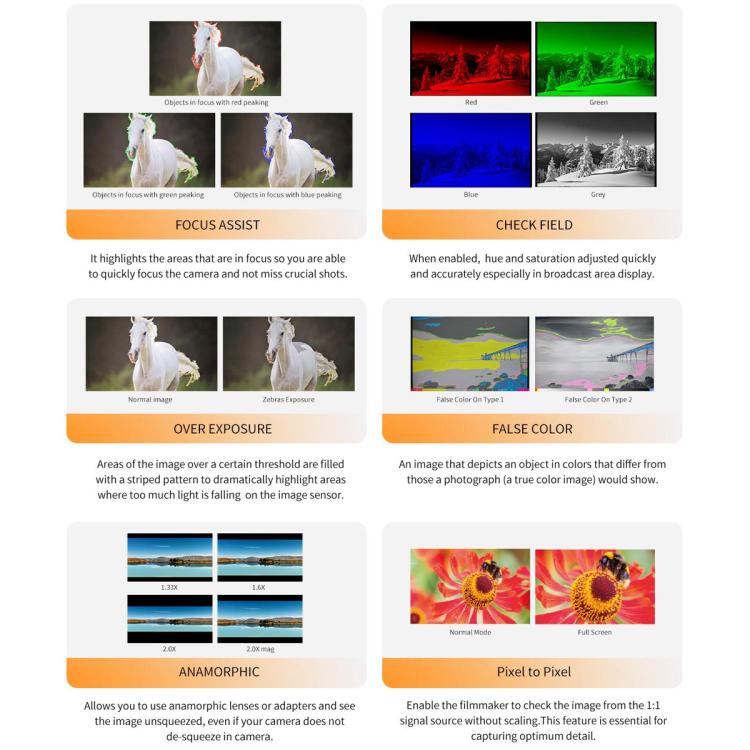

7. Focus Assist (Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
18. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from 2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100~200 percent)
22. Pixel to Pixel

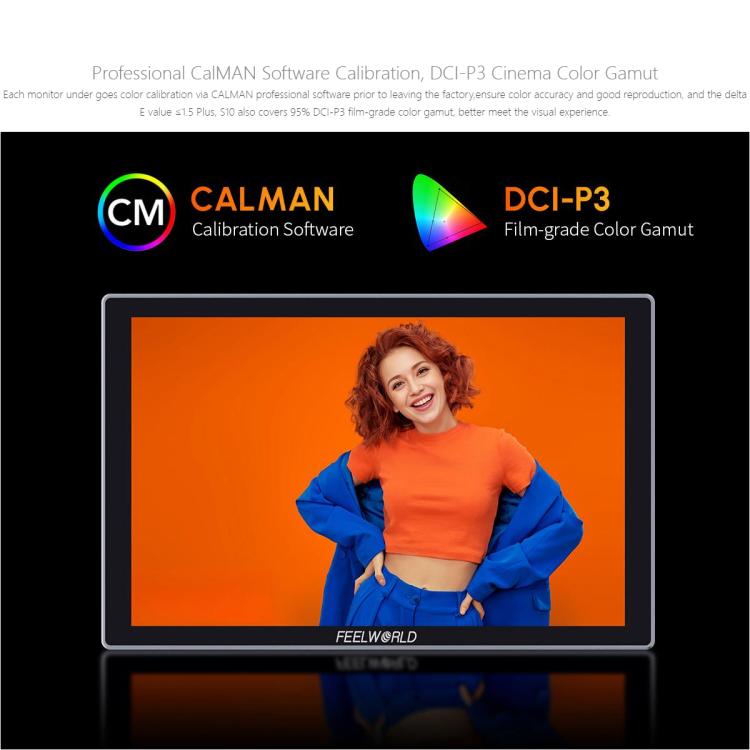

23. Color Gamut (DCI-P3, REC709)
24. Display Range (Auto, Limit, Full)
25. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Specifications

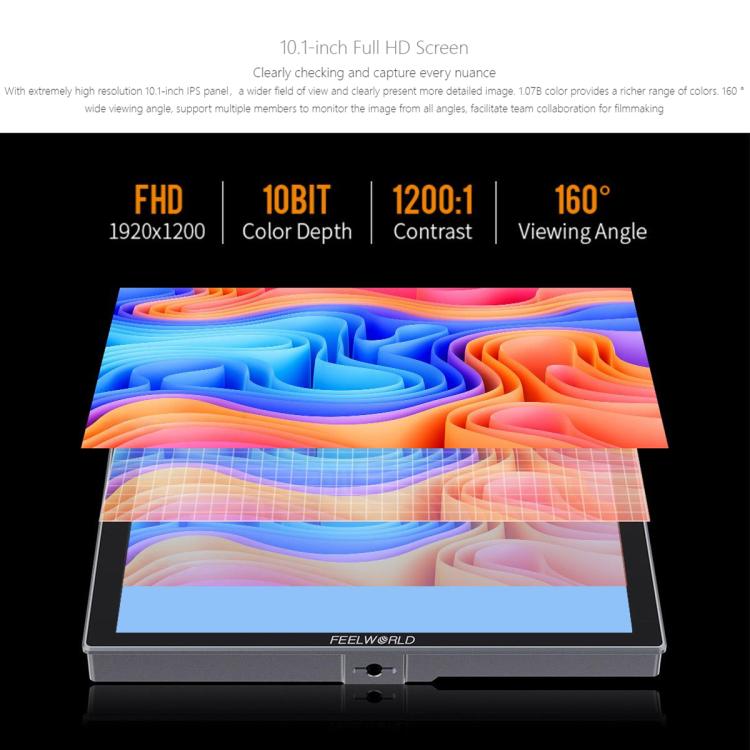

Display Spec.:
1. Model: S10
2. Screen Size: 10.4 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.1128(H) x 0.1128 (V) (mm)
5. Aspect Ratio: 16:10

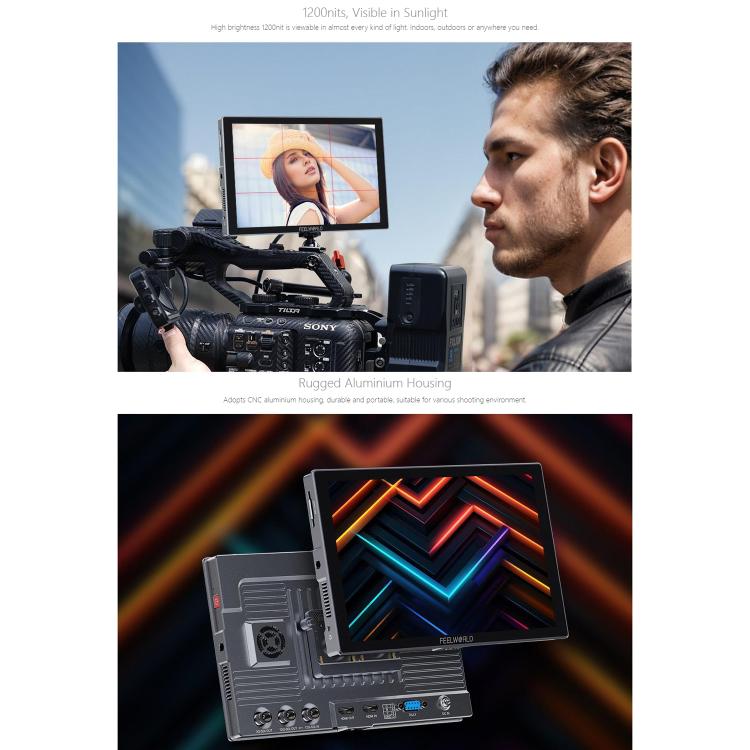

6. Brightness: 1200cd/m2
7. Contrast Ratio: 1500:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)

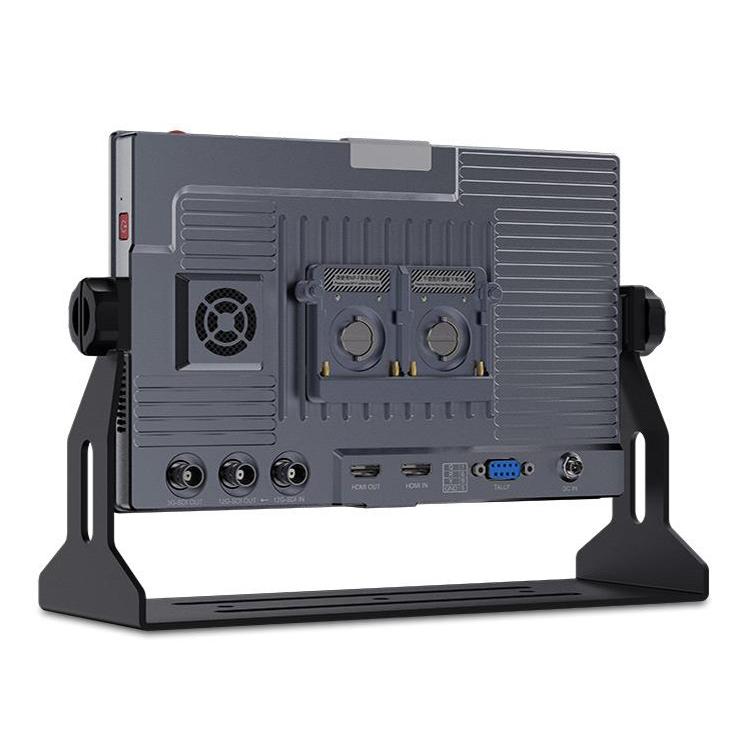

Input:

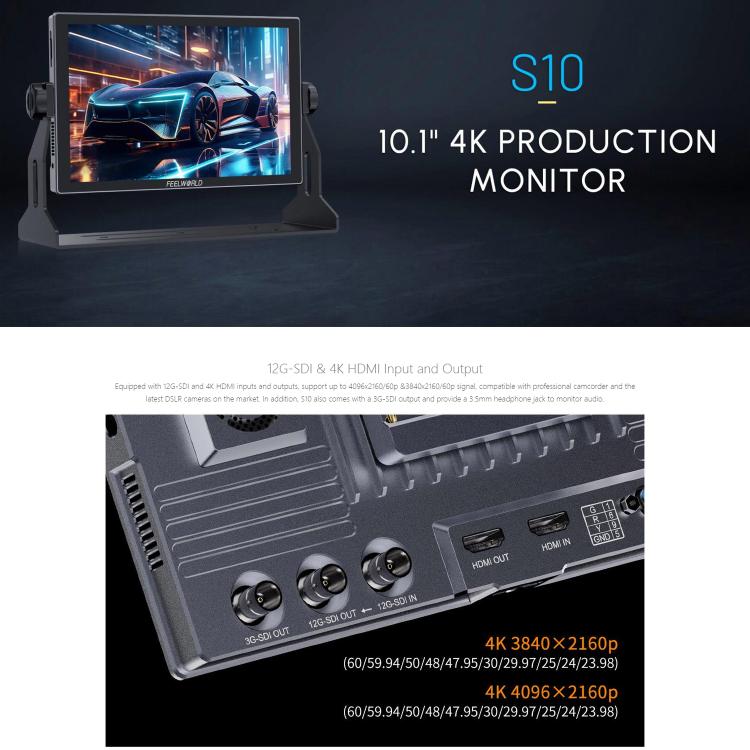

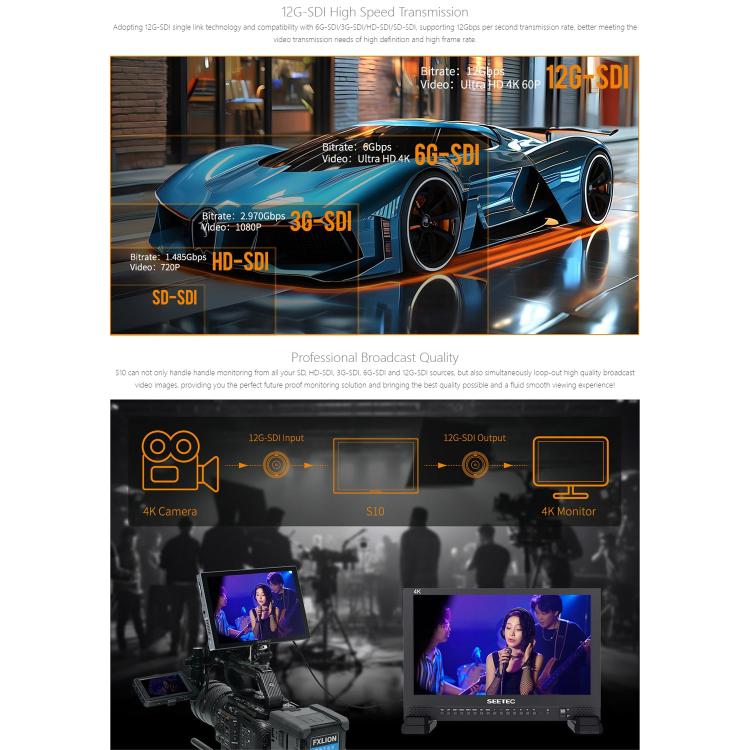

1. 1 x SDI: 12G-SDI
2. 1 x HDMI: HDMI 2.0

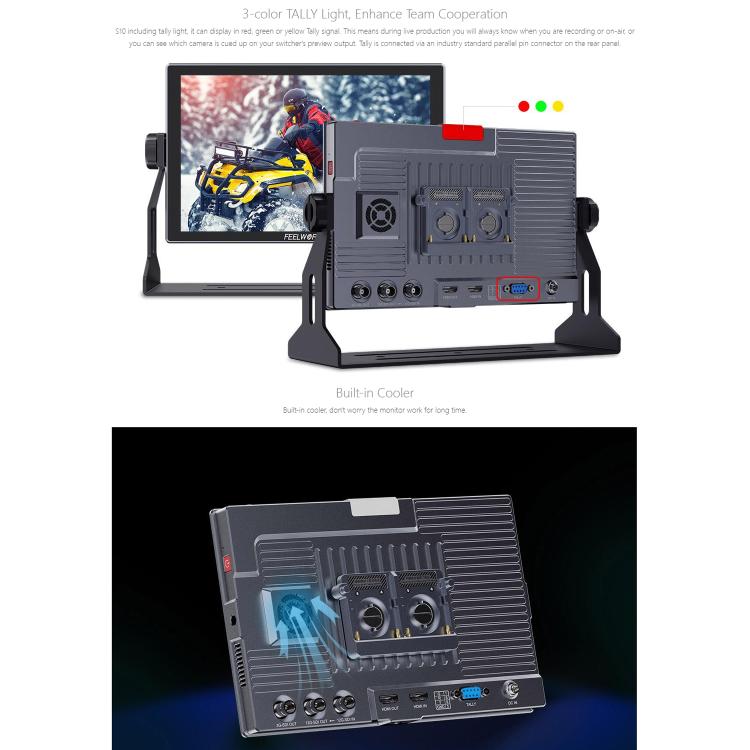

3. 1 x Tally: 9 pin
4. 1 x SD Card: SD Card Slot (LUT files and firmware update file import)

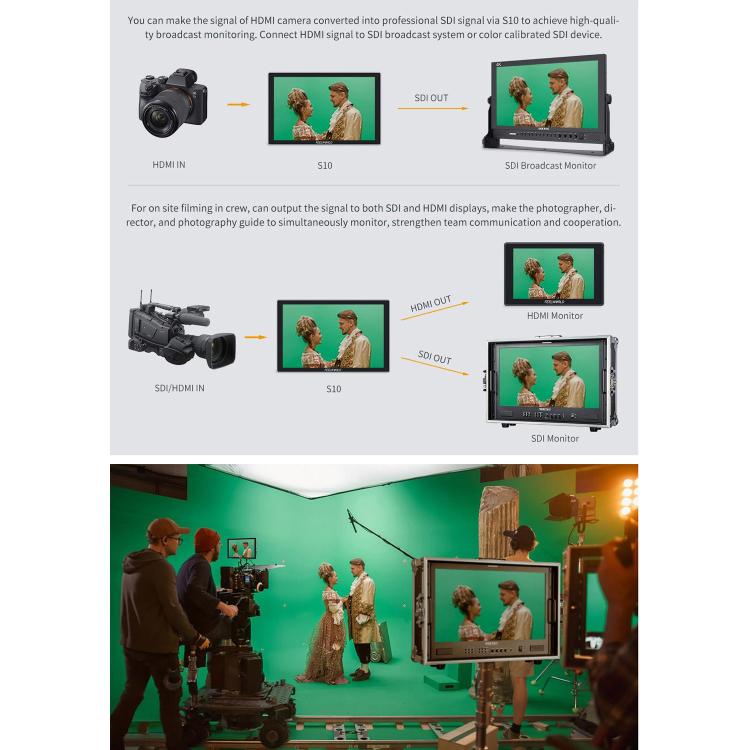

Output:
1. 1 x SDI: 12G-SDI
2. 1 x SDI: 3G-SDI
3. 1 x HDMI: HDMI2.0

Audio:
Audio: 3.5mm Stereo Headphone

12G-SDI Input and Output Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)

3G-SDI Output Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Input Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)

HDMI Output Support Format:
When set Display:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

When set Loop-out (without set,it will default to Loop out):
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)

Basic Specifications

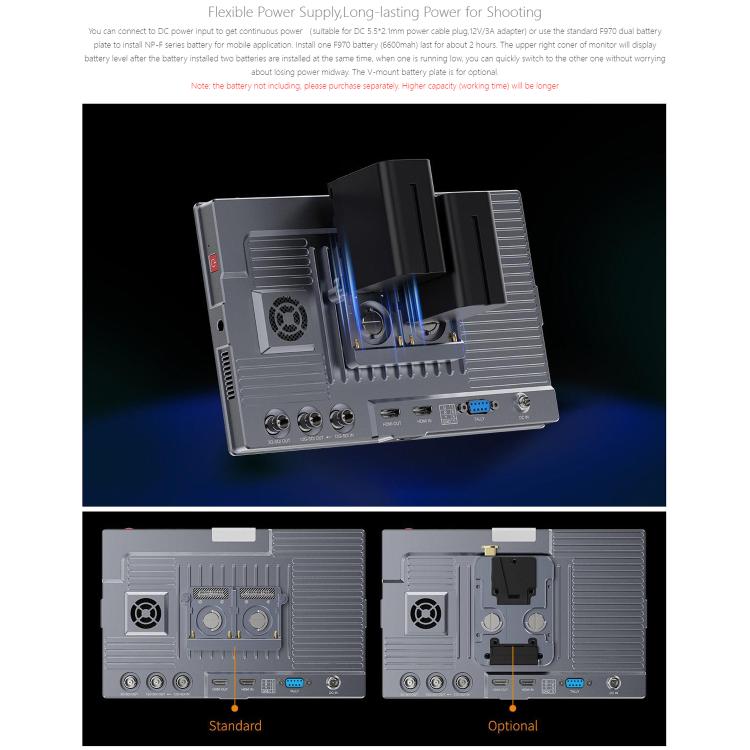

1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 25W
3. Working Temperature: -20 degree C~90 degree C
4. Storage Temperature: -30 degree C~70 degree C

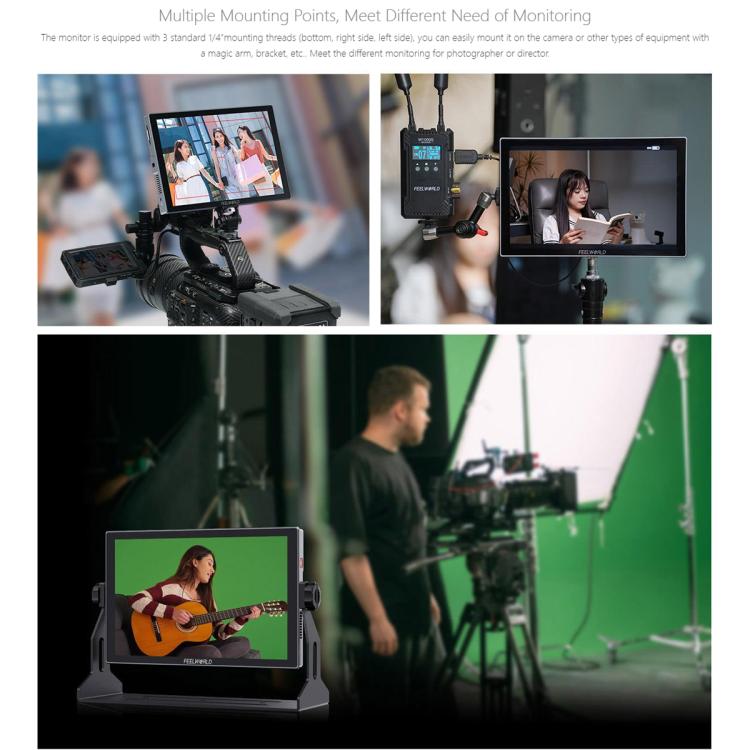

5. Install Way: 1/4 inch -20 Thread (Left,Right,Bottom)

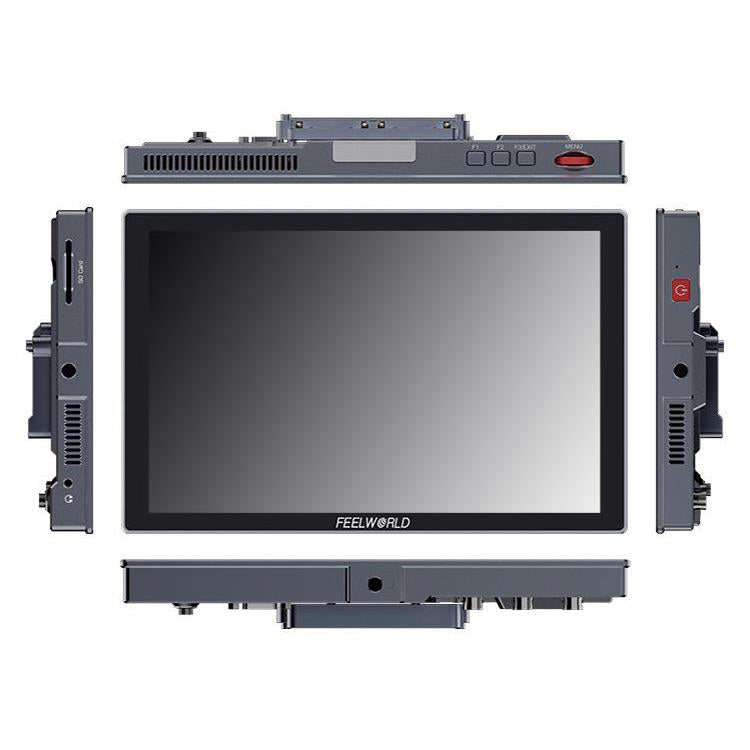

6. Unit Size: 244x157.25x26.4(mm)
7. Unit Weight: 795g

Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. HDMI Cable x 1
4. NP-F Dual Battery Plate x 1
5. U-shape Bracket x 1
6. Manual x 1
