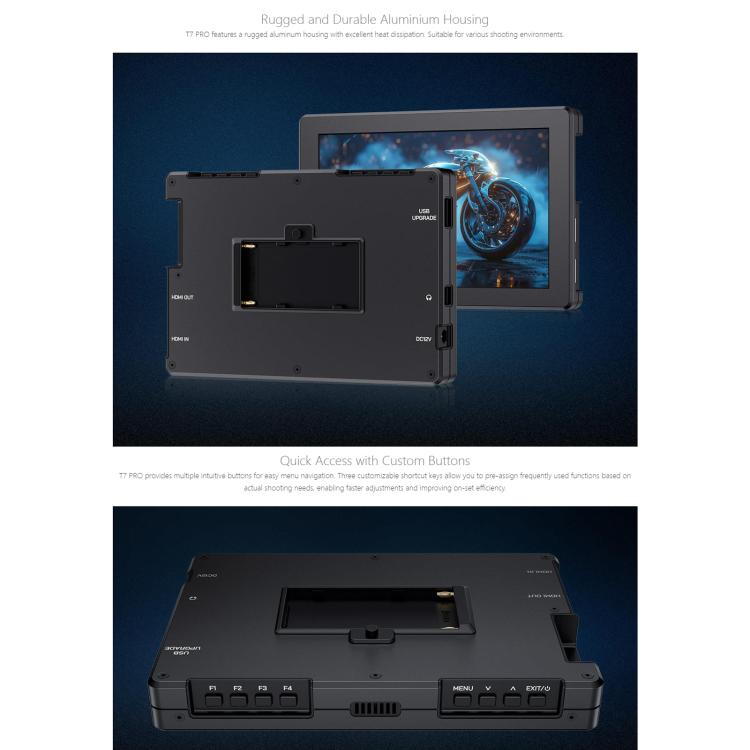

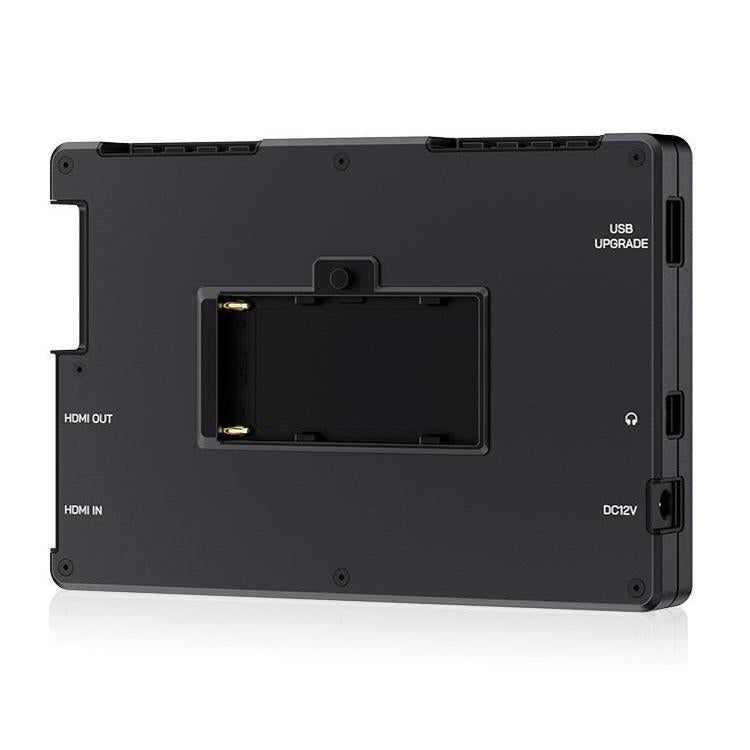

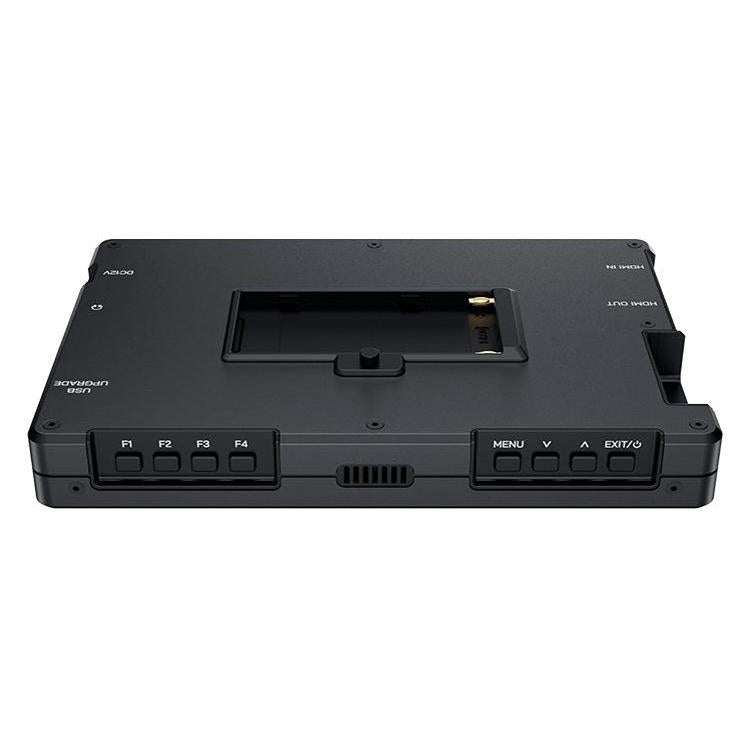

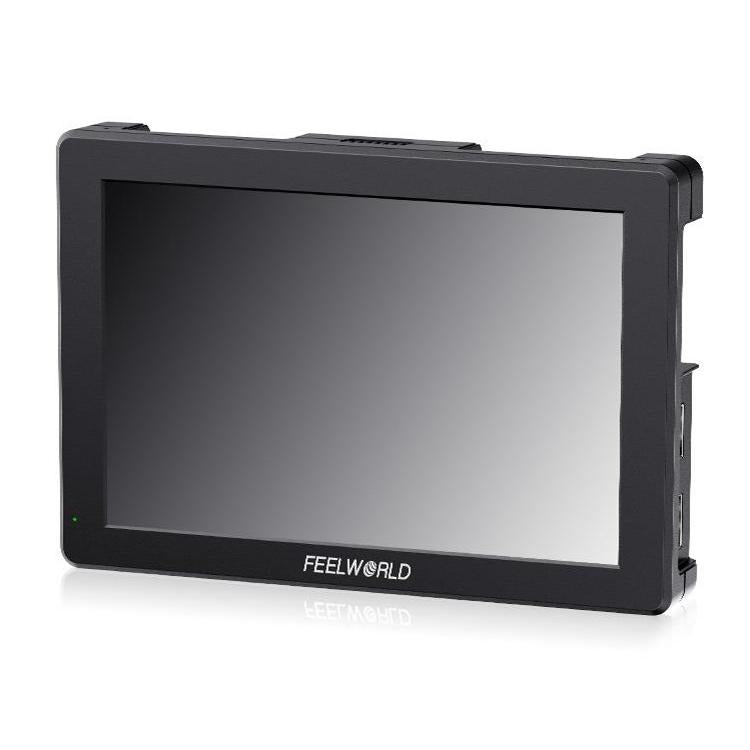

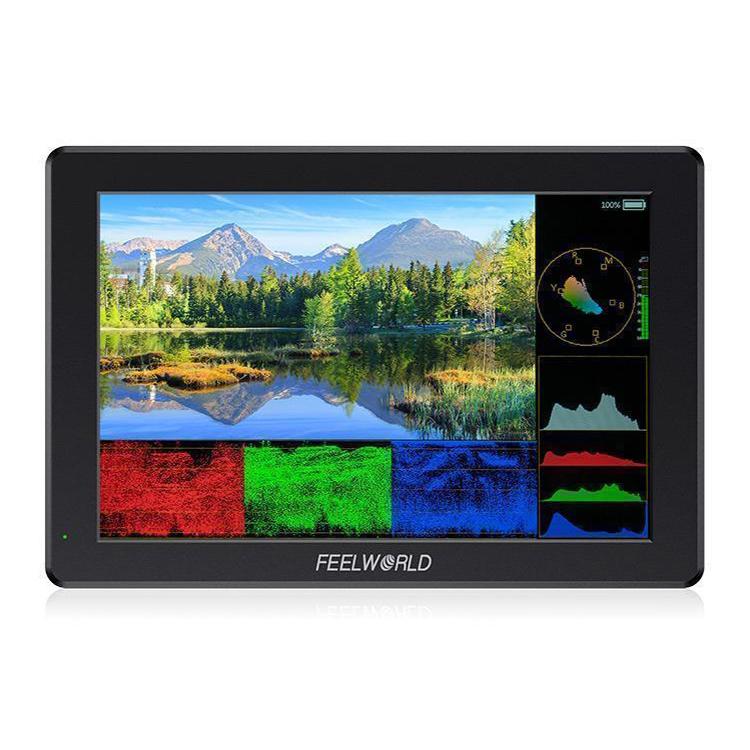

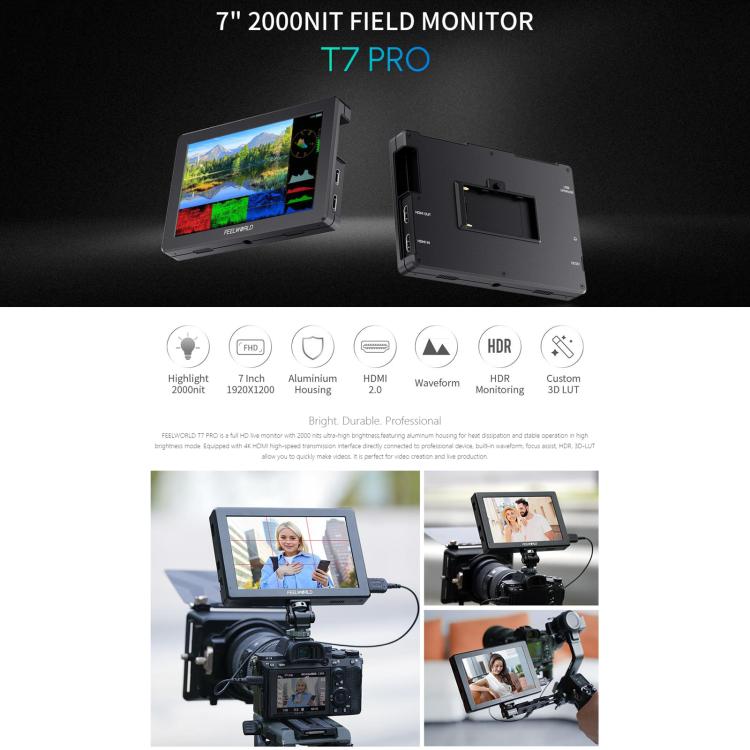

FEELWORLD T7 Pro 7-inch 2000nit Camera Field Video Monitor Aluminium Housing 4K 1920 x 1200 HDMI-compatible IPS Screen(Black)

Display Spec.
1. Model: T7 PRO
2. Screen Size: 7 inch IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875(W) x 0.07875 (H) (mm)
5. Color Depth: 8bit
6. Aspect Ratio: 16:10

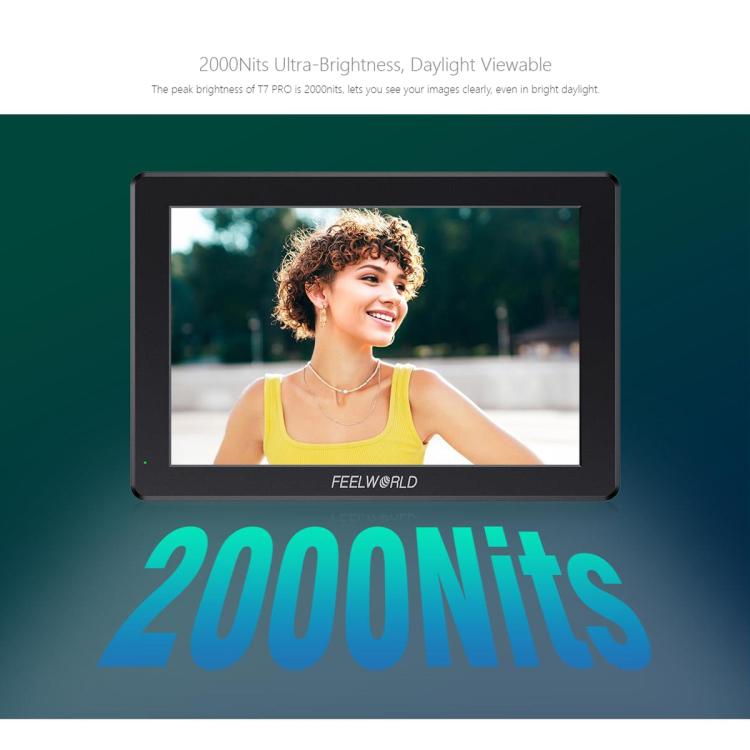

7. Brightness: 2000cd/m2
8. Contrast Ratio: 1200:1
9. Backlight: LED
10. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)

Input

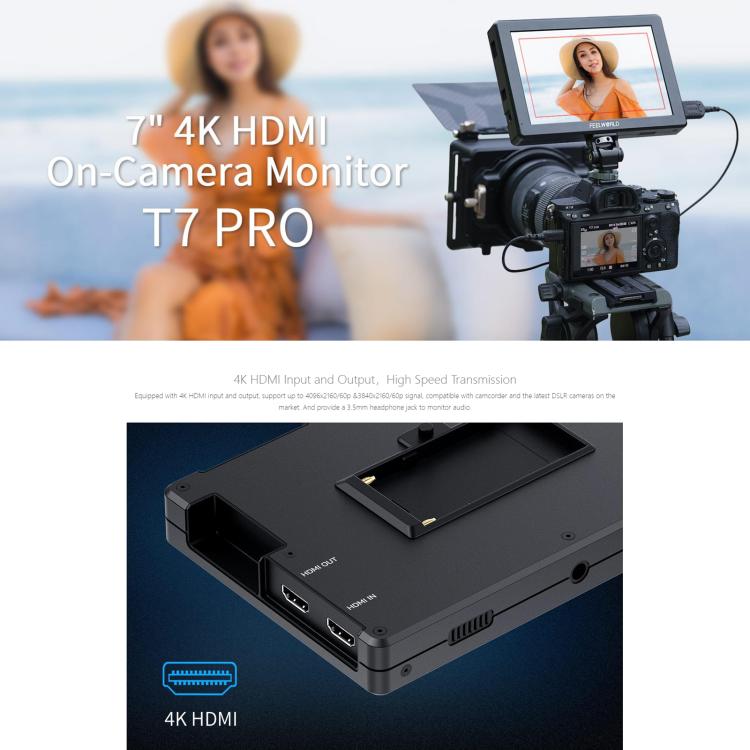

1. 1 x HDMI-compatble: HDMI-compatble 2.0
2. 1 x USB: Mini USB (LUT file import and Firmware update)

Output
1 x HDMI-compatble: HDMI-compatble 2.0

Audio
Audio: 3.5mm Stereo Headphone

HDMI-compatble Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096x2160p(60/50/30/29.97/25/24/23.98)

General

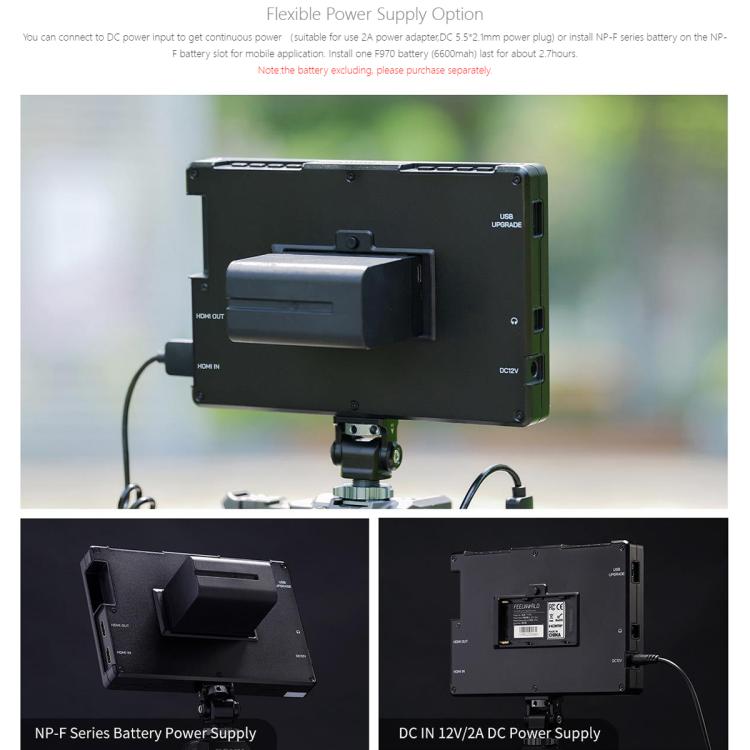

1. Power Connector: DC IN
2. Input Voltage: DC7～24V
3. Power Consumption: Less than or equal to 18W
4. Working Temperature: -20 degree C~55 degree C
5. Storage Temperature: -30 degree C~65 degree C
6. Install Way: 1/4 Thread Point (bottom)
7. Unit Size: 182.8x122.8x24 (mm)
8. Unit Weight: 336g

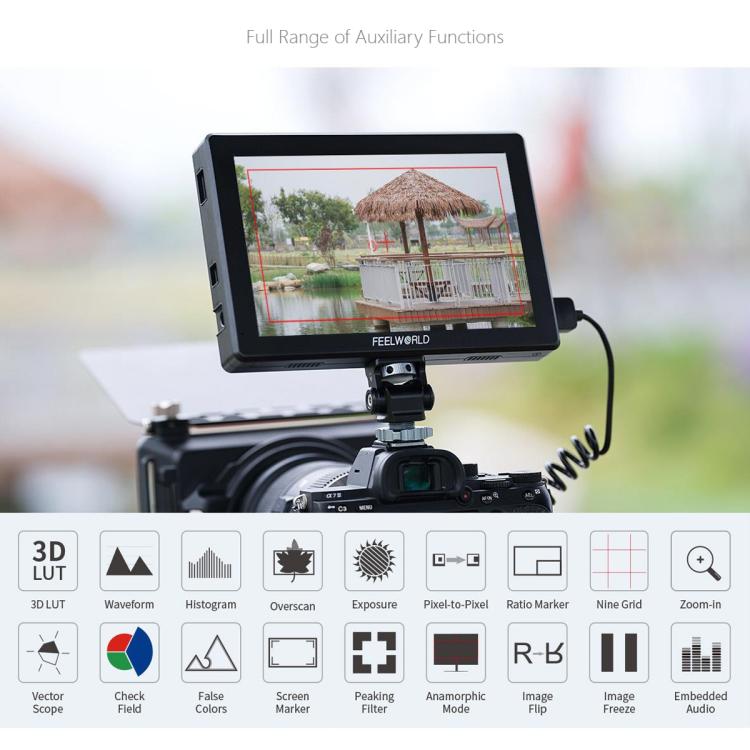

Advanced Features

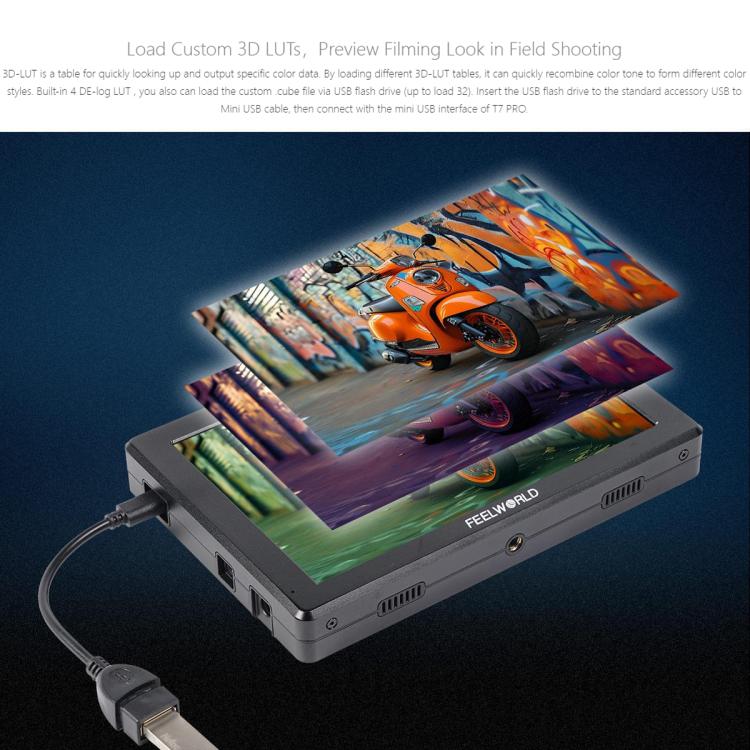

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

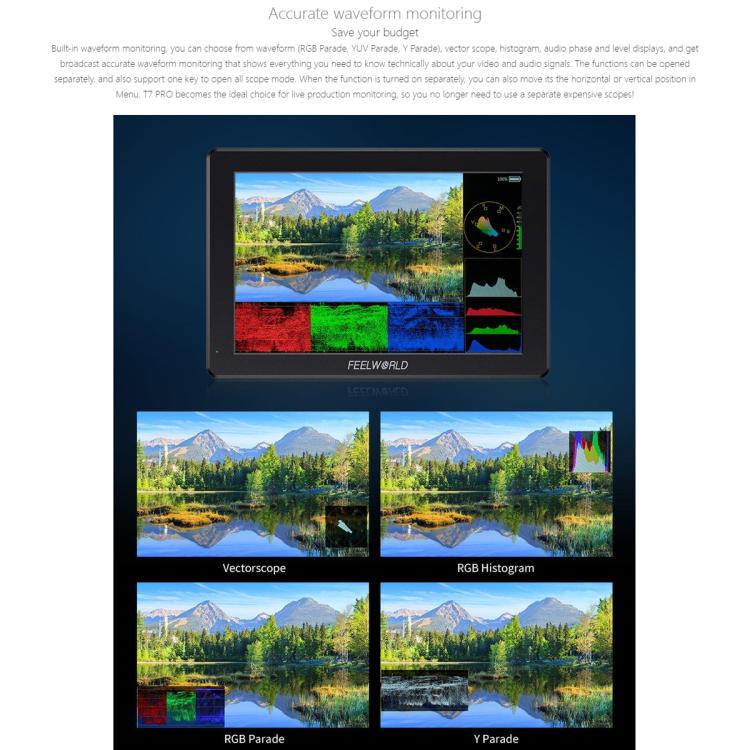

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB,Y )
6. Embedded Audio
7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE～100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

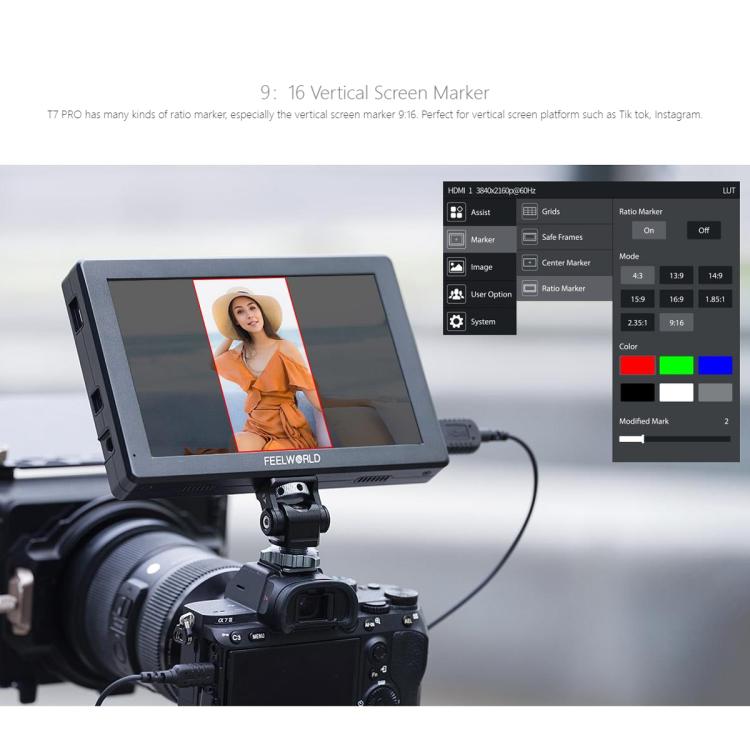

18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
22. Pixel to Pixel
23. Display Range( Auto, Limit, Full)
24. EDID Settings(2.0,1.4)

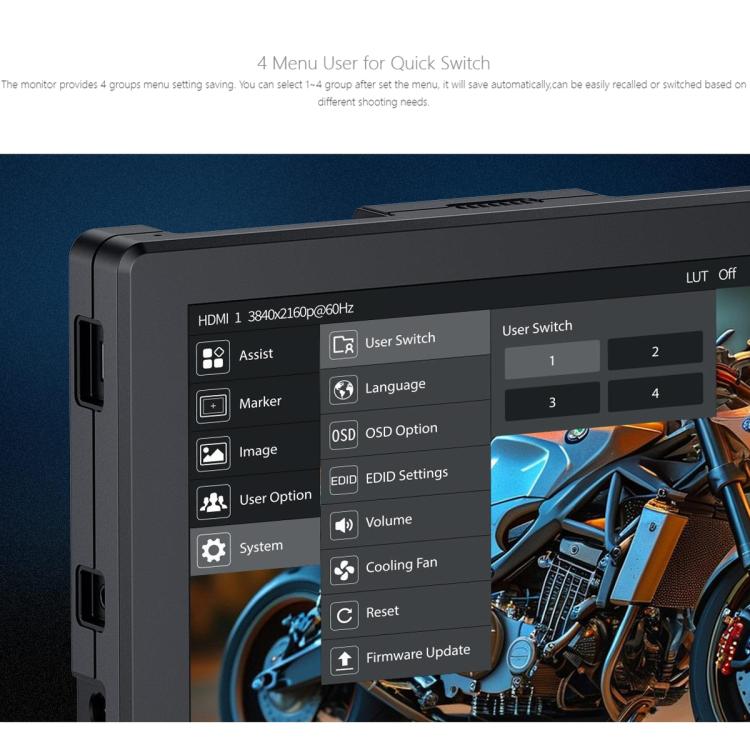

25. User Switch (1~4)
26. OSD Time(Off, 15Sec, 30Sec, 45Sec)
27. OSD Transparency (Off, 25%, 50%, 75%)
28. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
29. Power Settings (Auto, Manual)
30. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Packaging List:
1. Monitor x 1
2. HDMI-compatible Cable x 1
3. Micro HDMI-compatible Cable x 1

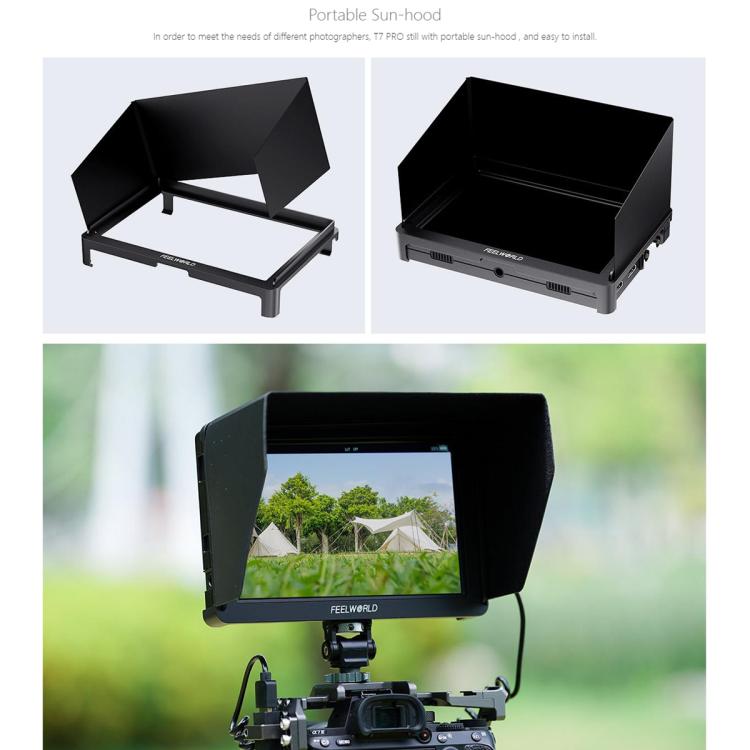

4. Sunshade x 1

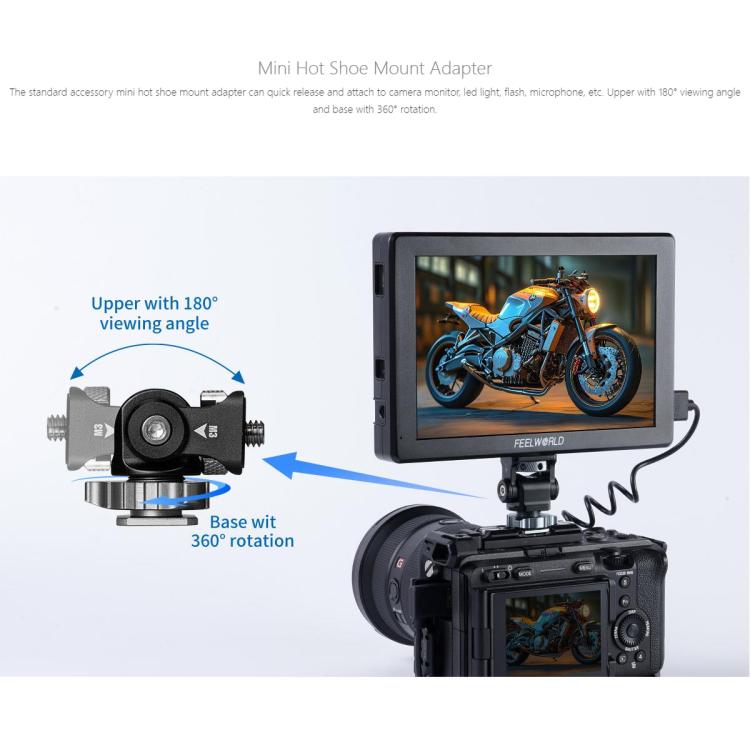

5. Mini Hot Shoe Mount+Hex Wrench x 1
6. USB-A to USB-C Adapter x 1
7. Cable Management Tie x 1
8. Manual x 1
