1. The Flysky FS-SR8A receiver supports two -way binding and one-way binding. The transmitter will display the information returned from the receiver after the two-way binding is completed.

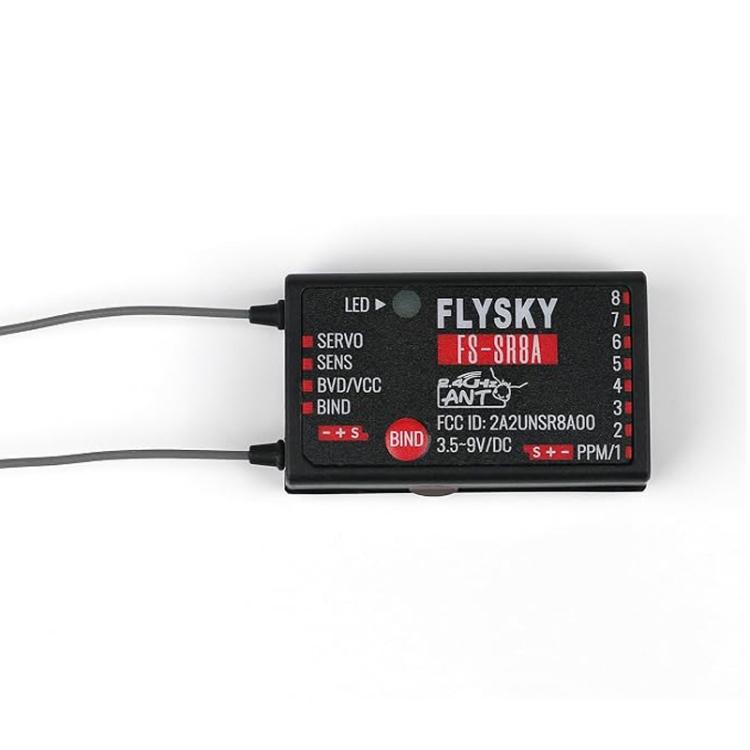

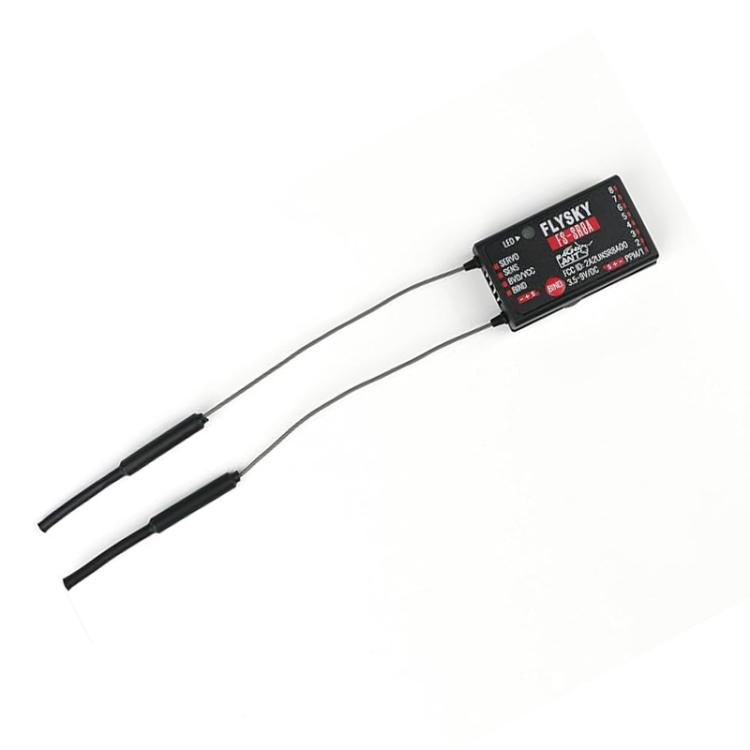

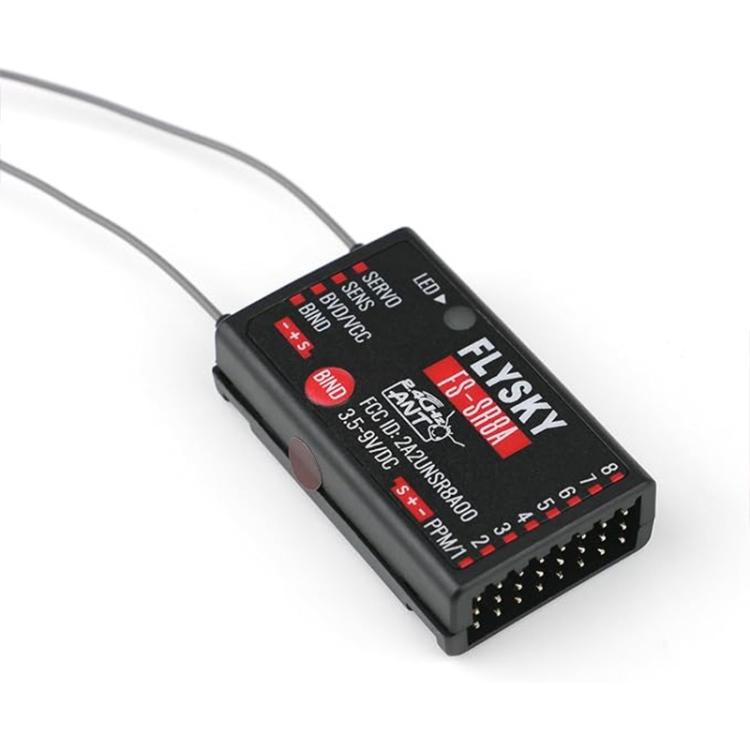

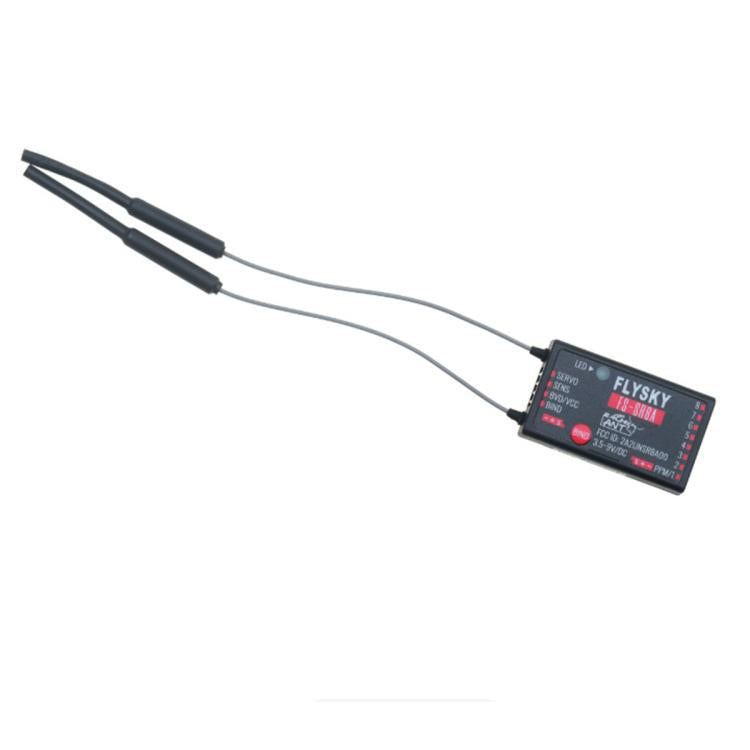

2. Flysky FS-SR8A based on ANT protocol is a 8-channel receiver with two external antennas and bidirectional transmission. It has a compact design.
3. The design of the receiver is easily to install, and it adapts a variety of models.Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, engineering vehicles, nest boats, robots or cars
4. Compatible Transmitters: FS-ST8 (Adapts transmitters with ANT protocol )
5. Input Power: 3.5~9V/DC; Data Output: PWM/PPM/i-BUS/S.BUS
Specifications:
1. Product Model: FS-SR8A
2. CompatibleTransmitters: FS-ST8 (transmitters with ANT protocol )
3. Channels: 8
4. RF: 2.4GHz ISM
5. Maximum Power: Less than 20dBm (e.i.r.p.) （EU）
6. RF Protocol: ANT
7. Resolution: 4096
8. Antenna: Two antennas (copper tube)
9. Operating Voltage: 3.5~9V/DC
10. DataOutput: PWM/PPM/i-BUS/S.BUS
11. Firmware Update: Supported
12. Temperature Range: -10 ~ +60 degree C
13. Humidity Range: 20%~ 95%
14. Dimensions: 44.8x26.6x11.3mm
15. Weight: 13g
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
16cm * 12cm * 2cm / 6.3inch * 4.72inch * 0.79inch
|
| Carton Weight |
9.00kgs / 19.84lb
|
| Carton Size |
52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch
|
| Loading Container |
20GP: 381 cartons * 100 pcs = 38100 pcs
40HQ: 885 cartons * 100 pcs = 88500 pcs
|
|
