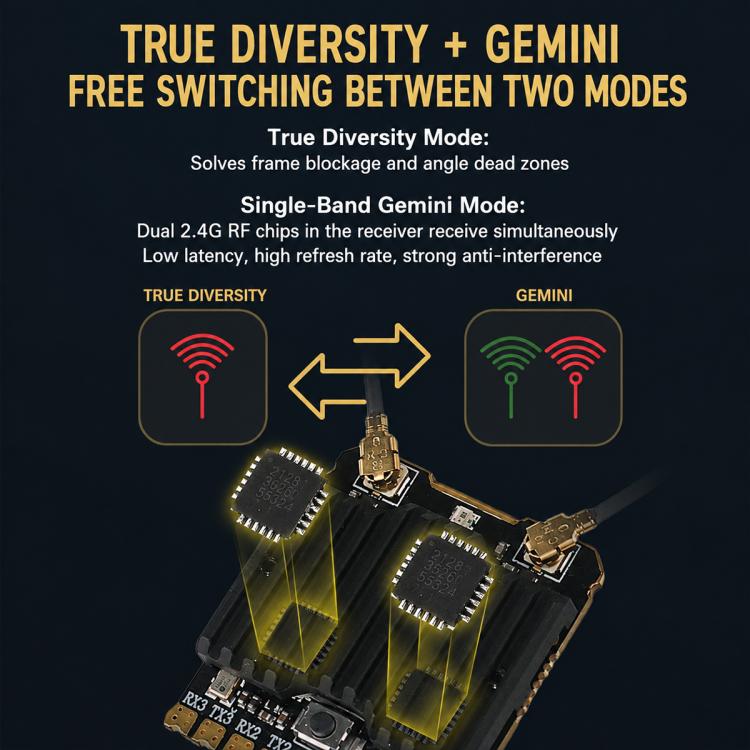

1. True Diversity + Gemini (Single-Band Dual-Star) Mode: Freely switch between True Diversity mode (eliminates airframe obstruction and angular blind spots) and Gemini mode (dual 2.4GHz RF chips for simultaneous dual-RF reception, ultra-low latency, high refresh rate, and superior anti-interference performance).

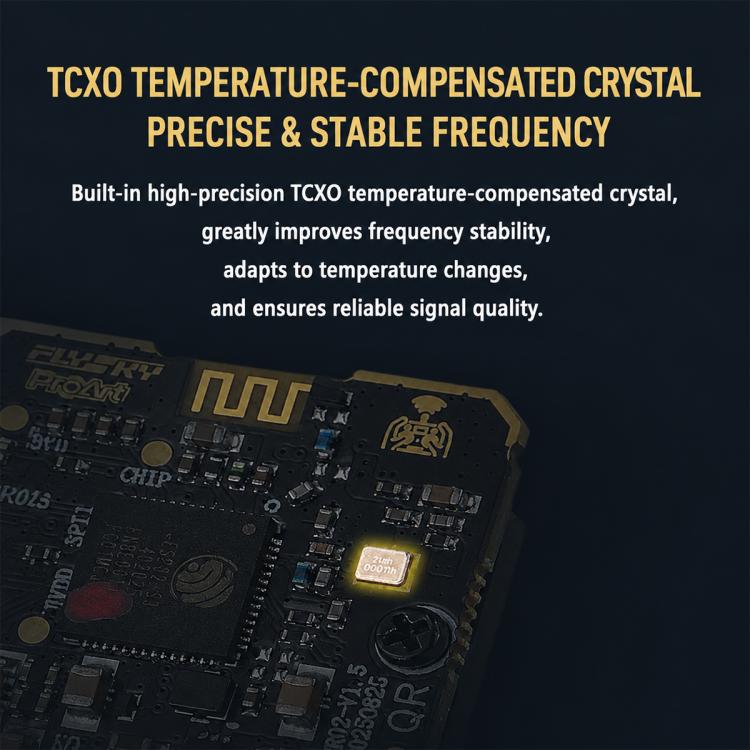

2. TCXO Temperature-Compensated Crystal Oscillator: Built-in high-precision TCXO significantly improves frequency stability across temperature variations, ensuring consistent signal quality in all weather conditions.

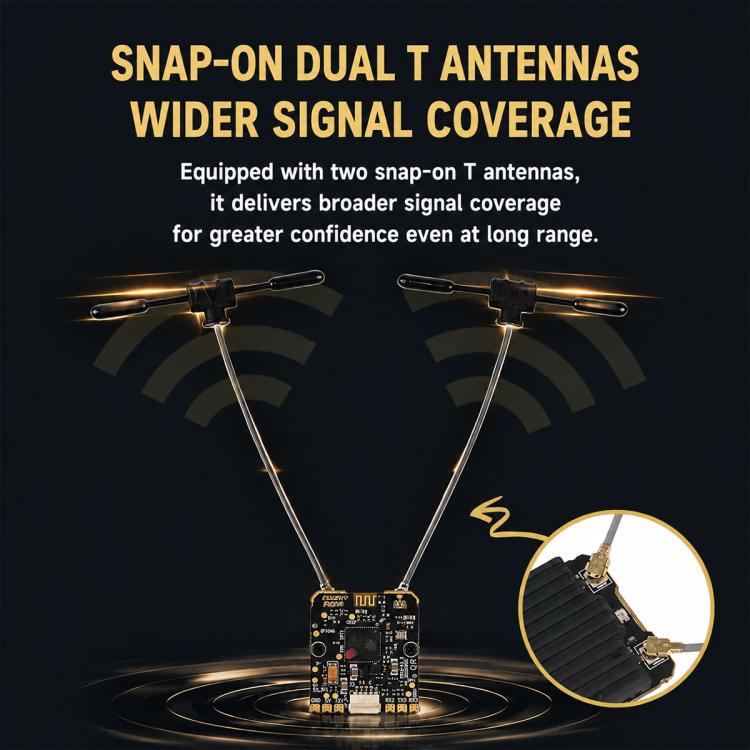

3. Clip-on Dual T-type Antennas: Two T-shaped clip-on antennas provide wider signal coverage and reliable long-range performance.
4. High-Performance Integrated LNA: Boosts receiver sensitivity for extended range and cleaner signal reception.
5. 500Hz / F1000Hz / D500Hz High Refresh Rate: Delivers ultra-responsive control with minimal latency for competitive FPV racing and precision flying.

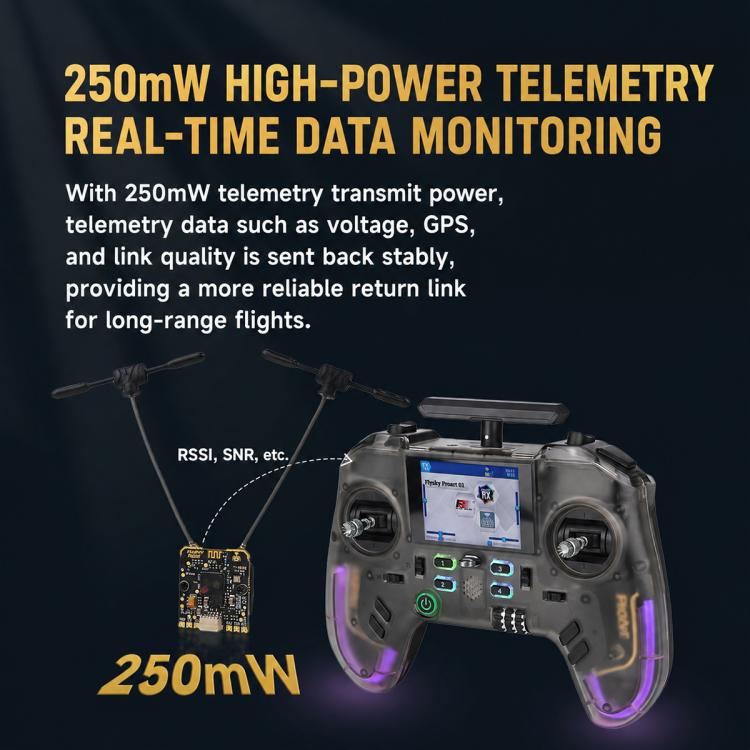

6. 250mW Return Link Power: Strong telemetry uplink for reliable two-way communication.

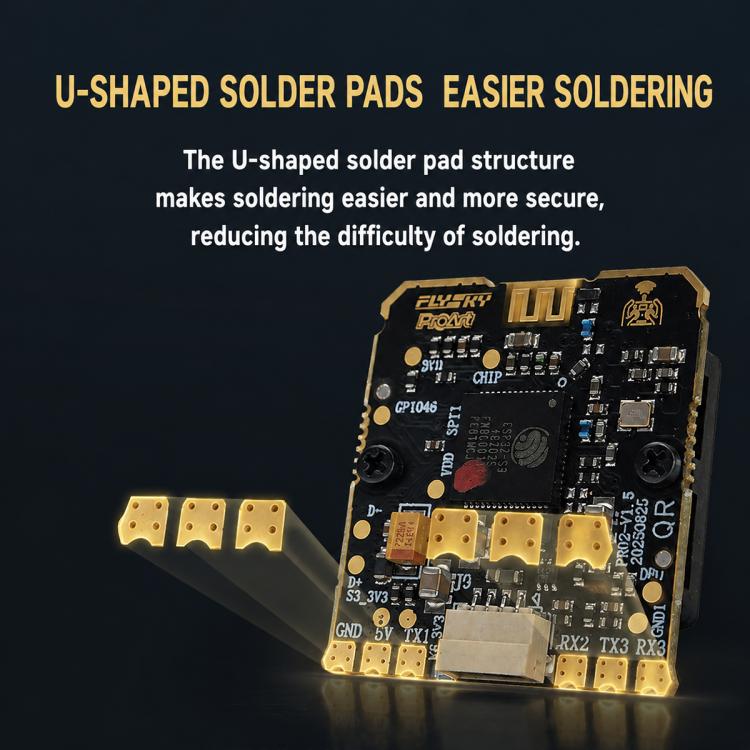

7. U-shaped Solder Pads: Innovative pad design makes soldering easier and more secure, reducing build difficulty for DIY builders.

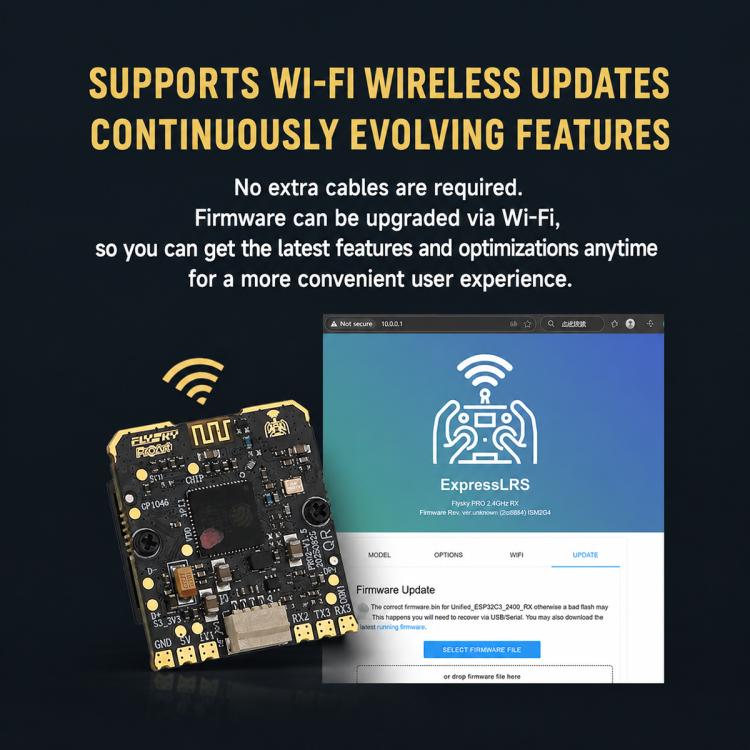

8. Wi-Fi Firmware Update: Update firmware wirelessly or via wired serial connection for hassle-free maintenance.
9. Wide Voltage Input: 4.5–12.6V DC: Compatible with a broad range of power setups.
10. 16 Channels / 4096 Channel Resolution: Precise, high-resolution control across all channels.
11. CRSF / S.BUS Output: Plug-and-play compatibility with popular flight controllers.
Specifications:
1. RF Protocol: ExpressLRS (ELRS)
2. Frequency: 2.4GHz ISM
3. Transmission Modes: Antenna Diversity, True Diversity, Gemini
4. Channels: 16
5. Channel Resolution: 4096
6. Max Refresh Rate: 500Hz / F1000Hz / D500Hz
7. Min Refresh Rate: 25Hz
8. Max Power: Less than or equal to 20dBm
9. Return Link Power: 250mW
10. Operating Voltage: 4.5–12.6V DC
11. Output Protocol: CRSF / S.BUS

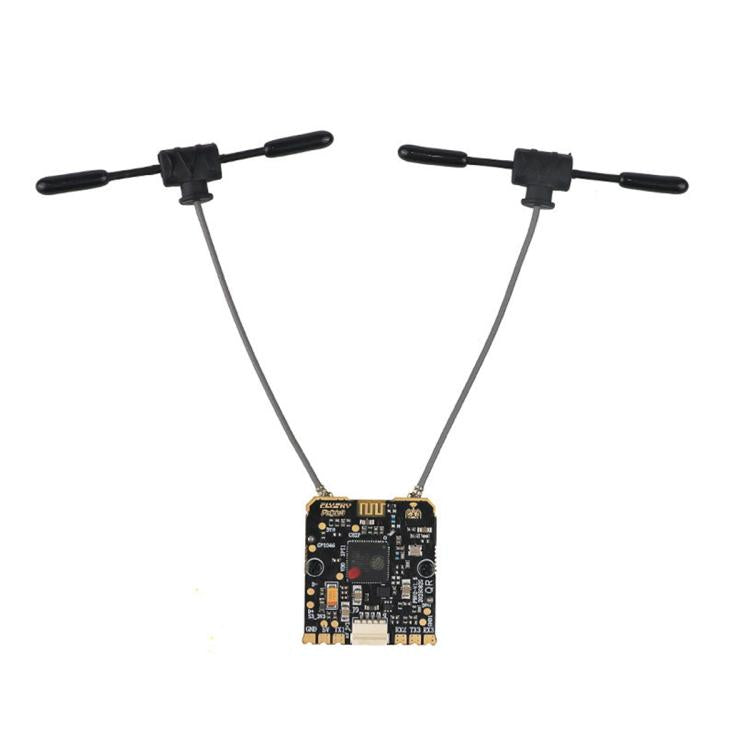

12. Antenna: Two T-shaped clip-on antennas

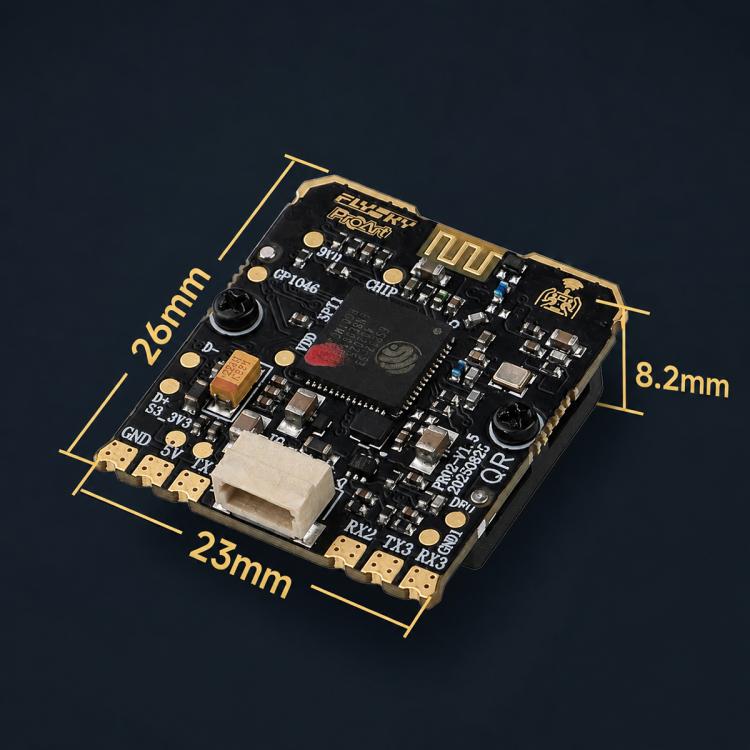

13. Dimensions: 23.0 x 26.0 x 8.2mm
14. Weight: 4.55g (without antennas)
15. Temperature Range: -10 ~ +60 degree C
16. Humidity Range: 20% ~ 95%
17. Firmware Update: Wi-Fi or wired serial
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
16cm * 8cm * 2cm / 6.3inch * 3.15inch * 0.79inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
42cm * 22cm * 33cm / 16.54inch * 8.66inch * 12.99inch
|
| Loading Container |
20GP: 874 cartons * 200 pcs = 174800 pcs
40HQ: 2030 cartons * 200 pcs = 406000 pcs
|
|
